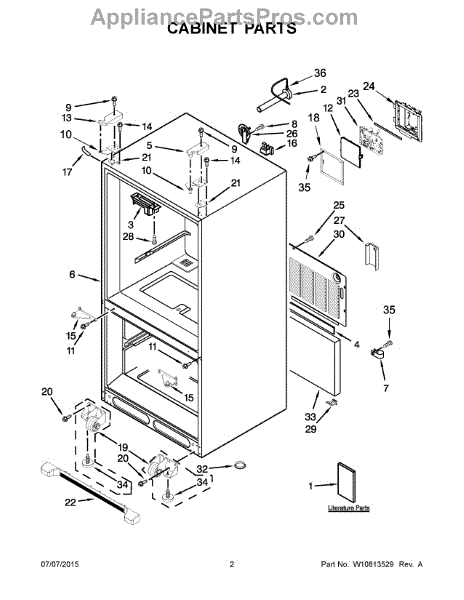

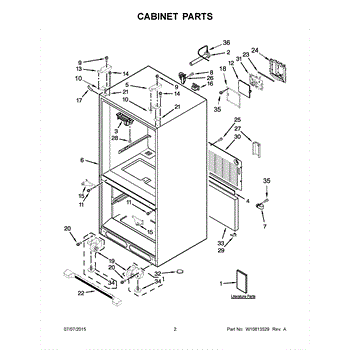

Parts for Kitchenaid KRFF302EBL01: 02 - Cabinet Parts

The Refrigerator Pivot Block is an OEM part for Whirlpool refrigerators. It supports the door hinge, allowing the refrigerator door to open and close smoothly. The pivot block ensures that the door stays aligned and securely attached to the refrigerator frame.

Causes of a bad pivot block can include wear and tear over time, heavy use, or damage from accidental impacts. Misalignment or excessive force when opening and closing the door can also contribute to its failure.

Symptoms of a bad refrigerator pivot block include:

• The refrigerator door not opening or closing properly
• A misaligned door that doesn't seal correctly
• Unusual noises when the door is operated
• The door feeling loose or wobbly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This right top hinge cover protects and conceals the refrigerator door hinge for a clean finish and safer access. It restores appearance and keeps the hinge area free from dirt and accidental contact. What it does:

• Covers the top right door hinge to hide hardware and improve aesthetics
• Shields the hinge from dust, debris and incidental contact that can cause wear
• Prevents sharp or moving hinge parts from catching on clothing or items
• Useful when the original cover is cracked, broken, or missing

• One right top hinge cover

• Remove any items from the door and support the door before removing hinge components
• Use basic hand tools; avoid forcing parts or overtightening fasteners
• Wear gloves to protect hands from sharp edges and to keep the cover clean

A right-side top hinge cover that restores your appliance's finished appearance and protects the hinge mechanism from dust and debris. Fits over the hinge area to hide hardware and prevent snags or buildup. What it does

• Covers and protects the top hinge assembly to keep moving parts free of lint, dirt, and moisture
• Restores a clean, finished look when the original cover is cracked, broken, or missing
• Helps prevent clothing or items from catching on exposed hinge hardware
• Matches the original mounting points for a secure, low-profile fit

• One right-side top hinge cover

• Disconnect power before starting work and follow basic electrical safety
• Typically installs by removing the top or lift panel and snapping or fastening into the hinge area; keep all mounting screws
• If cover is brittle or fragmented, remove all remnants before fitting the new piece to ensure a flush install
• Use hand tools; avoid overtightening fasteners which can crack the replacement

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

The Screw is an OEM part for Whirlpool refrigerators. This screw secures the refrigerator door hinge in place, allowing the door operates smoothly and seals properly.

Over time, screws can become loose or go missing during repairs or adjustments, which can lead to a misaligned door, compromised sealing, and increased energy consumption.

Symptoms of a bad screw include:

• The refrigerator door seems misaligned or does not close properly.
• Increased effort needed to open or close the door.
• Unusual gaps around the door seal when closed.
• The door might squeak or make other noises during operation.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components to restore proper fit and reduce vibration. A straightforward fastener that helps keep parts aligned and prevents noise or loose trim from worsening. What it does:

• Fastens panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling or vibration caused by loose or missing hardware
• Restores proper alignment where original screw has been lost or damaged
• Works wherever the OEM screw specification is required for secure mounting

• Turn power off and unplug the appliance before working on it
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed fasteners organized so you reinstall the correct pieces

This replacement cover protects and conceals the appliance's control board and related electronics, helping prevent debris intrusion and accidental contact. It restores the appliance's original internal protection and appearance. What it does

• Shields the control board and wiring from dust, lint, and small debris
• Helps prevent accidental contact with electrical components
• Maintains proper component placement and internal airflow paths
• Useful when repairing or replacing control assemblies or wiring

• One replacement cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove access panels as needed to access the control area; handle panels gently to avoid breaking tabs
• Align the cover with mounting points and secure with original fasteners; do not overtighten
• If you see damaged wiring or connectors, stop and address electrical damage before reassembling

This cover hinge assembly secures and guides the appliance lid or top panel so it opens and closes smoothly. Replacing a worn hinge restores proper lid alignment and helps eliminate sticking, sagging, or uneven closure. What it does:

• Provides a pivot point for the lid/top cover, holding it in the correct position during use
• Restores smooth opening and closing when original hinge is bent, worn, or broken
• Helps eliminate lid sag, misalignment, or rubbing against the cabinet
• Works with the appliance's existing bracketry and fasteners to maintain fit and function

• One cover hinge assembly

• Basic hand tools required; keep fasteners organized for reassembly
• Disconnect power and follow appliance-specific safety guidelines before beginning repair
• Inspect mating surfaces and replace any damaged screws or brackets for a secure fit

This hinge cover assembly conceals and protects the door hinge area, providing a clean look while shielding wiring and moving parts from dust and moisture. It restores proper coverage if the original cover is cracked, missing, or loose.

• Covers the hinge area to protect components and improve appearance
• Helps prevent debris intrusion around the hinge mechanism
• Common fix for a broken, missing, or damaged hinge cover
• May help if the hinge area is exposed or rattling due to a loose cover

• Unplug appliance before service; shut off water if applicable
• Use a non-marring tool to release clips or tabs; avoid prying on finished surfaces
• Transfer any reusable screws or trim from the old cover
• Confirm secure engagement of tabs/screws to prevent vibration

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

The door hinge is an OEM part for Whirlpool refrigerators. It plays a role in holding the refrigerator door securely in place while allowing it to swing freely for easy access. The hinge is designed to withstand the pressure of opening and closing the door smoothly over many years of use.

Causes of a bad hinge include wear and tear from repeated opening and closing of the door, exposure to excessive force or impact, or overloading of the door with heavy items.

Symptoms of a bad hinge include:

• The door not closing properly or unevenly
• Increased effort required to open or close the door
• Noises or squeaking coming from the hinge area
• The door leaning or not staying securely closed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door hinge secures and pivots a refrigerator door, restoring smooth opening and proper alignment to prevent gaps and uneven closing. Designed to match OEM form and fit for reliable operation. What it does:

• Provides a durable pivot point so the door opens and closes smoothly
• Restores proper door alignment to improve sealing and cooling performance
• Reduces door sag and uneven gaps that can cause leaks or rubbing
• Fits the original hinge location and mounting pattern for correct operation

• Support the door before removing the old hinge to prevent injury or damage
• Disconnect power to the appliance if required for access or to avoid electrical components
• Use basic hand tools; follow OEM instructions for torque and fastener sequence
• Inspect and repair before installation if hinge mounting holes or door alignment are damaged.

This door hinge secures and pivots a refrigerator door, restoring smooth opening and proper alignment to prevent gaps and uneven closing. Designed to match OEM form and fit for reliable operation. What it does:

• Provides a durable pivot point so the door opens and closes smoothly
• Restores proper door alignment to improve sealing and cooling performance
• Reduces door sag and uneven gaps that can cause leaks or rubbing
• Fits the original hinge location and mounting pattern for correct operation

• Support the door before removing the old hinge to prevent injury or damage
• Disconnect power to the appliance if required for access or to avoid electrical components
• Use basic hand tools; follow OEM instructions for torque and fastener sequence
• Inspect and repair before installation if hinge mounting holes or door alignment are damaged.

A replacement door hinge assembly that secures the appliance door and lets it pivot smoothly. Installing the correct hinge restores proper door alignment so the door opens and closes reliably and reduces uneven gaps. What it does:

• Provides the pivot point that supports the door and maintains alignment.
• Replaces cracked, worn, or bent hinges that cause door sag or misalignment.
• Helps the door close fully and stay seated to reduce drafts and uneven sealing.
• Restores normal hinge movement to eliminate sticking or noisy operation.

• Disconnect power to the appliance before beginning any repair.
• Support the door while removing and installing the hinge to prevent injury or damage.
• Use the correct hand tools and keep track of mounting hardware; do not overtighten fasteners.
• After installation, check door swing and alignment; adjust as needed.

A replacement door hinge assembly that secures the appliance door and lets it pivot smoothly. Installing the correct hinge restores proper door alignment so the door opens and closes reliably and reduces uneven gaps. What it does:

• Provides the pivot point that supports the door and maintains alignment.
• Replaces cracked, worn, or bent hinges that cause door sag or misalignment.
• Helps the door close fully and stay seated to reduce drafts and uneven sealing.
• Restores normal hinge movement to eliminate sticking or noisy operation.

• Disconnect power to the appliance before beginning any repair.
• Support the door while removing and installing the hinge to prevent injury or damage.
• Use the correct hand tools and keep track of mounting hardware; do not overtighten fasteners.
• After installation, check door swing and alignment; adjust as needed.

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

The Front Left Roller Assembly is an OEM part for Whirlpool refrigerators. This roller assembly supports the refrigerator, allowing it to be easily moved for cleaning or maintenance.

Causes of a bad roller assembly can include wear and tear over time, damage from moving the refrigerator frequently, or exposure to heavy loads that can cause the roller to crack or break.

Symptoms of a bad front left roller assembly include:

• Difficulty moving the refrigerator
• The refrigerator not staying level
•  Unusual noises when attempting to move the appliance
• Visible damage or wear on the roller

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Roller Assembly is an OEM part for Whirlpool refrigerators. It contains heavy-duty ball bearing rollers located along the bottom front-right cabinet. Repeatedly maneuvering fully-loaded refrigerators can cause cabinet rollers to crack or bearing races to deteriorate over extended use.

Potential failure causes include structural cracks from strong impacts or bearing lubrication washing away from repeated wet cleaning.

Symptoms of faulty cabinet rollers include:

• Resistance or grinding noises when tilting the refrigerator
• Visible bearing marks wearing into roller housing
• Potential for cabinet walls or flooring damage without smooth motion

This is a genuine Whirlpool OEM replacement, this part is also compatible with Maytag, Jenn-Air and some KitchenAid models.

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This replacement shim is a thin positioning spacer used to align or level internal components for correct fit and operation. It helps restore proper clearances and reduce rubbing, noise, or misalignment-related issues. What it does:

• Provides precise spacing between parts to ensure correct alignment
• Helps eliminate rubbing or contact that can cause noise or wear
• Restores proper component clearance after service or reassembly
• Used when a missing, worn, or incorrect spacer leads to misalignment symptoms

• One replacement shim

• Inspect mating surfaces and clean debris before installing the shim
• Verify correct placement and orientation against the original shim or diagram
• Tighten fasteners to the manufacturer's specifications; do not overtighten
• Disconnect power and follow all safety precautions before servicing

This front grille covers the lower front of the refrigerator and helps guide airflow through the condenser area. Replace a cracked, loose, or missing grille to restore appearance and proper ventilation. What it does:

• Covers and protects the base area, giving the unit a finished look
• Helps channel air to the condenser for consistent ventilation
• Helps keep dust and debris from collecting under the appliance
• Common symptoms: cracked/broken grille, broken tabs, won't stay attached, missing piece

• 1 front grille

• Disconnect power before servicing
• Release retaining clips or remove any mounting screws per your model
• Align tabs and snap or fasten the new grille into place
• Reuse original screws/clips if applicable; secure attachment and clear airflow

The Front Grille is an OEM replacement part for Whirlpool refrigerators. It is a decorative grille situated at the front bottom of the refrigerator that serves an important role in airflow. The grille allows for ventilation while protecting interior components from collecting dust and debris.

Causes of a bad grille can be prolonged exposure to dirt and contaminants preventing proper ventilation, or damage from impact that deforms or cracks the grille structure.

Symptoms of a bad grille include:

• Reduced airflow
• Build up of interior heat
• Whistling/buzzing noises
• Over time, exposure to dust and grime can clog the openings or cause warping of the grille shape.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This front base grille covers the lower toe area of the appliance, protecting internal components and channeling air through the condenser section. Replace a cracked or missing grille to restore a clean look and proper ventilation at the front. What it does:

• Covers the lower front area and helps direct airflow to the condenser
• Shields wiring and components from bumps, dust, and debris
• Helps reduce vibration noise when properly secured
• Common fix for a broken, warped, loose, or missing base grille

• 1 front base grille

• Disconnect power before servicing; turn off water supply if working near water lines
• Open doors as needed to access the grille fasteners
• Remove the old grille by releasing retaining clips or removing screws
• Align and secure the new grille using the existing mounting points; keep vents unobstructed

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement cover protects water-related components on select Whirlpool washers, helping keep valves and hoses shielded from debris and incidental contact for reliable water flow management. What it does

• Protects water valves, inlet hoses, and nearby fittings from dirt and accidental contact
• Helps maintain proper water routing by keeping components covered and positioned
• Commonly replaced if cracked, broken, warped, or missing after impact or wear
• Can prevent debris buildup that interferes with valve operation or connections

• One replacement cover as pictured

• Disconnect power and shut off the water supply before starting any repair
• Secure with existing screws or clips
• Do not force the cover into place; inspect surrounding fittings and hoses for damage while installing
• If you see leaks after installation, recheck hose connections and valve seating; replace defective parts as needed

This factory screw secures appliance components so they stay aligned and firmly attached during everyday use. Replacing a missing or damaged screw helps stop rattles, looseness, and poor fit that can affect performance over time.

• Fastens panels, brackets, or hardware to keep assemblies tight
• Helps correct issues like loose handles, vibrating panels, or misaligned parts
• Restores proper fit after a screw is stripped, corroded, or lost
• Built to match the original thread and length for reliable engagement

• Disconnect power and, if applicable, shut off water before servicing
• Use the correct driver to avoid stripping the head or threads
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Replace any companion fasteners that are worn or missing for even clamping

This electronic control board is the central module that runs your dishwasher's cycles. It controls power and timing so the unit fills, washes, drains, and dries correctly—restoring normal operation when the original board has failed.

• Manages cycle timing and options, routing power to the wash motor, drain pump, water inlet valve, and heating circuit
• Interfaces with sensors and the door latch to start and advance cycles
• Monitors faults to help protect components and ensure proper operation

• Disconnect power at the breaker and verify no voltage before service
• Access location varies by model
• Use ESD precautions; move connectors one at a time to the matching terminals
• After reassembly, run the unit's diagnostic/service cycle per the tech sheet to verify operation

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free
