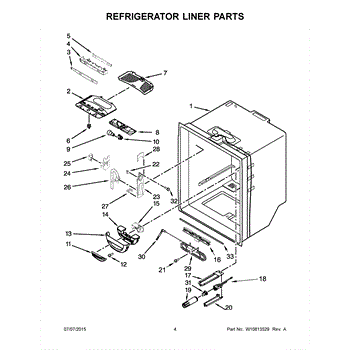

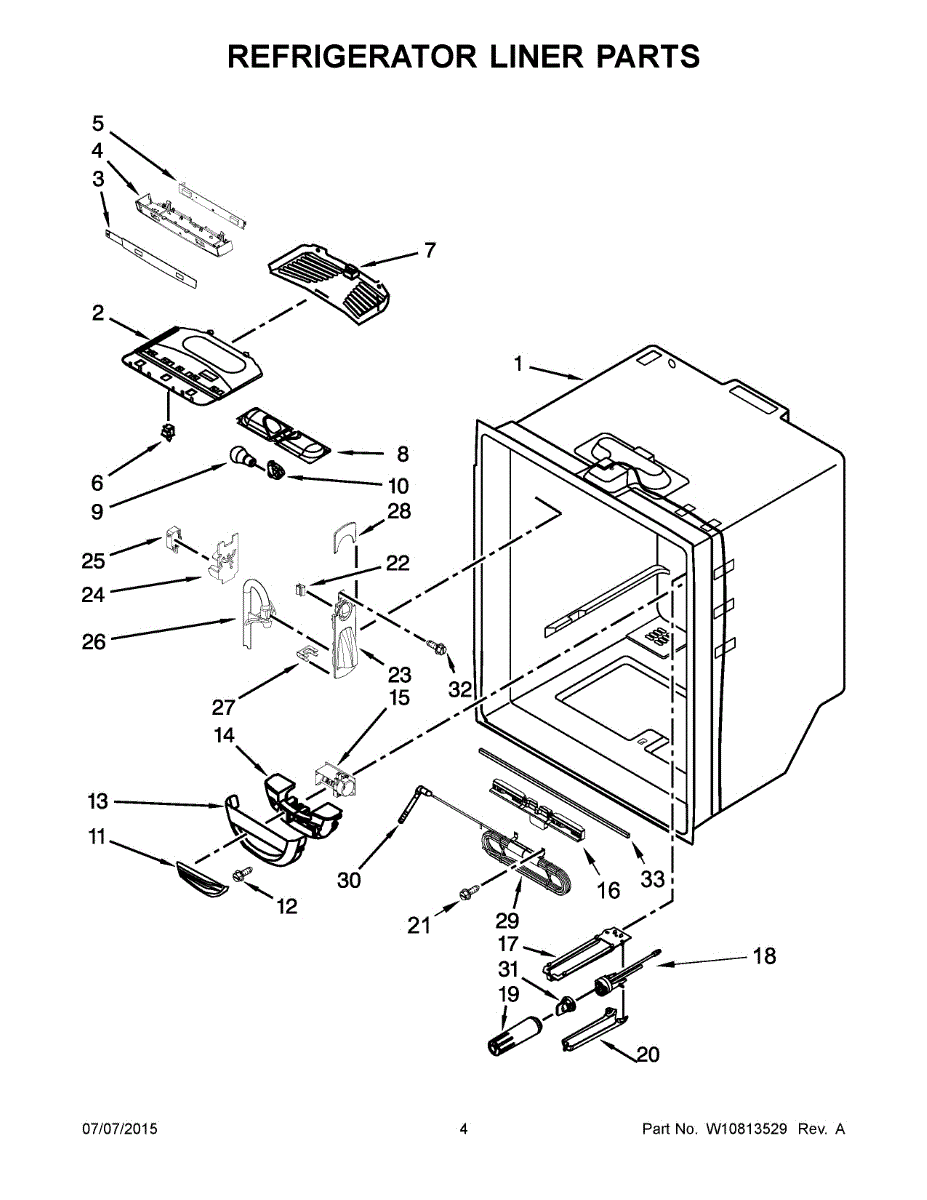

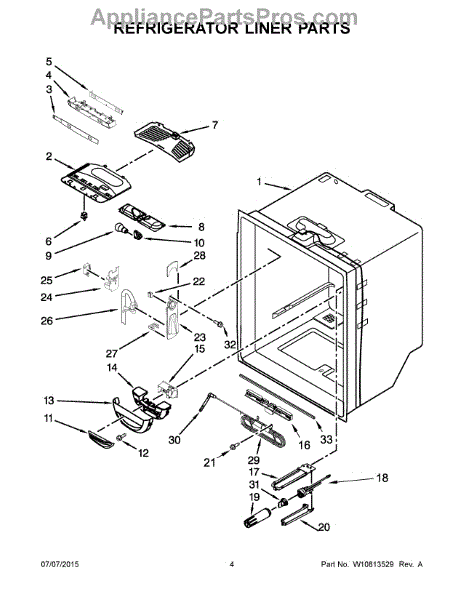

Parts for Kitchenaid KRFF302EBL01: 03 - Refrigerator Liner Parts

This overlay is the decorative and functional cover for the appliance control panel that restores button labels and the finished appearance. It replaces a faded, cracked, or worn panel overlay to make controls readable and attractive again. What it does:

• Protects the underlying control electronics and buttons from spills, grease, and wear
• Provides printed labels and markings for accurate button and function identification
• Restores a clean, professional appearance to the control area
• Can resolve issues where controls are hard to read or the front panel is cosmetically damaged

• Disconnect power to the appliance before beginning any work.
• Remove any trim or bezels per the appliance service instructions to access the overlay.
• Handle the overlay carefully to avoid scratching or bending; align tabs or studs before snapping into place.
• Reassemble trim and restore power; verify all controls and displays function normally.

This housing is the replacement outer tub housing that supports and secures the washer tub and related drive components for proper alignment and operation. Restores stable drum mounting and reduces abnormal motion. What it does:

• Supports the washer's tub/drum assembly so the drum spins smoothly and stays aligned
• Provides a mounting surface for suspension and drive components to reduce vibration and noise
• Helps prevent rubbing or scraping by keeping internal components correctly positioned
• Commonly replaced when the tub feels loose, spins unevenly, or makes unusual noises

• One housing

• Disconnect power to the appliance before beginning any repair
• Handle with care to avoid damaging seals, sensors, or surrounding trim pieces
• Verify correct orientation and torque for fasteners; follow OEM service manual steps

The Control Board is an OEM component specifically designed for Whirlpool refrigerators. Located inside the fresh food compartment, it contains sensitive electronic control boards that regulate various refrigerator functions. Precise control ensures the proper operation of critical systems.

Causes of a bad control board can include failure of solder joints from vibration, water damage, or failure of surface mount components due to extensive usage over time.

Symptoms of a bad control board include:

• Refrigerator failing to reach set temperature
• Compressor or fans failing to turn on even when conditions call for cooling
• Lights or ice maker not working properly
• Error codes or diagnostic fault messages appearing

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch Assembly is an OEM replacement part for Whirlpool refrigerators. It is responsible for turning the light on when you open the refrigerator door and turning it off when the door is closed. It ensures that the light functions properly, allowing you to easily locate and retrieve items from your refrigerator.

Symptoms of a faulty door light switch include:

• Interior light not turning on when the door is opened
• Interior light staying on even when the door is closed

A bad door light switch can occur due to regular use, wear and tear, or accidental damage. If you notice issues such as the interior light not turning on or off when you open or close the door, it may be time to replace the door light switch.

This Whirlpool replacement part is also compatible with Sears/Kenmore models.


This replacement housing is the outer cabinet component that supports and protects internal appliance parts, restoring proper alignment and preventing debris intrusion. It's a direct-fit service piece when the original housing is cracked, bent, or damaged. What it does:

• Replaces a damaged or cracked outer housing to restore structural support
• Protects internal components from dirt, moisture, and impact
• Reduces vibration and rattling caused by warped or broken housing
• Helps maintain correct alignment of internal assemblies for reliable operation

• One replacement housing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully — use gloves to protect against sharp metal or plastic
• Follow OEM instructions for removal and reassembly; fasteners and trim may be required

The Bulb-Light is an OEM part for Whirlpool refrigerators. This bulb is designed to illuminate the interior of your refrigerator, making it easier to see and organize the contents.

Symptoms of a failing refrigerator light bulb include:

• Dimming or flickering of the light
• Light not turning on when the refrigerator door is opened
• Inconsistent performance, with the light turning on and off intermittently

Causes of light bulb failure in refrigerators generally involve the bulb reaching the end of its useful life, loose connections in the light socket, or issues with the refrigerator’s door switch that controls the light.

This OEM part is also compatible with other Whirlpool brand appliances, such as Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This damper cover insert fits the refrigerator's air damper/diffuser. It helps guide and seal airflow from the freezer to the fresh food section, supporting stable temperatures and reducing drafts when the original insert is cracked or missing.

• Seats inside the damper cover to shape and restrict airflow between freezer and refrigerator compartments
• Helps seal the vent opening to limit air leaks
• Supports proper temperature balance and airflow distribution in the fresh food section
• Typical symptoms include a broken/missing insert, air drafts at the vent, rattling from the cover, or inconsistent cooling

• Disconnect power to the refrigerator before servicing
• Remove shelves as needed and access the damper cover in the fresh food compartment
• Release and remove the damaged insert; snap the new insert into the cover with correct orientation and a secure fit
• Handle nearby foam seals and the damper door carefully to avoid damage

This base damper cove is the plastic cover that protects and supports the refrigerator damper assembly, keeping airflow components secure and helping maintain proper internal airflow. Replacing a damaged cove prevents loose parts and air leaks. What it does:

• Protects the damper assembly and related components from debris and damage
• Helps maintain proper airflow routing between compartments
• Reduces rattling or vibration from a loose or broken damper cover
• Can prevent cold-air leaks that contribute to uneven cooling

• One base damper cove

• Disconnect power to the appliance before beginning any service
• Remove the kickplate or access panel to reach the damper area as required
• Handle plastic pieces gently to avoid cracking; use proper fasteners if provided

This insulation panel helps reduce heat transfer in the refrigerator cabinet so the appliance holds cold temperatures more efficiently and reduces frost buildup. It's a direct-fit replacement for the factory cabinet insulation. What it does:

• Slows thermal transfer between the cabinet and ambient air to help maintain interior temperatures
• Helps reduce frost buildup on evaporator and interior surfaces
• Improves cooling efficiency by minimizing cold-air loss
• Quietly adds a layer of thermal and acoustic insulation behind the liner

• Disconnect power and remove food before starting any repair
• Access requires removing the interior liner or trim
• Handle gently and wear gloves; insulation can tear or shed fibers
• Follow OEM instructions for adhesive or fastener placement and secure fit

The Damper Control Assembly is an OEM part for Whirlpool refrigerators. It regulates the airflow between the refrigerator and freezer compartments, maintaining optimal temperatures and ensuring efficient cooling. This assembly helps control the amount of cold air that enters the refrigerator section from the freezer.

Causes of a bad damper control assembly can include wear and tear over time, damage from temperature fluctuations, or malfunctioning electronic components.

Symptoms of a bad damper control assembly include:

• Inconsistent temperatures in the refrigerator
• Freezer being too cold while the refrigerator is too warm
• Frost buildup in the refrigerator compartment
• Unusual noises coming from the damper area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Backing Plate is an OEM part for Whirlpool refrigerators. It supports and secures the water filter, ensuring it stays in place and functions correctly to provide clean, filtered water.

Over time, the backing plate can become damaged due to regular use, exposure to moisture, or physical impact. A compromised backing plate can lead to improper positioning of the water filter, potentially causing leaks or reduced filtration efficiency.

Symptoms of a bad Water Filter Backing Plate include:

• Water filter not fitting securely or properly
• Leaks around the water filter area
• Reduced water flow or filtration issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool Refrigerator Water Filter Head is an OEM part for Whirlpool refrigerators. It serves as the connection point for the water filter, allowing clean, filtered water to flow to your refrigerator's dispenser and ice maker. This part ensures that your refrigerator delivers fresh and safe drinking water.

Causes of a bad water filter head can include wear and tear over time, mineral buildup from hard water, or damage due to improper installation or mishandling.

Symptoms of a bad water filter head include:

• Water leaks around the filter area
• Decreased water flow from the dispenser
• Ice maker not producing ice
• The filter not locking into place correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Cover is an OEM part for Whirlpool refrigerators. This cover encases and protects the water filter, ensuring it remains secure and clean while also blending seamlessly with the refrigerator's interior design.

You should replace the water filter cover if it becomes damaged or fails to secure the filter properly. Common causes of a bad water filter cover include physical damage from accidental impact, wear and tear from regular use, or warping due to temperature fluctuations.

Symptoms of a bad water filter cover include:

• Cracks or visible damage to the cover
• Difficulty securing the water filter
• The cover not fitting properly or coming loose
• Leaks around the water filter area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place to maintain proper alignment and a tight, rattle-free fit. Install it when a fastener is missing, stripped, or rusted to restore stability and prevent loosening.

• Secures brackets, panels, trim, and assemblies inside the appliance
• Helps maintain proper alignment and support of mounted parts
• Can reduce vibration, buzzing, or rattling from loose hardware
• Replace when the original screw is missing, corroded, or the head/threads are stripped

• Disconnect power; for refrigerators, also shut off the water supply before servicing
• Use the correct driver bit to avoid stripping the screw head
• Start threads by hand to prevent cross-threading, then tighten snugly without overtightening
• Reuse any original washers or spacers if required by your application

This control panel bezel cover protects the appliance's control area and gives the front a finished appearance while keeping buttons and displays free of dust and spills. It's a direct-replacement exterior trim piece used when the original cover is cracked, scratched, or missing. What it does:

• Protects the control panel and button assembly from dust, moisture, and everyday wear
• Restores a clean, finished look to the appliance front
• Helps keep buttons and displays clear and unobstructed for reliable operation
• Commonly replaced when the original cover is cracked, broken, or cosmetically damaged

• One control panel bezel cover

• High-level replacement only; remove power to the appliance before beginning any work
• Some covers attach with screws or clips; keep fasteners and alignment tabs during removal
• Use caution to avoid scratching surrounding surfaces during removal and installation

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

This dispenser facade replaces the outer trim pieces around your refrigerator's ice and water dispenser, restoring appearance and proper fit for smooth operation and sealing. It's a direct-fit cosmetic and protective assembly. What it does:

• Covers and protects the dispenser opening and controls from damage and debris
• Provides a finished look and helps direct water/ice into the cup
• Restores proper alignment when cracked, warped, or broken facade causes interference
• Helps prevent drafts and minor water splash at the dispenser area

• Disconnect power and shut off water to the appliance before servicing
• Many installations require removing the dispenser bezel and releasing snap-clips or screws; save hardware for reinstallation
• Handle plastic trim carefully to avoid scratches; use a soft pad when setting parts down

This refrigerator water reservoir stores a small volume of water in the fresh food compartment so the dispenser delivers a steady, chilled flow. Replace a cracked or leaking tank to stop interior leaks and restore normal dispensing performance. What it does:

• Holds water for the in-door dispenser between uses
• Lets water cool to refrigerator temperature for consistent dispensing
• Helps maintain steady flow to reduce pulsing at the dispenser
• Common symptoms: leaks inside the fridge, slow or no water from the dispenser, visible cracks/bulges in the tank or connected tubing

• One water reservoir

• Unplug the refrigerator and shut off the household water supply
• Depressurize the line by dispensing water until the flow stops
• Remove shelves/drawers to access the reservoir (typically behind the crisper area)
• Capture residual water, reconnect fittings securely, then restore water/power and check for leaks; purge air by dispensing several glasses of water

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Cartridge Bypass is an OEM part for Whirlpool refrigerators. It is designed to replace the water filter cartridge when filtration is not desired or necessary. This allows the refrigerator to bypass the filter and provide unfiltered water to the dispenser and ice maker.

Common causes of failure include wear and tear, improper installation, or physical damage from mishandling.

Symptoms of a bad Cartridge Bypass include:

• Water leakage around the filter area
• Reduced water flow or no water flow from the dispenser
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles
