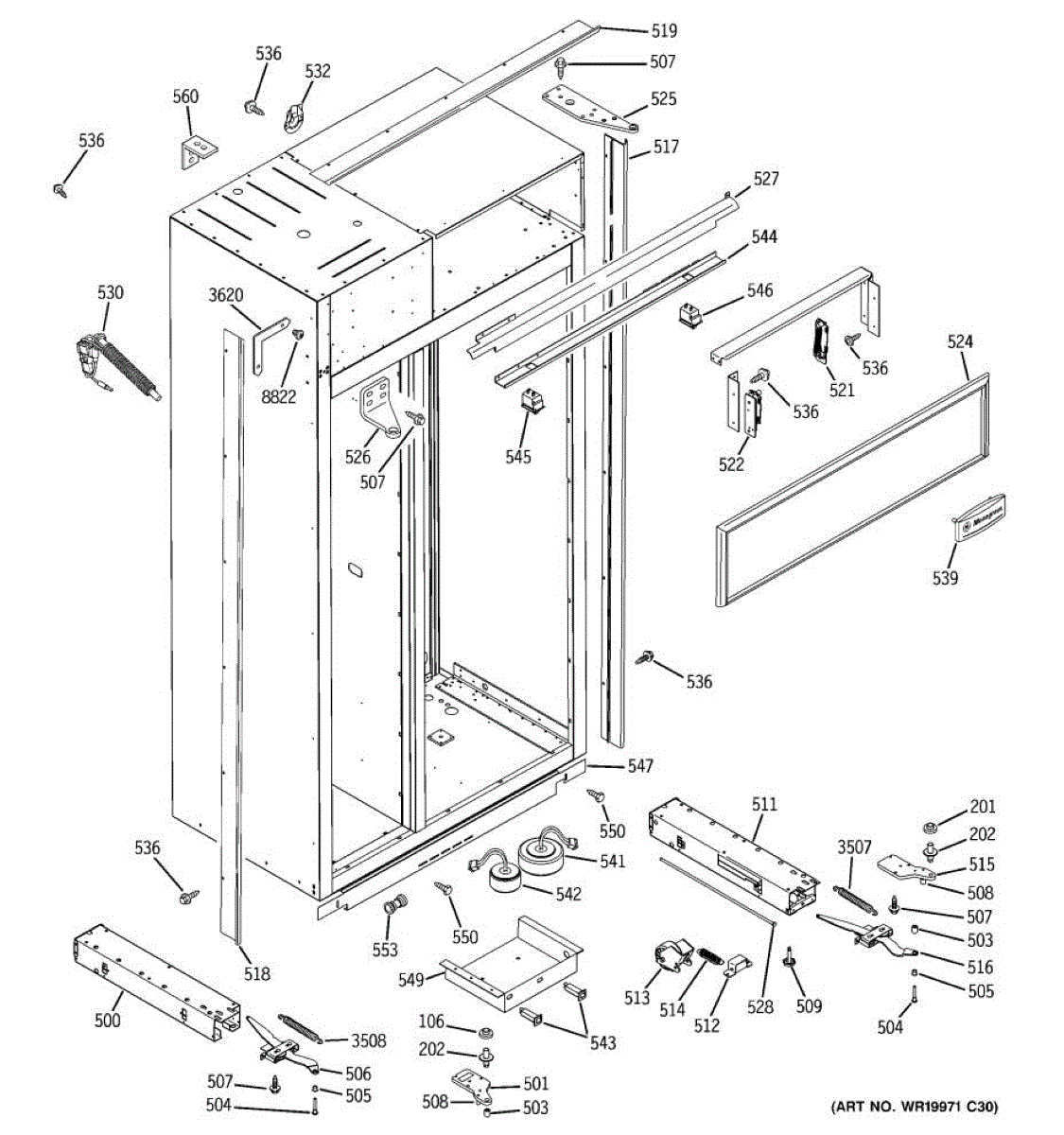

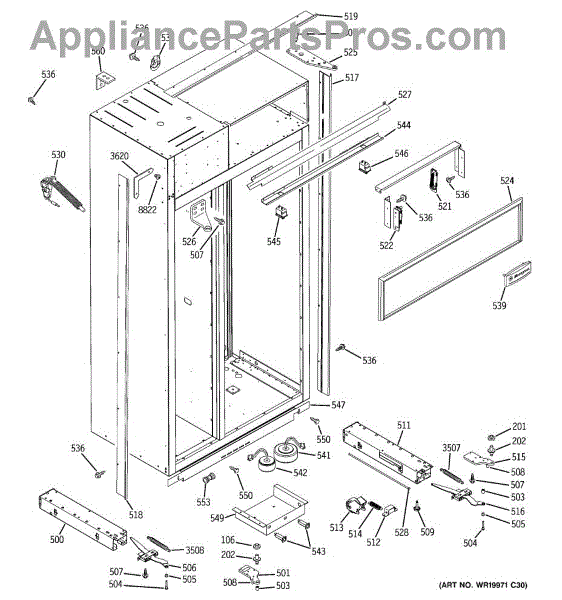

Parts for Ge ZSEB420DYA: 10 - Case Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement freezer bottom hinge bushing helps the freezer door pivot smoothly and maintain proper alignment, reducing rubbing and uneven wear for more reliable closing. What it does:

• Provides a smooth pivot surface for the freezer bottom hinge
• Restores proper door alignment to help ensure a tight seal
• Reduces hinge noise, sticking, and rubbing during door movement
• Helps prevent premature wear of the hinge and door components

• One freezer bottom hinge bushing

• Disconnect power to the appliance and empty or support the door before starting
• Support the door while removing hinge fasteners to prevent falling or injury
• Inspect the hinge and shaft for wear; replace the hinge assembly if damaged
• Do not overtighten fasteners; test door operation after installation

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

This nylon hinge arm secures and guides a refrigerator/freezer door, providing smooth pivoting and reliable door alignment to help prevent sagging and uneven seals. Durable nylon resists wear at hinge contact points. What it does:

• Supports the door at the hinge pivot to maintain proper alignment and sealing
• Reduces metal-on-metal wear by providing a low-friction contact surface
• Helps stop door sag and uneven closing that can lead to poor sealing
• Works with the hinge assembly to enable smooth opening and closing

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing or installing hinge components to prevent movement or injury
• Basic hand tools are typically required; avoid overtightening fasteners

This is a bottom door hinge screw that secures the lower hinge assembly to the appliance door, restoring proper alignment and stable door movement. Use it to replace stripped, missing, or damaged hinge hardware. What it does

• Secures the bottom hinge to the door and helps keep the door aligned and level.
• Restores smooth, consistent opening and closing when a worn or missing screw causes sagging or misalignment.
• Prevents further wear to hinge components by maintaining correct hinge positioning.
• Works with original hinge assemblies; use the correct screw to avoid loose or unstable doors.

• Disconnect power to the appliance before performing any door or hinge repairs.
• Support the door while removing/installing the hinge screw to prevent the door from falling or causing injury.
• Use the correct screwdriver or bit to avoid stripping the screw head.
• Replace any additional worn hinge hardware as needed for proper alignment.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

This front roller assembly supports the dryer's drum at the front, helping the drum turn smoothly and quietly. Replacing a worn roller restores proper drum alignment and reduces noise or scraping during operation. What it does:

• Supports the front of the dryer drum so it rotates evenly
• Reduces drum wobble and prevents scraping or grinding noises
• Helps eliminate squeaks and uneven tumbling caused by worn bearings
• Promotes smoother drum movement to reduce wear on the belt and other components

• Unplug the dryer before beginning service
• Remove the dryer's front panel and drum to access the roller; support the drum during removal
• Replace the worn roller with the new assembly and reassemble in reverse order

This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

This left-side grill hinge secures and supports the appliance's lower grill or access panel, restoring stable opening and alignment for safe access. It's a direct-fit replacement when the original hinge is bent, worn, or broken. What it does:

• Provides a pivot point to hold and guide the grill or access panel as it opens and closes
• Restores proper alignment so the grill sits flush and latches correctly
• Stops sagging, rubbing, or unexpected dropping of the grill
• Reduces noise from loose or worn hinge movement

• Disconnect power to the appliance before starting any repair
• Use common hand tools (screwdriver, socket) and retain original fasteners if not supplied
• Align hinge tabs carefully; do not force parts to avoid damage

This is the upper case hinge that secures and lets the refrigerator/freezer door pivot smoothly, restoring correct door alignment and sealing. Durable, direct-fit replacement for the refrigerator upper door hinge. What it does

• Supports the top of the door and provides the pivot point for opening and closing
• Keeps the door aligned to maintain a proper seal and even closing
• Replaces a cracked, bent, or worn hinge that can cause door sag or rubbing
• Works with the existing hinge pin and mounting hardware when in good condition

• One upper case hinge

• Unplug the appliance or turn off power before starting work
• Support the door while removing and installing the hinge to prevent drop or damage
• Reuse original screws and hinge pin if undamaged; replace any stripped hardware
• After installation, check door alignment and seal; adjust as needed for even gaps

This base shaft is the support shaft that helps the washer's tub or drum stay aligned and rotate smoothly. Replacing a worn shaft restores proper drum support and reduces noise, wobble, and uneven operation. What it does:

• Provides a stable pivot and support for the tub/drum during operation
• Transfers rotational force from the drive components to the drum assembly
• Prevents excessive wobble, vibration, and metal-on-metal contact when intact
• Worn or damaged shafts can cause noise, drum misalignment, or premature bearing wear

• Disconnect power and water supply before servicing; follow all safety precautions
• Replacement typically requires removing the cabinet and drum assembly for access
• Inspect adjacent bearings, seals, and mounting hardware and replace if worn
• Use appropriate tools and follow the OEM service manual

This fill tube kit routes water from the refrigerator's inlet to the ice maker, restoring reliable water delivery for ice production and reducing drips from a cracked or damaged tube. Simple replacement for worn or broken factory tubing. What it does:

• Replaces the water fill tube that supplies water to the ice maker assembly.
• Restores proper water flow so the ice maker can fill and form ice.
• Stops leaks or drips caused by split, brittle, or disconnected tubing.
• Helps resolve symptoms like no/low ice production or visible water pooling under the freezer/ice maker area.

• Disconnect power and shut off the water supply before starting work.
• Handle grommets and fittings gently to avoid damage; inspect seals and replace if worn.
• Confirm correct routing and secure mounting to prevent kinks or rubbing.

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

A 2 amp replacement fuse that protects low-current appliance circuits by opening when an overcurrent occurs. Install this direct-replacement fuse to restore power to control circuits and stop damage from a blown fuse. What it does:

• Interrupts current in control or low-voltage circuits when the fuse rating is exceeded
• Prevents electrical damage by opening the circuit on overloads
• Common symptoms of a blown fuse: appliance won't power on, controls are unresponsive, or intermittent operation
• Use as a like-for-like replacement matched to the original 2 amp rating

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only when the appliance is cool and dry; avoid touching conductive ends

This freezer door light switch turns the interior freezer light on and off when the door opens and closes, restoring proper illumination so you can see contents clearly and avoid wasting food. What it does:

• Activates the freezer interior light when the door opens; deactivates it when the door closes.
• Replaces a worn, stuck or intermittent switch that causes the light to stay on, not turn on, or flicker.
• Fits into the door or cabinet frame mounting and connects to the existing wiring harness for direct replacement.

• Disconnect power to the appliance before starting any repair to prevent shock.
• Typically snaps into place and connects to the factory wiring harness; no special parts required.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement toe kick panel that restores the finished lower front of a refrigerator and helps protect internal components from dust and debris. Fits under the refrigerator cabinet to maintain a clean, finished appearance. What it does:

• Covers and protects the refrigerator's lower cabinet area and components from dirt and damage
• Helps maintain a finished look at the base of the appliance after panel removal or damage
• Prevents small objects from rolling under the appliance and into vents or components
• Matches factory fit and mounting points for secure attachment

• One toe kick panel

• Turn off power to the appliance before attempting removal or installation to avoid electrical hazards
• Remove the existing panel by releasing clips or fasteners; align new panel and secure with factory fasteners
• Use care to avoid damaging surrounding trim or finish during installation
• Replace missing or damaged clips or mounting hardware with OEM-equivalent parts for a proper fit

This tray transformer is a direct-replacement transformer assembly that provides the proper low-voltage power for the appliance tray assembly, restoring reliable operation and control. Use it to replace a worn or failed transformer without modifying wiring or controls. What it does

• Steps down line voltage to the tray assembly's required control voltage so tray components receive stable power
• Restores power to tray-related circuits when a failed transformer causes loss of function
• Common symptom: tray functions, lights, or heater do not operate or respond
• Designed to fit and mate with the factory tray wiring and mounting points for a clean swap

• One tray transformer assembly

• Always disconnect power to the appliance before starting work to avoid shock hazard
• Match the replacement to the original by part number and connector style before installing
• Basic hand tools are typically required; handle wiring and terminals carefully to avoid damage

Size: 10-32 GXTT FLP.595 S

This water line connector links the refrigerator's water supply tubing to the appliance, restoring a secure water feed for the dispenser and ice maker. A direct-fit replacement that fixes loose or damaged supply connections. What it does:

• Provides a sealed connection between the supply tubing and the refrigerator water system
• Stops leaks caused by cracked, broken or loose connectors
• Restores proper water flow to the dispenser and ice maker when the original connector fails
• Fits the original mounting/location for a direct replacement

• One water line connector

• Turn off the water supply and unplug the appliance before installing
• Inspect tubing for damage and cut back to clean pipe if necessary; ensure proper seating of tubing in the connector
• Hand-tighten fittings; check for leaks after restoring water and power

The Spring Closure is an OEM part for GE refrigerators. This spring aids in the automatic closing of the refrigerator door, ensuring it seals tightly after each use to maintain optimal internal temperatures.

Causes of a bad spring closure can include regular wear and tear, corrosion due to moisture, or accidental damage that compromises its function.

Symptoms of a bad spring closure include:

• The refrigerator door not closing completely or staying ajar
• Difficulty in opening or closing the door smoothly
• Increased energy consumption as cold air escapes
• Frost buildup around the door seal area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This closure spring restores the return tension for a linked flap or door in the refrigerator, allowing it to close securely after use. Replacing a fatigued or broken spring helps maintain a proper seal and smooth operation.

• Provides torsion force to return the connected component to its closed/rest position
• Helps maintain sealing to reduce air leaks, frost, or moisture around the opening
• A weak, stretched, or broken spring may leave a flap/door ajar or slow to close
• Can contribute to rattling, poor sealing, or intermittent operation of the linked mechanism

• Disconnect power to the appliance before servicing; wear gloves and eye protection
• Note the spring's routing, leg orientation, and preload; take a photo before removal
• Use needle-nose pliers to control spring tension and avoid pinch points
• After installation, cycle the mechanism to ensure smooth movement and full closure

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets
