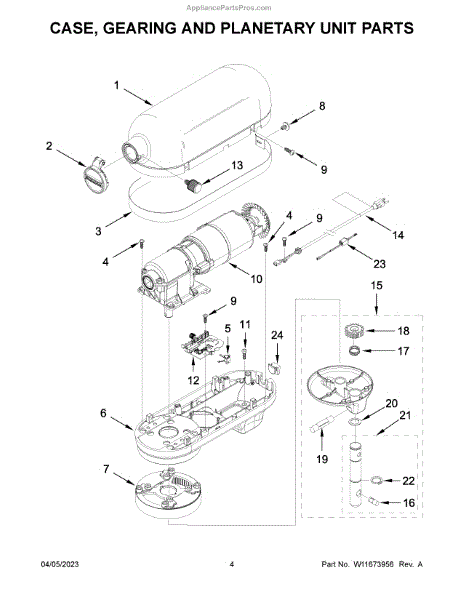

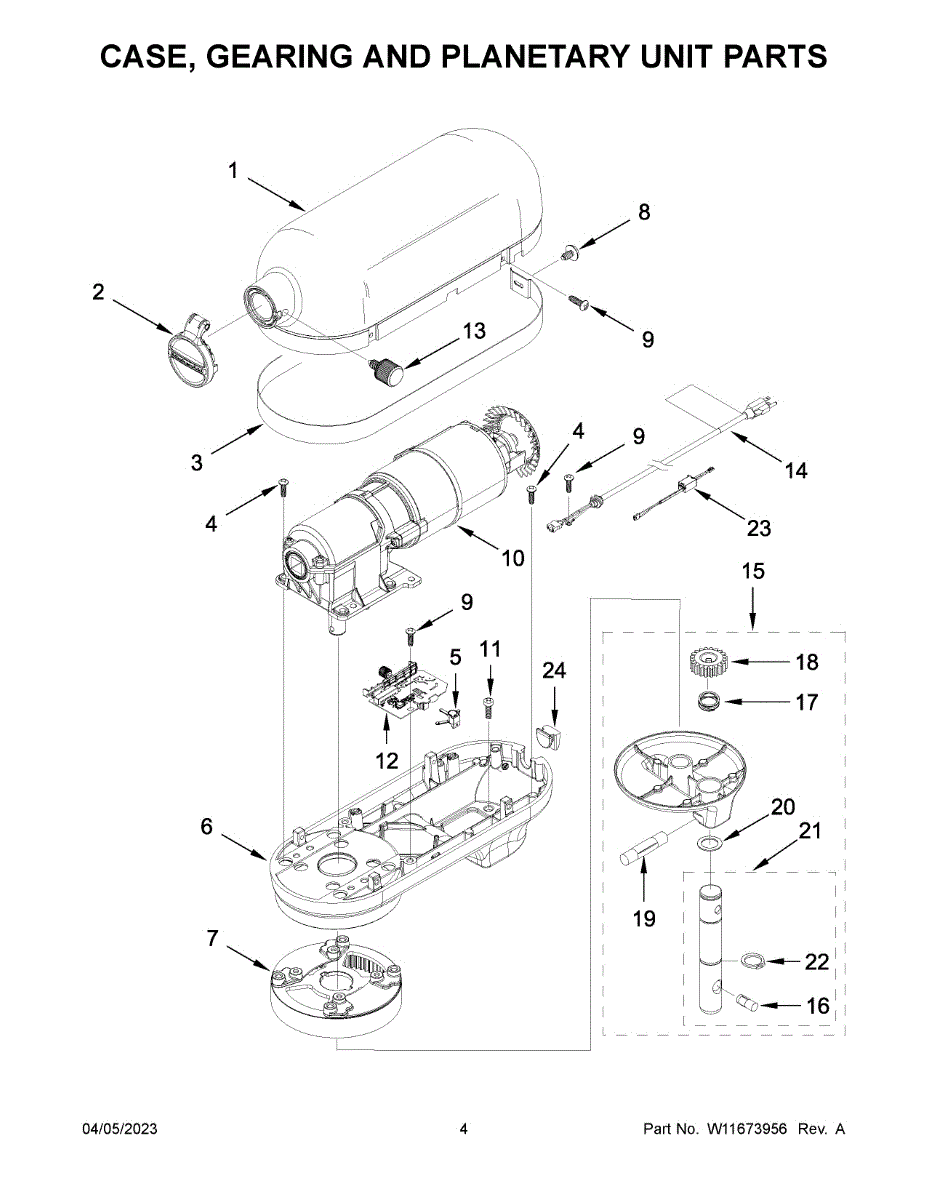

Parts for Kitchenaid 5KSMC895ZER1: Case, Gearing And Planetary Unit Parts

This factory replacement screw fastens appliance components securely. Use it to replace lost, stripped, or corroded hardware and restore a snug, rattle-free fit and proper alignment of panels and assemblies.

• Secures panels, brackets, and internal components to their mounting points
• Replaces missing or damaged fasteners to maintain correct alignment
• Helps eliminate vibration and rattling caused by loose hardware
• Restores the original fit with OEM-matched threads and dimensions

• Disconnect power and shut off water or gas supplies before servicing
• Use the correct driver bit that matches the screw head to avoid stripping
• Replace one fastener at a time to keep parts aligned
• Tighten snugly; do not overtighten to prevent stripped threads or cracked plastic

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

This screw secures appliance panels, brackets, and trim so everything stays aligned and rattle-free. Replace missing, stripped, or rusted hardware to restore a solid fit and dependable operation. What it does:

• Fastens components to the cabinet/frame to maintain proper alignment
• Helps prevent vibration, rattling, and small gaps from loose hardware
• Replaces lost, damaged, or corroded screws to restore secure mounting
• Common signs include loose panels/trim, vibration noises, or shifting parts

• 1 screw

• Disconnect power; shut off gas/water if applicable before servicing
• Support the part being fastened to keep holes aligned and avoid damage
• Start threads by hand to prevent cross-threading; realign if resistance is high
• Tighten snugly—do not overtighten to avoid stripping threads or cracking plastic

This speed control regulates motor speed for compatible Whirlpool laundry appliances, restoring proper drum and motor operation. It replaces a worn or failed control to help the appliance run at the correct speeds for wash or dry cycles. What it does

• Modulates motor voltage to control rotational speed during selected cycles.
• Can correct symptoms such as a drum that won't turn at the correct speed, weak or inconsistent motor operation, or cycles that run only on a single speed.
• Works as the motor's control interface to enable varying speeds required by different cycles and functions.

• Disconnect power to the appliance before beginning any work.
• Replace with the exact part number and match wiring connections; do not modify connectors or wiring.
• Handle the control board by its edges and avoid touching circuit traces.

Small but critical: this groove pin locks the planetary/drive assembly to the mixer shaft so the beater is driven firmly and wobble-free. Replacing a bent or sheared pin restores solid, reliable mixing.

What it does

• Secures the planetary to the drive shaft to transmit torque
• Helps fix beater not-turning, slipping, or intermittent drive
• Reduces wobble or knocking from a loose planetary
• Replaces pins that are bent, mushroomed, or missing

What’s included
One groove/retainer pin (sold individually).

Install notes

• Unplug the mixer; work on a padded surface
• Support the planetary; drive the old pin out with a small punch
• Align holes and tap the new pin in until seated flush—don’t overstrike
• Inspect the planetary and shaft holes for elongation; re-grease if opened

This small flat washer is used as a hardware spacer in Whirlpool appliances. It distributes clamping force and helps maintain proper alignment and smooth movement where a screw, bolt, or pin secures components. Exact placement varies by model.

• Distributes load to protect mating surfaces from damage
• Acts as a spacer/shim to set correct clearance
• Helps reduce friction and metal-to-metal noise
• Common symptoms of a worn or missing washer: loose or misaligned parts, scraping/squeaking, or difficulty keeping a fastener tight

• Disconnect power and shut off water supply before servicing
• Support the assembly and note the original washer order and placement during disassembly
• Reinstall the washer in the same position/orientation as the original
• Tighten hardware snugly; do not overtighten to avoid deforming the washer

This retaining ring secures components on a drive shaft, keeping gears or assemblies properly seated so the drive operates smoothly. A worn or missing ring can allow unwanted movement, noise, or separation under load.

• Locks into the shaft groove to hold parts in correct axial position
• Helps prevent wobble, slipping, or parts working loose during operation
• Can address symptoms like rattling/grinding noises or a drifting/wobbly shaft
• Visual signs of failure include bending, deformation, or loss of spring tension

• Disconnect power and allow moving parts to stop before servicing
• Wear eye protection—retaining rings can spring free under tension
• Use appropriate retaining ring/snap-ring pliers or controlled leverage to remove/install
• Ensure the ring seats fully in the groove and secure engagement before reassembly

This small replacement clip secures appliance components and helps keep wiring and trim fastened so panels stay flush and parts stay in position. It restores proper fit and reduces rattles or loose pieces. What it does:

• Holds wiring, hoses or trim in place to prevent rubbing or pinching
• Keeps panels and covers aligned to reduce noise and vibration
• Prevents connectors and small parts from shifting during operation
• Helps maintain safe routing of wires and hoses

• Disconnect power (and water if applicable) before starting any repair
• Remove any trim or access panels that block the clip location
• Use needle-nose pliers or a flat screwdriver to remove the old clip and press the new clip into place
• Inspect surrounding harnesses and fasteners for wear while installing
