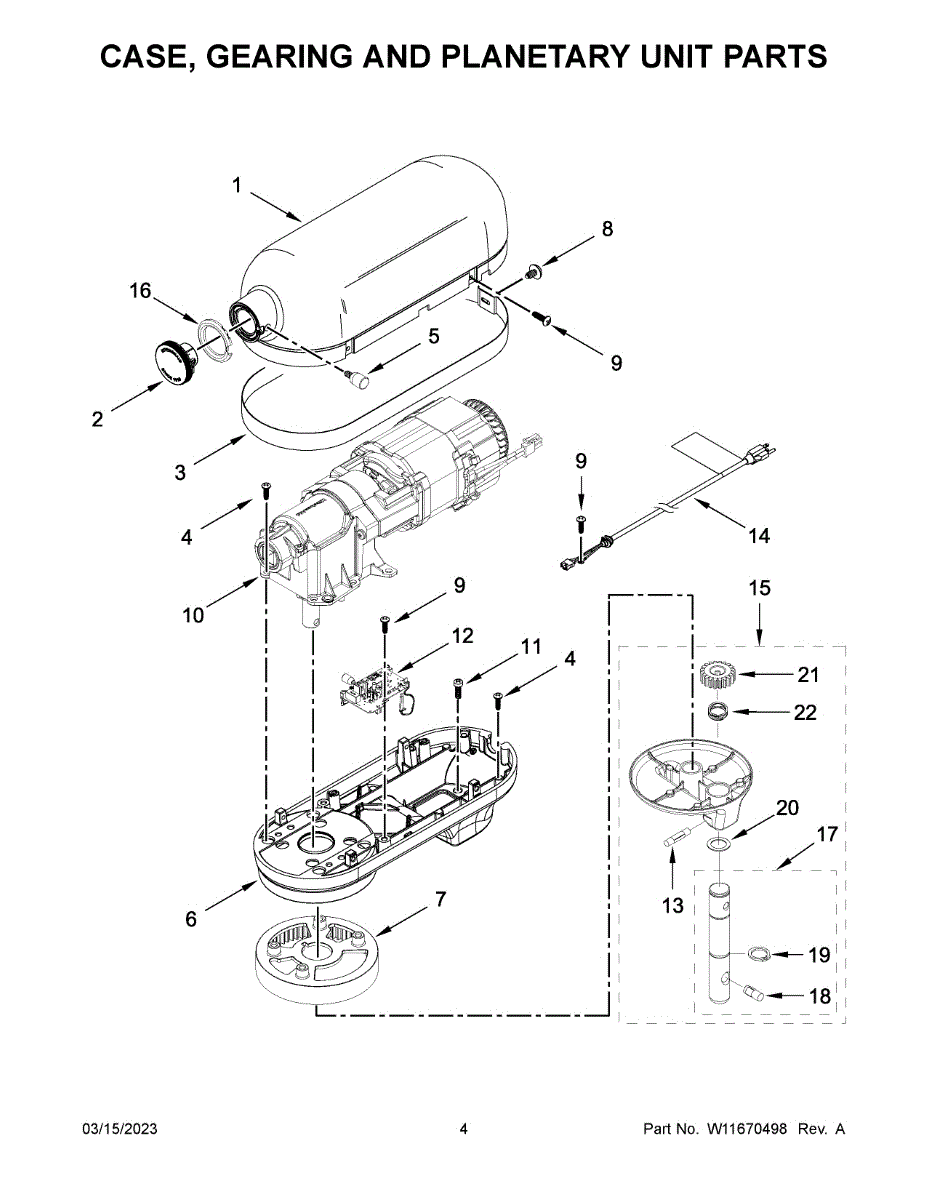

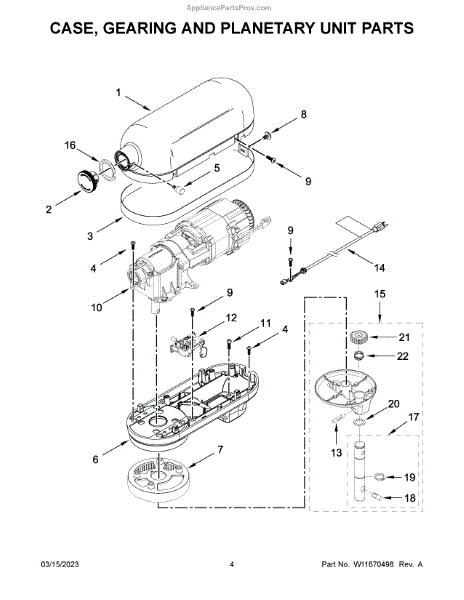

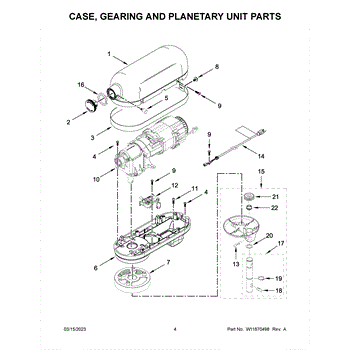

Parts for Kitchenaid KSM55SJSXVB0: Case, Gearing And Planetary Unit Parts

This factory replacement screw fastens appliance components securely. Use it to replace lost, stripped, or corroded hardware and restore a snug, rattle-free fit and proper alignment of panels and assemblies.

• Secures panels, brackets, and interna

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provide

Replacement mounting screw for stand mixer panels, brackets, and trim. Secures internal components to keep parts aligned. Replace if missing, stripped, or rusted.

Small but critical: this groove pin locks the planetary/drive assembly to the mixer shaft so the beater is driven firmly and wobble-free. Replacing a bent or sheared pin restores solid, reliable mixing.

What it does

• Secures the planetary to the drive shaft to transmit torque
• Helps fix beater not-turning, slipping, or intermittent drive
• Reduces wobble or knocking from a loose planetary
• Replaces pins that are bent, mushroomed, or missing

What’s included
One groove/retainer pin (sold individually).

Install notes

• Unplug the mixer; work on a padded surface
• Support the planetary; drive the old pin out with a small punch
• Align holes and tap the new pin in until seated flush—don’t overstrike
• Inspect the planetary and shaft holes for elongation; re-grease if opened

Covers and protects the attachment hub on your stand mixer. Replace if the original cap is cracked, missing, or worn for a finished look and protection.

Mixer making noise or shaft loose? This retaining ring locks gears in place on the drive shaft. Moderate DIY repair with snap ring pliers required.

Flat metal washer that acts as a hardware spacer in stand mixers. Distributes clamping force where screws or bolts secure components. Replace if worn or missing.
