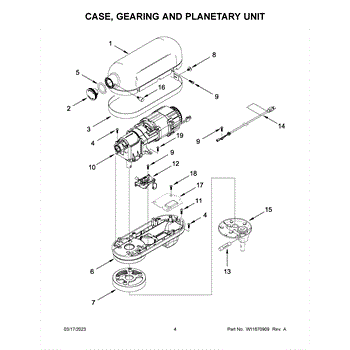

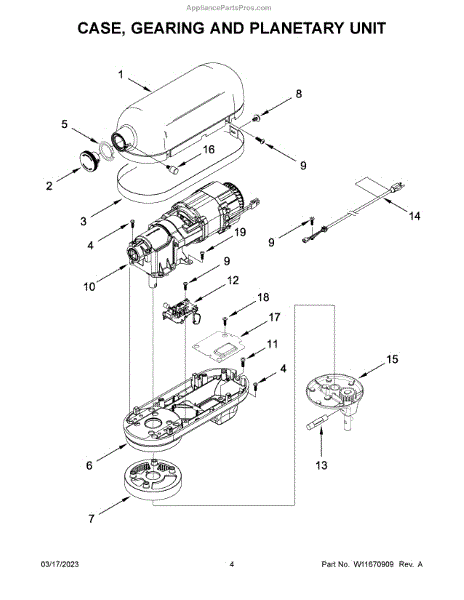

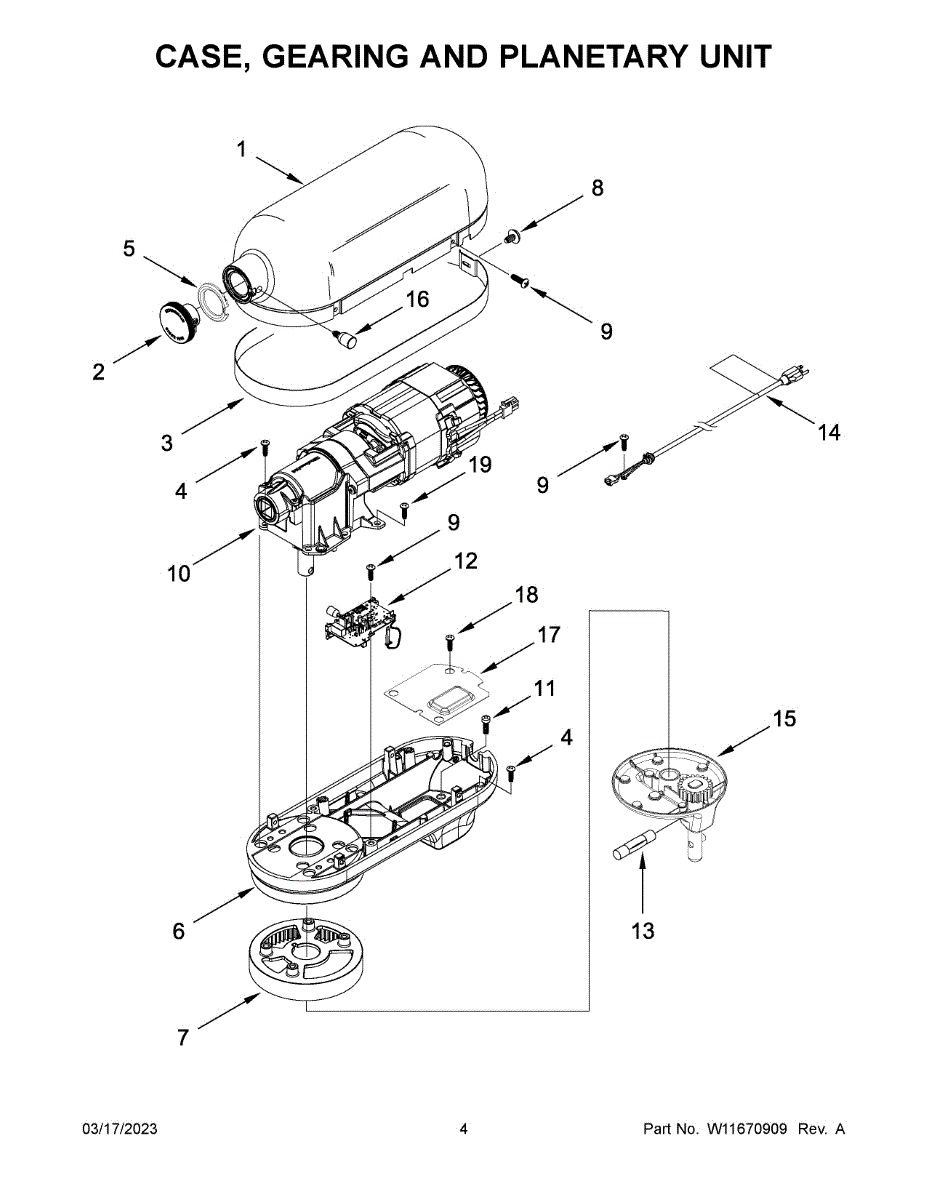

Parts for Kitchenaid KSM70SKXXBS0: Case, Gearing And Planetary Unit Parts

Covers and protects the attachment hub on your stand mixer. Replace if the original cap is cracked, missing, or worn for a finished look and protection.

Factory replacement screw for stand mixers. Secures panels, brackets, and internal components. Replace lost, stripped, or corroded hardware for proper fit.

Replacement 8-32 x 5/8 mounting screw for securing internal panels, brackets, and components in stand mixers. Restores tight fit if original is missing or stripped.

Replacement mounting screw for stand mixer panels, brackets, and trim. Secures internal components to keep parts aligned. Replace if missing, stripped, or rusted.

If your stand mixer runs at incorrect speeds or won't start, the speed control board may have failed. This part regulates motor speed for all mixing tasks.

Small but critical: this groove pin locks the planetary/drive assembly to the mixer shaft so the beater is driven firmly and wobble-free. Replacing a bent or sheared pin restores solid, reliable mixing.

What it does

• Secures the planetary to the drive shaft to transmit torque
• Helps fix beater not-turning, slipping, or intermittent drive
• Reduces wobble or knocking from a loose planetary
• Replaces pins that are bent, mushroomed, or missing

What’s included
One groove/retainer pin (sold individually).

Install notes

• Unplug the mixer; work on a padded surface
• Support the planetary; drive the old pin out with a small punch
• Align holes and tap the new pin in until seated flush—don’t overstrike
• Inspect the planetary and shaft holes for elongation; re-grease if opened

Stand mixer won't turn on or power cuts out? This 3-prong power cord restores electrical connection when the original is frayed or damaged.

Replacement plate for stand mixers. Installs inside the mixer housing. Order a new plate if your original is cracked, broken, or missing.
