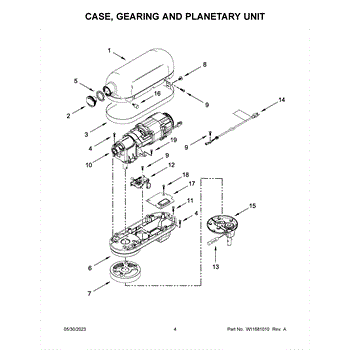

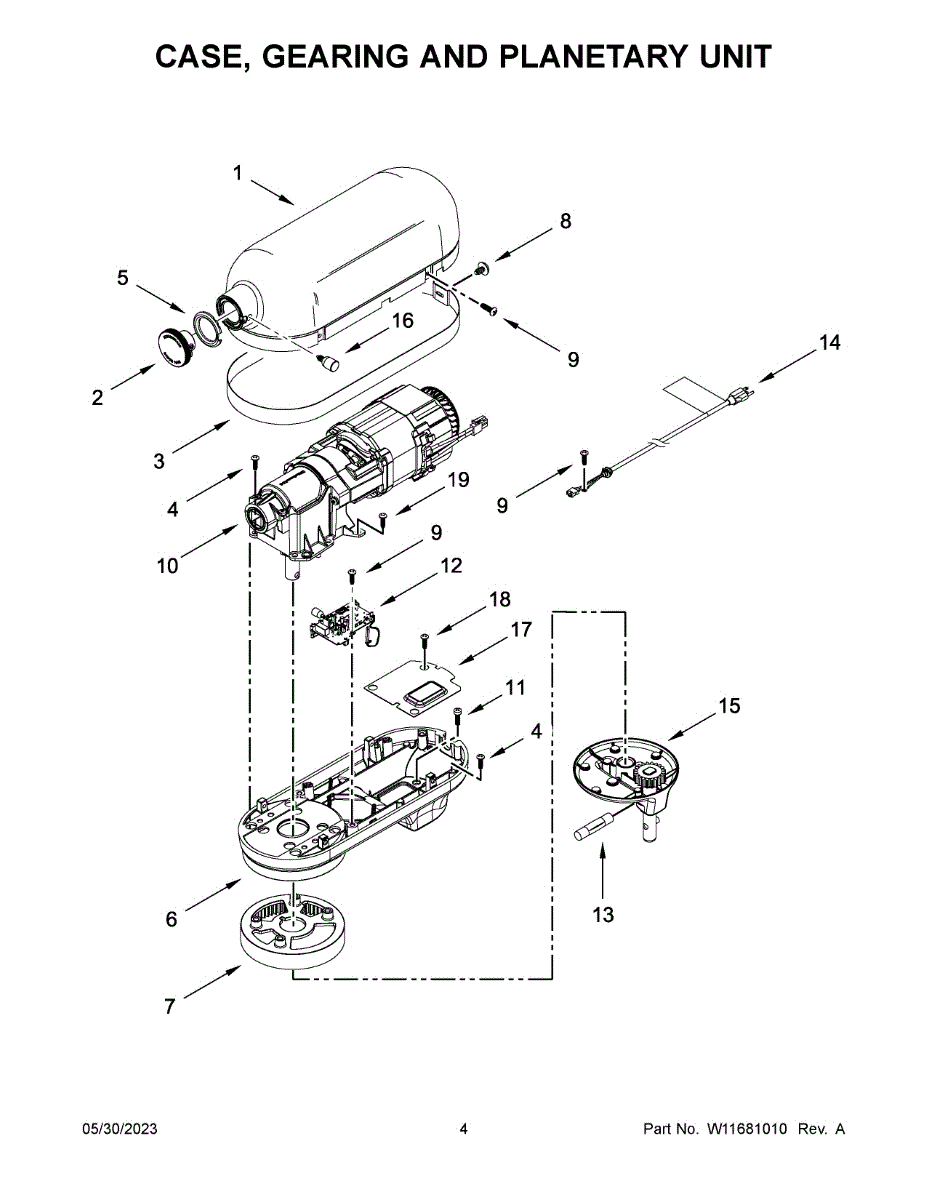

Parts for Kitchenaid KSM70SNDXVB0: Case, Gearing And Planetary Unit Parts

Cap Hub covers and protects the appliance's hub, restoring a finished appearance and helping keep debris away from internal components. Use when the original hub cap is cracked, missing or visibly worn. What it does:

• Covers and conceals the drive/tub hub for a finished look.
• Helps keep lint and debris away from the hub area.
• Replaces cracked, broken or missing hub caps that expose the hub.
• Check the model-specific diagram for exact fit and orientation.

• Disconnect power (and water if applicable) before beginning any service.
• Part typically snaps or presses into place; the appliance's exploded diagram for the correct removal/replacement procedure.
• Do not force the part; inspect surrounding components and replace any damaged mounting hardware as needed.

This factory replacement screw fastens appliance components securely. Use it to replace lost, stripped, or corroded hardware and restore a snug, rattle-free fit and proper alignment of panels and assemblies.

• Secures panels, brackets, and internal components to their mounting points
• Replaces missing or damaged fasteners to maintain correct alignment
• Helps eliminate vibration and rattling caused by loose hardware
• Restores the original fit with OEM-matched threads and dimensions

• Disconnect power and shut off water or gas supplies before servicing
• Use the correct driver bit that matches the screw head to avoid stripping
• Replace one fastener at a time to keep parts aligned
• Tighten snugly; do not overtighten to prevent stripped threads or cracked plastic

This 8-32 x 5/8 screw replaces missing or damaged hardware specified by the manufacturer to secure panels, brackets, and internal components in your appliance. Restores a tight, rattle-free fit to help prevent vibration and misalignment.

• Provides the correct 8-32 thread and 5/8-inch length where specified
• Secures sheet-metal panels, brackets, and internal assemblies
• Replaces missing, stripped, or corroded screws
• Symptoms include loose or rattling panels, misaligned parts, or hardware that won't stay tight

• Disconnect power; shut off gas before servicing
• Support panels/components while removing or installing hardware
• Start threads by hand to avoid cross-threading; tighten only until snug
• Match the original screw's location and orientation for proper fit

This screw secures appliance panels, brackets, and trim so everything stays aligned and rattle-free. Replace missing, stripped, or rusted hardware to restore a solid fit and dependable operation. What it does:

• Fastens components to the cabinet/frame to maintain proper alignment
• Helps prevent vibration, rattling, and small gaps from loose hardware
• Replaces lost, damaged, or corroded screws to restore secure mounting
• Common signs include loose panels/trim, vibration noises, or shifting parts

• 1 screw

• Disconnect power; shut off gas/water if applicable before servicing
• Support the part being fastened to keep holes aligned and avoid damage
• Start threads by hand to prevent cross-threading; realign if resistance is high
• Tighten snugly—do not overtighten to avoid stripping threads or cracking plastic

This speed control is the motor regulation board that manages a washer's motor speed and timing so cycles run correctly. Replacing a faulty control restores consistent spin and agitation performance for proper cleaning. What it does:

• Regulates motor speed and ramp-up to control agitation and spin cycles
• Coordinates motor operation with cycle commands from the main control
• Helps prevent erratic or inconsistent motor behavior during cycles
• Commonly linked to symptoms like no spin/agitator movement or irregular motor speeds

• Disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid static discharge; use ESD precautions if available
• Verify connector orientation and fully seat all wiring harnesses during reassembly

Small but critical: this groove pin locks the planetary/drive assembly to the mixer shaft so the beater is driven firmly and wobble-free. Replacing a bent or sheared pin restores solid, reliable mixing.

What it does

• Secures the planetary to the drive shaft to transmit torque
• Helps fix beater not-turning, slipping, or intermittent drive
• Reduces wobble or knocking from a loose planetary
• Replaces pins that are bent, mushroomed, or missing

What’s included
One groove/retainer pin (sold individually).

Install notes

• Unplug the mixer; work on a padded surface
• Support the planetary; drive the old pin out with a small punch
• Align holes and tap the new pin in until seated flush—don’t overstrike
• Inspect the planetary and shaft holes for elongation; re-grease if opened

This power cord supplies mains power to the appliance, restoring safe, stable electrical connection so the unit can operate. Designed as a direct-replacement external cord that connects the appliance to a standard household outlet. What it does

• Replaces a damaged or worn appliance power lead to restore reliable power delivery
• Resolves symptoms like no power, intermittent power loss, or visible cord damage
• Prevents risks from frayed wiring or exposed conductors when replaced promptly
• Provides a correct outlet connection and strain-relief when installed properly

• Disconnect the appliance from power at the breaker and unplug before starting.
• Route the cord and secure it with the existing strain relief; do not overtighten.
• Inspect terminal connections for corrosion or damage and tighten per manufacturer torque specs if applicable.
