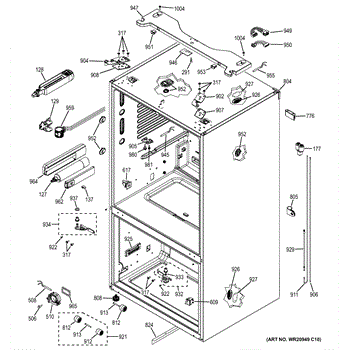

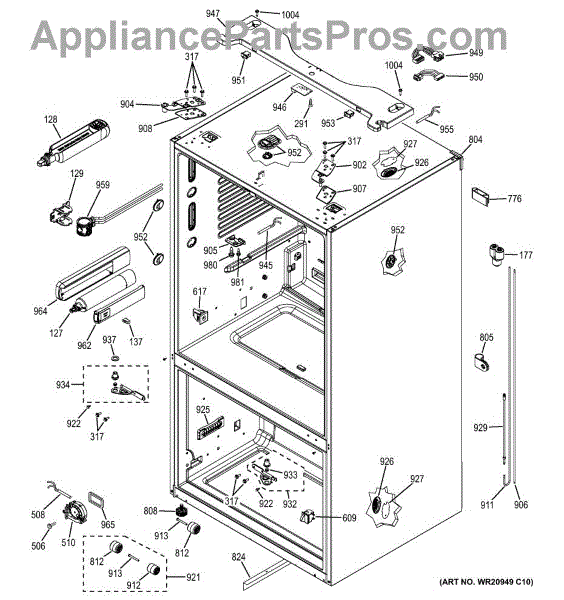

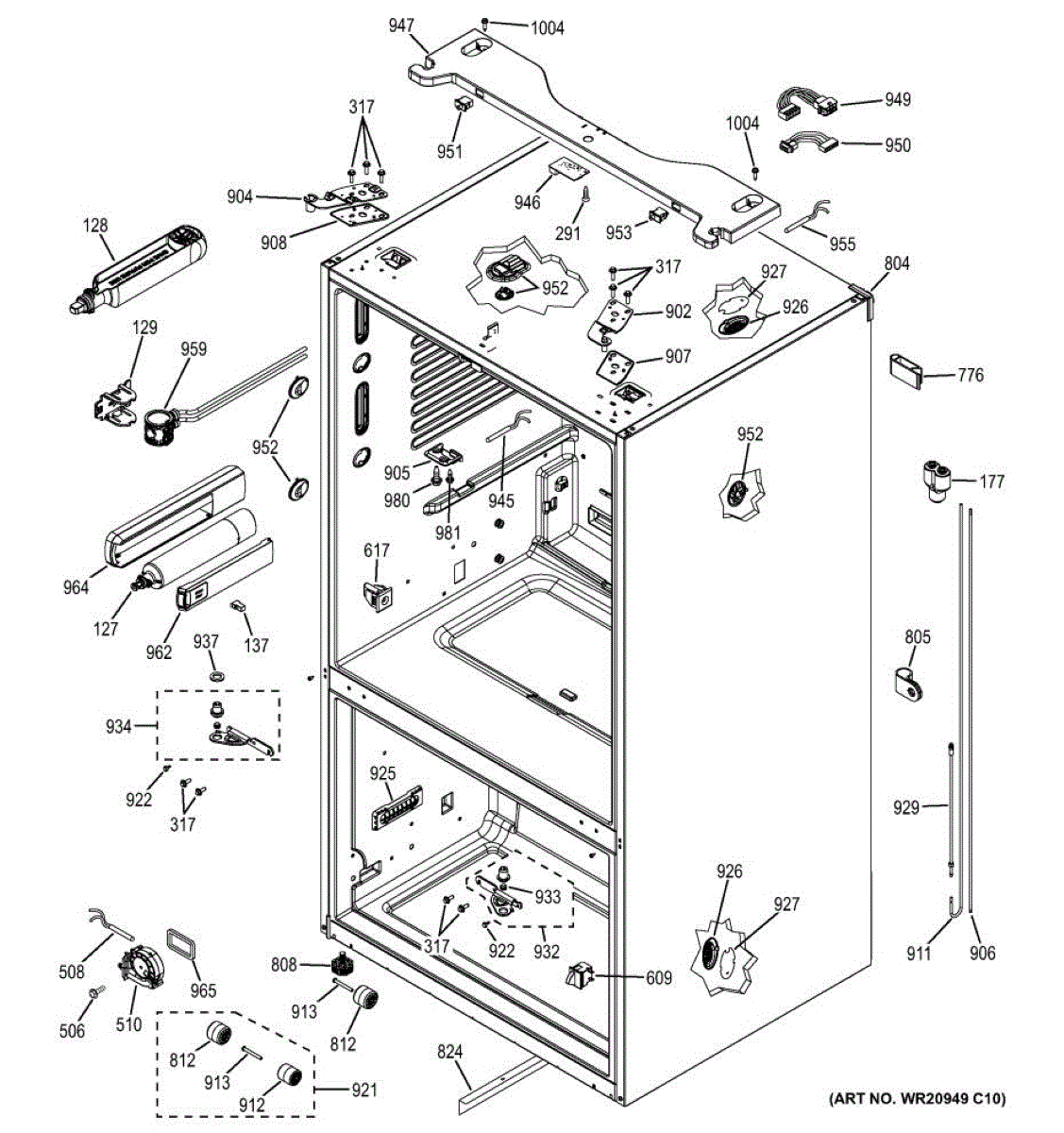

Parts for Ge GFE27GGDABB: 10 - Case Parts

The Water Filter Bypass Plug is an OEM part for GE refrigerators. It allows the refrigerator to operate without a water filter by creating a direct connection for the water flow.

Causes of a bad Water Filter Bypass Plug can include wear and tear from regular use, damage from improper installation or removal, and degradation of the sealing components that ensure a tight fit.

Symptoms of a bad Water Filter Bypass Plug include:

• Water leaks from the filter housing
• Reduced or no water flow to the dispenser or ice maker
• Error messages related to the water filter on the control panel
• Improper fit or difficulty in installing the bypass plug

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This coupler is a small connector used in refrigerators to join two mating parts within an assembly. Replacing a worn or damaged coupler restores a secure connection and reliable operation at that joint.

• Connects and secures two mating components within the appliance
• Helps transfer motion or maintain a sealed connection, depending on the application
• Common symptoms include a loose/slipping connection, unusual noise, or leaks at the joint
• Replace if cracked, stripped, or no longer holding securely

• Disconnect power; if working on the water system, also shut off the household water supply
• Note the original orientation/positions before removal for accurate reassembly
• Seat parts fully; for push-in connections, insert straight and perform a light tug test to engagement
• Restore power (and water, if applicable), then test operation and inspect the joint for leaks or slippage

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Icemaker Fan with Thermistor is an OEM part for GE refrigerators. This component circulates chilled air within the icemaker system and includes a built-in thermistor sensor. It monitors temperatures to ensure cubes freeze properly according to cold- and heat-sensing feedback to the refrigerator's control unit.

Causes of failure can include faulty wiring or connectors related to the electronic thermistor component. The fan motor itself may experience normal wear over extended use.

Symptoms include:

• Inability to detect freezing temperatures which stops ice production
• Cubes forming inconsistently or not fully freezing before ejection
• High-frequency tripping of the refrigerator's cooling system
• Loud grinding noises from the icemaker

This GE OEM replacement restores dependable icemaking performance. Equipped with a precise thermistor, it guarantees proper ice formation through monitored temperature control. Compatible with later produced Hotpoint, RCA, and Kenmore refrigerator models as well.


The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This left hinge top pin assembly secures and guides the refrigerator door at the upper hinge, helping maintain proper alignment and a tight door seal for reliable cooling performance. Designed to replace a worn or damaged top hinge pin. What it does:

• Provides the pivot point for the upper edge of the refrigerator door to open and close smoothly
• Restores correct door alignment to prevent sagging or uneven gaps
• Helps the door seat fully to maintain an effective seal and consistent internal temperature
• Reduces noise or binding caused by a worn or bent hinge pin

• Unplug the appliance or disconnect power before starting any repair
• Support the door securely (use a second person or proper support) before removing the hinge to prevent falls or damage
• Tighten hinge fasteners to the manufacturer's torque specifications when reinstalling
• If other hinge components appear worn or bent, inspect and replace as needed for proper function

This PEX water line provides a flexible, durable water supply connection for compatible appliances, restoring proper water delivery for dispensers and ice makers. It resists kinking and corrosion for reliable flow. What it does:

• Carries potable water from the household supply to the appliance water valve or dispenser.
• Restores water flow when the original line is cracked, pinholed, or damaged.
• Helps prevent leaks compared with brittle or corroded rigid tubing.
• Supports normal dispenser and ice maker operation when installed correctly.

• One PEX water line.

• Turn off and disconnect the water supply and power before starting work.
• Drain remaining water from the line and fittings to avoid spills.
• Use the correct fittings and follow manufacturer torque recommendations; hand-tighten then final snug with wrench.
• After installation, slowly restore water, check all connections for leaks, and test dispenser/ice maker operation.

This top hinge assembly replaces a worn or broken left-side pad hinge to restore proper door support and alignment. It's the left-side hinge used where the door meets the cabinet top for smooth opening and secure closing. What it does:

• Replaces a cracked, warped, or missing top hinge pad assembly to stop door sag and uneven gaps
• Restores proper door alignment so the door seals and closes evenly
• Reduces rubbing or catching that can occur when the hinge pad is damaged
• Helps eliminate noise from a loose or worn hinge area during opening and closing

• Disconnect power to the appliance or unplug before starting work
• Support the door while removing or installing the hinge to prevent dropping or damage
• Use the original mounting screws or OEM-recommended fasteners; torque to manufacturer guidance
• Inspect adjoining hinge hardware and door alignment after installation; adjust as needed for an even seal

This hinge center assembly replaces the refrigerator's right-side hinge pivot to restore proper door alignment and smooth opening. It helps reduce door sag and improves sealing for better performance. What it does:

• Provides the central pivot point for the right refrigerator door hinge
• Restores correct door alignment and even closing when the door is sagging or crooked
• Reduces rubbing, binding, or grinding noises from the hinge area
• Helps maintain an effective door seal to prevent cold air loss

• One hinge center assembly (right side)

• Unplug the appliance and empty or support the door before starting work
• Support or brace the door while removing hinge fasteners to prevent dropping
• Reuse existing screws/bolts unless new hardware is specified by the manufacturer

The Pcb Asm Humidity Board is an OEM part for GE refrigerators. This humidity control board regulates the humidity levels within the refrigerator's crispers or drawers. It allows you to adjust and maintain the ideal humidity level for different types of produce, extending their shelf life and preserving their quality.

Symptoms of a bad humidity control board include:

• Inconsistent humidity levels
• Excessive moisture buildup
• Rapid spoilage of produce

A bad humidity control board can occur due to electrical issues, component failure, or other factors. If you notice symptoms such as inconsistent humidity levels, excessive moisture buildup, or produce spoiling quickly, it may be time to replace the humidity control board.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Door Light Switch is an OEM part for GE refrigerators. It is located near the top of the refrigerator compartment, and it is activated by the door's movement. When the door is opened, the switch is triggered, turning on the interior light to provide visibility. When the door is closed, the switch is released, turning off the light to conserve energy.

Causes of a faulty or damaged door light switch can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as the interior light not turning on or off properly, or the light staying illuminated even when the door is closed.

Symptoms of a bad door light switch may include:

• The interior light not turning on when the door is opened
• The interior light not turning off when the door is closed
• Inconsistent or flickering operation of the interior light

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The LED Cover is an OEM part cfor GE refrigerators. It is responsible for protecting and diffusing the light from the LED bulbs inside the refrigerator. It helps create a well-lit interior, allowing you to easily see and locate your food and beverages.

A bad LED cover can be caused by accidental damage or regular wear and tear. If the cover becomes cracked, discolored, or damaged in any way, it can affect the quality and distribution of light inside the refrigerator.

Symptoms of a bad LED cover include:

• Dim or uneven lighting inside the refrigerator.
• Flickering or intermittent illumination.
• Dark spots in certain areas of the refrigerator.
• Visible cracks or damage to the cover.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Water Filter Manifold is an OEM replacement part for GE refrigerators. Its primary function is to channel and distribute water from the external water supply to the refrigerator's water dispenser and ice maker. This manifold serves as a connection point for the water filter, ensuring that water is properly filtered before reaching the dispenser and ice maker.

Causes of a bad filter manifold can include wear and tear from repeated filter changes, cracks or breaks due to impact, or leaks from deteriorated seals.

Symptoms of a bad filter manifold include:

• Leaks around the water filter area
• Reduced water flow or pressure
• The water filter not fitting securely
• Unusual tastes or odors in the filtered water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
