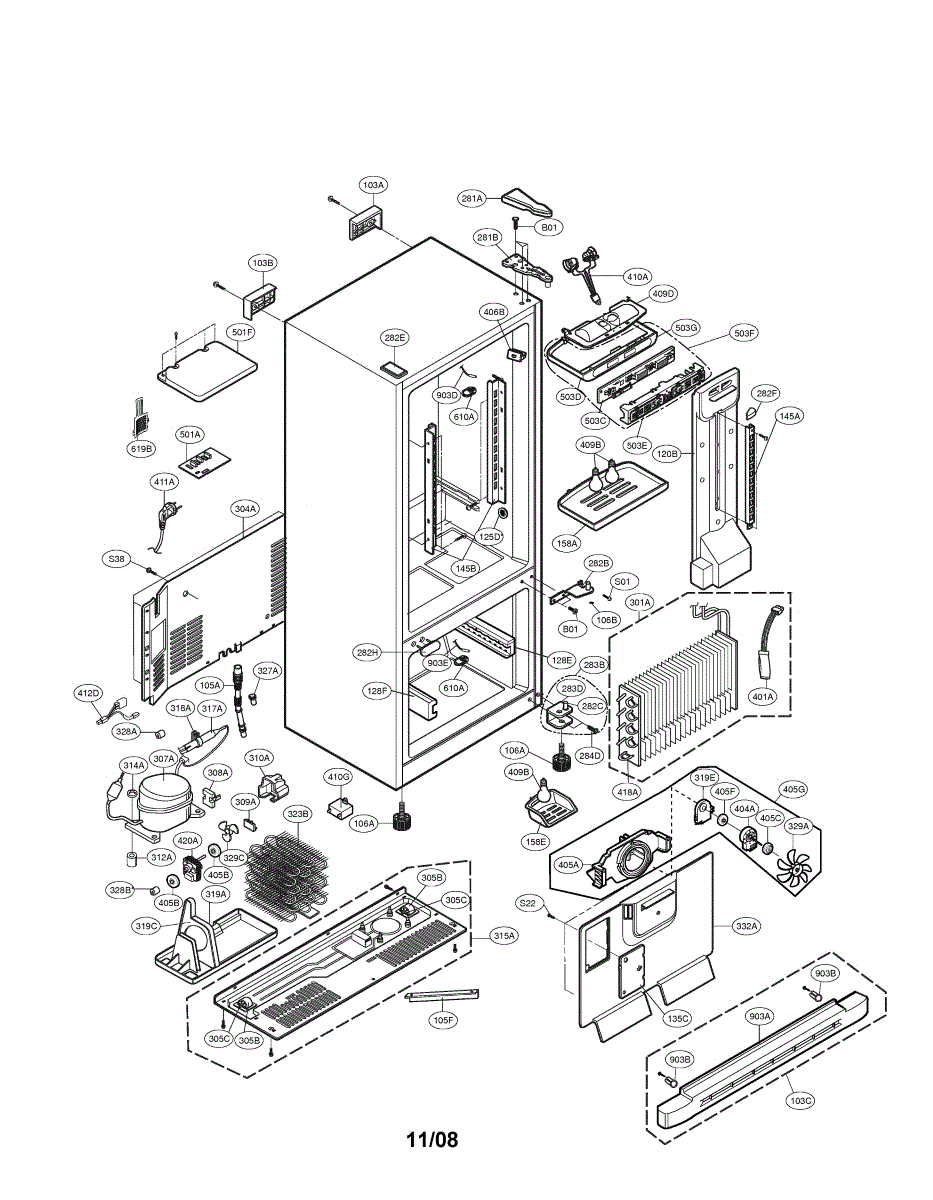

Parts for Lg LBC22520ST/00: Case Parts

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

Replacement mounting screw for refrigerator assembly. Secures panels, brackets, or components. Needed when original screw is stripped, lost, or damaged.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Fastener washer for refrigerators. Replaces worn, missing, or damaged washers that support screws and nuts. Restores proper spacing and load distribution.

Replaces a cracked or broken air duct assembly that routes cold air from the freezer to the refrigerator compartment. Mounts on the back wall of the fridge.

Protective grille cover that shields the cooling fan and directs airflow in your refrigerator. Replace if cracked, broken, or missing to restore finish.

Protects and diffuses your refrigerator's interior light bulb. Replace when cracked, discolored, or missing to restore safe, even lighting. Confirm fit.

Protects and diffuses refrigerator interior light. Replace if warped, melted, or cracked to restore proper lighting. Snaps into place easily.

Decorative plastic cap that covers the door hinge mechanism on top-mount refrigerators. Replaces cracked, broken, or missing hinge caps for a clean finish.

Plastic cap that covers and protects the refrigerator door hinge. Replace if cracked, broken, or missing to restore a finished look and shield the hinge.

Lower door hinge assembly for bottom-mount refrigerators. Mounts at base of door to support weight and enable smooth opening. Replace if cracked or worn.

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

Refrigerator not cooling or freezing properly? This evaporator coil assembly absorbs heat to cool your fridge. Advanced repair requiring refrigerant work.

Replaces the back cover assembly for your refrigerator's machine compartment. Order this part if your original cover is cracked, broken, or missing.

A small pin that secures the wheels or rollers on the bottom of a refrigerator, keeping them locked in position during normal use. It holds the roller assembly together so the appliance can be moved smoothly without the wheels falling apart. Replace this part if a roller keeps falling off or the refrigerator is difficult to roll when you need to reposition it.

Support roller that mounts to the refrigerator base, allowing the unit to roll for cleaning or service. Replace if worn, broken, or causing uneven positioning.

Fridge not cooling or freezing? Compressor running constantly? This compressor set assembly restores cooling. Complex repair requiring professional tools.

Refrigerator clicking but not cooling? The compressor start relay kickstarts your compressor. Simple 30-minute DIY fix that gets your fridge cold again.

Rubber seat bumper for refrigerator shelves and drawers. Replaces worn, cracked, or missing rubber cushions that protect surfaces and reduce noise.

Refrigerator door stopper bumper that prevents door from overextending. Replace if cracked, broken, or missing to protect door hinges and cabinet.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

Fan guide airflow duct channels air from the evaporator fan to cabinet vents. Replace if cracked, broken, or missing to restore proper airflow circulation.

Replacement drip tray that catches defrost and condensation water under your refrigerator. Installs beneath the evaporator to prevent pooling and leaks.

Replace your broken or cracked refrigerator fan grill assembly. Protective cover that installs over the evaporator fan in the freezer compartment.

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

Fix ice buildup on evaporator coils or freezer not defrosting properly. This defrost thermostat monitors temperature to prevent frost. 2-hour repair.

The Evaporator Fan Motor is an OEM part for LG refrigerators. It is located in the freezer compartment, near the evaporator coil. It works to circulate cold air throughout the refrigerator, ensuring efficient cooling and proper temperature distribution.

Causes of a faulty evaporator fan motor can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as insufficient cooling, improper temperature regulation, or unusual noises coming from the refrigerator.

Symptoms of a bad evaporator fan motor may include:

• Inadequate cooling performance in the refrigerator compartment
• Freezer section cooling properly while the refrigerator remains warm
• Unusual noises, such as grinding or rattling, coming from the appliance

This OEM LG part can also be used on Kenmore/Sears appliances.

Motor mounting bracket assembly for refrigerators. Secures the motor in place. Replace if bracket is cracked, broken, or won't hold motor securely.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

This is a rubber or elastomer damper that supports and isolates the evaporator fan motor inside the refrigerator. It absorbs vibration from the motor to reduce noise during normal operation. Replace this part if you hear excessive buzzing, rattling, or vibration coming from the freezer section, which often indicates the damper has hardened or deteriorated.

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.

Reflector lamp housing directs and diffuses interior bulb light for brighter refrigerator illumination. Replace if cracked, discolored, or missing.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

This run capacitor provides the continuous electrical boost needed to keep the refrigerator's compressor motor running efficiently. It stores and releases energy to maintain the proper phase and voltage for the compressor during normal operation. Replace this capacitor if the compressor struggles to start, hums without running, shuts off intermittently, or if the refrigerator stops cooling altogether.

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

Fix error code ER DH, frost buildup, or warm refrigerator temps with this defrost heater. Restores airflow and prevents ice-clogged coils. Moderate DIY.

This is the DC motor that drives the condenser fan, typically located near the compressor at the bottom rear of the refrigerator. It circulates air across the condenser coils to dissipate heat and maintain efficient cooling. Replace this motor if the refrigerator is running warm, the compressor is overheating, or the fan is not spinning when the compressor is operating.

This main control board serves as the electronic brain of your refrigerator, managing temperature control, defrost cycles, and various cooling functions. It processes input from temperature sensors and controls compressor operation, fan motors, and other components. Replace it if your refrigerator doesn't cool properly, displays error codes, or if temperature controls don't respond correctly.

Outer housing cover for refrigerator control panel. Replaces cracked, damaged, or missing panel. Restores finished look and protects internal components.

Decorative control panel cover that installs over refrigerator user controls. Replace if cracked, faded, or damaged to restore finished appearance.

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

Molded housing that supports and aligns your refrigerator's control panel components. Replace when the original case is cracked, broken, melted, or warped.

Secures the toe grille to the base of your refrigerator. Replace if broken, cracked, or missing to keep the lower kickplate panel firmly attached.

This is a temperature sensor that monitors the internal temperature of the refrigerator compartment and sends readings to the main control board. The control board uses this data to regulate the compressor and cooling cycles. Replace this sensor if the refrigerator is too warm, too cold, runs continuously, or displays incorrect temperature readings.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
