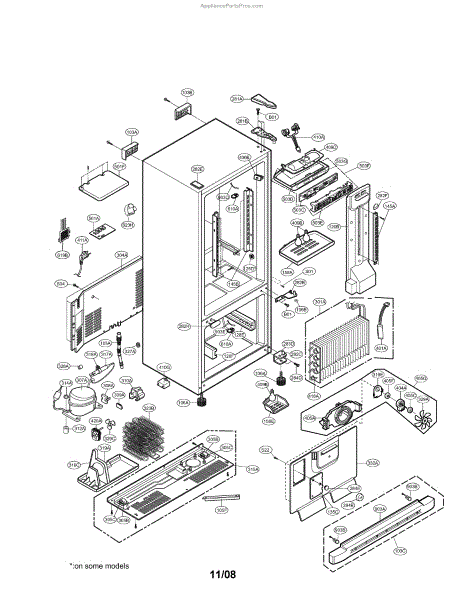

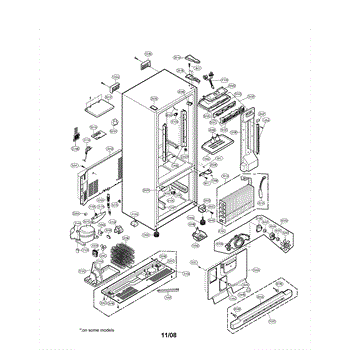

Parts for Lg LBN22515ST/00: Case Parts

Parts for Lg LBN22515ST/00: Case Parts

Location on Diagram
Part Description
Price & Availability
B01
Product photo
By: Lg
Part Number: 1STZJA3004F

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

More
$13.93

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
103A
By: Lg
Part Number: MEB64014305
$22.33

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
103C
Product photo
5.0 (1)
By: Lg
Part Number: 3550JJ0006C
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

106A
Product photo
By: Lg
Part Number: 4779JA2003A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

106B
Product photo
By: Lg
Part Number: 4J00382C

Fastener washer for refrigerators. Replaces worn, missing, or damaged washers that support screws and nuts. Restores proper spacing and load distribution.

More
$9.65

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
120B
Product photo
By: Lg
Part Number: 5209JJ1002A

Replaces a cracked or broken air duct assembly that routes cold air from the freezer to the refrigerator compartment. Mounts on the back wall of the fridge.

More
$318.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
125D
Product photo
By: Lg
Part Number: 4930JJ3007A

This holder bracket secures and positions components inside your refrigerator, typically holding items like water filters, light fixtures, or small parts. It ensures proper alignment and prevents movement during normal operation. Replace this bracket if components are loose, misaligned, or falling out of position.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

135C
Product photo
By: Lg
Part Number: 3550JJ2030A

Protective grille cover that shields the cooling fan and directs airflow in your refrigerator. Replace if cracked, broken, or missing to restore finish.

More
$14.14

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
145B
By: Lg
Part Number: 4930JJ2004D
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

158E
Product photo
By: Lg
Part Number: MCK30060901

Protects and diffuses your refrigerator's interior light bulb. Replace when cracked, discolored, or missing to restore safe, even lighting. Confirm fit.

More
$33.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
158A
Best Seller
Product photo
5.0 (17)
By: Lg
Part Number: 3550JA1388B

Protects and diffuses refrigerator interior light. Replace if warped, melted, or cracked to restore proper lighting. Snaps into place easily.

More
$34.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
281A
By: Lg
Part Number: 3550JJ2013C

Replace your refrigerator's broken or missing hinge cover cap. This decorative cover installs over the door hinge to conceal hardware and provide a finished look.

More
$46.48

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
281B
Product photo
By: Lg
Part Number: 4775JJ2003B
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

282C
By: Lg
Part Number: 1PZZJJ3002B
$22.62

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
282F
By: Lg
Part Number: 3806JL2006F
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

282B
By: Lg
Part Number: 4775JJ2006H

Secures and pivots your refrigerator door for proper alignment. Replace if hinge is cracked, broken, or causing door sag and uneven gaps.

More
$84.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
284B
By: Lg
Part Number: 3550JA3120A
$11.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
284D
Product photo
By: Lg
Part Number: 1STZJA3004F

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

More
$13.93

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
301A
Product photo
By: Lg
Part Number: 5421JJ1001B

Refrigerator not cooling or freezing properly? This evaporator coil assembly absorbs heat to cool your fridge. Advanced repair requiring refrigerant work.

More
$430.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
304A
By: Lg
Part Number: 3551JJ2008B

Replaces the back cover assembly for your refrigerator's machine compartment. Order this part if your original cover is cracked, broken, or missing.

More
$124.01

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
305C
Product photo
By: Lg
Part Number: 4J04238A

A small pin that secures the wheels or rollers on the bottom of a refrigerator, keeping them locked in position during normal use. It holds the roller assembly together so the appliance can be moved smoothly without the wheels falling apart. Replace this part if a roller keeps falling off or the refrigerator is difficult to roll when you need to reposition it.

More
$9.65

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
305B
Product photo
By: Lg
Part Number: MHA62513601

Support roller that mounts to the refrigerator base, allowing the unit to roll for cleaning or service. Replace if worn, broken, or causing uneven positioning.

More
$18.77

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
307A
Product photo
4.0 (1)
By: Lg
Part Number: TCA35931726

Fridge not cooling or freezing? Compressor running constantly? This compressor set assembly restores cooling. Complex repair requiring professional tools.

More
$289.39

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
309A
Product photo
By: Lg
Part Number: 6750CR0004S
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

310A
Product photo
5.0 (2)
By: Lg
Part Number: 3550JA2042C

Protective cover for your refrigerator's PTC and compressor start device assembly. Replace if cracked, melted, or missing to shield components from damage.

More
$15.32

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
312A
By: Lg
Part Number: 5040JA3031A

Rubber seat bumper for refrigerator shelves and drawers. Replaces worn, cracked, or missing rubber cushions that protect surfaces and reduce noise.

More
$11.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
314A
By: Lg
Part Number: 4620JA3009A

Refrigerator door stopper bumper that prevents door from overextending. Replace if cracked, broken, or missing to protect door hinges and cabinet.

More
$11.47

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
315A
By: Lg
Part Number: 3103JJ1001Z
$179.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
317A
Best Seller
Product photo
By: Lg
Part Number: ADH73150210

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

More
$93.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
318A
By: Lg
Part Number: 4930JJ3002A
$11.47

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
319A
By: Lg
Part Number: 3390JJ0003A
$116.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
319C
By: Lg
Part Number: 4974JJ1009A

Fan guide for refrigerators. Directs airflow from the evaporator fan. Replace if cracked, broken, or missing to restore proper air circulation.

More
$35.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
329A
Product photo
5.0 (1)
By: Lg
Part Number: AEB74004901

Replace your broken or cracked refrigerator fan grill assembly. Protective cover that installs over the evaporator fan in the freezer compartment.

More
$190.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
329C
Product photo
By: Lg
Part Number: 5901JJ1004B
$27.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
332A
By: Lg
Part Number: 3531JJ1004S
$160.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
401A
Best Seller
Product photo
4.8 (14)
By: Lg
Part Number: 6615JB2005C

Fix ice buildup on evaporator coils or freezer not defrosting properly. This defrost thermostat monitors temperature to prevent frost. 2-hour repair.

More
$51.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
404A
Best Seller
Product photo
4.9 (18)
By: Lg
Part Number: 4681JB1029H

The Evaporator Fan Motor is an OEM part for LG refrigerators. It is located in the freezer compartment, near the evaporator coil. It works to circulate cold air throughout the refrigerator, ensuring efficient cooling and proper temperature distribution.

Causes of a faulty evaporator fan motor can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as insufficient cooling, improper temperature regulation, or unusual noises coming from the refrigerator.

Symptoms of a bad evaporator fan motor may include:

  • Inadequate cooling performance in the refrigerator compartment
  • Freezer section cooling properly while the refrigerator remains warm
  • Unusual noises, such as grinding or rattling, coming from the appliance

This OEM LG part can also be used on Kenmore/Sears appliances.

More
$99.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
405A
By: Lg
Part Number: 4811JJ2002A

Motor mounting bracket assembly for refrigerators. Secures the motor in place. Replace if bracket is cracked, broken, or won't hold motor securely.

More
$42.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
405F
Best Seller
Product photo
5.0 (15)
By: Lg
Part Number: 5040JA2004A

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

  • Unusual noises or vibrations from the back of the refrigerator.
  • The evaporator motor shifting out of place, which can affect cooling efficiency.
  • Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

More
$17.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
405C
Best Seller
Product photo
5.0 (20)
By: Lg
Part Number: 5040JA2009B

This is a rubber or elastomer damper that supports and isolates the evaporator fan motor inside the refrigerator. It absorbs vibration from the motor to reduce noise during normal operation. Replace this part if you hear excessive buzzing, rattling, or vibration coming from the freezer section, which often indicates the damper has hardened or deteriorated.

More
$17.56

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
406B
Best Seller
Product photo
4.9 (217)
By: Lg
Part Number: 6600JB1010A

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.

More
$24.68

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
409D
Product photo
By: Lg
Part Number: 3034JJ1002B

Reflector lamp housing directs and diffuses interior bulb light for brighter refrigerator illumination. Replace if cracked, discolored, or missing.

More
$89.39

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
409B
Product photo
5.0 (2)
By: Lg
Part Number: 6912JB2004M

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

  • No illumination or dim lighting inside the refrigerator
  • A flickering or intermittent light
  • Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

410A
Best Seller
Product photo
4.9 (18)
By: Lg
Part Number: EAG62831801

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

  • Holds the bulb securely and supplies electrical power
  • Restores consistent interior lighting for visibility
  • Replaces sockets with heat damage, cracks, or worn contacts
  • Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose
What's included: 1 lamp socket Install notes:
  • Disconnect power before servicing and allow the area to cool
  • Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
  • Transfer wires one at a time to the new socket; ensure tight, correct connections
  • Use only the bulb type and wattage specified for your model; test before reassembly

More
$94.67

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
411A
Product photo
By: Lg
Part Number: 6411JB1042Y
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

418A
Product photo
4.7 (3)
By: Lg
Part Number: 5300JB1100Q

Fix error code ER DH, frost buildup, or warm refrigerator temps with this defrost heater. Restores airflow and prevents ice-clogged coils. Moderate DIY.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

420A
Product photo
4.0 (2)
By: Lg
Part Number: 4680JK1001B

Refrigerator running hot or not cooling? A failed condenser fan motor prevents heat removal from the compressor. DIY repair in under an hour.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

501F
Product photo
By: Lg
Part Number: 3550JJ1042B
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

503G
By: Lg
Part Number: 3806JL1009B
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

503E
By: Lg
Part Number: 3550JJ2031A

Outer housing cover for refrigerator control panel. Replaces cracked, damaged, or missing panel. Restores finished look and protects internal components.

More
$36.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
503C
5.0 (1)
By: Lg
Part Number: ABQ33905301

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

  • Dimming or blank display lacking visibility
  • Unresponsive touch controls with miscalibrated inputs
  • Insecure mounting losing calibration on door
  • Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

503F
5.0 (1)
By: Lg
Part Number: ABQ33905301

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

  • Dimming or blank display lacking visibility
  • Unresponsive touch controls with miscalibrated inputs
  • Insecure mounting losing calibration on door
  • Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

503D
Product photo
5.0 (14)
By: Lg
Part Number: 3110JA1096A

Molded housing that supports and aligns your refrigerator's control panel components. Replace when the original case is cracked, broken, melted, or warped.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

610A
By: Lg
Part Number: 3550JJ2020A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

619B
By: Lg
Part Number: 3550JJ2024A
$63.10

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
903A
Product photo
5.0 (1)
By: Lg
Part Number: 3550JJ0006C
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

903B
Product photo
4.9 (7)
By: Lg
Part Number: 4930JJ2021A

Secures the toe grille to the base of your refrigerator. Replace if broken, cracked, or missing to keep the lower kickplate panel firmly attached.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

903E
Best Seller
Product photo
5.0 (7)
By: Lg
Part Number: 6500JB2002T

This is a temperature sensor that monitors the internal temperature of the refrigerator compartment and sends readings to the main control board. The control board uses this data to regulate the compressor and cooling cycles. Replace this sensor if the refrigerator is too warm, too cold, runs continuously, or displays incorrect temperature readings.

More
$25.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
903D
Best Seller
Product photo
4.9 (10)
By: Lg
Part Number: 6500JB2001B

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

  • Inconsistent refrigerator or freezer temperatures
  • Food spoiling faster than usual
  • Refrigerator running continuously or not running at all
  • Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

More
$43.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
NI
By: Lg
Part Number: 3550JJ8003A
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
By: Lg
Part Number: 3551JJ1020D
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
Product photo
5.0 (2)
By: Lg
Part Number: 6912JB2004M

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

  • No illumination or dim lighting inside the refrigerator
  • A flickering or intermittent light
  • Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
Best Seller
Product photo
4.9 (37)
By: Lg
Part Number: 6749C-0014E

Refrigerator clicking but not cooling? The compressor start relay kickstarts your compressor. Simple 30-minute DIY fix that gets your fridge cold again.

More
$44.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
