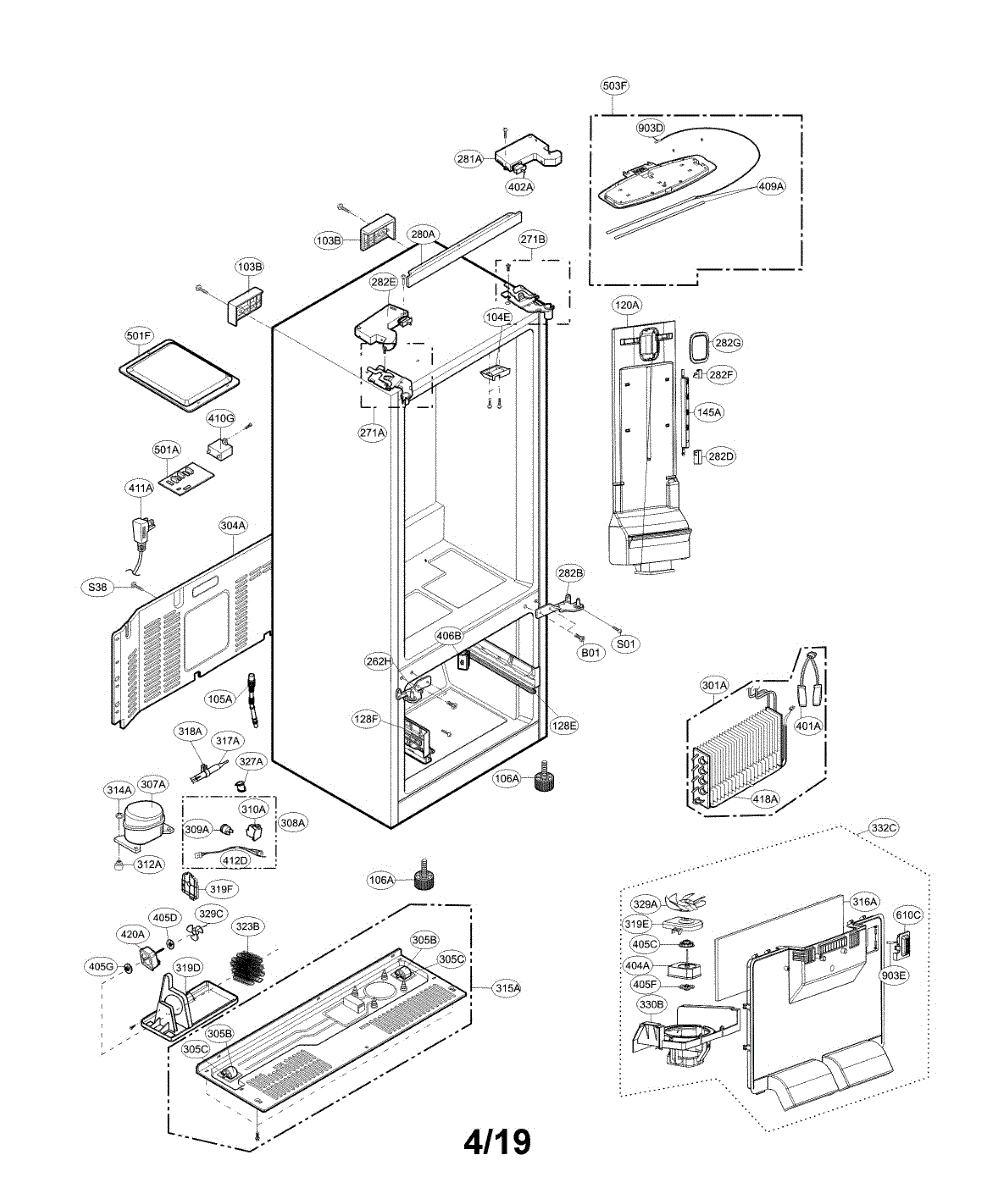

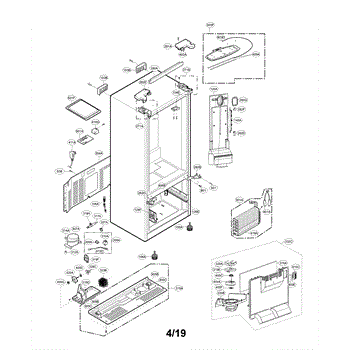

Parts for Lg LFCS22520S/02: Case Parts

Replacement mounting screw for refrigerator panels, brackets, and internal components. Needed when original fastener is missing, stripped, or damaged.

Secures panels, brackets, and trim components inside your refrigerator. Replace this fastener if it's stripped, lost, or damaged to restore alignment.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Replace your refrigerator's rear handle if it's cracked, broken, or missing. This structural support handle mounts to the back panel of your unit.

This door holder secures the microwave door assembly to the cabinet, restoring proper alignment and a snug close. Replace a broken or worn plastic retainer to reduce rattling and help the door seat correctly. What it does:

• Secures the door assembly to the oven frame so the door sits flush and aligned
• Helps the door engage the latch correctly for reliable closing
• Reduces door movement and rattling caused by a cracked or missing retainer
• Commonly replaced when the door feels loose, sags, or won't stay properly seated

• One door holder

• Disconnect power before starting work; never service a microwave while it's energized
• Remove door trim and glass panels carefully to avoid damage; keep track of small screws and clips
• Test door alignment and smooth operation after installation; do not force parts into place

Front plate assembly that covers and protects the exterior panel of your refrigerator. Replace if cracked, broken, or missing to restore appearance.

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Adjustable leveling leg assembly stabilizes your refrigerator and ensures proper door alignment. Replace worn legs to reduce vibration and noise. Confirm fit.

Multi-duct assembly for bottom-mount refrigerators. Replaces damaged or broken air distribution ducts inside the refrigerator compartment. Order now.

Holder assembly for bottom-mount refrigerators. Replaces broken, cracked, or missing holder components. Secures internal parts in place.

Plastic rail holder that secures shelf rails inside your refrigerator. Replace this component when cracked, broken, or missing to restore shelf stability.

Right-hand rail guide assembly for refrigerator drawers and shelves. Ensures smooth sliding and proper alignment. Replace if cracked, broken, or worn.

Left-hand drawer rail guide assembly for refrigerator bottom compartment. Replace when cracked, broken, or causing drawer misalignment or rough sliding.

Stores ice from your refrigerator's ice maker. Replace if cracked, warped, or damaged, causing ice jams, poor dispensing, or freezer mess.

Replace worn drawer rollers to restore smooth, quiet sliding in your refrigerator. Fixes binding, noise, and uneven travel. Confirm fit with your model.

Freezer drawer roller assembly for refrigerators. Installs on bottom drawer to enable smooth gliding. Replace if roller is cracked, broken, or worn.

Roller assembly for refrigerator freezer drawers. Replaces broken, cracked, or missing rollers that prevent smooth drawer gliding. Snaps into place.

Plastic tray that sits inside refrigerator drawer compartments. Replace if cracked, warped, or broken. Maintains drawer organization and contents.

Replacement freezer drawer tray for bottom-mount refrigerators. Organizes frozen foods inside pull-out compartment. Replace if cracked, broken, or warped.

Replace a cracked, broken, or missing refrigerator shelf assembly. This structural component installs inside your fridge to hold food and beverages.

Replace cracked, broken, or missing glass shelf assembly in your refrigerator. Includes tempered glass surface and front trim for stable food storage.

Refrigerator shelf holder that secures shelving in place. Replace if your holder is cracked, broken, or missing to properly support refrigerator shelves.

Replacement rail holder that secures sliding rails in your refrigerator. Installs on the frame to restore alignment. Needed when cracked or broken.

This rail holder secures the microwave door rail so the door stays aligned and operates smoothly. Replaces a worn or broken holder to reduce door wobble and improve closing action. What it does:

• Secures and supports the door rail assembly for proper door alignment
• Keeps the rail from shifting, preventing rubbing, rattling or uneven gaps
• Helps restore smooth opening and closing of the door
• Fits where the rail mounts to the door frame or trim

• One rail holder

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver/trim tool) and handle plastic parts gently to avoid breakage
• Inspect surrounding clips/rails for damage and replace if needed for a lasting repair

Drawer glide rail assembly supports and guides refrigerator drawers for smooth opening and closing. Replace if drawer sticks or misaligns. Confirm fit.

Drawer slide rail guide assembly for refrigerators. Installs to support and align drawers. Replace if cracked, bent, broken, or causing misalignment.

Replaces worn or damaged refrigerator drawer rail guide assembly. Restores smooth sliding when original guide is cracked, broken, or causing binding.

Fix loose or stuck control knobs with this control panel shutter. Restores proper knob engagement and prevents debris buildup. Simple snap-in repair.

Replace a cracked or missing produce bin so fruits and vegetables store at the proper humidity and your fridge stays organized. This direct-fit crisper drawer restores clean, reliable storage in the fresh-food section.

What it does

• Stores produce at a humidity level intended for fruits and vegetables
• Restores smooth pull-out/push-in operation when paired with intact slides
• Helps prevent spills and items dropping behind the drawers
• Replaces damaged bins that stick, wobble, or won’t seat correctly

What’s included
One vegetable/crisper drawer (sold individually).

Install notes

• Slide the old bin straight out; align and seat the new bin on the guides—no tools required
• Do not force; ensure the rail guides and center track are fully engaged
• Hand-wash only; avoid harsh cleaners that can stress and crack plastics

Usage tip
Keep heavier items on shelves above; overloading the bin can crack corners and stress the rails.

Restore a clean, reliable produce bin. This crisper drawer (vegetable tray) replaces cracked or missing bins so fruits and vegetables store properly and your fridge stays organized with smooth pull-out access.

What it does

• Provides dedicated produce storage in the fresh-food compartment
• Helps maintain proper humidity when used with the crisper cover
• Restores smooth slide-in/slide-out operation
• Helps prevent spills and items dropping behind the drawers
• Replaces damaged bins that stick, wobble, or won’t seat correctly

What’s included
One vegetable/crisper drawer bin (sold individually).

Install notes

• Unplug power before moving shelves or covers
• Pull the old bin straight out; align and seat the new bin fully on the guides
• Inspect rails and the crisper cover for cracks before reuse
• Hand-wash only; avoid harsh cleaners or high heat that can stress plastics

Replace a cracked or missing drawer cover to restore clean, organized storage in the fresh-food section. This cover sits above the drawer and helps keep items contained with smooth, reliable access.

What it does

• Forms the top cover over a pantry/crisper-style drawer
• Helps contain spills and prevents items from dropping behind the drawer
• Restores smooth slide-in/slide-out operation when the frame tabs are intact
• Replaces covers with broken corners, warped frames, or missing supports

What’s included
One drawer cover (tray cover).

Install notes

• Remove the drawer, lift out the damaged cover, and seat the new cover on its supports—do not force
• If your model uses a separate glass insert, handle carefully and transfer only if applicable
• Reinstall the drawer and verify smooth travel and full seating on the rails

This supporter cover is a TV rear trim piece that protects and conceals internal components while restoring the set's appearance. It provides a finished look and covers the TV's support area for safe handling and cosmetic repair. What it does

• Covers and protects the TV's rear support area and nearby components from dust and incidental contact
• Restores the TV's exterior finish after damage or missing trim pieces
• Helps maintain correct spacing for the support/stand attachment area
• Common symptom: cracked, warped, missing, or loose rear trim exposing internal parts

• One supporter cover

• Unplug the TV and place it face down on a soft, non-abrasive surface before starting
• Installation may require removing screws or disengaging plastic clips; keep hardware organized
• Handle carefully to avoid scratching the display or bending mounting tabs
• Refer to the TV's service manual for disassembly instructions and torque/spec guidance

Exterior decor tray that covers underlying components for a finished look. Replace this trim panel if yours is cracked, scratched, worn, or missing.

Cosmetic trim piece that finishes the mounting area on your bottom-mount refrigerator. Replace a cracked, broken, or missing cover to restore a clean fit.

Clear glass shelf for refrigerator interior storage. Replace your cracked, shattered, or broken shelf to restore organized food storage space.

Replaces a cracked, broken, or missing Fresh Room drawer tray assembly in your refrigerator. Restores the dedicated deli storage compartment for organized access.

Complete outer freezer door assembly that restores appearance and sealing. Replace when dented, damaged, or worn. Verify fit with your model number.

Replace your worn refrigerator door gasket to restore an airtight seal, prevent cold air loss, and improve energy efficiency. Verify fit with your model.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

Small stopper that fits inside the handle assembly to limit travel and keep the handle properly seated. Replace if worn, missing, or broken to restore secure feel.

Door foam assembly installs inside refrigerator door panel for insulation and sealing. Replace if foam is compressed, cracked, or damaged affecting door closure.

Replaces worn insulation inside your refrigerator door to restore thermal sealing and reduce condensation. Install when foam is compressed or damaged.

Door gasket assembly creates an airtight seal around your refrigerator door to maintain temperature and energy efficiency. Replace if worn, torn, or causing air leaks. Verify fit with your model number before ordering.

Replace your refrigerator door gasket to restore airtight sealing, maintain proper cooling, and reduce energy waste. Fits select bottom-mount models.

Replacement drawer guide rail for refrigerators and freezers. Installs along the drawer track to restore smooth sliding when original is cracked or worn.

Replacement door basket for refrigerator door. Holds bottles, jars, and condiments securely. Replace if cracked, broken, or missing to restore organization.

Replacement door basket that snaps into the refrigerator's inner door to hold condiments, bottles, and small items. Restores storage when the original is cracked or missing.

Clear plastic door basket for bottom-mount refrigerator fresh food compartment. Replace broken, cracked, or missing door bins to restore organized storage.

Replacement door closing cam for refrigerator doors. Guides the door into correct position for smooth closing and tight seal. Order if cam is cracked or worn.

Replacement refrigerator door handle assembly. Installs on refrigerator door. Needed when original handle is cracked, broken, or damaged.

Slide rail for bottom-mount refrigerator freezer drawer. Replaces broken, binding, or worn rails that prevent drawer from opening or closing smoothly.

Slide rail for bottom-mount refrigerator freezer drawers. Replaces broken, cracked, or binding rails causing uneven drawer movement or closure issues.

Fixes intermittent cooling or component failures caused by loose or damaged wiring connections. This connector assembly restores secure electrical links.

Center hinge assembly for bottom-mount refrigerators. Connects and supports doors between freezer and fresh food compartments. Replace if cracked or broken.

This is a ring intended for use in refrigerators. The ring is used to adjust the height of the door. Genuine OEM replacement rings are necessary for the repair to ensure a proper fitting.If the refrigerator door no longer opens or closes easily, or if it is not sealing properly, the rings may need to be replaced. Visual inspection can determine if there are problems with the refrigerator door rings. Make sure to unplug the device before starting any of the disassemblies of the machine. Wear gloves.This ring is an authentic OEM replacement part. It is sold as an individual unit. The ring is made of high-quality, durable materials. The replacement piece is sourced directly from the manufacturer. It can be installed in several models of refrigerators. The genuine OEM replacement ring is compatible with refrigerators produced by both LG and Kenmore.

Upper left door hinge for refrigerators. Secures and aligns the top of the door to the cabinet. Replace if hinge is bent, cracked, or damaged.

Upper right door hinge for bottom-mount refrigerators. Mounts at the top of the door. Replace if cracked, broken, or when reversing door swing.

This display case assembly replaces the front control/display housing that holds the fridge's user interface and indicator panel, restoring a secure, finished mounting for the control board and display. It keeps controls accessible and protected. What it does:

• Provides the housing and bezel for the refrigerator display and control module
• Secures and protects the control board, buttons, and indicator panel from damage
• Restores a solid mounting surface and proper alignment for user controls
• Can resolve issues like a loose, cracked, or missing display cover that affects usability

• Disconnect power to the appliance before starting; avoid electrical shock
• Handle the display housing and any attached wiring or connectors carefully to prevent damage
• Use basic hand tools; some installations require removal of interior panels or the door trim

Conceals and protects the door hinge area on your refrigerator. Replace this cover if cracked, loose, or missing to restore a clean appearance.

Center hinge assembly for bottom-mount refrigerators. Mounts between upper and lower doors to support door alignment. Replace if cracked or broken.

Plastic cover that snaps over the freezer door hinge to conceal hardware and protect the hinge area. Replace if cracked, broken, or missing.

Replacement door hinge bushing for refrigerators. Installs in door hinge mechanism. Replace when worn, cracked, or causing door grinding or misalignment.

Machinery compartment cover assembly for refrigerators. Protects internal components at the back. Replace if cracked, broken, or missing to restore proper coverage.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

Refrigerator not cooling or freezer warm? The compressor assembly circulates refrigerant to maintain temperature. Professional installation recommended.

Refrigerator not cooling? This compressor overload protector prevents motor overheating by cutting power when current spikes. DIY-friendly repair.

Refrigerator stopped cooling after power outage? The compressor overload protector prevents overheating damage. Easy DIY fix when compressor won't run.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

Fix refrigerator vibration and rattling noise with this compressor damper. Cushions the compressor to reduce metal-on-metal contact and wear.

Replaces broken or missing refrigerator door stop. Limits door travel to prevent over-extension and maintain proper alignment and smooth operation.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

Secures the drier assembly to the refrigerator frame. Replace if the clip is cracked, broken, or missing to restore stability and reduce movement.

Motor running loud or vibrating excessively? This motor mounting bracket secures the motor to the cabinet, reducing vibration and noise for stable operation.

This guide assembly directs and stabilizes the refrigerator/freezer fan to ensure consistent airflow across the evaporator and cooling components. Replacing a damaged guide restores proper air circulation and helps reduce noise from an unsteady fan. What it does

• Holds and centers the fan blade to maintain efficient airflow through the evaporator coil
• Prevents fan wobble or contact with housing that can cause noise or mechanical wear
• Helps ensure even cooling and can reduce frost build-up caused by disrupted airflow
• Supports proper airflow that contributes to consistent temperatures in the cooling compartment

• One guide assembly

• Disconnect power before beginning any repair and follow the appliance manufacturer's safety instructions
• Access may require removing interior panels or the evaporator/fan housing; retain fasteners for reassembly
• Inspect adjacent components while replacing the guide to ensure full repair
• Use only compatible parts and avoid forcing plastic tabs; if clips or screws are damaged, replace them

Refrigerator not cooling or making loud noises? The compressor base assembly secures and stabilizes the compressor. Moderate DIY repair with basic tools.

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

This freezer shroud covers internal freezer components in your refrigerator. Replace if cracked, broken, or missing to restore proper appearance.

Fixes rattling noises and poor cooling from restricted airflow. This fan grille directs air and protects the evaporator or condenser fan. Easy DIY fix.

Fix refrigerator not cooling, display issues, or cycling problems with this main control board replacement. Restores proper temperature management.

If your refrigerator light stays on or interior won't cool properly, the door switch may have failed. This magnetic switch detects door position.

Refrigerator not cooling or freezer frosting up? The evaporator fan motor circulates cold air through your fridge. Moderate DIY repair for bottom-mount models.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

Replaces a worn or broken evaporator fan motor grommet in your refrigerator. Cushions the motor to reduce vibration and noise during operation.

Replace your refrigerator's LED light assembly when the interior lighting is broken, cracked, or no longer illuminating. Installs inside the compartment.

Refrigerator won't start or compressor struggles to run? The run capacitor provides the power boost needed to start and maintain compressor operation.

Refrigerator won't power on or no electrical connection? This power cord assembly connects your refrigerator to the wall outlet. Direct plug-in part.

Refrigerator not cooling? This compressor overload protector prevents motor overheating by cutting power when current spikes. DIY-friendly repair.

Refrigerator not cooling or freezer icing up? The defrost heater sheath melts frost buildup. Common fix for bottom-mount models. Moderate DIY repair.

Control panel unresponsive or erratic? This protective cover shields your refrigerator's circuit board from moisture and debris. Straightforward install.

Fixes erratic cooling, display errors, and power issues in your refrigerator. Main power control board regulates temperature and system operation.

Replace your refrigerator's light cover assembly when cracked, yellowed, or broken. Protects the interior bulb and ensures proper lighting. Verify fit with your model number before ordering.

Ice maker stopped producing ice or cycles too slowly? This complete ice maker assembly replaces a faulty unit. DIY-friendly installation in 10-15 minutes.

Fix warm fridge temperatures or frost buildup with this door foam gasket. Creates an airtight seal to keep cold air in and moisture out.

Ice maker not working or leaking water? This inlet valve assembly controls water flow to your ice maker and dispenser. DIY install in 30 minutes or less.

Rail connector for refrigerator shelves and drawers. Replace if cracked, broken, or missing to restore proper rail alignment and support functionality.

Interior light won't turn off when door closes? This refrigerator door switch cover protects and aligns the switch for proper operation. Simple DIY fix.

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

Fix a refrigerator not cooling properly or running too warm with this temperature sensor. Monitors internal temps to maintain proper cooling.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

Removes impurities and contaminants from water and ice. Replace every 6 months or 200 gallons for clean, fresh-tasting water. Verify fit by model.
