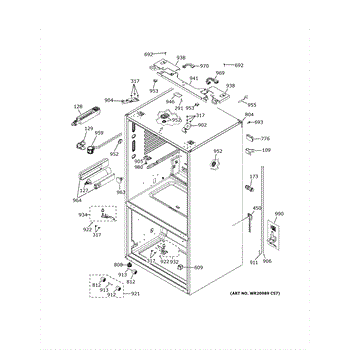

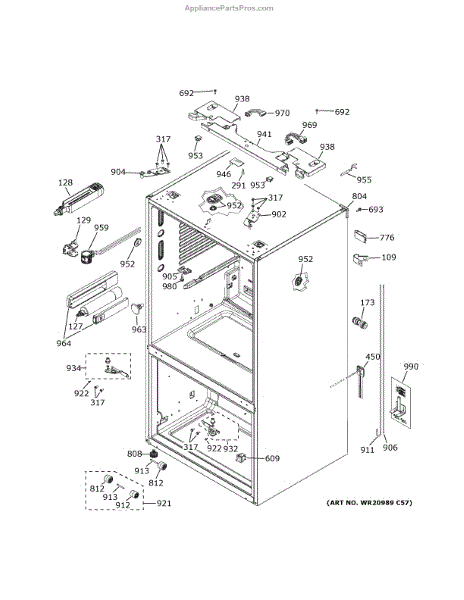

Parts for Ge GWE23GENCDS: Case Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Water Filter Bypass Plug is an OEM part for GE refrigerators. It allows the refrigerator to operate without a water filter by creating a direct connection for the water flow.

Causes of a bad Water Filter Bypass Plug can include wear and tear from regular use, damage from improper installation or removal, and degradation of the sealing components that ensure a tight fit.

Symptoms of a bad Water Filter Bypass Plug include:

• Water leaks from the filter housing
• Reduced or no water flow to the dispenser or ice maker
• Error messages related to the water filter on the control panel
• Improper fit or difficulty in installing the bypass plug

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement bracket that secures the refrigerator water-filter manifold to the cabinet, keeping the filter head stable and properly aligned so the filter seats correctly and helps reduce leaks and vibration during use. What it does:

• Secures and supports the water-filter manifold assembly to the refrigerator cabinet.
• Keeps the filter head aligned so the filter cartridge seals correctly.
• Helps prevent movement-related leaks or disconnections of the water lines.
• Replaces bent, cracked or missing brackets that can allow the filter housing to shift.

• Turn off water supply and unplug the appliance before beginning; have a towel or small container ready to catch residual water.
• Remove the filter or access panel as needed to reach the manifold; keep fasteners for reuse or replace if damaged.
• Use common hand tools (screwdriver/socket) and install bracket in the same orientation as the original; do not overtighten mounting hardware.
• After installation, restore water and power, check for leaks, and confirm the filter seats and dispenses properly.

This straight 1/4-inch water line coupler joins two sections of 1/4-inch OD refrigerator tubing, restoring a secure connection in dispenser and icemaker supply lines. Use it to splice, repair, or extend existing tubing.

• Creates an inline union for 1/4-inch OD refrigerator water tubing
• Helps address leaks, cracks, or breaks by replacing a damaged connector or splicing a cut line
• Useful when rerouting lines or adding inline components such as filters
• Common symptoms: water dripping at a tubing joint, loose/disconnected line, reduced or no water to dispenser/ice maker

• Unplug the refrigerator and turn off the water supply; dispense water to relieve pressure
• Cut tubing ends square and clean; ensure both tubes are 1/4-inch OD
• Make secure connections per the coupler design (push-to-connect or compression); ensure tubing is fully seated/assembled and gently pull to verify
• Restore water and check thoroughly for leaks

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

This 1/4-20 hex washer head screw secures panels and components in place, restoring proper fit and eliminating movement. It fits common appliance assemblies that use a 7/8" long, 1/4-20 threaded fastener. What it does:

• Fastens panels, brackets, and assemblies that use a 1/4-20 thread
• Restores secure fit when original screw is missing, stripped, or loose
• Helps stop rattling, vibration, and misalignment caused by loose hardware
• Matches common OEM head style for tool-ready installation with a socket or wrench

• Disconnect power to the appliance before servicing where applicable
• Use the correct 1/4-20 socket or wrench; install hand-tight then snug—do not overtighten
• Replace like-for-like: head style, thread size, and length before installing
• If fastener holes or threads are damaged, repair or retap before reuse

The Icemaker Fill Tube Heater is an OEM component specifically designed for GE refrigerators. Located near the icemaker assembly, this heating element plays a crucial supporting role.

Symptoms of a bad fill tube heater include:

• Irregular or inconsistent ice production amounts
• Cracked, cloudy or malformed ice cubes being generated
• The icemaker failing to operate or stop working altogether
• Water or moisture around the refrigerator icemaker area

Causes can include wear over time from powering on during each ice-making cycle. Mineral deposits may also form and insulate the heating surface, reducing effectiveness.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-18 x 3/4 machine screw fastens appliance panels and small brackets to keep components secure and stable. It's a direct-fit replacement screw used where the original hardware has stripped, broken, or gone missing. What it does:

• Secures access panels, mounting brackets, and small assemblies
• Restores proper alignment and reduces rattling or vibration
• Replaces stripped or damaged fasteners
• Keeps wiring and components held in place for safe operation

• Unplug the appliance or disconnect power before starting work
• Use the correct driver and size to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to parts
• Replace corroded or damaged fasteners for best results

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

This case corner cap is a molded corner cover that restores the finished appearance of a refrigerator cabinet and protects edges from dings and wear. It replaces a cracked, chipped or missing corner and helps keep cabinet panels aligned. What it does

• Covers and protects the cabinet/door corner from impact damage and wear
• Restores a uniform finished appearance for cosmetic repair
• Helps maintain panel alignment at the corner to reduce gaps and rubbing
• Commonly replaced when the corner is cracked, broken, loose or missing

• Disconnect power and remove food from the area before starting repairs.
• Remove any trim or fasteners securing the old cap; install the replacement by snapping or fastening into place as designed.
• Avoid forcing the cap; ensure clips or tabs align to prevent damage.
• If clips or underlying trim are damaged, replace those parts as needed for a secure fit.

The Mullion Striker is an OEM part for GE refrigerators responsible for securing the mullion or flipper door in place when it is closed, ensuring a tight seal and temperature inside the refrigerator.

A bad mullion striker can be caused by normal wear and tear over time, damage due to excessive force or impact, or misalignment of the mullion assembly. If you notice that the mullion door does not stay securely closed, causing a gap or allowing warm air to enter the refrigerator, it may indicate a problem with the mullion striker.

Symptoms of a bad mullion striker include:

• Difficulty in keeping the mullion door closed
• Visible gaps or improper sealing when the door is closed
• Condensation or frost buildup around the mullion area
• Unusual noises from the mullion assembly

Replace your faulty mullion striker with this genuine OEM part to restore your refrigerator. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This PEX water line provides a flexible, durable water supply connection for compatible appliances, restoring proper water delivery for dispensers and ice makers. It resists kinking and corrosion for reliable flow. What it does:

• Carries potable water from the household supply to the appliance water valve or dispenser.
• Restores water flow when the original line is cracked, pinholed, or damaged.
• Helps prevent leaks compared with brittle or corroded rigid tubing.
• Supports normal dispenser and ice maker operation when installed correctly.

• One PEX water line.

• Turn off and disconnect the water supply and power before starting work.
• Drain remaining water from the line and fittings to avoid spills.
• Use the correct fittings and follow manufacturer torque recommendations; hand-tighten then final snug with wrench.
• After installation, slowly restore water, check all connections for leaks, and test dispenser/ice maker operation.

The Front/Rear Wheel & Axle is an OEM replacement part for GE refrigerators. This set includes both the front and rear wheels, along with the axle, providing a solution for movement of your refrigerator. These wheels and axle ensure easy mobility and stability when moving or repositioning your refrigerator. The front wheels allow for convenient maneuverability, while the rear wheels provide stability and support.

A bad front/rear wheel and axle can occur due to wear and tear, damage, or component failure over time. If you notice symptoms such as difficulty in moving the refrigerator, uneven or wobbly positioning, or unusual noises when the refrigerator is being moved, it may indicate a need to replace the front/rear wheel and axle.

Symptoms of a bad front/rear wheel and axle include:

• Difficulty in moving the refrigerator
• Uneven or wobbly positioning
• Unusual noises when moving the refrigerator

Restore your refrigerator by replacing the faulty front/rear wheel and axle with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This center hinge (right) is the replacement pivot that supports and aligns the refrigerator door at the middle hinge point, helping restore smooth door movement and proper door alignment for reliable closing. What it does:

• Supports the mid-section of the refrigerator door and provides the pivot point for opening and closing.
• Restores correct door alignment to help the door seal and close more consistently.
• Replaces worn or damaged hinge hardware that can cause door sag, rubbing, or uneven gaps.
• Helps stop noisy or binding door movement when the existing hinge is bent, loose, or worn.

• Always support the door before removing any hinge hardware to prevent the door from falling or shifting.
• Remove the top/center hinge fasteners in sequence; retain or replace original screws and pins as required.
• Use basic hand tools; avoid overtightening fasteners which can restrict hinge movement.

This left-side center hinge secures and pivots the refrigerator door at the middle hinge location, restoring proper door alignment and smooth opening. It replaces a bent or worn center hinge to help maintain an even door gap and seal. What it does:

• Provides the pivot point for the refrigerator door at the center hinge location
• Restores correct door alignment when hinge is bent, worn, or broken
• Helps prevent uneven door gaps that can lead to poor sealing or cold loss
• Enables smooth opening and closing of the door by stabilizing movement

• Disconnect power and empty door shelves before starting; follow manufacturer instructions
• Support the door while removing or installing the hinge to avoid dropping or damaging the door
• Use appropriate hand tools; do not overtighten fasteners which can restrict door movement

The 2-pack Hinge End Cap Assembly is an OEM replacement part for GE refrigerators. This assembly is responsible for providing support and stability to the refrigerator door hinges, ensuring smooth opening and closing.

A bad hinge end cap assembly can occur due to regular wear and tear or accidental damage. If you notice symptoms such as a loose or sagging door, difficulty in opening or closing the door, or the door not staying securely in place, it may indicate a need to replace this assembly.

Symptoms of a bad hinge end cap assembly include:

• Loose or sagging refrigerator door
• Difficulty in opening or closing the door
• Door not staying securely closed

Restore your refrigerator's door by replacing the faulty hinge end cap assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This middle door cover is the molded interior trim piece that restores the refrigerator door's appearance and protects internal components and insulation. Replacing a damaged cover improves fit and looks without changing door function. What it does:

• Covers and protects internal door cavities, wiring and insulation behind the middle section
• Restores a secure mounting surface for door bins and shelves
• Replaces cracked, warped or cosmetically damaged trim that allows gaps or loose fittings
• Helps maintain a proper door seal by ensuring correct bin/shelf alignment

• One middle door cover (dark gray)

• Disconnect power to the appliance before servicing
• Remove door bins/shelves and any fasteners that secure the cover; keep hardware for reuse
• Align tabs and screw holes, then install using the original fasteners; do not force the part into place

The Pcb Asm Humidity Board is an OEM part for GE refrigerators. This humidity control board regulates the humidity levels within the refrigerator's crispers or drawers. It allows you to adjust and maintain the ideal humidity level for different types of produce, extending their shelf life and preserving their quality.

Symptoms of a bad humidity control board include:

• Inconsistent humidity levels
• Excessive moisture buildup
• Rapid spoilage of produce

A bad humidity control board can occur due to electrical issues, component failure, or other factors. If you notice symptoms such as inconsistent humidity levels, excessive moisture buildup, or produce spoiling quickly, it may be time to replace the humidity control board.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The LED Cover is an OEM part cfor GE refrigerators. It is responsible for protecting and diffusing the light from the LED bulbs inside the refrigerator. It helps create a well-lit interior, allowing you to easily see and locate your food and beverages.

A bad LED cover can be caused by accidental damage or regular wear and tear. If the cover becomes cracked, discolored, or damaged in any way, it can affect the quality and distribution of light inside the refrigerator.

Symptoms of a bad LED cover include:

• Dim or uneven lighting inside the refrigerator.
• Flickering or intermittent illumination.
• Dark spots in certain areas of the refrigerator.
• Visible cracks or damage to the cover.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Water Filter Manifold is an OEM replacement part for GE refrigerators. Its primary function is to channel and distribute water from the external water supply to the refrigerator's water dispenser and ice maker. This manifold serves as a connection point for the water filter, ensuring that water is properly filtered before reaching the dispenser and ice maker.

Causes of a bad filter manifold can include wear and tear from repeated filter changes, cracks or breaks due to impact, or leaks from deteriorated seals.

Symptoms of a bad filter manifold include:

• Leaks around the water filter area
• Reduced water flow or pressure
• The water filter not fitting securely
• Unusual tastes or odors in the filtered water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small rubber grommet that cushions and seals the freezer liner, helping reduce vibration and prevent wear where components meet the inner cabinet. Replaces a worn or missing grommet to restore a snug fit and quieter operation. What it does

• Cushions the freezer liner and components to reduce rattling and vibration.
• Helps maintain a tight seal at the liner mounting point to limit movement and wear.
• Prevents direct metal-to-metal contact that can cause chipping or cracking of the liner.
• Commonly replaced when the liner is loose, noisy, or damaged around mounting points.

• Designed for direct replacement; remove power before accessing the freezer interior.
• Access may require removing shelves, drawers, or the liner trim; handle liner edges carefully.
• Inspect surrounding clips and fasteners; replace any damaged hardware to ensure proper fit.

This water filter cover assembly secures the refrigerator's water filter cartridge and helps direct filtered water into the dispenser/ice system, restoring proper filter seating and reducing the risk of leaks or poor water flow. What it does:

• Secures and retains the water filter cartridge in its housing
• Seals the filter area to help prevent water leaks around the filter
• Directs filtered water from the cartridge into the dispenser and ice system
• Helps restore proper filter engagement when the original cover is cracked or broken

• Turn off water supply and remove power to the appliance before servicing
• Remove the old cover and verify filter type/orientation before installing the new cover
• Push the cover into place until the filter seats and locks per the appliance design
• Re-check alignment and seals; replace damaged gaskets as needed

This door case wiring harness connects the refrigerator door components to the main cabinet harness, restoring reliable power and signal routing for lights, dispensers, and sensors. Replaces a damaged or frayed harness to help resolve intermittent or non-working door functions. What it does:

• Transfers power and control signals between the door and cabinet wiring
• Restores operation for door-mounted lights, dispensers, and sensors affected by broken wiring
• Prevents shorts or intermittent failures caused by frayed or pinched wires
• Matches OEM routing and connector locations for a direct-replacement fit

• One door case wiring harness

• Disconnect power to the appliance before starting work to avoid shock or injury
• Handle connectors gently and route wiring per cabinet clips to avoid pinching
• Verify connector orientation and seating; secure any retained clips or screws
