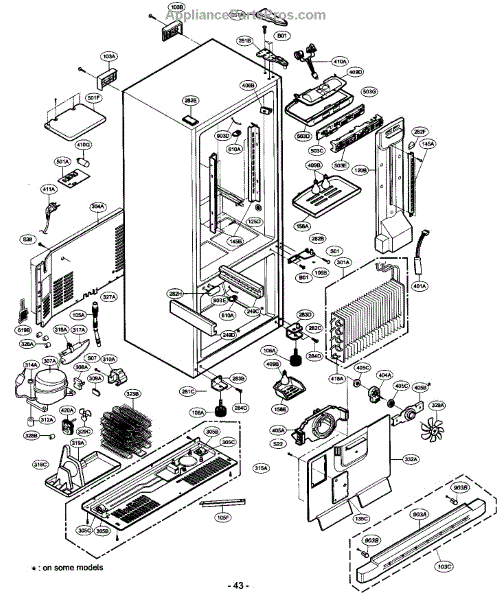

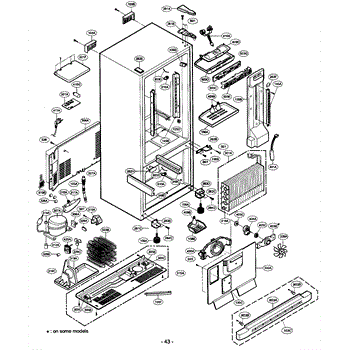

Parts for Lg LRBC22522ST: Case Parts

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This replacement screw fastens appliance panels and components to maintain proper alignment and quiet operation. Use it to replace missing or worn screws that cause loose trim, rattling, or parts that won't stay secured. What it does:

• Secures panels, brackets, or trim to restore proper fit and reduce vibration noise
• Replaces missing or stripped screws that cause loose or wobbly components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small, discrete fastener commonly used in interior and exterior appliance assemblies

• Screw

• Disconnect power before accessing interior components to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep track of removed fasteners and replace like-for-like for proper fit

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This small fastener washer restores proper spacing and support under a screw or nut in your appliance. It helps distribute clamping force, protect mounting surfaces, and keep brackets and panels secure during normal operation and vibration. What it does:

• Distributes load under a screw or nut to prevent damage to the mounting surface
• Helps maintain correct spacing and alignment of the attached components
• Aids in keeping fasteners secure under vibration when assembled correctly
• Common symptoms: missing or damaged washer, loose/rattling parts, fastener won't tighten flush

• One washer

• Disconnect power and shut off water supply before servicing
• Note the original hardware order and orientation; replace any deformed or corroded pieces
• Install the washer flat against the mating surface under the fastener head or nut
• Tighten fasteners securely; do not overtighten to avoid stripping threads or deforming parts

This duct assembly routes dryer airflow through the appliance's venting system to help remove hot, moist air during cycles. It restores proper airflow routing so the dryer can vent efficiently and dry loads more reliably. What it does:

• Channels exhaust air from the blower to the external vent or internal ductwork
• Helps prevent moisture buildup and reduces drying times when functioning correctly
• Can reduce hot spots and minimize lint accumulation in the cabinet area
• May eliminate abnormal airflow noises caused by damaged or disconnected ducting

• One duct assembly

• Disconnect power (and gas if applicable) before servicing to avoid shock or fire hazard
• Inspect surrounding seals, clamps and mounting points; replace any damaged hardware for a secure fit
• Use basic hand tools; avoid sharp bends or kinks in the duct to maintain airflow

This grille cover protects the appliance's cooling/ventilation fan and helps direct airflow where it's needed. It restores the cabinet finish and keeps debris away from the fan housing for more reliable operation. What it does:

• Shields the fan from loose debris and small objects that can cause damage
• Helps channel airflow for proper cooling/ventilation
• Prevents direct contact with fan blades for improved safety
• Reduces rattling or vibration caused by damaged or missing grille

• Disconnect power to the appliance before beginning any work
• Remove any trim or access panels as required to reach the fan area
• Secure with the factory fasteners; do not overtighten to avoid cracking
• Handle edges carefully; wear gloves if needed and test operation after reassembly

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

The LG light lens is an OEM replacement part responsible for protecting and diffusing the light emitted by the refrigerator's interior light bulb. The light lens cover helps create a well-lit interior environment, allowing users to see and access their stored food items clearly. It measures about 15 inches wide by 6 inches deep.

Over time, the light lens can become discolored, cracked, or damaged due to regular use and exposure to temperature changes. Causes of a bad light lens include wear and tear, impact from food items, or damage during cleaning.

Symptoms of a bad light lens include:

• Cracks or breaks in the lens
• Discoloration or clouding that reduces light clarity
• The lens not staying securely in place

This LG part can also be used on Kenmore/Sears appliances.

This hinge assembly secures and allows smooth pivoting of a refrigerator door, restoring proper door alignment and closing performance. It helps reduce sagging, rubbing and uneven gaps for a better seal and operation. What it does:

• Provides the pivot point that supports and guides the refrigerator door
• Restores correct door alignment and helps the gasket seal evenly
• Reduces door sag, scraping, or uneven closing commonly caused by a worn or damaged hinge
• Works as a direct-fit replacement for the corresponding OEM hinge location

• Disconnect power to the appliance and empty or support the door before removing the hinge.
• Use proper tools and support (a second person or a jack) to prevent the door from falling or shifting.
• Follow the refrigerator's service manual or manufacturer instructions for correct mounting orientation and torque.

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

The Damper Motor Support is an OEM part for LG refrigerators. It holds the damper motor in place, ensuring proper air flow between the refrigerator and freezer compartments. This support is essential for maintaining the correct temperature balance within the appliance.

Causes of a bad damper motor support can include wear and tear over time, physical damage from impacts, or exposure to moisture that can weaken the support structure. A faulty support can lead to improper functioning of the damper motor, affecting the refrigerator's cooling efficiency.

Symptoms of a bad Damper Motor Support include:

• Inconsistent temperatures between refrigerator and freezer
• Unusual noises coming from the damper area
• Visible damage or cracks in the support
• Reduced cooling efficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This sheathed defrost heater mounts at the evaporator and melts frost during the automatic defrost cycle to restore airflow and stable temperatures. Replacing a failed heater helps prevent ice-clogged coils, warm spots, and noisy fan interference.

• Melts frost from the evaporator coil during the defrost cycle to maintain proper airflow
• Symptoms of failure: persistent ice on the back panel, weak cooling, or the evaporator fan striking ice
• A failed heater can cause long run times and temperature swings
• Replace if the element tests open/short or shows visible damage

• Disconnect power before service; allow components to warm to reduce risk of cracking brittle plastics
• Remove shelves and the evaporator cover; carefully defrost ice—do not chip or pry against the fins
• Transfer original clips/insulators if present; route wires as original and make firm electrical connections
• After reassembly, ensure the drain area is clear and the fan spins freely

This condenser fan motor spins the cooling fan that draws air across the condenser coils and around the compressor. Replacing a weak or seized motor restores proper heat removal so the refrigerator can hold temperature and run more efficiently. What it does:

• Drives the condenser fan to move air through the rear condenser/compressor compartment
• Helps dissipate heat from the refrigerant and protects the compressor from overheating
• Supports stable internal temperatures and efficient cooling performance
• Common symptoms: fan not running, louder rattling/grinding at the back-bottom, hot cabinet sides, warmer-than-normal refrigerator temperatures

• Includes 1 cooling fan motor

• Disconnect power before servicing; pull the unit away from the wall for access
• Remove the rear lower access panel to reach the condenser fan area
• Note wiring and fan-blade orientation; transfer the blade and any mounting hardware from the old motor as needed
• The fan spins freely and airflow direction matches the original before reassembly

This genuine OEM part is a control board assembly for refrigerators. The control board assembly is the main circuit board that controls the refrigerator's primary functions such as adjusting and maintaining temperature. Over time, a refrigerator's control board can become inoperable due to excessive use. If the refrigerator is no longer cooling and failing to maintain its desired temperature, the control board might need to be replaced.To replace the control board assembly, start by unplugging the refrigerator. After that, proceed to open the freezer door and uninstall the side panel to gain access to the old control board. Once accessed, remove the wire harness and any individual wires attached to the control board assembly. Unfasten the mounting screws holding the assembly in place, and pull the control board out. Set it to the side, and proceed to install the new board. Reattach the wires in their correct terminals, and reinstall the side panel. This authentic replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with LG brand refrigerators.

This outer housing cover protects internal components and gives the appliance a finished appearance. It replaces a cracked, damaged, or missing panel to restore protection and reduce rattling. What it does

• Shields motors, controls, and wiring from dust and debris
• Prevents foreign objects from contacting internal parts
• Reduces vibration noise caused by loose or broken panels
• Restores the appliance's exterior fit and finish

• One outer housing cover

• Disconnect power to the appliance before starting any work
• Remove any trim, screws, or clips holding the old cover in place; keep fasteners for reassembly
• Handle the cover carefully to avoid scratching the finish or damaging mounting tabs
• Replace any broken clips or fasteners before finishing installation

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

This display case is the molded housing for the refrigerator's control panel. It supports and aligns the user interface components and trim, restoring a secure, finished fit when the original case is cracked, broken, or out of shape.

• Positions and supports the display/selector board and buttons in the panel opening
• Provides mounting points for panel trim and fasteners
• Helps shield internal components from dust and incidental moisture
• Common signs it's needed: cracked or broken plastic, missing tabs, loose or misaligned control panel

• Unplug the refrigerator before servicing
• Remove the panel/trim per your model's procedure; note screw and clip locations
• Carefully handle the user interface board and wiring; avoid static discharge and pinched harnesses
• Transfer any brackets or clips from the old case to the new one, then reassemble and test

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement screw secures appliance components in their proper position. Replacing a missing or damaged fastener restores a snug fit, reduces rattling or vibration, and helps keep assemblies aligned for reliable operation.

• Secures panels, brackets, and internal components as specified by your model's parts diagram
• Replaces stripped, rusted, or missing hardware
• Helps address symptoms like rattling/vibration noise, loose panels/trim, or minor misalignment
• Maintains a stable, safe assembly during normal use

• Disconnect power; turn off water and gas supplies if applicable
• Match screw to its original location; do not mix different lengths or types
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Follow your model's service/parts diagram for correct placement
