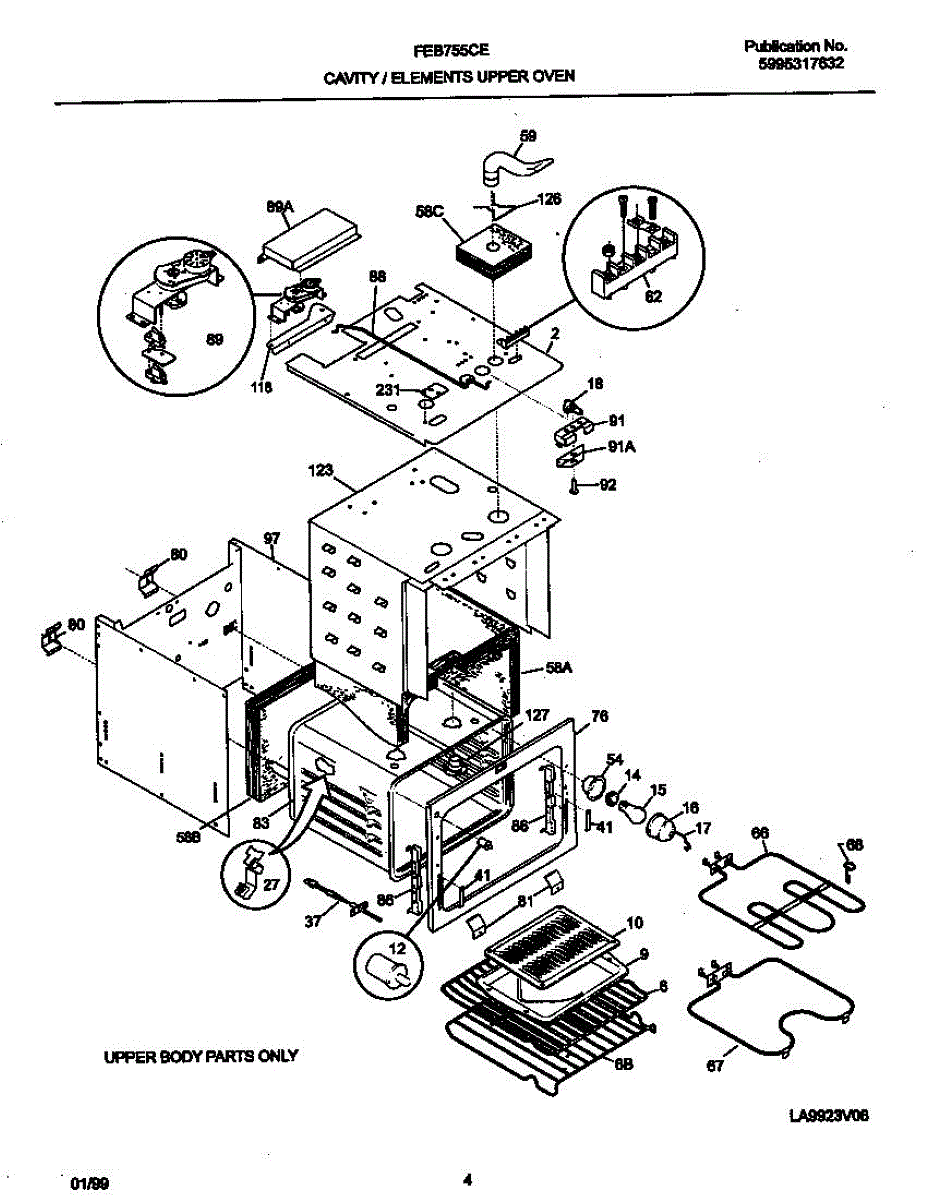

Parts for Frigidaire FEB755CEBF: 03 - Cavity / Elements Upper Oven Parts

Color: chrome. Measures about 18 inches wide by 15 inches deep.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Has three terminals.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement clip secures components within your appliance. Replacing a broken, bent, or missing clip restores a firm hold on panels or assemblies to prevent shifting and reduce vibration noise.

• Holds specified parts or panels in place where a clip is called out in the assembly
• Helps maintain proper alignment and minimizes rattles/vibration
• Direct replacement for a damaged or missing clip
• Common symptoms: loose or misaligned parts, rattling during operation, clip visibly broken or missing

• Disconnect power before service; also shut off gas/water supplies
• Note the original clip orientation and placement; take a photo for reference
• Use needle-nose pliers for removal/installation; avoid overbending or deforming the clip
• Inspect mating parts for wear or damage and ensure the clip seats fully

The Sensor Probe is an OEM part for Frigidaire ovens and ranges. This sensor is essential for monitoring the oven's internal temperature and communicating with the control board to maintain accurate cooking temperatures. It helps ensure that your oven heats to the desired setting and maintains consistent temperatures throughout the cooking process.

You should replace this sensor probe if it becomes faulty. Common issues that lead to a bad sensor probe include regular wear and tear, exposure to high temperatures over extended periods, or electrical failures within the sensor itself. Physical damage from accidental impacts during cleaning or maintenance can also compromise the sensor's functionality.

Symptoms of a bad sensor probe include:

• Inaccurate oven temperature readings
• Oven not reaching the set temperature
• Error codes related to temperature control
• Oven overheating or underheating

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM replacement part for  Frigidaire electric ranges. It is an electric heating component located at the top of the oven used for broiling food. The broil element generates intense radiant heat from above, allowing food to brown and crisp up while also cooking from direct heat exposure. It is crucial for the broil cooking function.

Symptoms of a bad broil element include:

• The broil feature failing to get the oven hot enough or working inconsistently
• Discoloration, rusting, or other signs of deterioration on the element
• Tripping of the circuit breaker or thermostat when using broil
• Food not browning or crisping up as expected under the broiler

Causes can be standard wear and tear over many heating and cooling cycles or damage from cleaning products or spatters inside the oven.

This OEM Frigidaire replacement part is also compatible with some Electrolux, Westinghouse, and Kenmore electric ranges.

The Bake Element is an OEM part for Frigidaire ranges. It functions as the lower heating element responsible for baking. The element heats the bottom of the oven cavity, ensuring foods are cooked evenly from the bottom up by radiant heat transfer.

Symptoms of a bad lower baking element include:

• Uneven or poor bottom cooking of baked goods
• Foods not browning or crisping properly on the bottom
• The oven failing to reach or maintain set baking temperatures

Causes can be cracked or damaged insulators leading to short-circuiting or failure to glow red-hot. Overheating may also cause element coils to warp or break over time.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This adapter assembly joins and aligns mating parts inside the appliance so they fit securely and operate as designed. Replace a cracked or missing adapter to restore proper fit and eliminate looseness or misalignment after service. What it does:

• Provides the correct spacing and alignment between connected components
• Helps secure parts to reduce vibration, rattling, or shifting
• Restores proper fitment after a component replacement or repair
• Replace if the original is cracked, warped, or missing mounting features

• One adapter assembly

• Disconnect power and allow the appliance to cool before servicing
• Note the original orientation and take photos to aid reassembly
• Transfer any reusable screws/clips from the old part if needed
• Test fit and alignment before fully tightening fasteners

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

Hex washer head ,10-32 x 0.375. Ground

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
