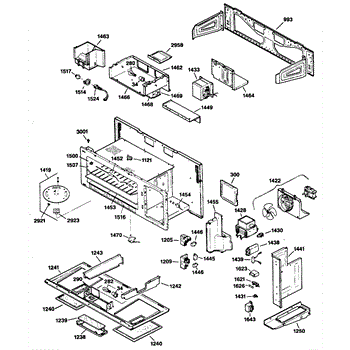

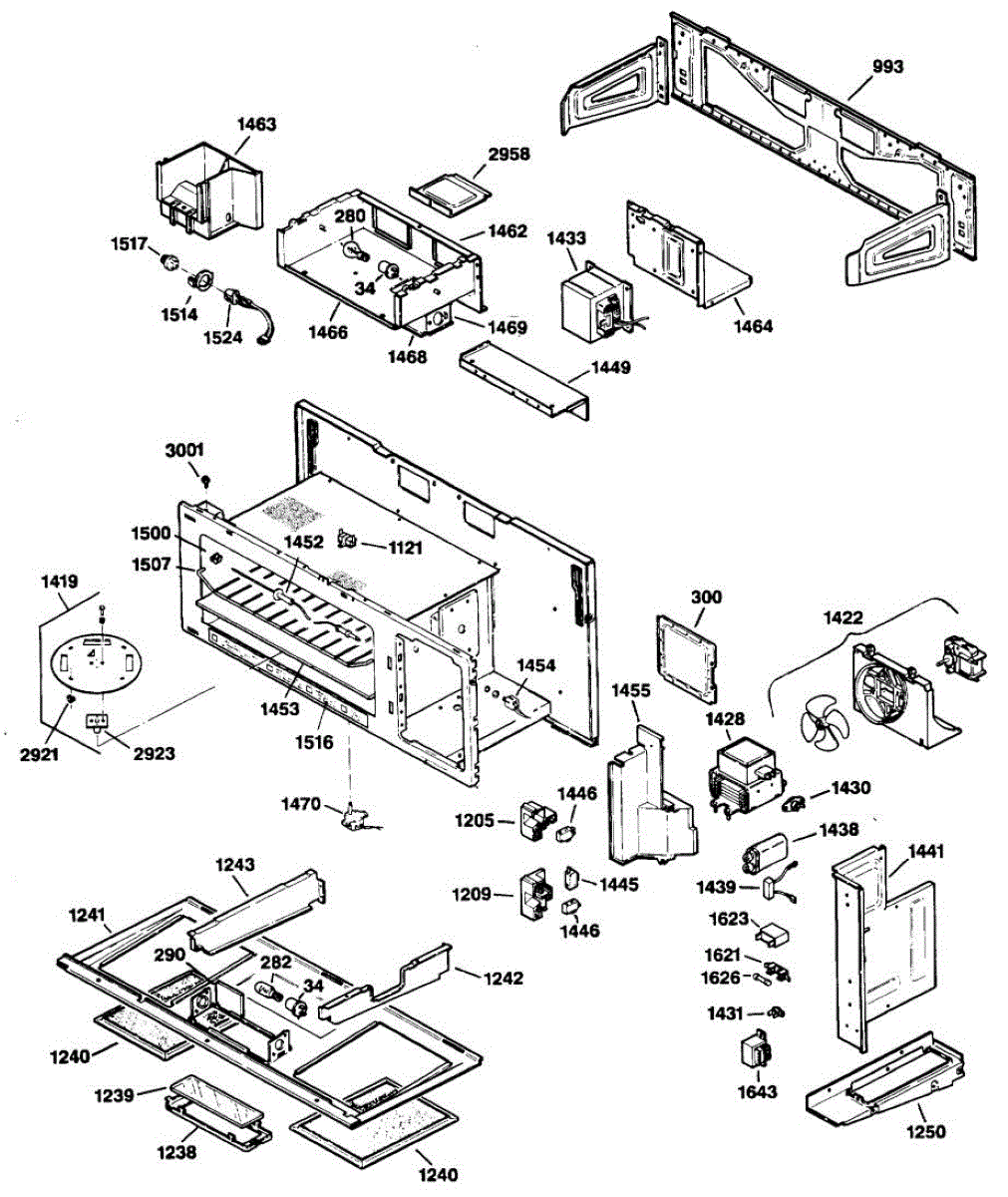

Parts for Ge JVM250WL01: 02 - Section2 Parts

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Replacement air vent cover for microwaves. Covers and protects the ventilation opening. Order a new one if your original is cracked, broken, or missing.

Color: metallic. Measures about 6 inches wide by 9-1/2 inches deep.

This is the right-side bottom enclosure that supports and protects components at the lower section of the appliance. It restores proper support, helps prevent debris entry, and keeps internal parts aligned for reliable operation. What it does:

• Provides structural support for lower cabinet components and trim
• Shields internal parts from moisture, dust, and spilled food
• Helps maintain correct alignment of drawers and lower assemblies
• Can reduce rattles or movement caused by a cracked or missing enclosure

• Inspect adjacent clips, screws and seals; replace any damaged fasteners for a secure fit
• Disconnect power and empty nearby drawers before starting work
• Installation requires basic hand tools and moderate access to the lower cabinet

This left bottom enclosure is the factory replacement panel that covers and protects the lower internal area of the appliance. Restores proper fit and protection when the original enclosure is cracked, warped, or missing. What it does:

• Shields lower internal components from debris, moisture, and accidental contact
• Provides mounting support for adjacent panels and components to maintain cabinet alignment
• Helps stop rattling, gaps, or drafts caused by a damaged or bent enclosure
• Restores the appliance's finished appearance at the lower left corner

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove outer panels and any mounting screws to access the old enclosure; keep hardware for reuse if undamaged
• Align tabs and mounting holes carefully; do not force the panel into place to avoid breaking tabs

Microwave not heating or heating unevenly? A failed magnetron is the likely cause. This high-voltage tube generates microwave energy to cook food.

Fixes microwaves with no power or that stop mid-cycle. This thermostat switch monitors temperature and protects against overheating. Simple repair.

Fix a microwave that won't heat or makes loud humming noises. This high voltage capacitor often fails when the magnetron can't generate heat properly.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults

This sensor socket is the inline wiring connector that secures a temperature or oven sensor to the appliance harness, restoring a reliable electrical connection so the control can read sensor signals correctly. What it does:

• Provides a secure electrical connection between the appliance sensor and the wiring harness
• Maintains signal continuity for temperature measurement and control feedback
• Helps prevent intermittent readings caused by loose or corroded sensor connections
• Commonly replaced when controls report sensor faults or when sensor wiring is damaged

• One sensor socket/wiring connector

• Disconnect power to the appliance before starting any work to avoid shock or damage
• Verify connector orientation and match wire color/location before disconnecting the old socket
• Inspect mating sensor pins and harness wires for corrosion or damage; replace if necessary

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors
