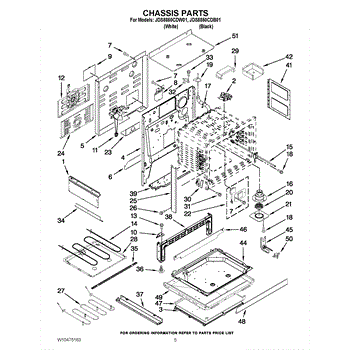

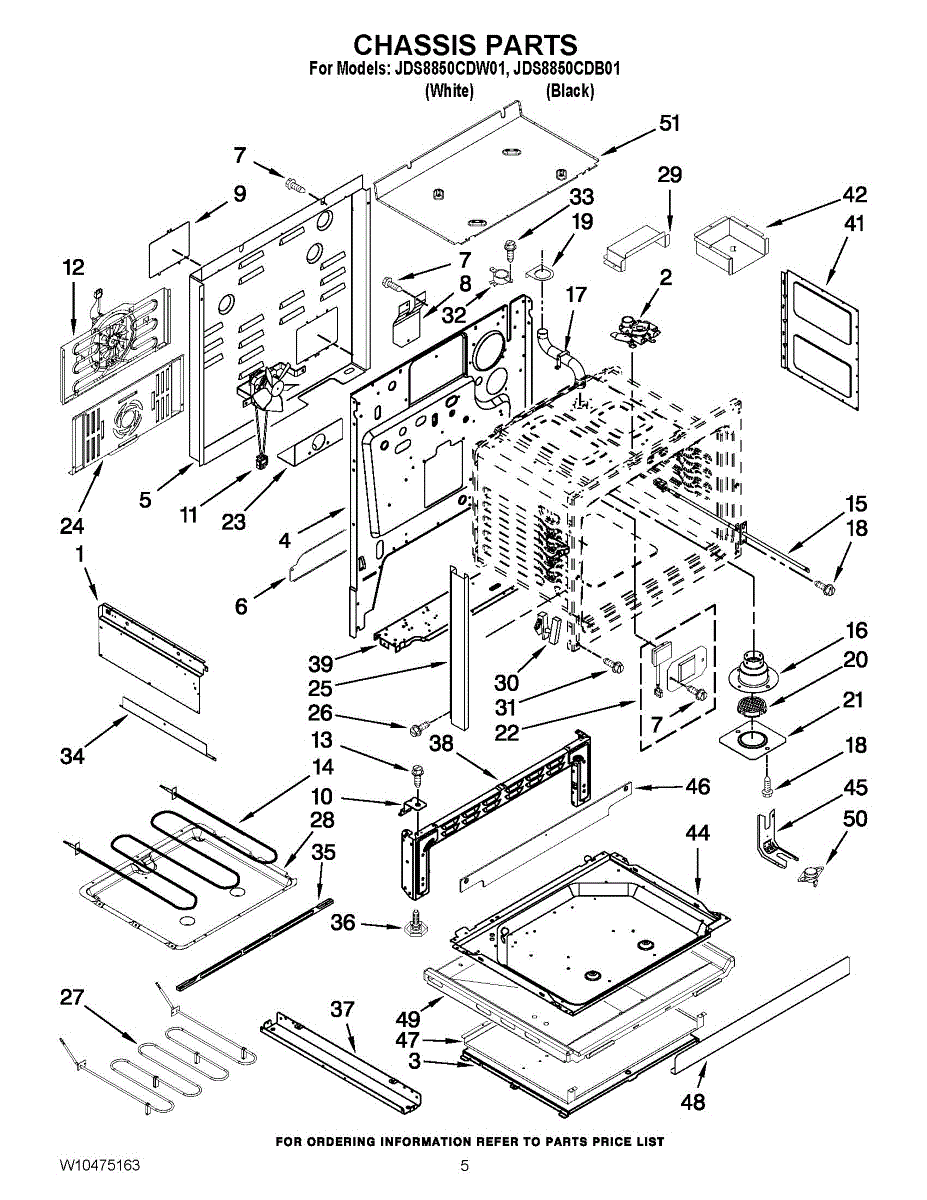

Parts for Jenn-Air JDS8850CDB01: 04 - Chassis Parts

Replace your range's control panel trim if cracked, chipped, or damaged. This decorative panel covers the control area for a finished appearance.

Fix a range oven door that won't lock during self-clean cycle. This door latch mechanism restores proper locking function for safe cleaning operation.

Replace your range's access cover housing if the original is cracked, broken, or missing. This protective cover installs over internal components.

Replace your range cooling fan if the oven overheats or shuts off unexpectedly. This radial fan keeps internal components cool during operation.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

If your broil function won't heat or brown food properly, a failed broil element is the likely cause. This upper heating element restores direct radiant heat.

Fix F1 error codes and temperature control issues with this oven temperature sensor. Takes about 15 minutes to install—just 2 screws and plug-in wiring.

This glass turntable plate replaces a cracked or missing microwave turntable to restore stable, even rotation and safe food heating. Durable tempered glass resists heat and provides a smooth surface for cookware. What it does

• Provides the rotating surface for microwave cooking so food heats evenly
• Replaces chipped, cracked, or missing glass that can cause wobbling or uneven rotation
• Works with the turntable support/roller assembly to keep the plate centered and stable
• Helps prevent direct contact between cookware and the microwave cavity floor

• Disconnect power or unplug the microwave before servicing.
• Handle the glass with care; set the plate onto the roller support so the center hub aligns with the drive coupling.
• Do not use a cracked or damaged plate; replace immediately to avoid further damage or safety risks.

Replace cracked, chipped, or missing side trim panels on your range. This decorative trim covers the side edge of the cooktop for a finished look.

Replace the side trim panel on your range. This cosmetic panel covers the edge of the unit. Order a new trim if yours is cracked, chipped, or missing.

Oven not heating evenly or baking slowly? This concealed bake element restores proper heating for consistent baking and roasting. Hidden design.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Support plate for wall oven and range models. Mounts internally to provide structural reinforcement. Replace if cracked, broken, or missing.

Bottom panel for your range chassis. Replaces cracked, rusted, or damaged base panels. Installs under the appliance to protect internal components.

Mounting bracket that secures and stabilizes internal range components. Replace if cracked, bent, or missing to restore proper alignment and support.

Cable retainer for electric ranges. Secures and organizes internal wiring. Replace if cracked, broken, or missing to properly route cables inside your range.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Bottom oven panel for your range. Replaces cracked, damaged, or worn panels. Installs at the base of the oven cavity to restore appearance and structure.
