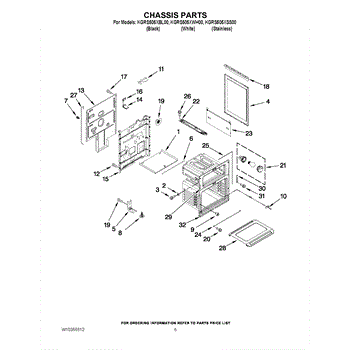

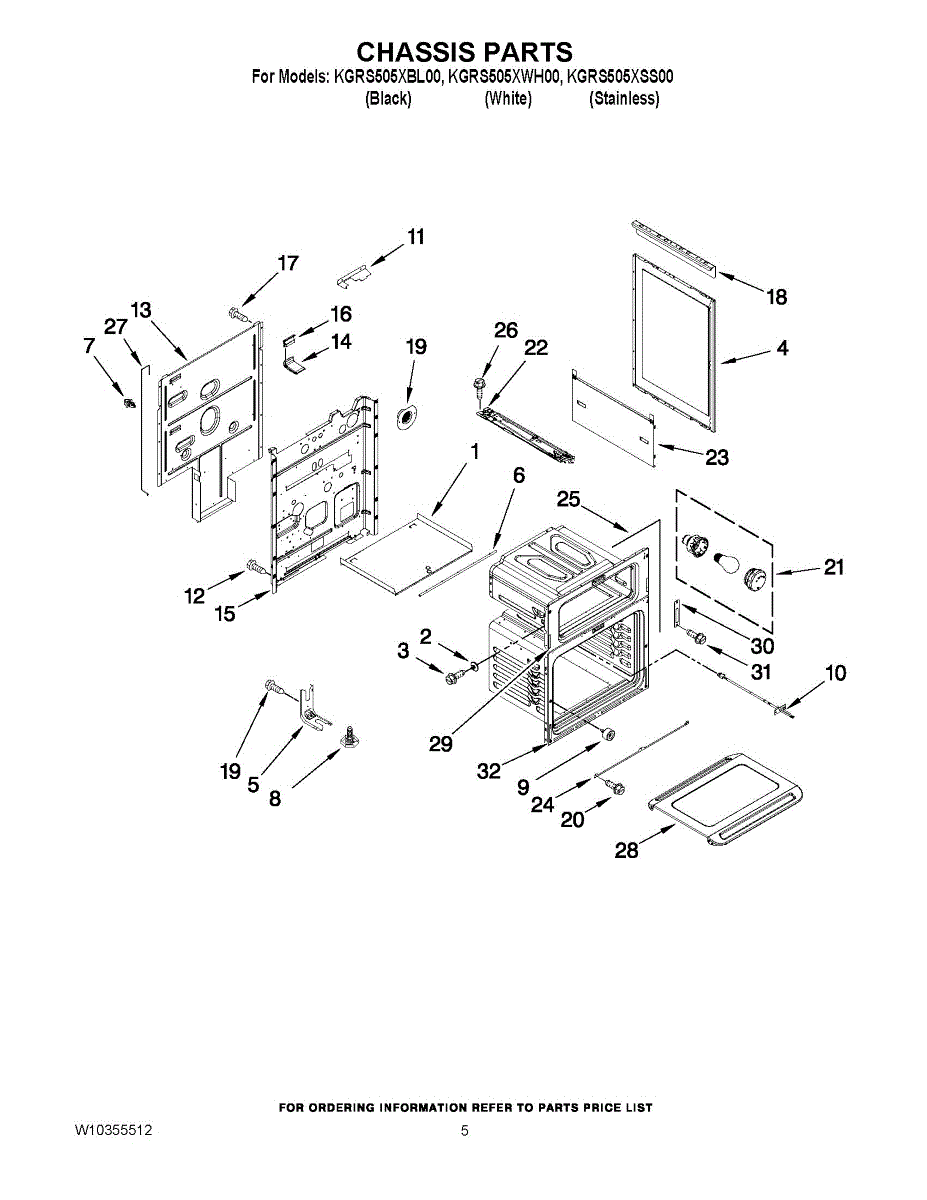

Parts for Kitchenaid KGRS505XBL00: 04 - Chassis Parts

Heat shield for gas range. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.

Positions and supports the side panel for proper alignment and spacing. Replace when the original spacer is cracked, broken, or missing to restore fit.

Replacement screw for electric and gas ranges. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

This side panel assembly replaces a damaged or bent outer side wall to restore the appliance's exterior fit and finish. It provides a stable mounting surface and helps protect internal components from dust and damage. What it does:

• Replaces a cracked, dented, or rusted side panel to improve appearance and structural support
• Restores proper alignment for doors, controls, or adjacent panels
• Helps keep internal parts and wiring protected from debris and moisture
• Can reduce rattles or vibration caused by a loose or warped side panel

• One complete side panel assembly as shown

• Installation requires removing screws and possibly adjacent trim; keep hardware organized for reassembly
• Power off and disconnect the appliance before starting any repair
• Handle edges carefully — panel edges may be sharp
• If mounting holes don't align, do not force; verify panel orientation and hardware match your appliance

Replace your damaged or missing range side panel. This exterior panel covers the side of your oven, restoring the finished look after wear or damage.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Replace your gas range oven door gasket to restore proper heat seal and improve cooking efficiency. Verify fit with your model number before ordering.

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

The screw and bumper assembly includes a small cushioning stopper and its mounting screw, designed to prevent hard contact between moving parts or doors and the appliance frame. These bumpers absorb impact and reduce noise when drawers, doors, or panels are opened and closed. Replace this set if you hear loud banging or rattling when operating your appliance or if the existing bumper is worn, torn, or missing.

Oven displaying error codes or baking unevenly? The temperature sensor monitors cavity heat and signals the control. Moderate DIY repair in 30-45 minutes.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replace your gas range's oven flue cover if it's cracked, damaged, or missing. Installs at the rear top of the oven under the cooktop area. Essential part.

Oven flue duct for gas ranges. Vents hot air from the oven cavity to the cooktop. Replace if cracked, damaged, or missing to restore proper ventilation.

Secures and stabilizes internal range components, keeping panels and assemblies properly aligned. Replace when your mounting bracket is broken, bent, or missing.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

Seals your oven door to retain heat and moisture for even baking. Replace when worn, cracked, or causing heat loss. Verify fit with your model number.

This oven door gasket creates a tight seal around the oven door to help keep heat and moisture inside for more even baking and cooking. It replaces a worn or torn seal to reduce heat loss and improve oven performance. What it does:

• Seals the oven door to prevent heat and smoke from leaking during operation
• Helps maintain consistent oven temperatures for more even cooking and baking
• Reduces energy loss and prevents exterior surfaces from getting excessively hot
• Addresses symptoms like visible gaps, burned or brittle rubber, smoke escaping, or longer cook times

• Disconnect power to electric ovens or shut off gas supply and pilot for gas ovens before installing
• Allow the oven to cool completely before starting work to avoid burns
• Remove the oven door or open it per your model's service instructions to access the gasket channel; replace gasket by seating it evenly around the door frame
• Inspect the gasket channel for debris and clean before installing; do not use adhesives unless specified by the manufacturer

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Replacement bottom broiler pan for gas ranges. Catches grease and drippings during broiling. Order a new pan if yours is warped, damaged, or missing.

Size: 8-18 x 3/8 inch.

Front frame for electric ranges. Surrounds the door opening and attaches to the main cabinet. Replace if dented, cracked, or damaged from impact.
