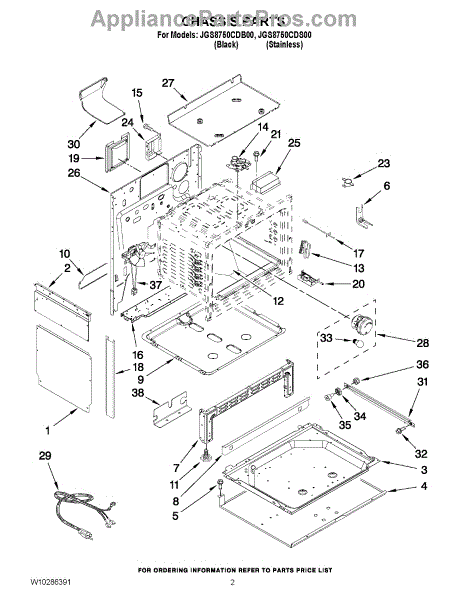

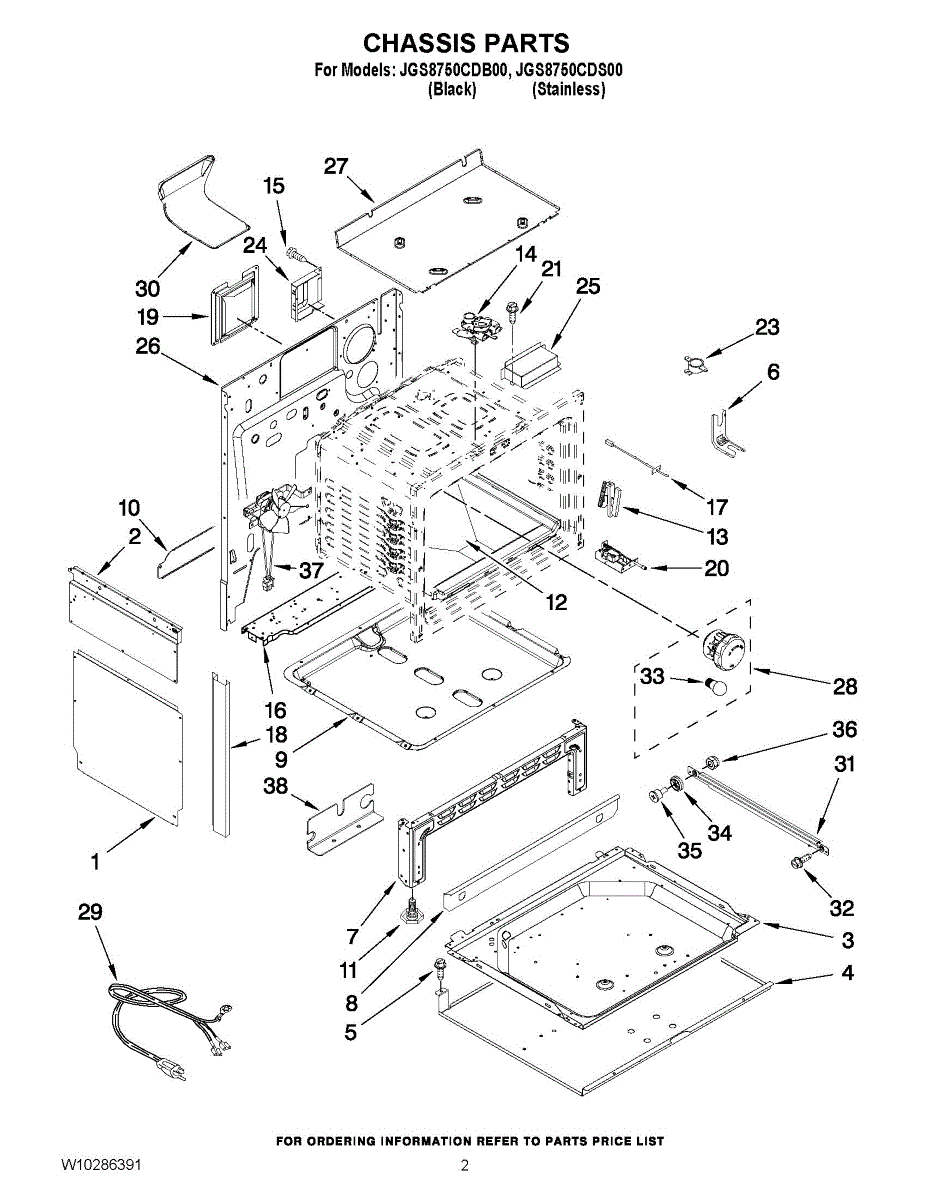

Parts for Maytag JGS8750CDB00: 02 - Chassis Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

For screws order: WP7101P485-60.

Size: 8abx3/8 - blk)

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. It measures the oven's internal temperature and sends this information to the control board to maintain the desired cooking temperature.

Causes of a bad temperature sensor can include exposure to high temperatures over long periods, electrical issues such as short circuits, or physical damage due to impact or mishandling.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• Oven not heating to the set temperature
• Oven overheating
• Error codes displayed on the oven control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the long 6-inch sensor order 12001656.

The light switch assembly controls power to the appliance light circuit. Replace a worn or faulty switch to restore reliable on/off operation when your lamp won't turn on, won't turn off, or works intermittently. What it does:

• Opens and closes electrical contacts to supply or cut power to the light
• Controls cavity or task lights as designed for the specific model
• Typical symptoms: light won't turn on, won't turn off, or flickers/intermittently works
• Physical signs of failure: stuck/loose actuator or no continuity when tested

• 1 light switch assembly

• Disconnect power at the breaker or unplug the appliance before service
• Access location varies by model; remove necessary panels/trim to reach the switch
• Note wire positions and transfer them one at a time to the new switch; secure the mounting
• Restore power and test light operation before final reassembly

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This temperature limiter switch stops heat buildup by opening the circuit when temperature exceeds safe limits. It restores proper thermal protection for the appliance's heating system and helps prevent overheating-related damage. What it does:

• Opens the heating circuit if internal temperature rises above the thermostat's limit to prevent overheating.
• Commonly used as a safety cutoff for dryers, ovens or other appliance heating systems.
• Symptoms of a failing limiter: no heat, intermittent heating, or an appliance that won't start its heating cycle.
• Works with the appliance's control and heating elements to maintain safe operating temperatures.

• Disconnect power before inspecting or replacing this part to avoid shock or injury.
• Replace with the exact part number to maintain proper temperature protection.
• If the limiter has tripped, inspect heating element, venting and related components for root causes before reassembly.

Size: 10-24X5/16-NI

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
