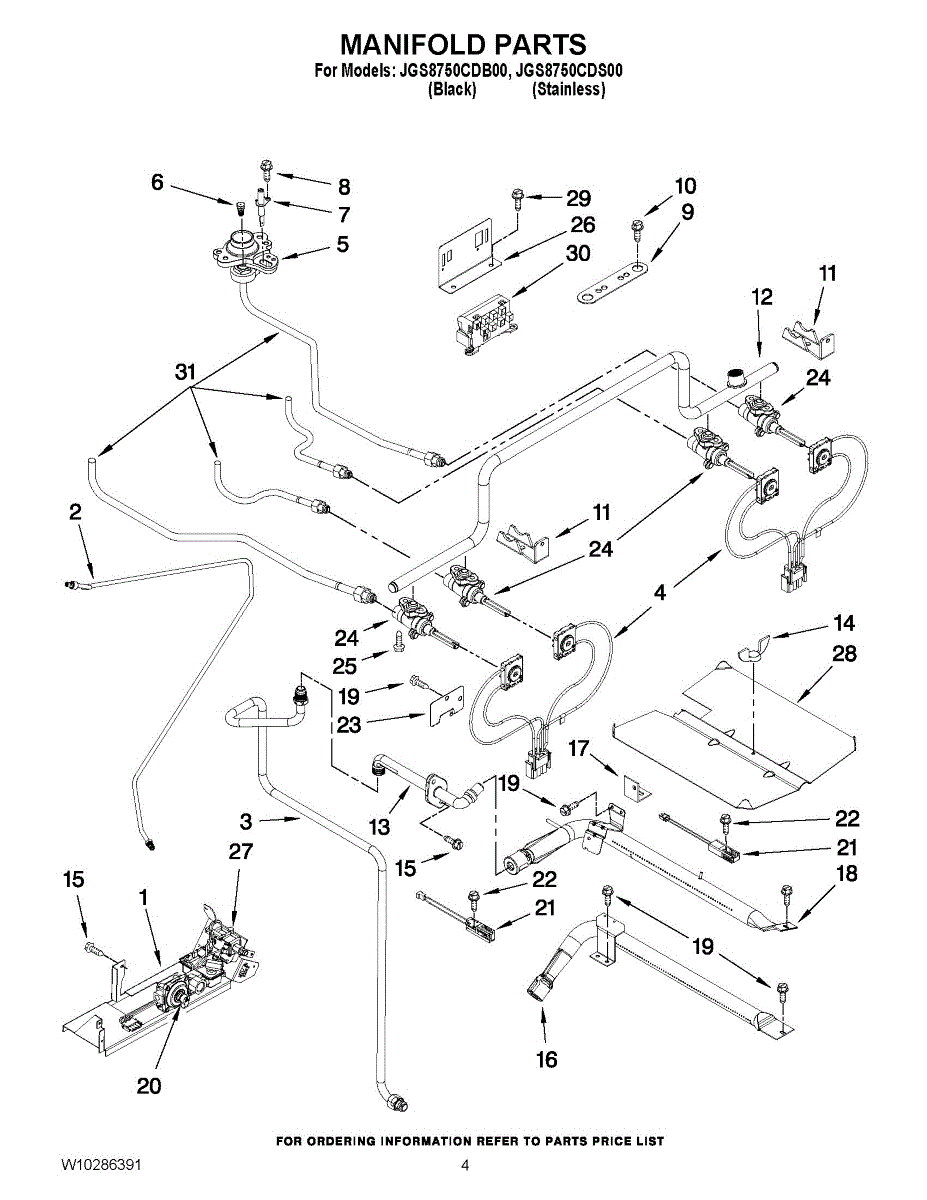

Parts for Maytag JGS8750CDB00: 03 - Manifold Parts

Fix weak flames or uneven heating on your 15K burner with this gas orifice holder. Routes gas from valve to burner orifice for proper ignition and consistent flame.

This orifice holder secures the gas orifice in a burner assembly to ensure proper alignment and gas flow for reliable ignition and flame performance. It fits the specified burner configuration and replaces a damaged or missing holder. What it does:

• Holds the burner orifice in place so the burner can ignite correctly
• Maintains correct orifice alignment for consistent flame shape and heat output
• Common symptom fix: burner won't light or produces a weak/uneven flame
• Works with the matching orifice sized for the listed burner application

• Turn off gas supply and electrical power before servicing the appliance
• Handle small parts carefully and confirm correct orientation during reassembly
• Check surrounding gaskets and seals and replace if deteriorated

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Hand-tighten wing nut secures panels, brackets, and components in ranges and ovens for tool-free adjustment. Replace when lost, stripped, or broken.

Secures panels and components on your range. Replace if original screw is stripped, missing, or damaged to restore proper fit and eliminate rattling.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven won't heat or reach temperature? This gas valve controls gas flow to your range's oven burner, restoring proper ignition and reliable heat.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Converts range burners from natural gas to LP gas. Install these orifice spuds when switching fuel types or replacing lost, damaged conversion components.

Converts range burners from natural gas to LP gas. Install these orifice spuds when switching fuel types or replacing lost, damaged conversion components.
