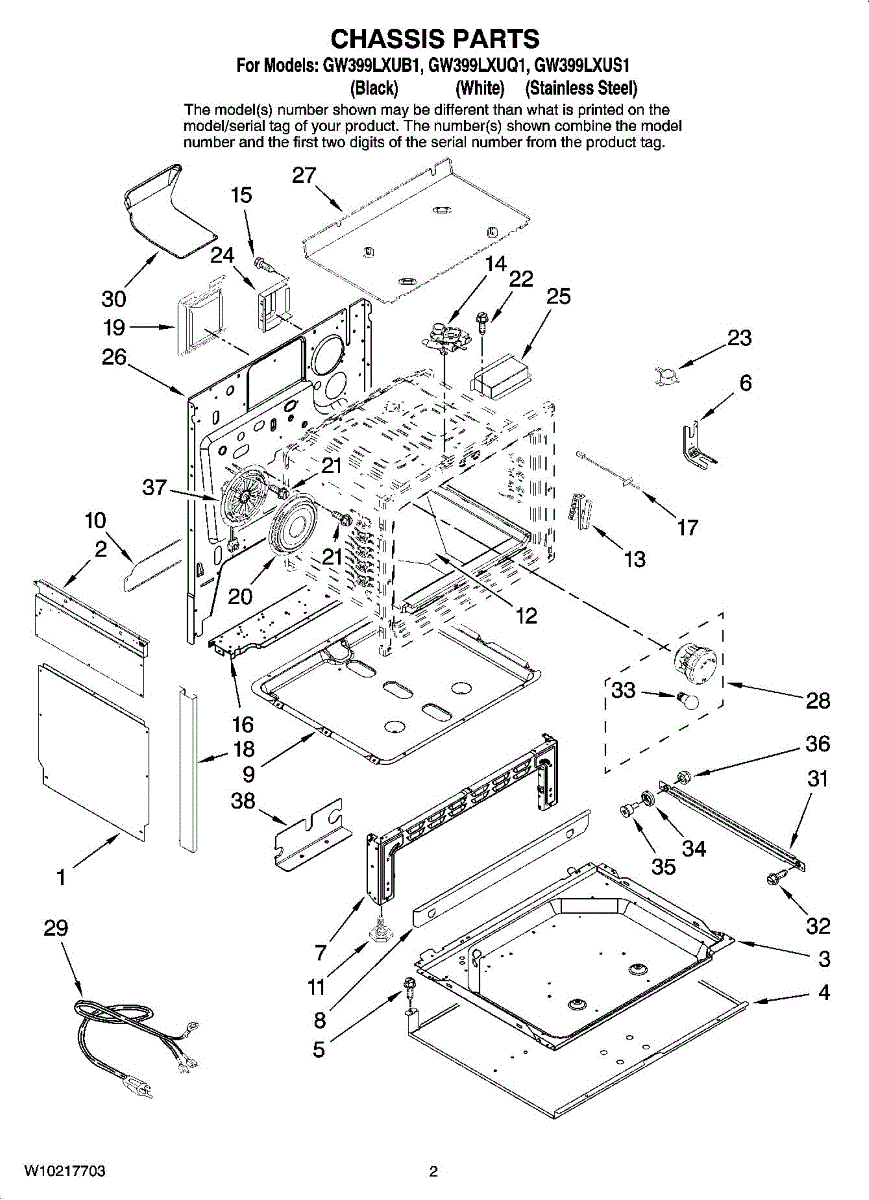

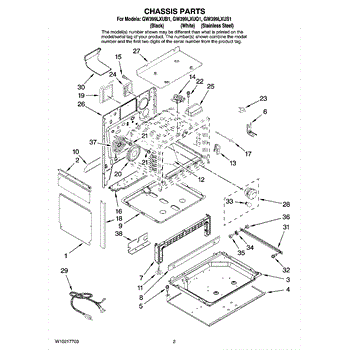

Parts for Whirlpool GW399LXUS1: 02 - Chassis Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

For screws order: WP7101P485-60.

This leveling leg screw threads into the appliance base to raise or lower the chassis, helping you stabilize the unit on uneven floors. Replace a missing, bent, or stripped screw to restore solid, level footing.

• Provides fine height adjustment when paired with the leveling leg/bracket
• Helps eliminate rocking, rattling, or vibration caused by an unlevel appliance
• Restores adjustability when original screw is stripped, bent, or missing
• Helps maintain proper alignment with cabinets/countertops by keeping the unit level

• Disconnect power; for gas units, shut off the gas supply before beginning
• Pull the appliance forward and carefully lift or tip to access the leveling hardware—use a helper to prevent tipping
• Remove the old screw; start the new screw by hand to avoid cross-threading, then adjust height with a wrench until level
• Verify all corners contact the floor and recheck level after repositioning the appliance

This left-side oven door hinge supports the door and controls its spring-loaded movement so it opens smoothly and closes firmly, helping maintain a tight seal and consistent cooking performance.

• Provides spring tension and a pivot point for controlled opening and closing
• Aligns and pulls the door fully closed against the gasket
• Restores smooth, even door movement
• Common symptoms of a worn hinge: door won't close fully or sags; slams/falls open; feels loose or stiff; heat escaping or oven light staying on

• Disconnect power and let the oven cool completely before servicing
• Support the door; engage hinge locks or remove the door at the stop position per your model
• Springs are under tension—use gloves and caution
• After installation, verify alignment and that the door closes and seals properly

Size: 8abx3/8 - blk)

The Oven Temperature Sensor is an OEM part for Whirlpool ovens. It measures the oven's internal temperature and sends this information to the control board to maintain the desired cooking temperature.

Causes of a bad temperature sensor can include exposure to high temperatures over long periods, electrical issues such as short circuits, or physical damage due to impact or mishandling.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• Oven not heating to the set temperature
• Oven overheating
• Error codes displayed on the oven control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For the long 6-inch sensor order 12001656.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This temperature limiter switch stops heat buildup by opening the circuit when temperature exceeds safe limits. It restores proper thermal protection for the appliance's heating system and helps prevent overheating-related damage. What it does:

• Opens the heating circuit if internal temperature rises above the thermostat's limit to prevent overheating.
• Commonly used as a safety cutoff for dryers, ovens or other appliance heating systems.
• Symptoms of a failing limiter: no heat, intermittent heating, or an appliance that won't start its heating cycle.
• Works with the appliance's control and heating elements to maintain safe operating temperatures.

• Disconnect power before inspecting or replacing this part to avoid shock or injury.
• Replace with the exact part number to maintain proper temperature protection.
• If the limiter has tripped, inspect heating element, venting and related components for root causes before reassembly.

This snap-in indicator light assembly mounts in the control panel and illuminates when a function is active. Replace a failed or damaged indicator to restore clear status feedback on your range or wall oven.

• Provides visual indication that a selected function is active
• Restores at-a-glance status on the control panel
• Common symptoms: indicator won't light, flickers, stays on constantly, or the lens/housing is damaged
• Direct replacement for the original snap-in lamp assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; note wire locations or take a photo
• Depress the retaining tabs to release the old light; transfer wires to the new assembly and snap it fully into place
• Restore power and verify indicator operation

Size: 10-24X5/16-NI

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This drawer roller supports and guides the lower range drawer so it slides smoothly on its track. Replacing a worn or broken roller restores easy operation and helps prevent the drawer from binding, sagging, or coming off the track.

• Supports the storage/warming drawer as it opens and closes
• Helps keep the drawer aligned on the rails to prevent tilting or popping off
• Reduces friction for smoother movement and less noise
• Typical failure signs: sticking drawer, rough/grinding movement, sagging front, or a cracked/flat-spotted wheel

• Disconnect power and allow the appliance to cool completely
• Remove the lower drawer to access the rollers
• Detach the fastener or retainer, install the new roller in the same orientation, and secure it
• Reinstall the drawer and verify smooth travel and proper engagement on both tracks

Size: 8-32
