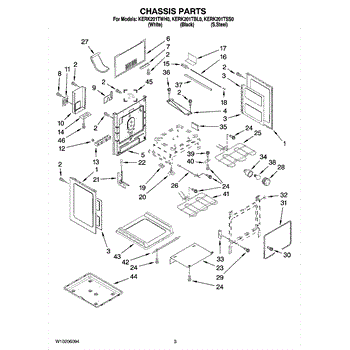

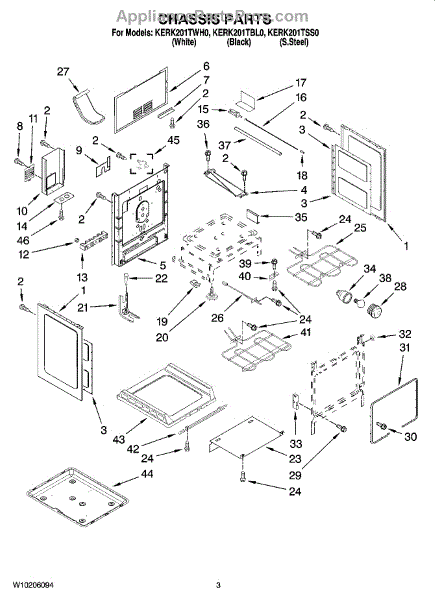

Parts for Kitchenaid KERK201TBL0: 03 - Chassis Parts

Black

White

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a f

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers,

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secure

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate

This door switch detects when the appliance door is closed and signals the control so the unit can start or run. Replacing a faulty switch restores proper door-sensing and safe operation. What it does:

• Detects door open/closed status and sends t

Rubber bumper stop cushions moving range parts to reduce vibration and noise. Replace if worn, cracked, or missing to restore proper spacing.

Range retainer clip secures components in place during operation. Replace if loose, broken, or missing to prevent rattling and ensure proper assembly.

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers,

Fix a broiler that won't heat or a melted element. This range broil element delivers direct radiant heat at the top of your oven during the broil cycle.

Fix F1 error codes and temperature control issues with this oven temperature sensor. Takes about 15 minutes to install—just 2 screws and plug-in wiring.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a f

Seals oven door to prevent heat loss and maintain consistent temperature. Replace if frayed, flat, or allowing smoke/heat to escape. Clips install easily.

Mounts to the oven frame to secure the door hinge arm. Replace if your oven door won't close fully or stays ajar. Restores proper heat seal and alignment.

Illuminates oven interior for monitoring cooking without opening the door. Replace if light fails, socket cracks, or bulbs blow frequently. Verify fit.

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a f

Used for the Rear

Oven not heating or heating slowly? Your bake element likely failed. Located at the bottom of the oven cavity, this part restores even baking. Easy DIY fix.

Replaces cracked, stained, or warped oven bottom panel in gas ranges. Covers burner assembly and provides smooth, cleanable floor surface. Easy install.

Fixes oven that won't heat or overheats. This thermal limiter switch cuts power when temps get too high. Easy DIY repair—check connections first.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.
