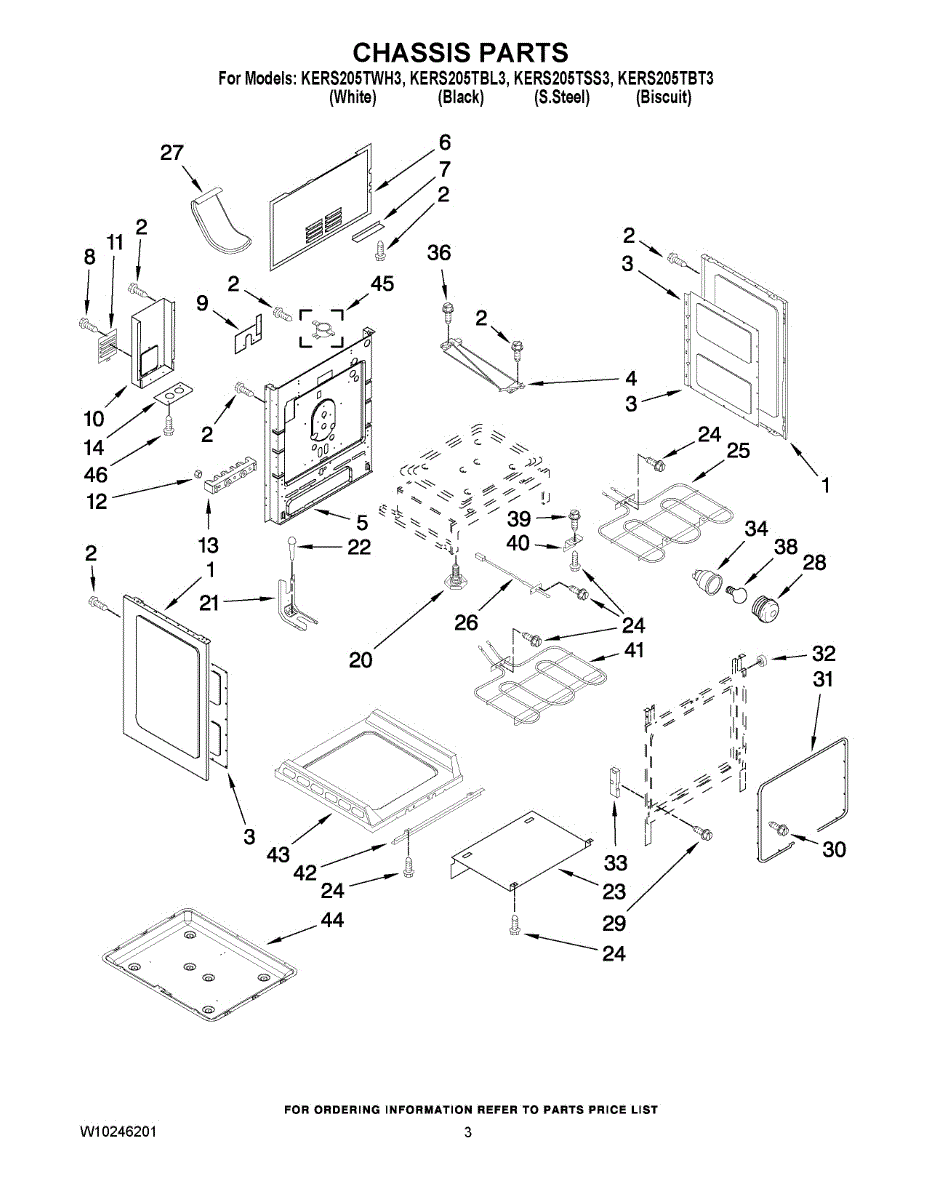

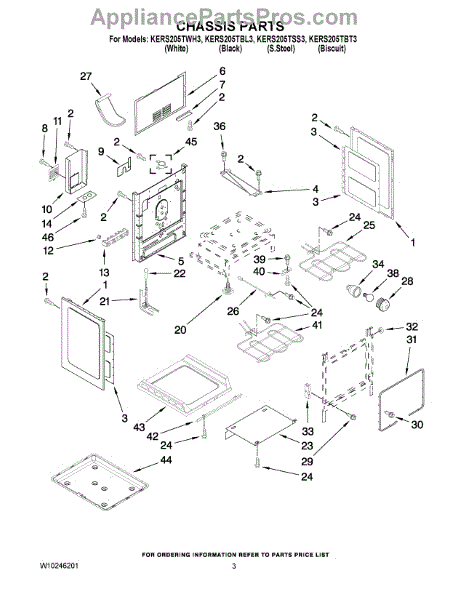

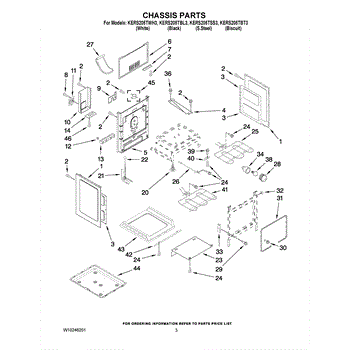

Parts for Kitchenaid KERS205TSS3: 03 - Chassis Parts

Black

White

8-18 x 1/2 inch mounting screw for securing drawer glides, brackets, and oven door components. Replace missing, stripped, or damaged screws during repairs.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Intermittent power or heat damage at wire connections? This terminal block nut secures wire lugs to studs for a reliable electrical connection. Quick fix.

Burned or damaged terminal block causing power loss? This connection point fixes arcing, sparking, and burnt wire issues. DIY repair with basic tools.

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Fix a broiler that won't heat or a melted element. This range broil element delivers direct radiant heat at the top of your oven during the broil cycle.

Fix F1 error codes and temperature control issues with this oven temperature sensor. Takes about 15 minutes to install—just 2 screws and plug-in wiring.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Size: No. 8

Seals oven door to prevent heat loss and maintain consistent temperature. Replace if frayed, flat, or allowing smoke/heat to escape. Clips install easily.

Illuminates oven interior for monitoring cooking without opening the door. Replace if light fails, socket cracks, or bulbs blow frequently. Verify fit.

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

Shoulder screw that secures oven components with a precise pivot or spacer point. Replace if missing, worn, or stripped to restore alignment and stability.

Used for the Rear

Oven not heating or heating slowly? Your bake element likely failed. Located at the bottom of the oven cavity, this part restores even baking. Easy DIY fix.

Replaces cracked, stained, or warped oven bottom panel in gas ranges. Covers burner assembly and provides smooth, cleanable floor surface. Easy install.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.
