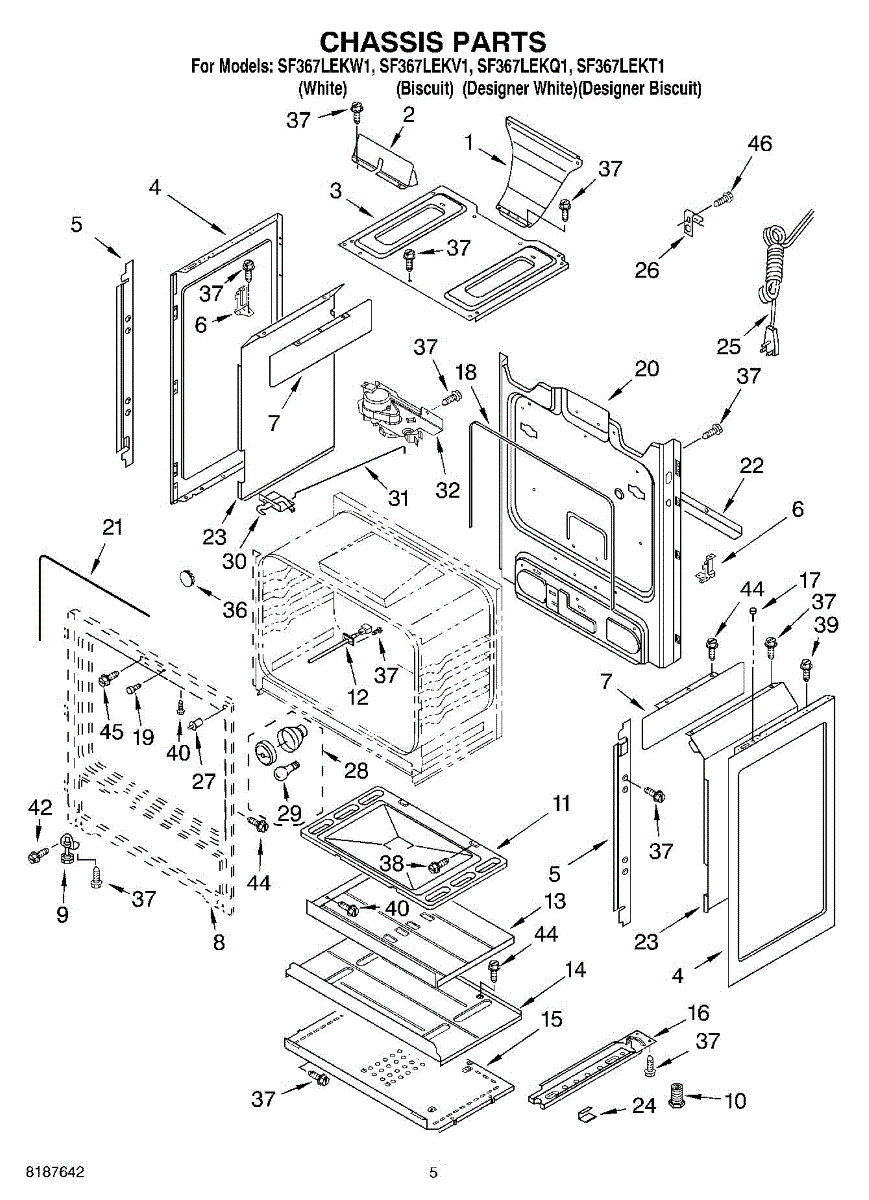

Parts for Whirlpool SF367LEKT1: 04 - Chassis Parts

If your burner flame is uneven or yellow, or the burner sits loose, the burner box may need replacement. Restores proper gas flow and alignment.

Adjustable front leveling leg threads into the base corner of your range to raise or lower the unit. Replace if broken, cracked, or missing to level your range.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

This panel forms the floor of the oven, sitting above the bake element or burner to shield it from spills and provide a smooth, stable surface. Replace a warped or damaged panel to help maintain proper heating and easier cleanup. What it does:

• Forms the oven floor above the bake element or burner
• Shields the heat source from drips and debris to help prevent scorching and odors
• Supports designed airflow and heat distribution in the cavity
• Common replacement signs: warped or dented panel, rust or chipped finish, smoke/odors from spills beneath the panel, or uneven baking results

• 1 oven bottom panel

• Disconnect power (and shut off gas supply for gas ranges) before servicing; allow the oven to cool completely
• Remove oven racks; release front fasteners or clips and lift the old panel out of the rear tabs (method varies by model)
• Seat the new panel into rear tabs, align the front edge, and secure as originally installed
• Verify the panel sits flat and clear of the bake element or burner before reassembling

Fix oven temperature issues, error codes F3E2/F3E0, or uneven cooking. This oven sensor is a straightforward 10-minute DIY repair with our video guide.

Burner baffle installs under your gas range cooktop burner to shield components and direct heat. Replace if cracked, warped, or missing from use.

Protect internal components from excessive heat with this gas range heat shield. Replace if cracked, warped, or missing to maintain safe operation.

Lower heat shield for gas ranges. Protects internal components from excessive heat. Replace if cracked, warped, or damaged to maintain proper insulation.

Structural support base for range drawer rail assembly. Replacement needed when original is cracked, broken, or warped causing misalignment or instability.

Rubber bumper. Color: Grey.

Seals the gap between your oven door and frame to maintain consistent heat and prevent moisture loss. Replace if worn, cracked, or causing heat escape.

Replacement mounting spacer for ranges. Maintains proper alignment and clearance between components. Replace if missing, cracked, or worn to restore spacing.

Replace your range oven door gasket when torn or worn to restore an airtight seal and improve heating efficiency. Easy 5-15 minute install. Confirm fit.

This is the left side insulation retainer. For right side use 3195726.

This is the right side insulation retainer. For left side use 3196523.

This 18-inch supply power cord delivers a reliable electrical connection to restore appliance power and safe operation. It replaces a damaged or missing cord so the unit can receive power from the wall outlet. What it does:

• Provides the main AC connection between the appliance and household power
• Replaces frayed, melted, or broken cords that cause intermittent power or no power
• Restores secure plug and strain-relief connection to reduce arcing and overheating risks
• Matches factory-style terminal ends for a direct fit when compatible

• One 18-inch supply power cord

• Disconnect power at the breaker or unplug the appliance before starting
• Inspect terminals and cord routing; secure with the factory strain relief
• Tighten terminal connections firmly but do not overtighten; confirm proper insulation

Fixes oven door that won't unlock after self-clean or incorrect door-lock errors. Monitors door position during pyrolytic cycles. DIY-friendly repair.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Complete front door assembly for electric and gas ranges. Replaces cracked, dented, or misaligned doors that no longer close or secure properly.

Replacement latch rod for range oven doors. Connects the door latch mechanism to enable proper door closing. Order a new rod if yours is broken or missing.

This rear latch assembly secures the dryer door so the appliance can latch and run properly. It replaces a worn or broken rear latch to restore reliable door closure and help the dryer start and stay closed during cycles. What it does:

• Secures the dryer door to engage the door switch so the dryer will start
• Keeps the door closed during operation to prevent interruptions mid-cycle
• Replaces a broken, bent, or worn latch that prevents the door from latching
• Commonly used when the dryer won't start, stops unexpectedly, or the door won't stay closed

• Disconnect power (unplug or switch off breaker) before beginning any work
• Installation may require removing the dryer top or front panel; follow the model's service instructions
• Handle panels and metal edges carefully to avoid cuts
• After installation, verify the door latches securely and the dryer starts before reassembling all panels

Size: 5/16 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: White. Size: 8-18 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Black. For biscuit order 98008169. For white order WP98008544.

Size: 8-18 x 1/4 inch. Self tapping.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Fastens panels, brackets, and trim pieces on ranges and vacuums. Replace this screw if missing, stripped, or damaged to secure loose components and prevent rattling or misalignment.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
