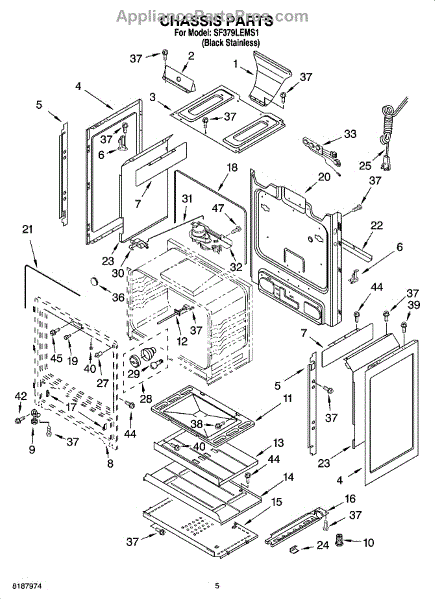

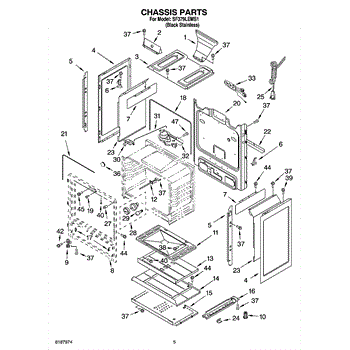

Parts for Whirlpool SF379LEMS1: 04 - Chassis Parts

This replacement burner box routes gas and supports the burner components under a gas range cooktop, restoring proper burner alignment and operation. It helps ensure stable flame delivery and safe fuel flow to the surface burner assembly. What it does:

• Houses and positions the burner, orifice and ignition components for proper combustion
• Channels gas from the manifold to the surface burner for consistent flame
• Helps prevent gas leaks by securing fittings and seals in the burner area
• Addresses symptoms such as uneven flames, burner misalignment, or gas smell near the cooktop

• One burner box assembly

• Turn off gas supply and disconnect power before servicing; work only if qualified
• Inspect gaskets, fittings and orifice for wear and replace as needed
• Verify proper seating and alignment of the burner and igniter during reassembly
• Test for leaks with a soap solution and restore gas/electrical connections before normal use

This side panel is a replacement cabinet trim piece that restores the exterior finish and protects the refrigerator side from dings and scratches. It matches original fit and appearance for a clean, factory look. What it does

• Covers and protects the refrigerator cabinet side from damage and wear
• Restores a uniform exterior appearance after dent or cosmetic repair
• Helps maintain proper panel alignment and mounting for adjacent parts
• Matches OEM shape so doors and trim fit correctly

• One side panel

• Intended for cabinet-side replacement; verify side (left/right) using your model diagram before ordering
• Remove power and empty nearby shelves before starting; handle panel edges carefully to avoid cuts
• May require basic tools (screwdriver, trim removal tool) and a second person for proper alignment

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This panel forms the floor of the oven, sitting above the bake element or burner to shield it from spills and provide a smooth, stable surface. Replace a warped or damaged panel to help maintain proper heating and easier cleanup. What it does:

• Forms the oven floor above the bake element or burner
• Shields the heat source from drips and debris to help prevent scorching and odors
• Supports designed airflow and heat distribution in the cavity
• Common replacement signs: warped or dented panel, rust or chipped finish, smoke/odors from spills beneath the panel, or uneven baking results

• 1 oven bottom panel

• Disconnect power (and shut off gas supply for gas ranges) before servicing; allow the oven to cool completely
• Remove oven racks; release front fasteners or clips and lift the old panel out of the rear tabs (method varies by model)
• Seat the new panel into rear tabs, align the front edge, and secure as originally installed
• Verify the panel sits flat and clear of the bake element or burner before reassembling

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This burner baffle sits under the cooktop burner to direct heat and protect surrounding components, helping maintain even flame distribution and preventing debris from falling into the burner area. What it does:

• Shields the area under the burner from spills, grease and food debris.
• Helps route heat and combustion gases away from sensitive components.
• Supports stable burner operation and consistent heating performance.
• Commonly replaced when warped, corroded or damaged by spills.

• Turn off gas and power to the appliance before servicing; follow all safety precautions.
• Remove burner grates and caps to access the baffle; use basic hand tools.
• Inspect surrounding components (burner head, igniter) while the baffle is removed.

This rail base provides the structural support for the refrigerator drawer/rail assembly, restoring smooth drawer alignment and preventing sagging or binding. It's a direct-fit replacement that helps maintain proper drawer operation and cabinet fit. What it does:

• Supports and aligns the drawer/rail assembly so drawers slide smoothly
• Secures the lower rail to the cabinet to prevent shifting or sagging
• Restores proper drawer clearance and prevents sticking or uneven movement
• Addresses symptoms like crooked or loose drawers, binding, or gaps at the drawer edge

• One rail base

• Disconnect power to the appliance before beginning work
• Remove drawer(s) and any trim panels to access the rail area
• Use basic hand tools; avoid overtightening fasteners to prevent damage

Oven broiler drawer glide mounts to front of the drawer. For the rear drawer glide that mounts to the body order WP8053334.

This oven flange seal creates a tight weatherstrip between the oven door and cabinet to help keep heat and moisture inside the cooking cavity for more consistent baking and reduced heat loss around the door. What it does:

• Seals the gap between the oven door and the oven frame to help maintain internal temperature.
• Reduces heat and smoke escaping from the oven during use.
• Helps prevent spills and crumbs from entering the flange area.
• Common symptom indicators: visible gaps, torn or brittle seal, heat felt at the door edge, or uneven cooking.

• Disconnect power (unplug or shut off circuit breaker) before servicing the appliance.
• Inspect the door and flange channel for debris or damage; clean before installing the new seal.
• Press the seal evenly into the retaining channel around the flange; replace any fasteners if required by OEM instructions.

This spacer provides a precise gap for proper alignment and clearance between components, helping maintain correct part positioning for reliable operation. It's a simple replacement that restores intended spacing and reduces wear. What it does:

• Positions and separates adjoining parts to maintain correct clearance
• Helps prevent rubbing, misalignment, or binding of moving components
• Restores factory spacing after maintenance or part replacement
• Fits where the original spacer was used to support assembly alignment

• One spacer as shown

• Inspect surrounding components and mounting surfaces for damage before installing
• Remove power to the appliance and follow manufacturer service instructions
• Install in the same orientation as the original spacer and verify proper clearance
• If fasteners or adjacent parts are worn, replace them to ensure a secure fit

The Oven Door Seal is an OEM part specifically designed for Whirlpool wall ovens. It provides an airtight barrier between the door and oven interior during cooking and baking. Made of heat-resistant materials, the door seal withstands high oven temperatures.

Causes of a bad door seal can include normal wear and tear from repeated use over many years of cooking. Exposure to extremely high heat cycles may also degrade the seal prematurely.

Symptoms of a bad door seal include:

• Excess heat loss from the oven when cooking
• Visible cracks, tears, or looseness in the seal material
• Hot or warm air leaking from the sides or bottom of the closed oven door
• Difficulty maintaining optimal oven temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore wall ovens.

This is the left side insulation retainer. For right side use 3195726.

This is the right side insulation retainer. For left side use 3196523.

This 18-inch supply power cord delivers a reliable electrical connection to restore appliance power and safe operation. It replaces a damaged or missing cord so the unit can receive power from the wall outlet. What it does:

• Provides the main AC connection between the appliance and household power
• Replaces frayed, melted, or broken cords that cause intermittent power or no power
• Restores secure plug and strain-relief connection to reduce arcing and overheating risks
• Matches factory-style terminal ends for a direct fit when compatible

• One 18-inch supply power cord

• Disconnect power at the breaker or unplug the appliance before starting
• Inspect terminals and cord routing; secure with the factory strain relief
• Tighten terminal connections firmly but do not overtighten; confirm proper insulation

This switch monitors the oven door/lock status for high-temperature self-clean (pyrolytic) operation. If it fails, the control may read the door position incorrectly, preventing self-clean or causing incorrect door-lock indications.

• Detects door/lock position during pyrolytic self-clean cycles
• Sends status to the electronic control and lock/latch mechanism
• Helps ensure self-clean only runs when the door is secured
• Common symptoms: self-clean won't start or complete; "Door Locked" light stays on/off at the wrong time; door/lock error messages

• Disconnect power at the breaker and allow the oven to cool completely
• Access the switch near the door latch or behind the control panel; note wire positions and transfer one at a time
• Mount the new switch with the actuator oriented to engage the latch/door correctly
• Restore power and the control recognizes door closed/locked status before operation

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Replacement front door assembly that restores proper door closure and exterior appearance on compatible Whirlpool appliances. Use this assembly when the original front door is cracked, dented, or no longer secures or aligns properly. What it does:

• Replaces a damaged or warped front door to restore proper fit and appearance.
• Helps resolve doors that won't latch, sit flush, or rub against the cabinet.
• Aligns with original mounting points so the latch and hinges operate correctly.
• Matches the original exterior finish for a consistent look after repair.

• Disconnect power to the appliance before beginning any repair.
• Support the door during removal and installation to prevent drops or damage.
• Handle any glass or trim carefully to avoid breakage and injury.
• Follow the OEM service manual or manufacturer instructions for proper alignment and fastening.

This rear latch assembly secures the dryer door so the appliance can latch and run properly. It replaces a worn or broken rear latch to restore reliable door closure and help the dryer start and stay closed during cycles. What it does:

• Secures the dryer door to engage the door switch so the dryer will start
• Keeps the door closed during operation to prevent interruptions mid-cycle
• Replaces a broken, bent, or worn latch that prevents the door from latching
• Commonly used when the dryer won't start, stops unexpectedly, or the door won't stay closed

• Disconnect power (unplug or switch off breaker) before beginning any work
• Installation may require removing the dryer top or front panel; follow the model's service instructions
• Handle panels and metal edges carefully to avoid cuts
• After installation, verify the door latches securely and the dryer starts before reassembling all panels

Size: 5/16 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Screw for side trim.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Black. For biscuit order 98008169. For white order WP98008544.

Size: 8-18 x 1/4 inch. Self tapping.

Screw for side trim.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
