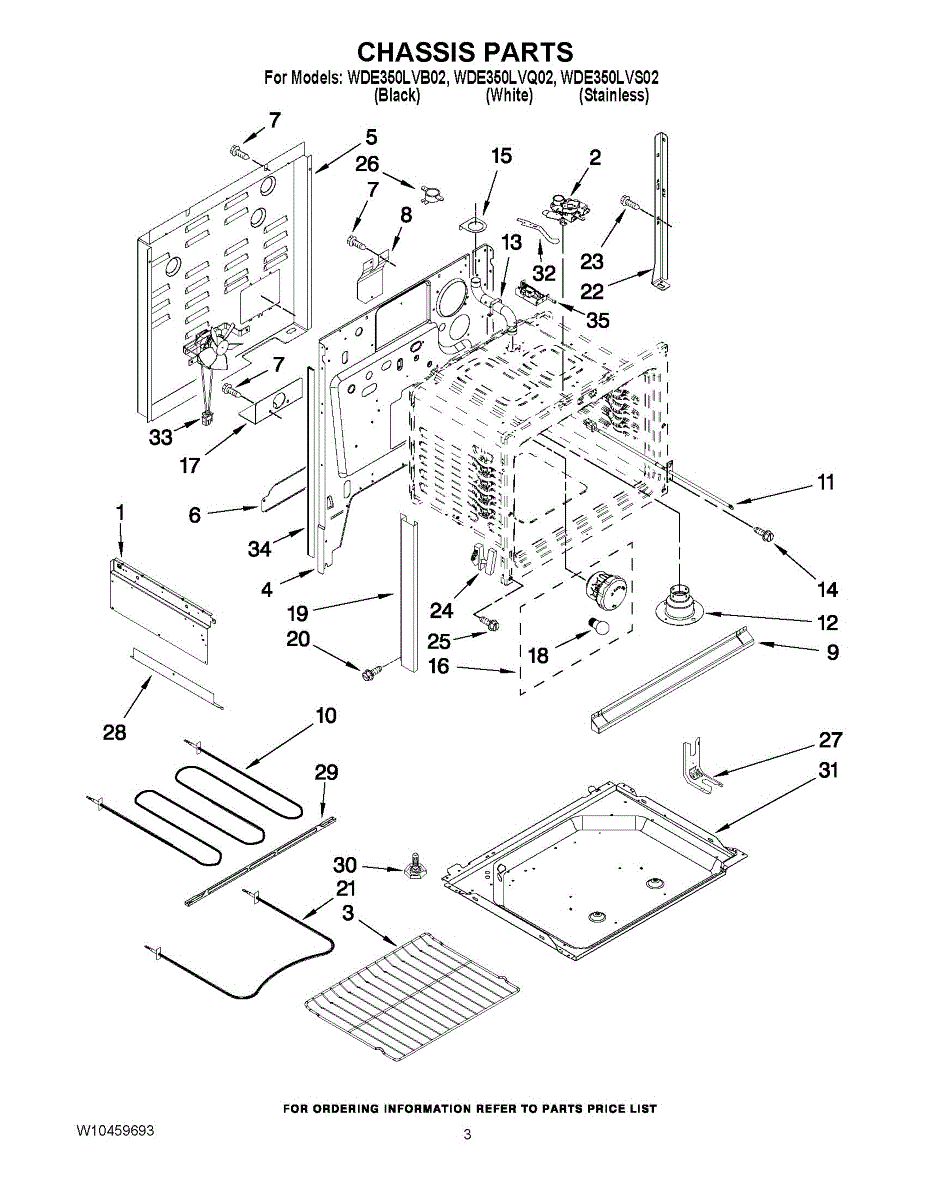

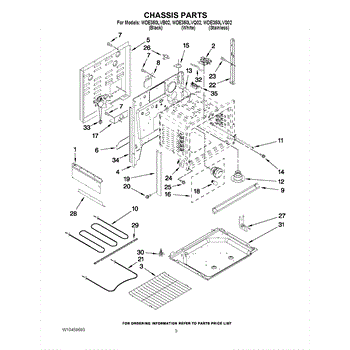

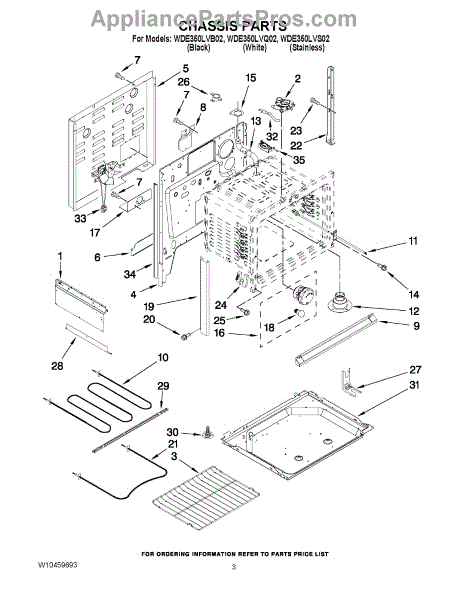

Parts for Whirlpool WDE350LVB02: 03 - Chassis Parts

The Oven Rack is an OEM part for Whirlpool ovens. It provides a sturdy and reliable surface for baking and roasting a variety of dishes. Designed to fit perfectly within Whirlpool models, this rack ensures optimal air circulation around the food, contributing to even cooking and browning.

Causes of a bad Oven Rack can include warping or damage from high heat, rusting from moisture exposure, or general wear and tear over time. Misshaping or instability can also result from placing too much weight on the rack or using it inappropriately.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out.
• Uneven cooking or baking due to improper leveling of the rack.
• The rack does not fit securely in the oven slots.
• Visible rust or damage, which could potentially contaminate food.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This electric broil element sits at the top of the oven cavity and provides the high, direct heat needed for broiling. Replace it to restore reliable top-down heating when the broiler won't heat or browns food unevenly. What it does:

• Delivers intense radiant heat from the top of the oven during Broil
• Engages for searing/browning; may also cycle during preheat on some models
• Common failure signs: no broil heat, weak or uneven browning, element doesn't glow, or visible blisters/cracks on the coil

• 1 broil element

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks, take out mounting screws, and gently pull the element forward
• Transfer wires one at a time; support leads so they don't slip back behind the liner
• Ensure terminals are fully seated, secure the element, restore power, and test broil

The Oven Temperature Sensor Kit is an OEM part for Whirlpool ovens. This sensor is essential for monitoring the oven's internal temperature, ensuring that it reaches and maintains the correct temperature for baking and cooking. The sensor is approximately 7 inches long.

Over time, the oven temperature sensor can fail due to repeated heating and cooling cycles, exposure to spills or grease, or electrical issues. When the sensor malfunctions, it can result in inaccurate temperature readings, affecting cooking performance and food quality.

Symptoms of a bad oven temperature sensor include:

• The oven not reaching the set temperature
• Food cooking unevenly or not fully
• The oven overheating or underheating
• Error codes related to temperature issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This snap-in indicator light assembly mounts in the control panel and illuminates when a function is active. Replace a failed or damaged indicator to restore clear status feedback on your range or wall oven.

• Provides visual indication that a selected function is active
• Restores at-a-glance status on the control panel
• Common symptoms: indicator won't light, flickers, stays on constantly, or the lens/housing is damaged
• Direct replacement for the original snap-in lamp assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; note wire locations or take a photo
• Depress the retaining tabs to release the old light; transfer wires to the new assembly and snap it fully into place
• Restore power and verify indicator operation

The Oven Bake Element is an OEM part for Whirlpool ovens. It is responsible for providing the heat required for baking by generating radiant heat at the bottom of the oven cavity. This element ensures that the oven reaches and maintains the desired baking temperature, contributing to consistent and even cooking results.

Causes of a bad bake element can include regular wear and tear, overheating, or physical damage such as cracks or breaks in the element itself. A malfunctioning bake element can lead to uneven cooking and longer preheat times.

Symptoms of a bad oven bake element include:

• Oven not heating or taking a long time to preheat
• Uneven baking results
• Visible damage or burning on the element
• The element not glowing red when in use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This left-side oven door hinge supports the door and controls its spring-loaded movement so it opens smoothly and closes firmly, helping maintain a tight seal and consistent cooking performance.

• Provides spring tension and a pivot point for controlled opening and closing
• Aligns and pulls the door fully closed against the gasket
• Restores smooth, even door movement
• Common symptoms of a worn hinge: door won't close fully or sags; slams/falls open; feels loose or stiff; heat escaping or oven light staying on

• Disconnect power and let the oven cool completely before servicing
• Support the door; engage hinge locks or remove the door at the stop position per your model
• Springs are under tension—use gloves and caution
• After installation, verify alignment and that the door closes and seals properly

Size: 10-24X5/16-NI

This high-limit thermostat is a temperature safety switch that helps prevent overheating by opening the circuit when temperatures exceed safe limits. It restores normal operation once the temperature cools, protecting the appliance and reducing fire risk. What it does:

• Monitors internal temperature and opens the circuit if heat gets too high
• Prevents overheating that can cause damage or burn odors
• Commonly replaces a failed or intermittently tripping thermal safety switch
• Works as part of the appliance's temperature-safety system, not a primary temperature control

• Disconnect power to the appliance before attempting replacement
• Observe proper wiring orientation and secure terminal connections
• Replace only with the exact part specified for your appliance

For screws order: WP7101P485-60.

The Leveling Leg is an OEM replacement part for Whirlpool ranges. These adjustable legs help balance and stabilize the range.

Causes of a bad leveling leg commonly involve wear over time, thread or weld failures from supporting heavy loads, as well as damage due to impact or drops during installation.

Symptoms of a faulty leveling leg include:

• Instability such as rocking motions felt while cooking
• Uneven heating
• Doors that do not close properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This main base is the replacement support housing that secures internal components and helps keep the appliance stable and properly aligned. Installing a new base restores proper support and reduces vibration or misalignment. What it does:

• Provides the structural mounting surface for motors, pumps, and other internal assemblies
• Restores proper appliance alignment and stability to reduce vibration and noise
• Replaces cracked, warped, or damaged base housings that can cause rubbing or misfit
• Helps maintain correct component spacing for reliable operation

• Disconnect power and water before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for disassembly steps
• Inspect adjacent mounting hardware and gaskets; replace if worn or damaged

The light switch assembly controls power to the appliance light circuit. Replace a worn or faulty switch to restore reliable on/off operation when your lamp won't turn on, won't turn off, or works intermittently. What it does:

• Opens and closes electrical contacts to supply or cut power to the light
• Controls cavity or task lights as designed for the specific model
• Typical symptoms: light won't turn on, won't turn off, or flickers/intermittently works
• Physical signs of failure: stuck/loose actuator or no continuity when tested

• 1 light switch assembly

• Disconnect power at the breaker or unplug the appliance before service
• Access location varies by model; remove necessary panels/trim to reach the switch
• Note wire positions and transfer them one at a time to the new switch; secure the mounting
• Restore power and test light operation before final reassembly
