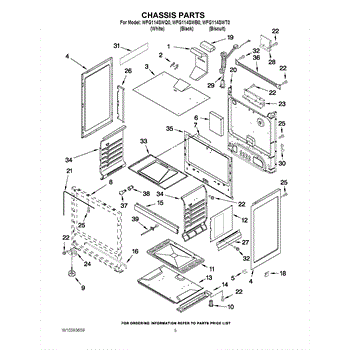

Parts for Whirlpool WFG114SWT0: 04 - Chassis Parts

Color: Biscuit. For white use WP98010042. For black use WP98010043

Color: White. For biscuit use 98010045. For black use WP98010043

Color: Black. For white use WP98010042. For biscuit use 98010045.

This clip secures the oven's bottom panel to the range chassis so the floor of the oven stays properly seated during cooking and cleaning. Replacing a missing or bent clip stops rattles and keeps the panel locked in place. What it does:

• Holds the oven bottom panel securely in position
• Helps prevent the panel from lifting, shifting, or rattling
• Restores proper fit after cleaning or service
• Replace if the clip is missing, bent, or broken

• 1 clip

• Disconnect power and allow the oven to cool completely; shut off gas supply for gas models
• Remove oven racks and the bottom panel per your model's instructions
• Install the clip at the designated mounting point and ensure the panel edge seats under the clip
• Wear cut-resistant gloves; sheet-metal edges can be sharp

This front leveling leg adjusts the height at the front of your appliance to keep it level and steady. Replacing a worn or missing foot helps eliminate rocking, protect floors, and make fine leveling adjustments simple.

• Threads into the base at the front corner to raise or lower the unit for accurate leveling
• Stabilizes the appliance to minimize rocking and vibration when opening the door or using the cooktop
• Restores proper adjustment when the original foot is stripped, bent, or missing
• Common signs include a wobbling appliance, difficulty leveling, or metal-to-floor contact/scuffing

• Disconnect power; turn off the gas supply
• Protect the floor and use an assistant to carefully slide and tip the appliance
• Start the new leg by hand to avoid cross-threading; finish adjustment with a wrench
• Level front-to-back and side-to-side, then verify stability before restoring service

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven bottom is the replacement metal panel that sits under the oven cavity to protect internal components and help catch spills. It restores a clean, heat-resistant surface for safer cooking and easier cleanup. What it does:

• Replaces a damaged, warped, or corroded oven floor that may trap food or cause uneven heating
• Provides a durable surface to catch drips and crumbs, reducing smoke and odors from burned spills
• Helps protect lower oven components and heating elements from debris
• Restores proper clearance and support for oven racks and cookware

• Includes: 1 oven bottom panel

• Disconnect power to the oven before starting any repair; for gas ranges, shut off gas supply
• Typically removed and installed from inside the oven after taking out racks; handle edges carefully — metal may be sharp
• Confirm fit against your oven cavity and existing mounting tabs before finalizing installation

This door gasket seals the broiler/bottom-oven door to help retain heat for more even broiling and reduce stray heat into the kitchen. It replaces worn or damaged seals that allow heat loss or uneven cooking. What it does:

• Creates a heat-tight seal around the broiler/bottom-oven door to improve cooking performance
• Helps prevent heat loss, uneven broiling, or extended cook times caused by gaps in the door seal
• Wear signs include visible cracks, flattened or torn material, and gaps around the door edge
• Replacing a damaged gasket can reduce smoke from burning food debris caught in a torn seal

• Disconnect power (and gas, if applicable) and allow the appliance to cool fully before starting
• Remove the broiler drawer or door per the owner's manual to access the gasket channel
• Clean the gasket channel of debris before seating the new gasket; press the gasket into the retainer evenly

This oven door gasket fits select 30-inch models and restores a tight, heat-resistant seal between the door and oven cavity. Replacing a worn gasket helps contain heat, support accurate temperatures, and protect surrounding surfaces from excess heat.

• Maintains a thermal barrier to keep hot air inside the oven cavity
• Helps the oven reach and hold the set temperature
• Reduces heat escaping around the door for more consistent baking
• Replaces gaskets that are cracked, frayed, flattened, or leaking; common symptoms include long preheat times, temperature swings, or feeling heat escaping at the door edge

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the old gasket from the frame, noting the orientation of any end clips or pins
• Clean the frame/channel to remove debris for a proper seal
• Install the new gasket without stretching; seat clips/pins fully and check for even contact all around

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement power cord restores the appliance's main AC connection so it can receive power safely. Use this cord when the original cable is frayed, cut, melted, or otherwise damaged to prevent intermittent power or electrical hazards. What it does:

• Replaces the appliance's factory power cable to restore reliable electrical connection.
• Transmits mains power from the outlet to the appliance's internal wiring and controls.
• Addresses symptoms such as no power, intermittent power loss, visible cord damage, or burn/melt marks at the cord or plug.
• Helps prevent electrical arcing or shorting caused by damaged insulation or exposed conductors.

• Disconnect the appliance from power at the breaker or unplug before starting any work.
• Verify the cord matches the appliance's connector and routing; do not modify cord ends or splices.
• Secure all strain reliefs and terminal connections per the appliance's service instructions.

Right hand side

Left hand side

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This light socket holds the bulb and supplies power for reliable appliance lighting. Replace a cracked, heat-damaged, or loose socket to restore safe, consistent illumination inside the appliance.

• Secures the lamp and connects it to the appliance wiring
• Restores proper electrical contact to the bulb
• Replaces sockets showing arcing, discoloration, melting, or a loose fit
• Common symptoms: light won't turn on, flickers, works intermittently, or bulbs fail prematurely

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely before accessing the socket
• Use the bulb type and wattage specified for your model
• Transfer existing mounting screws/brackets and wiring connectors as needed; ensure tight, clean connections

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
