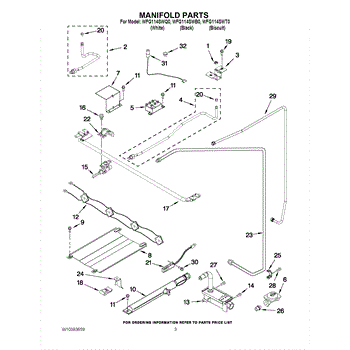

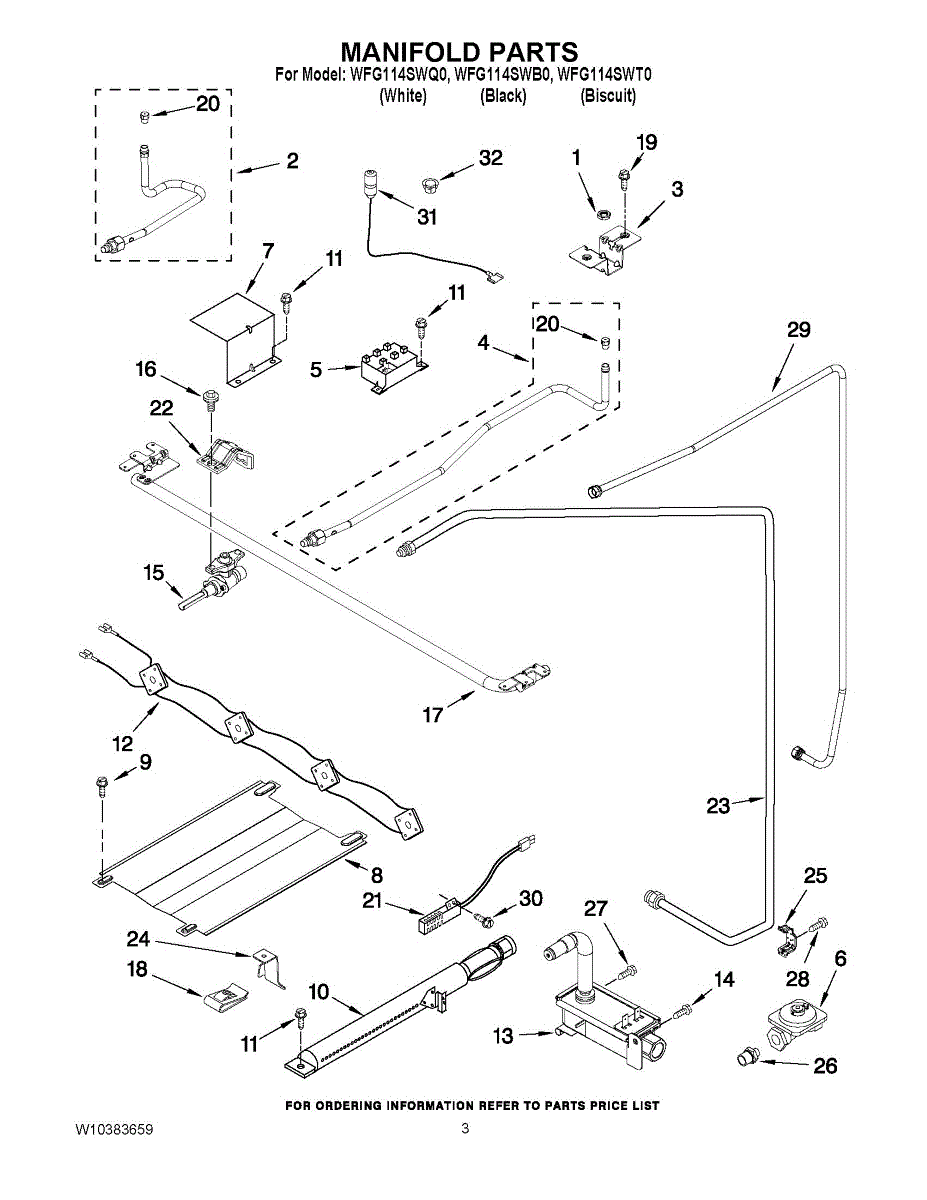

Parts for Whirlpool WFG114SWT0: 03 - Manifold Parts

A small lock-style nut that secures a threaded shaft or fastener to prevent loosening from vibration and normal use. Restores a firm connection so the appliance parts stay aligned and operate quietly and reliably. What it does:

• Locks a threaded connection in place to prevent backing off from vibration
• Keeps rotating or mounted components secured to reduce wobble or movement
• Helps stop noises caused by loose fasteners or shifting parts
• Restores proper fit where a worn or missing nut allowed play

• Disconnect power (and water if applicable) before starting any repair
• Use the correct size wrench/socket and hold mating hardware to avoid twisting other components
• Inspect threads for damage; replace mating fasteners if stripped
• Tighten securely to OEM guidance; avoid over-tightening which can damage threads

Used for the left front burner. For right front use WP98017582.

Used for the front burner.

This mounting bracket secures a surface burner assembly to the cooktop, keeping the burner stable for safe, even cooking. It replaces a worn or broken bracket to restore proper burner alignment and support. What it does:

• Holds the surface burner or burner bowl firmly in place on the cooktop
• Prevents burner wobble, misalignment, and uneven heating
• Helps maintain correct spacing for safe gas/electric operation
• Addresses symptoms like a loose or tilted burner or rattling during use

• Disconnect power and gas supply before beginning work
• Remove burner head and grates as needed to access the bracket
• Use proper hand tools; avoid overtightening fasteners

Used for the rear burner.

The Spark Module is an OEM replacement part for Whirlpool ranges. This module generates and distributes the electrical current needed to ignite the range burners. Dependable sparking is essential for safe and efficient burner ignition.

Causes of a bad spark module can include cracked circuit boards, worn-out electrodes, or malfunctions in the module's timing mechanism.

Symptoms of a bad spark module include:

• Burners failing to light or taking excessive time to ignite
• Constant tripping of the oven or range thermal fuse
• Visible flames or smells coming from under the burners
• Inability to start or maintain oven/range heating functions

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This oven burner baffle is a metal heat shield that directs heat and protects the oven floor and internal components for reliable cooking performance. It helps maintain even heating and keeps burner flames contained away from oven panels. What it does:

• Shields oven bottom and internal components from direct flame and high heat
• Helps stabilize burner flames for more consistent cooking and baking
• Prevents heat-related damage to oven floor and nearby parts
• Reduces hotspots that can cause uneven baking or browning

• One oven burner baffle

• Disconnect power and shut off gas supply before servicing;
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Ensure the baffle is seated and secured per the oven's parts diagram to avoid rattling or interference with the burner

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Restore reliable heating with this oven burner assembly. It channels gas through calibrated ports to produce a stable, even flame across the burner, promoting consistent ignition and uniform oven temperatures when baking. What it does:

• Directs gas from the oven valve and provides the flame path for heating
• Works with the igniter to light the oven flame
• Helps maintain even heat distribution throughout the oven
• Typical symptoms of a failed burner: delayed or no ignition, weak/uneven flame, sooting, popping on ignition, or slow/uneven preheating

• 1 oven burner assembly

• Disconnect power and shut off the gas supply; allow the oven to cool completely
• Remove oven racks and the oven bottom panel to access the burner
• Note igniter alignment and transfer any reusable mounting hardware from the original burner
• Restore gas/power, check all connections for leaks, and verify a steady, properly aligned flame

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

A cooktop ignition switch harness for 30-inch models, this assembly links the burner knob switches to the spark module so each burner sparks and lights reliably—restoring consistent ignition and eliminating unwanted, continuous clicking.

• Routes power from each control switch to the spark ignition system
• Initiates spark at the electrodes when a knob is turned to Lite
• Common fix for no-spark on one or all burners, intermittent ignition, or continuous clicking with knobs off
• Replaces heat-brittled, shorted, or damaged wiring to restore safe operation

• Disconnect electrical power and shut off gas before servicing
• Remove knobs and lift the cooktop per service information; transfer wires one at a time to match original routing
• Inspect igniters and the spark module while accessible; replace any visibly damaged components
• Test burner ignition on all positions before reassembly

The Gas Safety Valve is an OEM replacement part for Whirlpool gas ranges. This important safety device works to automatically shut off the gas supply to the range if abnormal flame conditions, such as flame rollout, occur.

Causes of a bad gas safety valve can include wear and tear from extended use over time, damage due to rust or corrosion from exposure to moist environments, or failure of internal components like springs or seals.

Symptoms of a bad gas safety valve include:

• Gas leaking around the range
• Burners or oven failing to ignite or stay lit
• Improper or uneven heating
• Other abnormal burner flame conditions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This surface burner valve controls the flow of natural gas to a cooktop or range-top burner. Replacing a worn valve restores smooth flame adjustment and helps prevent leaks for safer, reliable everyday cooking performance. What it does:

• Regulates gas flow to one surface burner as you turn the control knob
• Provides a positive OFF shutoff to stop gas when the knob is off
• Helps deliver consistent flame levels from simmer to boil
• Common symptoms: burner won't light or is inconsistent, flame won't adjust, gas odor near the knob, or the knob is stiff/loose

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and access the manifold; transfer burner tubing and any brackets/spark switch from the original valve to the replacement
• Use two wrenches on compression fittings; tighten securely without overtightening
• After reassembly, leak-check connections with soapy water and verify proper flame; follow your model's conversion procedure if changing gas type

This appliance screw secures panels, brackets, and internal components. Replacing a stripped or missing screw keeps parts tight and aligned, reducing vibration and preventing noise for reliable day-to-day operation.

• Secures mounting points for panels, brackets, or assemblies
• Replaces stripped, rusted, or missing hardware to restore a solid attachment
• Helps reduce rattling, vibration, and misalignment from loose fasteners
• Maintains proper fit so components operate as intended

• Disconnect power; turn off water or gas before service
• Match the screw to its original location and replace one at a time
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver type/size specified for your model

Natural gas.

Natural gas.

The Oven Igniter is an OEM part for Whirlpool ovens responsible for igniting the gas burner that heats the oven. It works by drawing electrical current through the igniter filament, heating it to a high temperature until it glows and ignites the gas to start the cooking process.

Symptoms of a failing Oven Igniter include:

• Oven not heating up at all
• Igniter glowing without igniting the gas
• Weak flame or delayed ignition
• Increased gas smell

Causes of a bad Oven Igniter can range from normal wear and tear, which reduces the igniter's efficiency over time, to physical damage or a buildup of dirt and grease that can interfere with its operation. A malfunctioning igniter can lead to uneven cooking, wasted gas, and in some cases, safety hazards due to the accumulation of gas without ignition.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


3/8 to 9/16

This is a replacement screw used to secure panels, trim, or small components on compatible Whirlpool appliances. Installing the correct fastener restores proper fit and helps stop rattles or loose trim. What it does:

• Secures trim, panels, or control components to prevent movement and rattling
• Replaces missing or damaged hardware that can cause gaps or loose parts
• Helps maintain proper alignment of panels and movement-free operation
• Used wherever a factory screw of this size and head style is specified

• Always disconnect power (and water, if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threads engage, then tighten snugly—do not overtighten
• Keep removed hardware organized before final reassembly

This surface burner spark electrode creates the electrical arc that lights the gas at your cooktop/range burner. Replace a cracked or fouled electrode to restore quick, reliable ignition on the affected burner and reduce repeated clicking.

• Generates the high-voltage spark that ignites surface-burner gas
• Promotes fast, consistent ignition and stable flame startup
• Common symptoms: burner won't light, lights intermittently, or sparks weakly at one burner while others work
• Visual clues: cracked porcelain insulator, bent tip, or heavy buildup on the electrode

• Disconnect power and shut off gas supply before servicing
• Remove grate, cap, and burner head to access the electrode
• Transfer mounting hardware from the old electrode
• Route and reconnect the lead securely; keep it away from heat and sharp edges, then test for proper spark before reassembly

The Surface Burner Ignitor is an OEM part for Whirlpool gas ranges. This part ignites the gas to create a flame on the burner, allowing for efficient cooking.

Causes of a bad ignitor can include wear and tear from regular use, electrical issues, or physical damage to the ignitor element.

Symptoms of a bad surface burner ignitor include:

• The burner not lighting or taking longer to light
• Clicking sounds without ignition
• Weak or inconsistent flame
• The smell of gas without ignition

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Clip is an OEM part for Whirlpool ranges. This part holds the surface igniter in place, ensuring that it remains properly positioned to ignite the gas burner efficiently.

Causes of a bad surface igniter clip can include wear and tear from regular use, damage from high heat exposure, or breakage due to improper handling during maintenance.

Symptoms of a bad surface igniter clip include:

• The igniter not staying in place
• Difficulty in lighting the burner
• The burner not igniting at all
• Visible damage or deformation of the clip

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

For Use With LP
