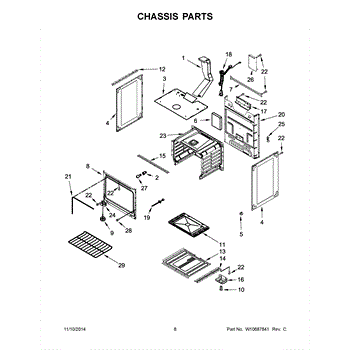

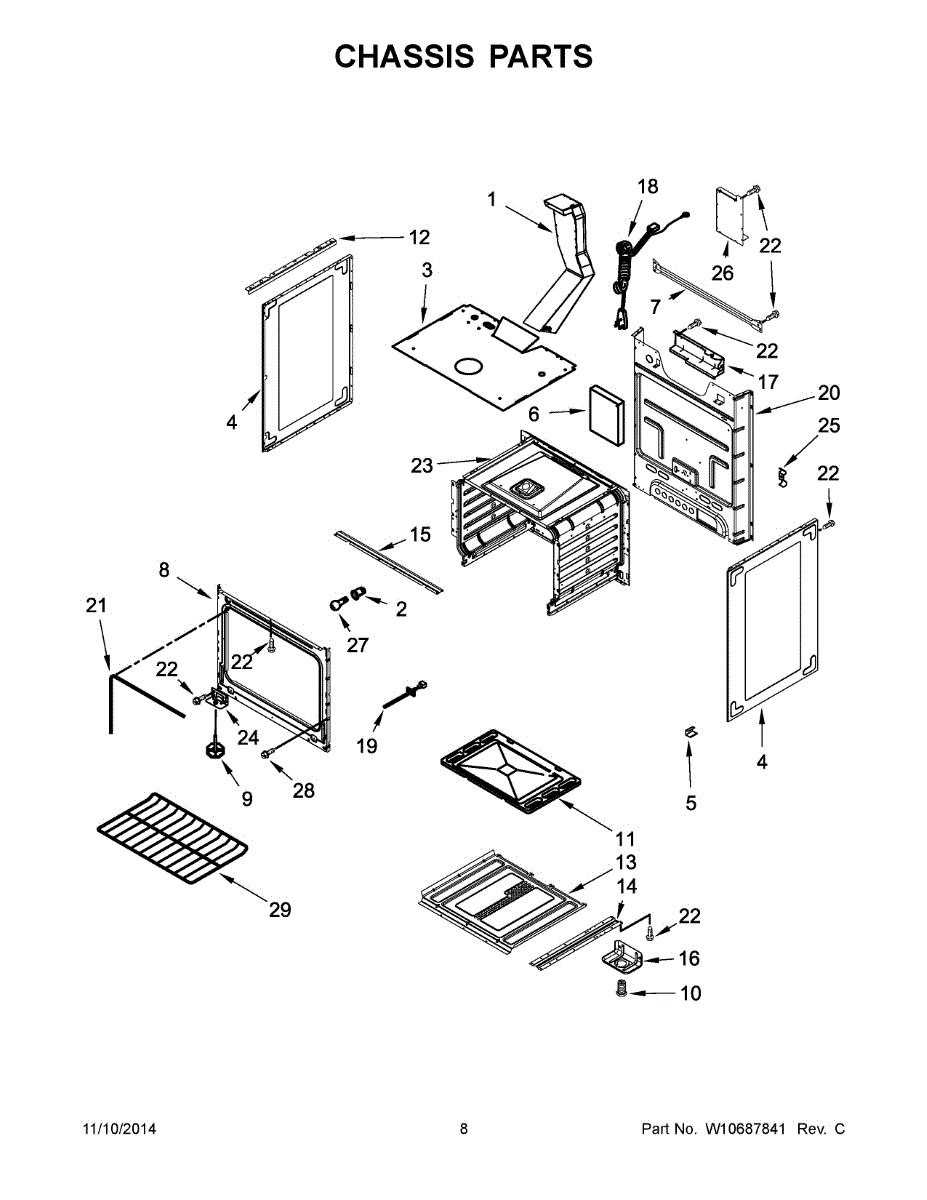

Parts for Whirlpool WFG320M0BS0: 05 - Chassis Parts

This light socket holds the bulb and supplies power for reliable appliance lighting. Replace a cracked, heat-damaged, or loose socket to restore safe, consistent illumination inside the appliance.

• Secures the lamp and connects it to the appliance wiring
• Restores proper electrical contact to the bulb
• Replaces sockets showing arcing, discoloration, melting, or a loose fit
• Common symptoms: light won't turn on, flickers, works intermittently, or bulbs fail prematurely

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely before accessing the socket
• Use the bulb type and wattage specified for your model
• Transfer existing mounting screws/brackets and wiring connectors as needed; ensure tight, clean connections

This clip secures the oven's bottom panel to the range chassis so the floor of the oven stays properly seated during cooking and cleaning. Replacing a missing or bent clip stops rattles and keeps the panel locked in place. What it does:

• Holds the oven bottom panel securely in position
• Helps prevent the panel from lifting, shifting, or rattling
• Restores proper fit after cleaning or service
• Replace if the clip is missing, bent, or broken

• 1 clip

• Disconnect power and allow the oven to cool completely; shut off gas supply for gas models
• Remove oven racks and the bottom panel per your model's instructions
• Install the clip at the designated mounting point and ensure the panel edge seats under the clip
• Wear cut-resistant gloves; sheet-metal edges can be sharp

This leveling foot threads into the appliance base to support and precisely level the cabinet on uneven floors. Replacing a worn or missing foot restores stability, reduces rocking and vibration, and helps doors and components operate correctly.

• Provides height adjustment to level the appliance on uneven floors
• Stabilizes the cabinet to minimize rocking, rattling, and excess vibration
• Helps maintain proper door alignment and seal contact when leveled
• Common signs of wear: broken/missing pad, stripped or seized threads, unit wobbles or won't sit level

• Disconnect power; shut off water supply if applicable
• Protect flooring and use a helper to carefully tilt or raise the appliance for access
• Unthread the old foot; hand-thread the new foot into the base insert, avoiding cross-threading
• Use a level to adjust feet until stable; verify clearances and operation

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the oven bottom panel. It forms the floor of the oven cavity above the burner or heat source, helping protect internal components and provide an even, easy-to-clean surface for baking and roasting.

• Shields the burner/heat source and directs heat within the oven cavity
• Provides a stable surface for cookware and catches drips/spills
• Common fix when the oven floor is warped, rusted, stained, or damaged
• Helps if you notice hot spots, smoke from baked-on spills, or difficulty cleaning the oven floor

• Disconnect power and allow the oven to cool completely before service
• Remove oven racks; release any hold-down screws/clips securing the panel
• Lift out the old panel and set the new panel flat and fully seated
• Reinstall fasteners and racks; test for proper fit before use

A lower baffle that directs wash water and shields the dishwasher's lower tub components from loose items and debris. Replacing a damaged or missing lower baffle helps restore proper water flow and protects internal parts. What it does:

• Directs and distributes wash spray in the lower tub for consistent cleaning
• Helps keep utensils and small items from dropping into the sump or pump area
• Reduces the chance of spray-arm obstruction that can cause poor wash performance
• Can prevent rubbing or rattling caused by loose or broken baffle pieces

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower rack and any obstructing components to access the baffle
• Typically secures by clips or simple fasteners—replace gently to avoid damaging mounting tabs

This access cover replaces a damaged or missing access panel to protect and conceal internal control components while allowing service access. Keeps wiring and controls covered for safer operation and easier maintenance. What it does:

• Shields control boards, wiring and components from dust, moisture and accidental contact
• Conceals internal parts for a finished appearance
• Provides a removable panel for access during diagnostics and repairs
• Helps prevent debris from entering sensitive areas that could affect operation

• Disconnect power to the appliance before attempting any service
• Remove fasteners or clips securing the old cover and install the new cover in the same orientation
• Use hand tools only and avoid forcing tabs or clips to prevent breakage

This replacement power cord restores the appliance's main AC connection so it can receive power safely. Use this cord when the original cable is frayed, cut, melted, or otherwise damaged to prevent intermittent power or electrical hazards. What it does:

• Replaces the appliance's factory power cable to restore reliable electrical connection.
• Transmits mains power from the outlet to the appliance's internal wiring and controls.
• Addresses symptoms such as no power, intermittent power loss, visible cord damage, or burn/melt marks at the cord or plug.
• Helps prevent electrical arcing or shorting caused by damaged insulation or exposed conductors.

• Disconnect the appliance from power at the breaker or unplug before starting any work.
• Verify the cord matches the appliance's connector and routing; do not modify cord ends or splices.
• Secure all strain reliefs and terminal connections per the appliance's service instructions.

The Oven Sensor Assembly is an OEM part for Whirlpool ovens, designed to accurately measure the oven's internal temperature and communicate it to the control board. This ensures that the oven maintains the desired temperature setting during baking or roasting, providing consistent cooking results.

Causes of a bad Oven Sensor Assembly can include exposure to high temperatures for prolonged periods, affecting the sensor's accuracy, electrical malfunctions like short circuits or wiring issues impacting its performance, and physical damage from cleaning or moving the oven compromising the sensor's integrity.

Symptoms of a bad Oven Sensor Assembly include:

• The oven does not heat to the set temperature
• Over or undercooking of food
• Error codes displayed on the oven's control panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Door Gasket is an OEM replacement part for Whirlpool ovens. It is designed to create a tight seal around the oven door, preventing heat from escaping during cooking. This gasket ensures that the oven maintains the proper temperature, improving energy efficiency and cooking performance.

Over time, the oven door gasket can become worn or damaged due to constant exposure to high temperatures and frequent use. This wear and tear can cause the gasket to lose its elasticity, crack, or become brittle, resulting in heat leakage and uneven cooking. Improper cleaning methods or accidental damage can also compromise the gasket's effectiveness.

Symptoms of a bad oven door gasket include:

• Heat escaping from the oven door
• Longer cooking times or uneven cooking results
• Visible cracks, tears, or deformation in the gasket
• Increased energy consumption
• The oven door not closing properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This leveling foot threads into the appliance base to support and precisely level the cabinet on uneven floors. Replacing a worn or missing foot restores stability, reduces rocking and vibration, and helps doors and components operate correctly.

• Provides height adjustment to level the appliance on uneven floors
• Stabilizes the cabinet to minimize rocking, rattling, and excess vibration
• Helps maintain proper door alignment and seal contact when leveled
• Common signs of wear: broken/missing pad, stripped or seized threads, unit wobbles or won't sit level

• Disconnect power; shut off water supply if applicable
• Protect flooring and use a helper to carefully tilt or raise the appliance for access
• Unthread the old foot; hand-thread the new foot into the base insert, avoiding cross-threading
• Use a level to adjust feet until stable; verify clearances and operation

The Light Bulb is an OEM part for Whirlpool ranges. It provides illumination inside the oven cavity, allowing you to easily monitor the cooking process.

Causes of a bad bulb can include prolonged usage leading to burnout, manufacturing defects, or exposure to extreme temperature fluctuations within the oven.

Symptoms of a bad Light Bulb include:

• Dimming or flickering light
• Failure of the bulb to turn on
• Uneven lighting within the oven cavity
• Burnt-out or shattered bulb

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Oven Rack is an OEM part designed specifically for Whirlpool wall ovens. It provides an accessible storage system for oven racks and baking sheets when not in use. This rack measures 15.5 x 25in.

Causes of a faulty rack can include wear over time, damage from overloading, or accidental mishandling of racks during loading/unloading.

Symptoms of a problematic rack include:

• Rattling or unstable fits of racks inside the oven
• Difficulty smoothly extending or retracting the rack
• Visible cracks, bending, or broken slide features

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement refrigerator cabinet insulation panel that restores the factory thermal and noise barrier behind the liner. Replacing damaged or missing insulation helps prevent moisture buildup and improves enclosure sealing. What it does:

• Replaces torn, compressed, or missing cabinet insulation behind the liner
• Helps reduce condensation, frost buildup between liner and cabinet
• Restores the intended noise-dampening barrier for quieter operation
• Helps maintain proper internal temperatures by reducing heat transfer

• Disconnect power to the appliance before starting any repair
• Wear gloves and a dust mask when handling fibrous insulation materials
• Avoid compressing or bunching the insulation during installation; fit it flat against the cabinet
• Follow for proper removal of the liner and reassembly; use original adhesive or approved fasteners where required
