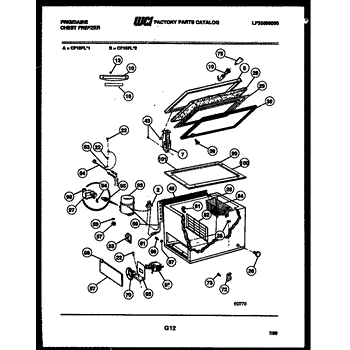

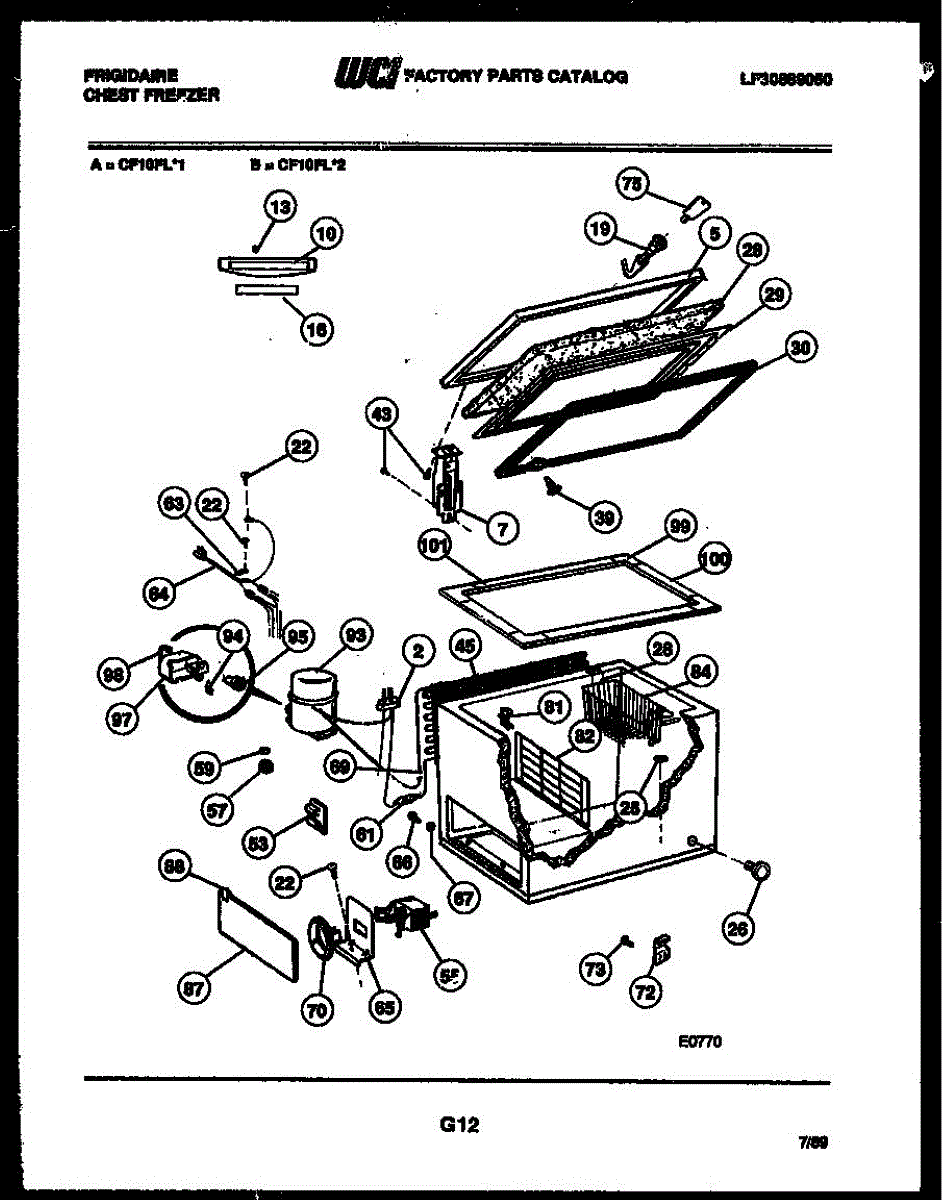

Parts for Frigidaire CF10FL2: 02 - Chest Freezer Parts

This front outer panel restores the exterior finish and protective surface of a freezer chest, improving appearance and helping seal the cabinet edge. Designed to replace a worn, cracked, or dented front panel for a clean, finished look. What it does:

• Replaces damaged or dented front outer surface on a freezer chest
• Helps protect internal components from external impacts and debris
• Restores the cabinet's appearance and helps maintain a proper door/ice lid fit
• Can reduce drafts caused by warped or broken front panels

• Installation requires removing trim and fasteners; keep small parts in a container to avoid loss
• Use appropriate hand tools; avoid overtightening to prevent cracking the panel
• Disconnect power or ensure unit is off and empty work area when accessing panels

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

The Gasket is an OEM part for Frigidaire refrigerators. It forms a seal around the refrigerator or freezer door, preventing warm air from entering and cold air from escaping, thus maintaining the optimal internal temperature and ensuring energy efficiency. This gasket measures approximately 40.62" x 21.12".

Common causes of a bad gasket include frequent use, exposure to spills, or wear and tear over time. A compromised gasket can lead to temperature fluctuations and increased energy consumption.

Symptoms of a bad gasket include:

• The door not sealing properly
• Increased frost buildup inside the refrigerator or freezer
• Warmer than usual temperatures inside the appliance
• Higher energy bills due to the refrigerator working harder to maintain cool temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

This cold control kit replaces the mechanical temperature control thermostat that regulates your refrigerator or freezer's cooling. Restore proper temperature regulation and consistent cycling when the original control sticks, drifts out of calibration, or fails intermittently.

• Senses compartment temperature with a capillary bulb and opens/closes contacts to maintain the set temperature
• Cycles the cooling system on and off for steady, reliable performance
• Common symptoms: too warm or over-cooling/freezing items, unit won't start unless the dial is moved, runs constantly, erratic temperature swings, unresponsive temperature dial
• Helps correct intermittent cooling caused by worn or pitted thermostat contacts

• Disconnect power before servicing; work in a dry area
• Access the control housing, note wire locations, and transfer wires to the new control one at a time
• Route and secure the sensing bulb/capillary exactly as original; do not kink or sharply bend it
• Set to a mid-range setting after installation and allow up to 24 hours for temperatures to stabilize

Includes service line.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This is an authentic OEM freezer basket bumper sourced directly from the manufacturer for use on freezer baskets. Freezer basket bumpers are attached to the baskets to keep them from sliding around inside the freezer. If the bumper breaks, the basket will not stay in place, and the contents could shift or fall out. Freezer baskets create more storage room inside a freezer. These baskets are normally located on the bottom of the freezer, with freezer racks located above. Freezer baskets are ideal for storing smaller packages that might not stack well on the racks. Over time, normal wear and tear may cause the bumper to crack or break completely; if this happens, the bumper should be replaced. Remove the contents of the freezer basket. Remove the freezer basket from the freezer. Push the new bumper onto the freezer basket. Replace the contents of the basket and put it back into the freezer. This handle freezer basket is made of high-quality, white molded plastic. It is designed for use in freezers manufactured by Frigidaire, Kenmore, Gibson, and Electrolux.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

The Freezer Door Key is an OEM replacement part for Frigidaire refrigerators. This small but essential component is designed to securely lock the freezer door, preventing accidental openings or unauthorized access.

Symptoms of needing to replace the freezer door key include:

• Difficulty in locking or unlocking the freezer door
• The key not fitting properly or becoming stuck in the lock
• Visible wear, damage, or breakage of the key itself

Causes of a faulty freezer door key can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the locking mechanism itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
