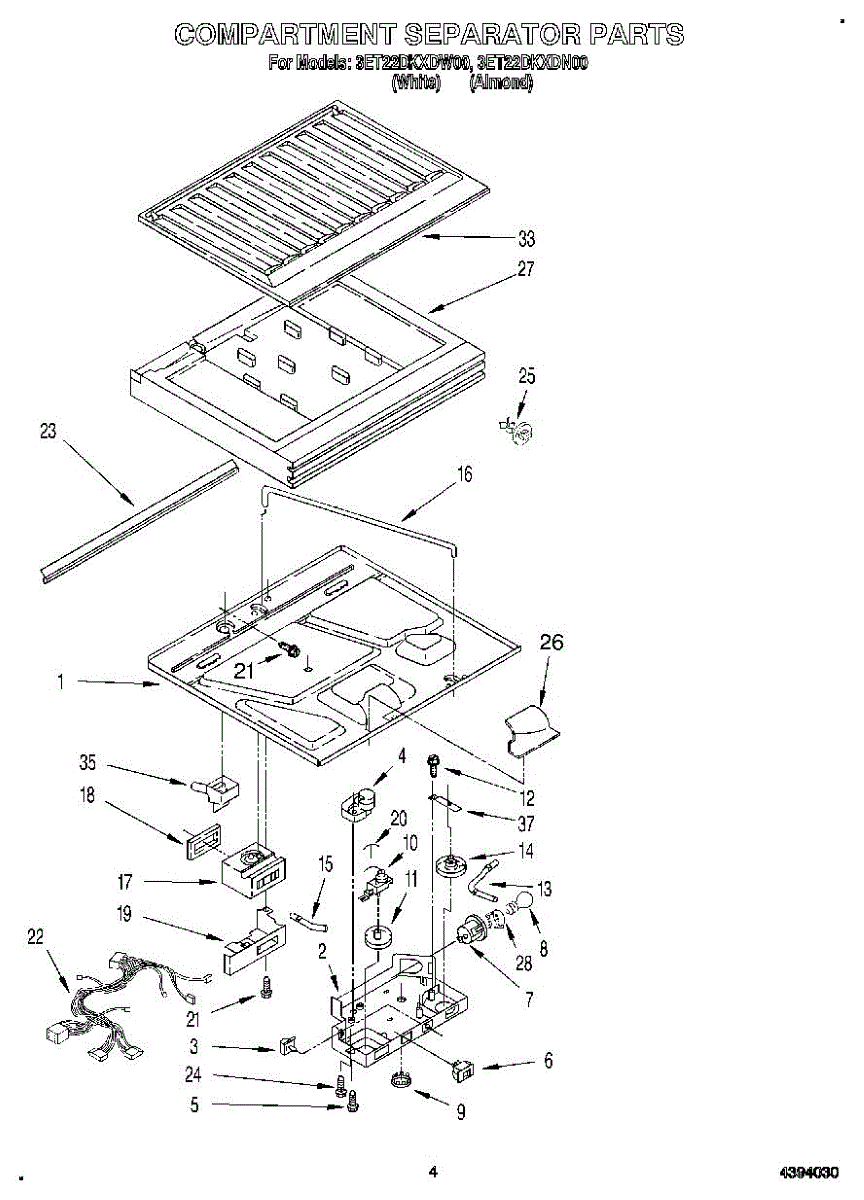

Parts for Whirlpool 3ET22DKXDN00: 03 - Compartment Separator Parts

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

This 40W replacement light bulb restores interior appliance lighting so you can see inside ovens and ranges for checking food without opening the door. Simple, direct fit for compatible appliance light sockets. What it does:

• Provides bright, focused 40W illumination for appliance interiors
• Replaces burned-out or dim bulbs so the interior light turns on when the door is opened
• Helps you monitor cooking progress and oven/range activity safely
• Fits standard appliance light housings designed for a 40W lamp

• Always disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb and surrounding area to cool completely before handling
• Use a cloth or gloves to avoid skin oils on the bulb; tighten gently—do not overtighten
• Restore power to test operation

Restore consistent cooling with this temperature control thermostat. It senses internal temperature and cycles the cooling system on and off to maintain the setting you select, helping prevent warm spots and over-cooling.

• Regulates compartment temperature by opening/closing electrical contacts to start and stop cooling
• User-adjustable via the control knob/dial; helps maintain a steady set point
• Common symptoms include: unit too warm or too cold, won't cycle off or won't start cooling, or erratic temperature swings
• Tapping the control area to make the unit start/stop can indicate a worn control

• Disconnect power before servicing; use proper PPE
• Photograph and label wire positions before removal; transfer the knob/dial and any brackets from the original control
• Install the new control in the same orientation; set to a mid setting for initial testing
• Restore power and allow up to 24 hours for temperatures to stabilize; adjust as needed

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8 x 1/2 ab.

Size: 8-32 x 1/2 inch.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
