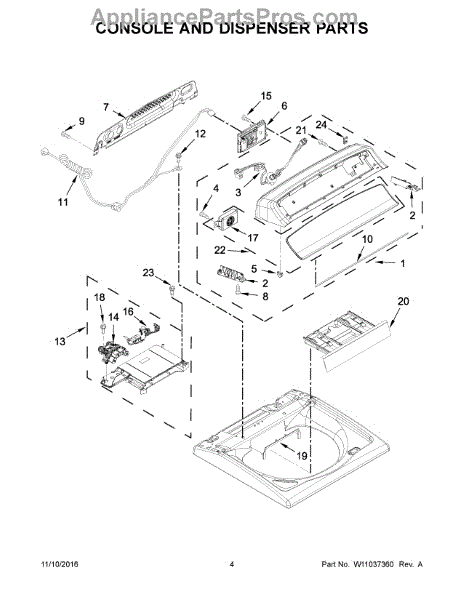

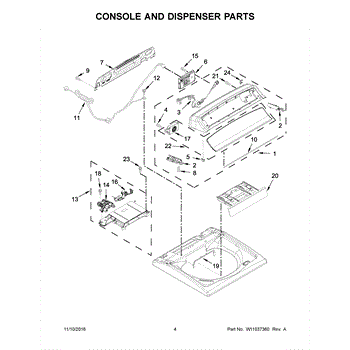

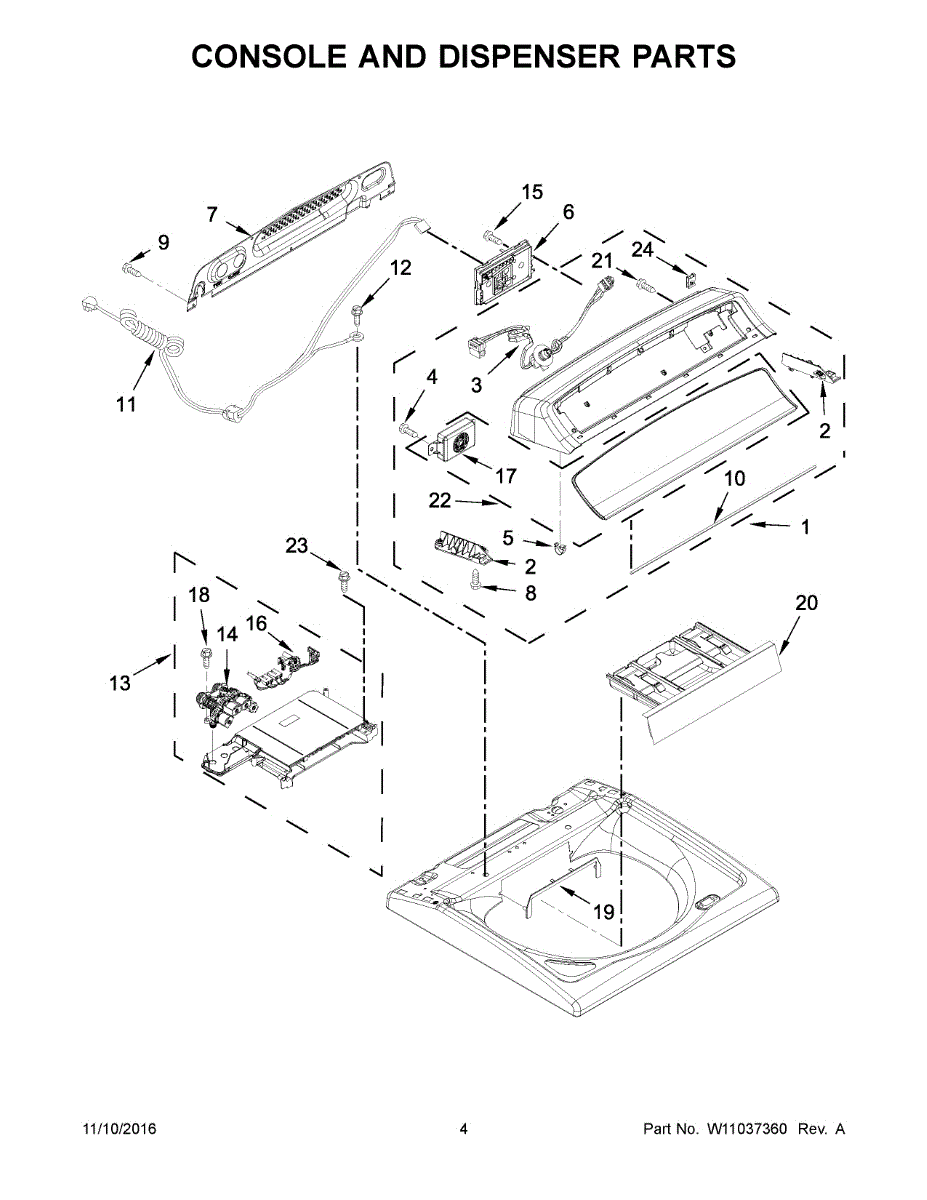

Parts for Whirlpool WTW8500DC2: 03 - Console And Dispenser Parts

Washer console control panel houses buttons, knobs, and displays for cycle operation. Replace if cracked, damaged, or non-responsive from wear or impact.

The Bracket Dryer is an OEM part compatible with Whirlpool dryers. This bracket provides stability and structure by securing the dryer cabinet to the base frame. It is a necessary component that allows for proper mounting and alignment of the dryer.

Causes of a bad bracket can include cracking, bending, or warping over time and use. Exposure to excessive heat or impact can damage the bracket and compromise its integrity.

Symptoms of a bad bracket include:

• Vibrating or noisy dryer
• Loose cabinet that is not firmly mounted
• Difficulty leveling or aligning the dryer
• Stress on other components like doors or panels

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Structural bracket that secures the dryer cabinet to the base frame. Replace if bent, cracked, or causing alignment issues during installation or use.

If your washer isn't filling with water or cycles won't start, the wire harness may have failed. Connects electrical components for proper operation.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix an unresponsive washer control panel or erratic cycle behavior with this electronic control board. Restores normal operation when the main board fails.

Rear panel for washers. Protects internal components and provides cabinet stability. Replace if cracked, broken, or damaged to restore structure.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Rubber door boot seal creates a watertight barrier between tub and opening. Replace when torn, cracked, or leaking to prevent water damage during cycles.

Washer won't turn on or power cord is damaged? This power cord connects your washer to the electrical outlet. Typically takes 15-20 minutes to replace.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix a washer that won't fill, fills slowly, or shows an LF error code with a new water inlet valve. Most DIYers complete this repair in 10-15 minutes.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Wire Harness is an OEM part for Whirlpool washing machines. The wire harness is responsible for transmitting electrical signals that power components and allow them to communicate during each cycle.

Causes of a bad wire harness can be normal wear and tear over time, pinched or cut wires, or wire insulation breakdown due to heat or moisture exposure.

Symptoms of a bad wire harness include:

• Lights or display not working properly
• Washer not starting cycles
• Sensors or switches malfunctioning
• Intermittent operation

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a small speaker used in a microwave to produce audible alerts and tones, such as the beep that sounds when cooking is complete or buttons are pressed. If your microwave no longer beeps, produces distorted sounds, or has no audio feedback at all, this speaker likely needs replacement.

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

Replacement bezel trim that surrounds the laundry center control panel. Restores appearance when original is cracked, broken, or worn. Shields buttons.

Replacement control console bezel trim for washers. Secures the interface panel within the cabinet opening. Replace if cracked, broken, or missing.

This is a white plastic dispenser drawer that slides into the front of the washing machine to hold detergent, bleach, and fabric softener. It channels each cleaning product into the wash drum at the correct time during the cycle. Replace this drawer if it is cracked, warped, missing compartment dividers, or if detergent is not dispensing properly.

Fix a cracked or broken dispenser drawer that won't slide properly. This complete assembly restores smooth operation and includes all compartments.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

The Control Panel Assembly is an OEM part for Whirlpool front-loading washing machines. Housing the selection buttons, cycle lights, and diagnostic displays, this panel electronically governs washer settings and functions through a user interface.

Causes of a failing control panel include:

• Buttons become unresponsive or stuck
• Error codes appear frequently
• Lights/displays malfunctioning

Symptoms relate to natural circuitry degradation over time under heavy usage, moisture exposure damaging electronics, or electrical faults occurring.

This OEM part is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This is a genuine replacement mounting screw that secures appliance components and panels so parts stay aligned and stable. Installing the correct screw restores proper fit and helps eliminate vibration or loose panels. What it does:

• Fastens panels, brackets, or small components in place
• Replaces missing, stripped, or damaged screws that cause loose parts
• Helps stop rattling, vibration, or misaligned panels
• Restores secure connections after repairs or part replacement

• One mounting screw

• Unplug the appliance or disconnect power before starting work
• Use the correct screwdriver bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized so you can reuse existing screws when applicable

Replacement mounting nut secures panels, brackets, and studs in dryers. Restores tight fit for worn, stripped, or missing fastening hardware.
