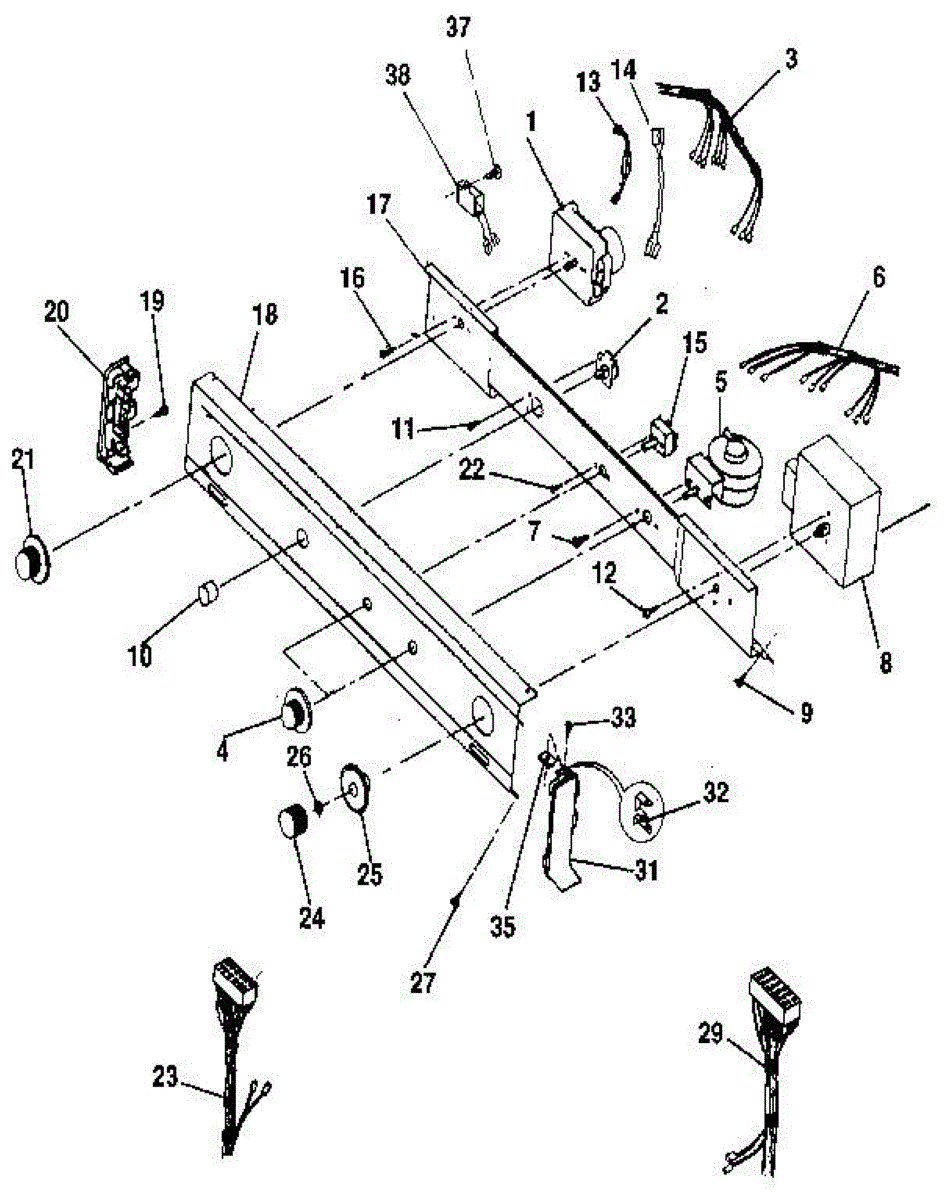

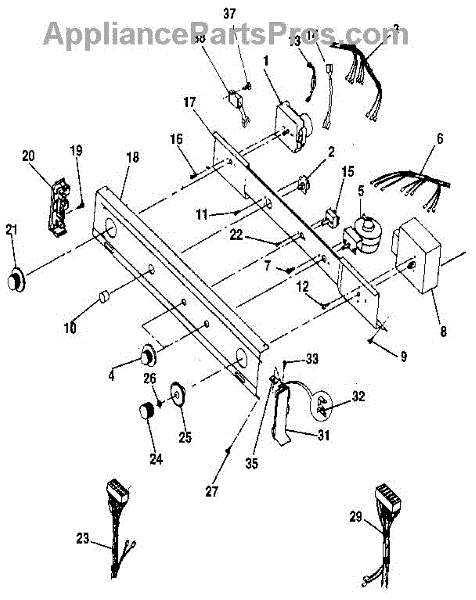

Parts for Kenmore 417.99170120 (41799170120, 417 99170120): Console & Controls Parts

If your dryer won't shut off or cycles won't advance, the timer may have failed. This control manages drying cycles and run time. DIY repair in 20 minutes.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

Replacement timer knob for washer dryer combos. Mounts to the control timer shaft to select cycles and settings. Needed when original is cracked or stripped.

PPH ab st/z/ch `6 - 18x.60

Right endcap for washer dryer combo units. Covers and protects the right side panel edge. Replace if cracked, broken, or missing for a complete look.

A replacement mounting screw used to secure components on compatible Frigidaire appliances. This genuine-style fastener restores proper fit where the original screw is missing, stripped, or damaged for safe operation. What it does:

• Secures trim, panels, brackets, or components to prevent rattling and misalignment
• Restores a proper mechanical connection when the original screw is lost or worn
• Helps eliminate vibration noise caused by loose fasteners
• Compatible with specific Frigidaire assemblies that use this style of screw

• Screw only

• Use the correct screw location and size—do not force or overtighten to avoid stripping threads or cracking plastic parts
• Turn off power or disconnect appliance from power source before accessing internal components
• Wear safety glasses and handle small parts carefully to avoid injury or loss

Secures wiring harness to prevent chafing and maintain safe wire routing in washers, dryers, and laundry appliances. Replace if loose or broken. Check your model for compatibility.

Red adhesive strip for washers. Secures components and panels inside the cabinet. Replace if peeling, missing, or no longer holding parts in place.

This part has been discontinued by the manufacturer and is no longer available.

This is a service parts catalog that lists OEM part numbers and exploded diagrams to help identify the correct replacement parts and speed accurate ordering. Ideal for technicians and DIYers who need a reliable parts reference. What it does:

• Provides exploded views and OEM part numbers to identify components precisely
• Helps prevent ordering incorrect parts by matching the part visually and by number
• Shows part groupings and typical quantities for assemblies and subcomponents
• Serves as a reference during troubleshooting when parts are missing or broken

• This is a reference document, not a wearable or installable appliance part
• Keep the catalog dry and store with other service literature for easy access
• Use the catalog alongside the appliance service manual and safety guidelines when planning repairs

Wiring diagram manual for washer dryer combo units. Essential reference guide for understanding electrical connections during repairs or installations.

Snap-in bushing for washer assemblies. Replaces worn, cracked, or missing bushings that provide cushioning and support in internal components.

Vertical spring adjuster insert.

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.
