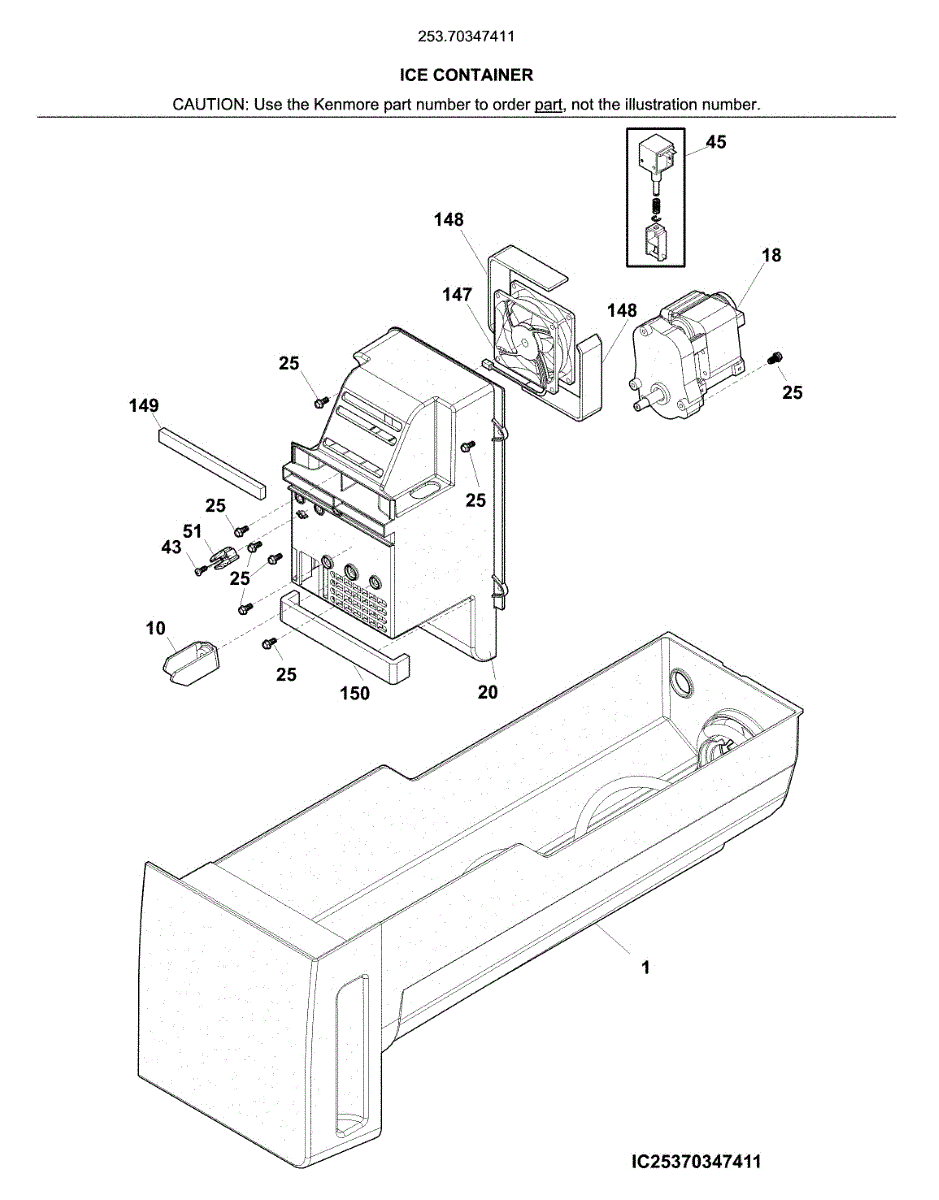

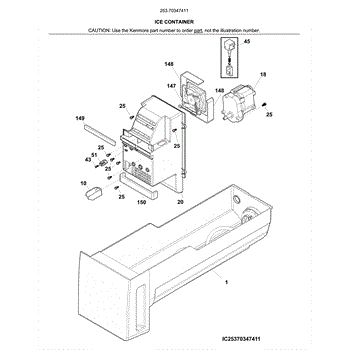

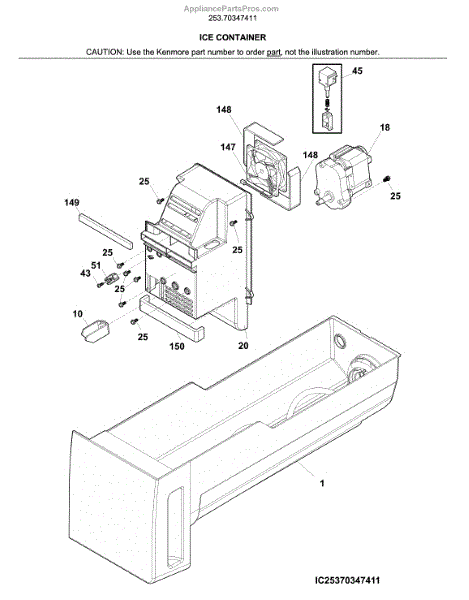

Parts for Kenmore 253.70347411 (25370347411, 253 70347411): Container Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is an ice container that is made to be used on a refrigerator with a freezer. The purpose of this ice container is to store ice in the freezer compartment so that it is ready to be dispensed out of the ice dispenser. This part does not include the ice maker itself; it simply stores the ice once it has already been made.The ice container is made out of a white plastic material. Over time, it may crack due to the cold conditions and normal wear and tear. If this happens, this is a high-quality replacement part. This particular ice container is compatible with refrigerators with freezers that are manufactured by Frigidaire, Kenmore, Electrolux, Kelvinator, Gibson, and Westinghouse. It is sold individually. This part is sourced directly from the manufacturer itself.

This auger drive bar links the dispenser motor to the ice bucket auger, transmitting torque to move cubes or crushed ice to the chute. Replacing a worn or stripped bar restores consistent, reliable ice dispensing. What it does:

• Couples the dispenser motor to the auger/crusher assembly
• Transfers rotation so ice advances to the dispenser chute
• Interfaces with the cube/crush selector mechanism
• Common symptoms include the motor running but no ice dispensing, intermittent dispensing, the auger not turning, or grinding/clicking from the dispenser

• 1 auger drive bar

• Disconnect power and remove the ice bucket before servicing
• Note the bar's orientation; remove any retainers and separate it from the yoke/coupler
• Align the new bar with the mating parts and seat it fully; transfer any reusable retainers
• Reinstall the bin and test both cube and crush selections

The Dispenser Auger Motor is an OEM part for Frigidaire refrigerators. It powers the auger that dispenses ice from the ice maker through the dispenser chute, ensuring smooth and efficient delivery of ice to the user.

Causes of a bad auger motor can include electrical issues, wear and tear from regular use, or mechanical failure. A malfunctioning auger motor can prevent ice from dispensing properly, impacting the overall functionality of the ice maker.

Symptoms of a bad dispenser auger motor include:

• The ice dispenser not dispensing ice
• The auger not turning or making unusual noises
• The dispenser motor not responding when activated
• Ice jams or blockages in the dispenser chute

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This is a replacement screw used to secure appliance panels and components. It restores proper fastening to stop rattles and keep parts aligned for reliable operation. What it does:

• Secures trim, brackets, or small panels to the appliance
• Prevents loose parts that can cause vibration, noise, or improper sealing
• Restores factory fastening where a screw is missing or damaged
• Simple, single-purpose fastener — use where the original screw was installed

• Use the matching screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
• Disconnect power or follow appliance safety steps when working near electrical components
• Replace only the screw(s) that match the original size and type

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This anti-twist pin secures mating parts to stop unwanted rotation and keeps linked components aligned for reliable operation. Replace a worn or broken pin to restore proper fit and reduce twisting, rubbing and noise. What it does:

• Keeps connected components from rotating or shifting, preserving alignment and part engagement.
• Helps prevent rubbing, scraping, or noisy operation caused by a loose or missing pin.
• Replaces a damaged or worn locating/retention pin that can allow assemblies to bind or move out of position.
• Simple mechanical replacement that restores intended part geometry and fit.

• Disconnect power to the appliance before servicing to avoid electrical or motion hazards.
• Remove any covers or panels as needed to access the pin; keep track of fasteners and orientation.
• Install the pin in the same orientation as the original; components move freely and are properly engaged before reassembly.

The Ice Maker Cooling Fan and Gasket Kit is an OEM part for Frigidaire refrigerators. This kit includes both the cooling fan and the necessary gasket, which work together to ensure the ice maker operates efficiently.

Causes of a bad cooling fan can include electrical issues, wear and tear from continuous use, and blockages or debris impeding the fan's operation.

Symptoms of a bad ice maker cooling fan and gasket include:

• Reduced ice production or no ice being made
• Ice melting or clumping together
• Unusual noises coming from the ice maker area
• Visible wear, cracks, or gaps in the gasket

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This rubber grommet cushions and secures appliance components, reducing vibration and wear while helping maintain proper alignment. It's a small replacement part that restores quiet operation and prevents metal-on-metal contact. What it does:

• Cushions or isolates moving parts to reduce noise and vibration
• Provides a snug mount or seal where components pass through panels
• Helps keep trim, panels or wiring from rubbing and wearing
• Commonly replaced when parts become loose, cracked, or noisy

• Disconnect power before attempting any repair.
• Access may require removing a panel or trim piece; use trim tools to avoid damage.
• Ensure the grommet seats fully in the mounting hole and that retained parts align correctly.
• Replace if torn, hardened, or deformed; do not install a damaged grommet.

This door gasket is a direct-fit replacement seal that restores the refrigerator door's airtight closure to help maintain temperature control and reduce energy loss. Designed to replace a worn, cracked, or misshapen seal for improved performance. What it does:

• Creates an airtight seal around the door to keep cold air in and warm air out
• Helps prevent frost buildup and condensation inside the compartment
• Supports consistent cooling and can reduce compressor run time caused by leaks
• Addresses common symptoms like warm spots, excessive cycling, and visible gaps around the door

• One replacement door gasket

• Inspect door frame and mounting channel for damage or debris before installing
• Clean mating surfaces and allow them to fully dry for the best seal
• Gaskets may require gentle stretching or warming to seat evenly; avoid sharp tools that could nick the gasket
• If the door or frame is bent/damaged, gasket replacement may not fully resolve sealing issues.
