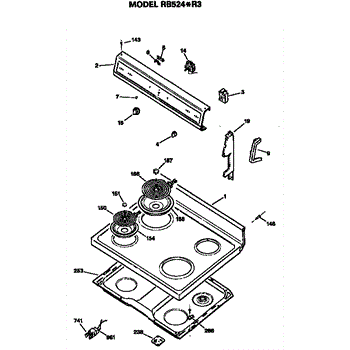

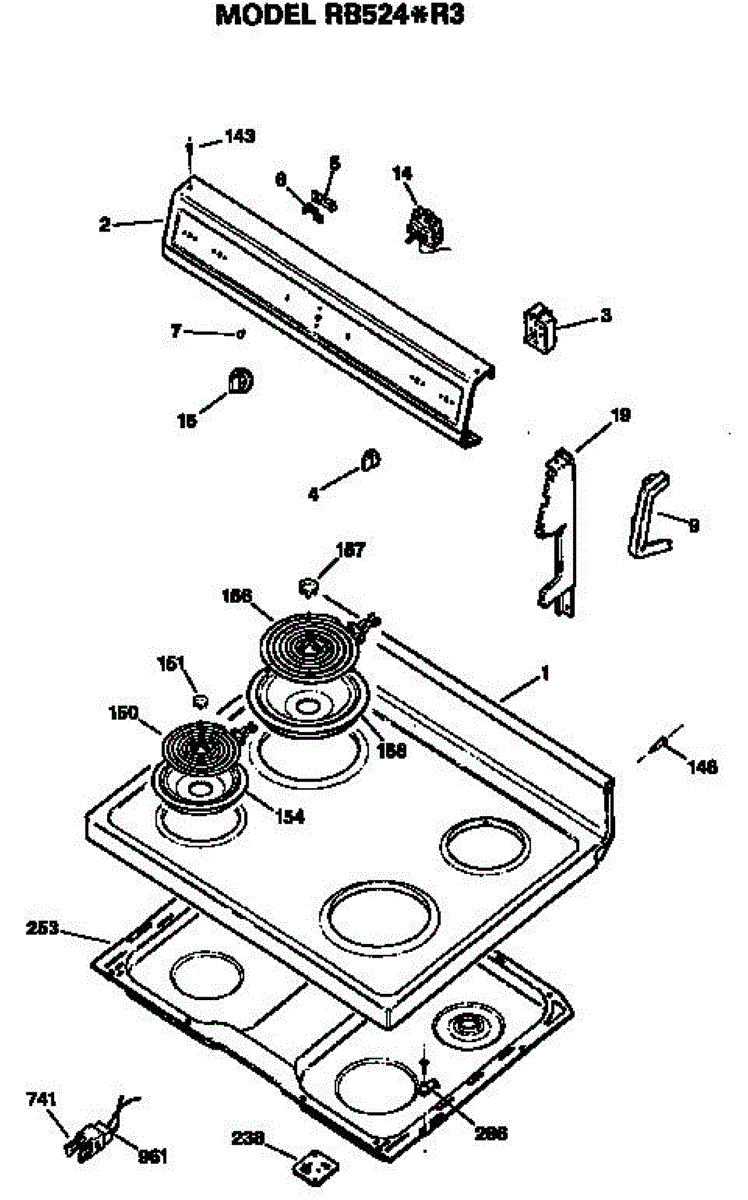

Parts for Hot Point RB524*R3: Control And Cooktop Parts

This part has been discontinued and is no longer available.

A small decorative bezel that restores the finished look of the control panel and helps protect the underlying opening from dust and debris. Replaces a cracked, faded, or missing jewel to freshen appliance appearance. What it does:

• Covers and protects a control-panel opening or indicator area, improving cosmetics.
• Hides mounting hardware and helps keep dust and spills out of internal components.
• Commonly used to replace cracked, broken, or missing jewels that distract from the appliance finish.
• Simple cosmetic replacement — does not affect electronic functionality.

• Always disconnect power to the appliance before starting any repair.
• Typically snaps into place or secures with small screws; handle gently to avoid cracking.
• If screws are present, use the correct size screwdriver and avoid over-tightening.

Color: Black

Color: Black

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

This double terminal block provides a secure connection point for two incoming power leads and the appliance harness, helping restore reliable electrical feed to heating and control circuits. Direct-replacement electrical mounting for affected ranges and ovens. What it does:

• Joins and secures two power supply conductors to the appliance wiring harness
• Restores interrupted power paths that can cause burners, elements, or controls not to heat or operate
• Prevents loose or corroded connections that lead to arcing or intermittent operation
• Matches original mounting and terminal spacing for a straightforward replacement

• One double terminal block

• Disconnect power at the breaker or unplug appliance before servicing to avoid shock
• Verify correct wire routing and tight, torqueed terminal screws; use a replacement screw if original is damaged
• Inspect adjacent wiring and connectors for heat damage; replace any compromised components

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

Clip for door hinge.

Right hand side

Left hand side

Includes 12 washers.

This oven insulation replaces the thermal lining inside the oven cavity to help maintain proper cooking temperatures and reduce heat transfer to surrounding cabinetry. It restores the oven's thermal barrier for safer, more consistent baking and roasting. What it does:

• Provides thermal insulation between the oven cavity and outer cabinet to help retain heat during use
• Helps reduce heat loss that can cause longer cook times or uneven baking
• Dampens rattling or vibration from loose or damaged oven lining
• Supports proper oven temperature stability when installed correctly

• One oven insulation panel as shown

• Installation typically requires removing the oven door and accessing the cavity; follow OEM instructions
• Use gloves and eye protection; insulation fibers can irritate skin and lungs
• Ensure the oven is fully disconnected from power and cool before starting work
• Verify correct placement and secure mounting to prevent contact with heating elements

A replacement hook assembly that secures the oven door latch so the door closes and seals properly. Restores reliable door engagement for safe, even cooking and oven operation. What it does:

• Engages with the door latch to hold the oven door closed
• Helps maintain a proper oven seal for consistent cooking temperatures
• Common fix when the door won't stay closed or latch fails to engage
• Supports normal oven start/lock functions tied to door position

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; support the door while working to prevent damage
• Follow the appliance service manual for disassembly/reassembly steps

The Oven Rack is an OEM part for GE ovens. It is a fundamental component that provides a stable platform for placing baking sheets, pans, and other cookware inside the oven. The oven rack is designed to fit securely into the oven cavity, allowing for efficient heat circulation and even cooking.  It measures approximately 23” wide by 16” deep.

Causes of a faulty oven rack can include wear and tear over time, exposure to high temperatures or heavy loads, or damage due to accidental impacts. These factors can result in bent or warped rack wires.

Symptoms of a bad oven rack may include:

• Difficulty sliding the rack in and out of the oven
• Uneven cooking or browning of food items
• Visible damage or deformation of the rack wires

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This silicone gasket creates a flexible, heat-resistant seal in range and oven assemblies. Replacing a deteriorated seal helps contain heat and moisture at joints and trim areas, protecting internal components and restoring proper fitment.

• Forms a durable, high-temperature seal between designated mating surfaces
• Helps prevent heat, steam, odors, and spills from escaping at seams
• Can help address visible gaps, leaks at edges, or looseness around trim/panels
• Restores the manufacturer-specified seal after service on affected components

• Disconnect power and allow the appliance to cool; turn off gas if applicable
• Remove old gasket/sealant and clean surfaces thoroughly; dry completely
• Position/install exactly as directed for your model; avoid stretching or over-compressing
• Follow model/service instructions for any required cure or set time before heating

The Broil Element is an OEM part for GE ovens. It is designed to provide the high heat necessary for broiling food, such as meats and vegetables, allowing for a quick cooking process that seals in flavors and creates a deliciously crispy exterior.

Causes of a bad Broil Element can include failure due to internal coil damage, burnout from excessive use, or electrical issues such as short circuits or loose connections that prevent it from heating.

Symptoms of a bad Broil Element include:

• The oven not heating up to the set broil temperature.
• Uneven cooking or browning of food.
• No visible glow from the element during operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Receptacle and Wire Kit is an OEM part for GE ranges and ovens. It serves as a crucial component in connecting the heating element to the power source, ensuring that electricity can flow to the element for heating.

This kit typically includes a receptacle, wires, and possibly other connectors or hardware needed for installation. Proper connection via this kit is essential for the heating element to function correctly and efficiently.

Symptoms of a bad Element Receptacle and Wire Kit include:

• Heating element not heating properly or at all
• Burn marks or corrosion on the receptacle
• Visible damage or wear on the wires
• Intermittent heating, indicating a loose connection

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This receptacle assembly connects the appliance's main wiring to the power supply, restoring a secure electrical connection and reliable power transfer. It helps prevent loose cord connections and arcing at the terminal connection. What it does:

• Provides the mating terminal for the appliance power cord or internal wiring harness
• Restores a secure electrical connection when the original receptacle is damaged or corroded
• Stops intermittent power, sparking, or overheating at the cord/terminal area
• Ensures consistent contact between the cord and the appliance's internal wiring

• Always disconnect power at the breaker or unplug the appliance before beginning work
• Verify correct wire placement and tightness of terminal screws; replace damaged wires or connectors
• Use appropriate tools and follow the appliance's wiring diagram; do not force terminals

This PM Manual Mini is a compact service manual that provides basic maintenance and troubleshooting guidance for compatible appliances, helping technicians locate procedures and reference points quickly during routine service calls. What it does:

• Summarizes key preventive maintenance procedures and checks
• Lists common symptoms and recommended inspection steps
• Helps identify service points and parts locations for diagnosis
• Supports consistent maintenance practices across units

• One PM Manual Mini

• Read the manual fully before performing any service or repairs
• Follow appliance safety procedures: unplug power and shut off water supply where applicable
• Use the manual as a reference; replacement parts and diagrams may be needed from the full service manual or OEM parts list

Includes: Anti-tip bracket, screws and instruction sheet.
