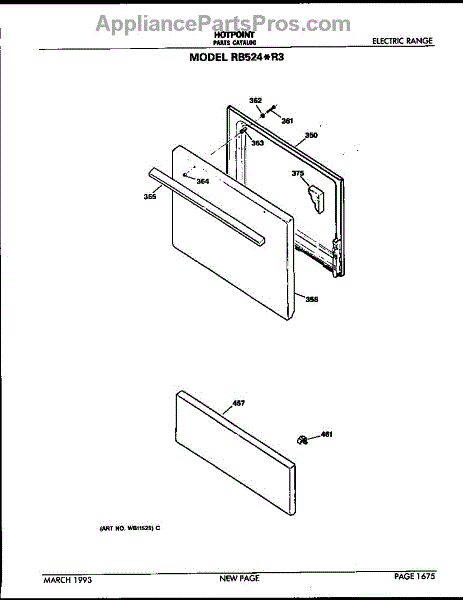

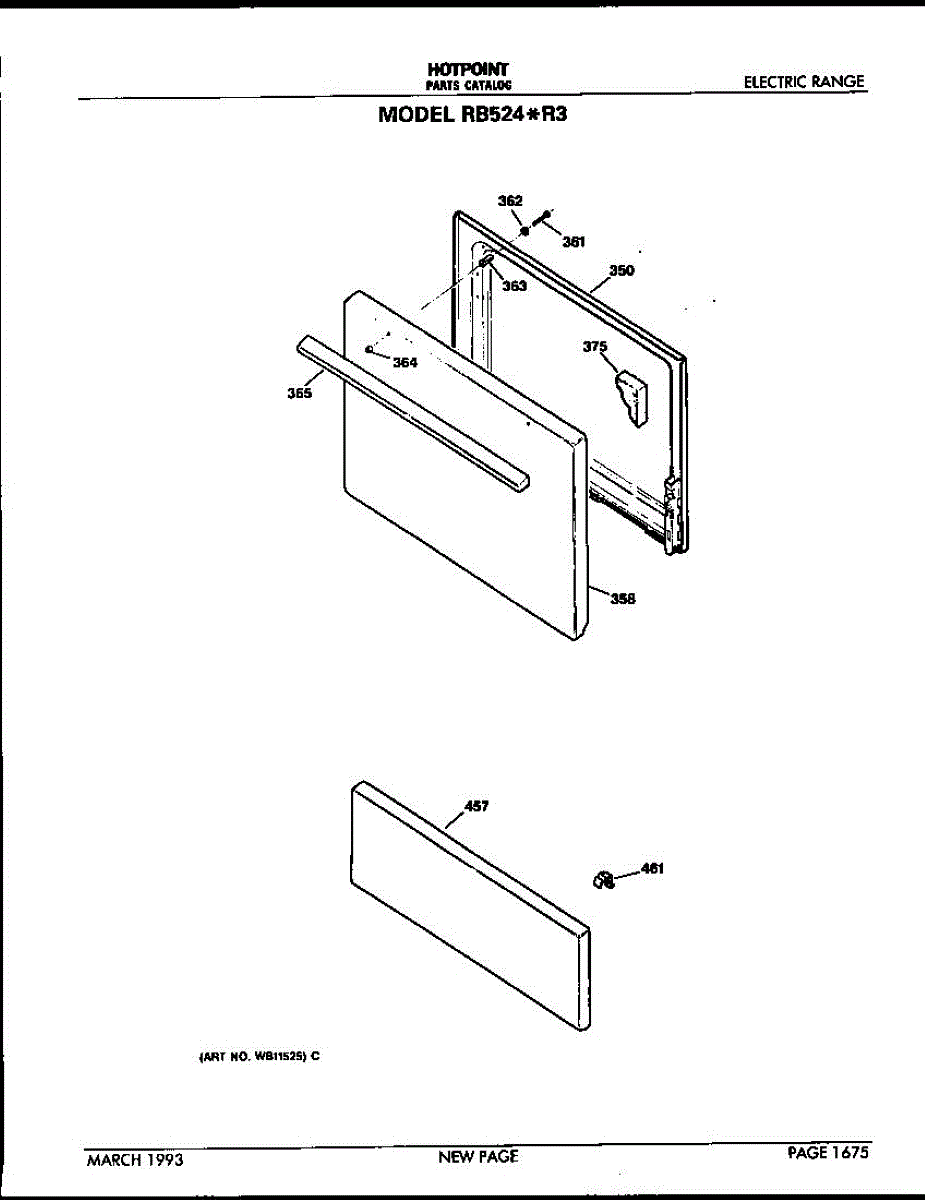

Parts for Hot Point RB524*R3: Door Parts

This part has been discontinued and is no longer available.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Color: Black

Left side end cap for electric range control panels. Replaces cracked, broken, or missing trim pieces. Black finish secures panel edges for clean look.

Left side endcap for electric ranges. Covers and protects the edge of your cooktop. Replace if cracked, broken, or missing for a finished look.

If your burner won't heat or only works on high, this 8 inch surface element restores proper cooking. Simple plug-in replacement takes seconds.

Replace a non-heating or damaged 6-inch burner. Simple plug-in installation takes minutes—just unplug the old element and connect the new one.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

Cooktop chassis frame box that supports and encloses the burner assembly on your electric range. Replace if cracked, bent, rusted, or damaged.

Right hand side

Left hand side

Includes 12 washers.

Replacement door spacer bushing for electric and gas ranges, ovens, and microwaves. Installs between door and frame to maintain proper alignment.

Thermal insulation blanket for the inner oven cavity. Replace if damaged, compressed, contaminated, or missing to restore heat retention and safety.

A replacement hook assembly that secures the oven door latch so the door closes and seals properly. Restores reliable door engagement for safe, even cooking and oven operation. What it does:

• Engages with the door latch to hold the oven door closed
• Helps maintain a proper oven seal for consistent cooking temperatures
• Common fix when the door won't stay closed or latch fails to engage
• Supports normal oven start/lock functions tied to door position

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; support the door while working to prevent damage
• Follow the appliance service manual for disassembly/reassembly steps

Metal oven rack provides stable support for cookware inside your range oven. Replace cracked, rusted, bent, or missing racks to restore proper function.

Replace your oven door gasket when it becomes brittle, cracked, or no longer seals properly. Restores heat containment and energy efficiency. Confirm fit.

Broiler won't heat or sparked out? This broil element restores high-heat broiling. DIY-friendly repair takes 20-30 minutes with basic tools.

Burner not heating? Replace the element receptacle and wire kit. Fixes burned or broken receptacles causing inoperative burners. DIY-friendly repair.

Range won't power on or has intermittent power? This terminal block receptacle restores secure electrical connection between your range and power cord.

This PM Manual Mini is a compact service manual that provides basic maintenance and troubleshooting guidance for compatible appliances, helping technicians locate procedures and reference points quickly during routine service calls. What it does:

• Summarizes key preventive maintenance procedures and checks
• Lists common symptoms and recommended inspection steps
• Helps identify service points and parts locations for diagnosis
• Supports consistent maintenance practices across units

• One PM Manual Mini

• Read the manual fully before performing any service or repairs
• Follow appliance safety procedures: unplug power and shut off water supply where applicable
• Use the manual as a reference; replacement parts and diagrams may be needed from the full service manual or OEM parts list

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
