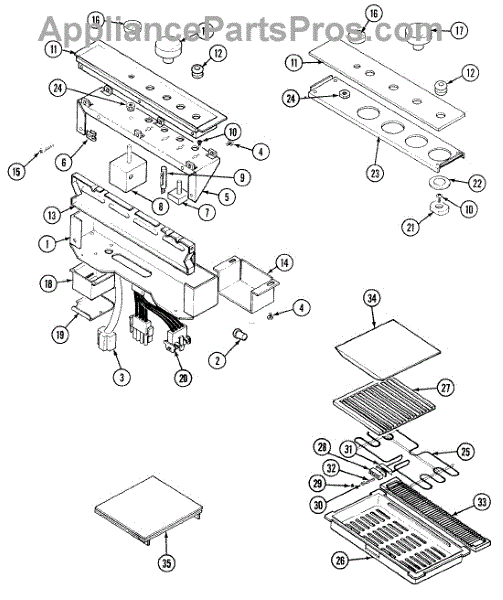

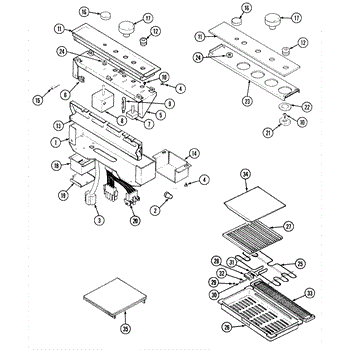

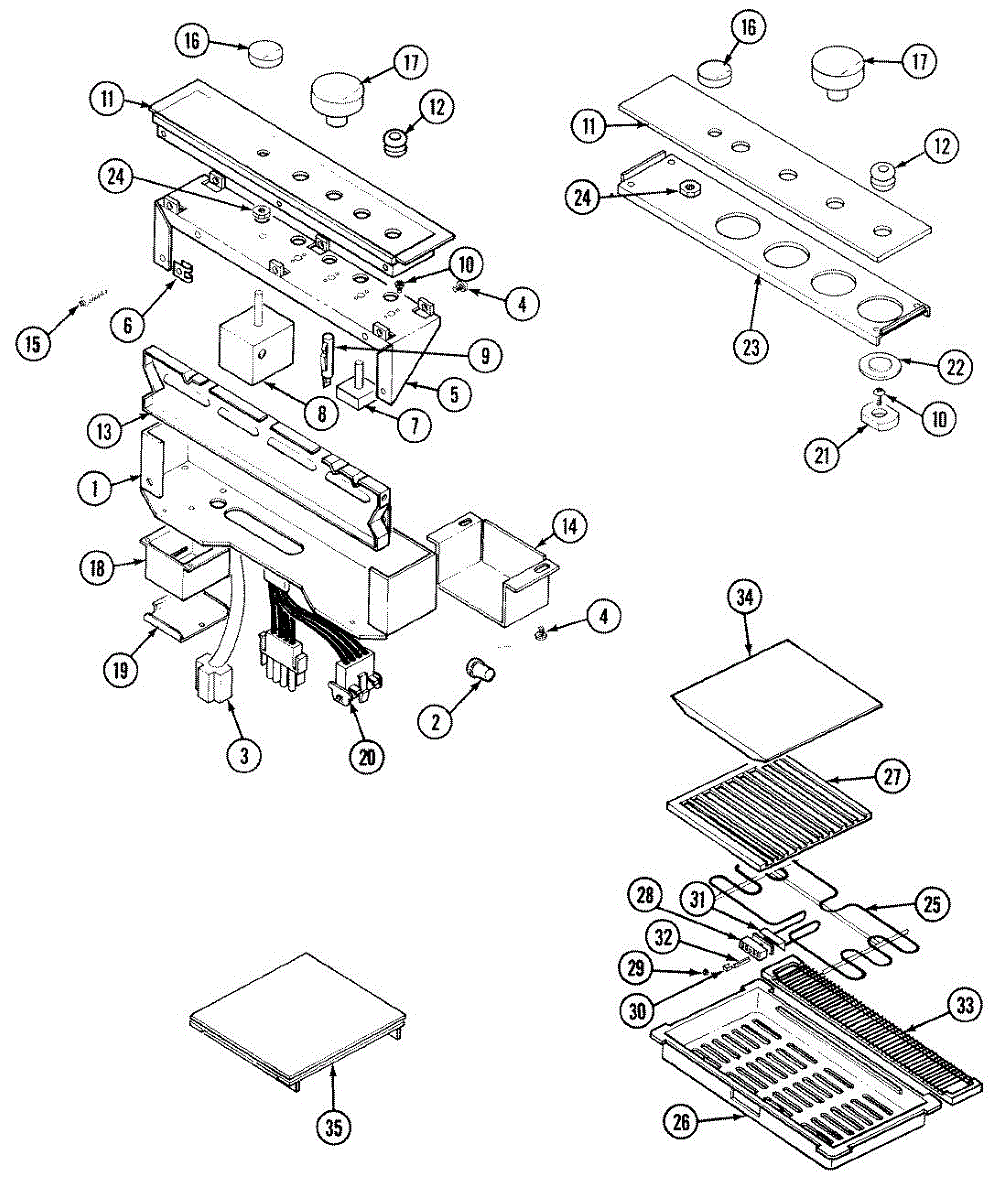

Parts for Jenn-Air CP200B-C: 01 - Control Panel / Accessories Parts

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

If your cooktop won't heat, burners don't respond, or controls are unresponsive, the operating module may have failed. Moderately complex repair.

Burner stuck on high or won't turn off? This burner control switch regulates heat settings. Moderate DIY repair—label wires before swapping.

The fan control switch is the panel-mounted switch that sends power to the appliance's fan motor. Replacing a worn switch restores reliable on/off control and proper airflow so the fan starts and stops when it should.

• Provides user-operated on/off power to the fan/blower motor
• Helps regulate airflow for cooling, venting, or convection depending on model
• Typical symptoms: fan won't run, runs continuously, intermittent operation, or a loose/broken switch shaft
• Mounts behind the control panel and is actuated by the exterior knob/lever

• Disconnect power at the breaker before servicing
• Remove the control knob/actuator and panel trim to access the switch
• Note wire positions or take a photo; transfer wires one at a time to the new switch
• Secure with the original hardware, restore power, and test operation

Color: black. It measures about 1 inch in diameter.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Replacement control knob for cooktop burner or fan settings. Restores easy turning and safe operation when original knob is cracked, broken, or worn.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

Stamped metal retaining clip that secures screws to panels and trim. Replace if clip is bent, broken, or missing to properly fasten covers and components.

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection
