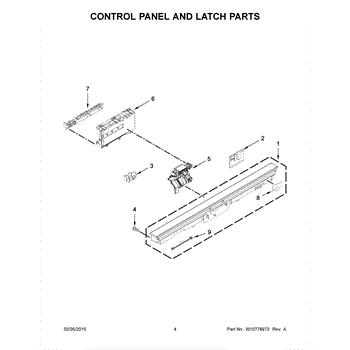

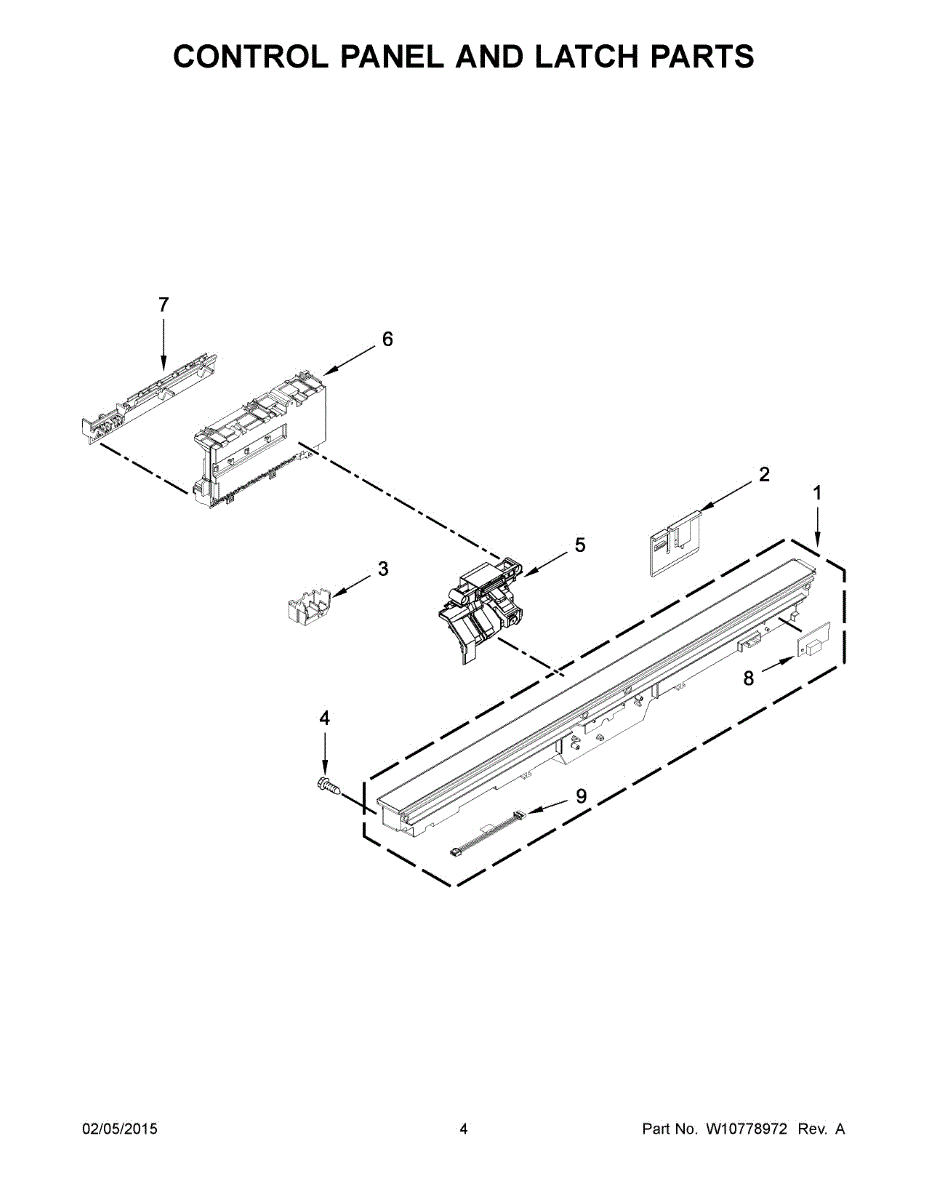

Parts for Kitchenaid KDTE304DSS1: 03 - Control Panel And Latch Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This electronic control panel houses the push buttons and display that let you select cycles and control oven functions. It restores user input and display feedback so the appliance responds correctly to commands. What it does:

• Registers button presses and sends signals to the oven's control board to start or change cycles.
• Provides the display and indicator lights for temperature, time, and status information.
• Commonly replaces panels that are unresponsive, have non-working buttons, or show blank/flickering displays.
• Helps resolve intermittent control input, incorrect settings, or missing display feedback.

• One control panel (electronic console) as shown

• Disconnect power to the appliance before beginning service to avoid shock or injury.
• Handle the panel and ribbon/connector with care to avoid damaging fragile displays or flex cables.
• Some installations may require removing the oven door, trim, or console fasteners; follow the service manual for model-specific steps.

Secures trim and panels in dishwasher assemblies. Replace if clip is broken, missing, or worn. Prevents loose parts and rattling during operation.

Replace a faulty dishwasher wire connector if your unit won't start, powers off randomly, or shows electrical issues. Simple 15-minute repair.

This replacement screw secures panels, brackets, and other components inside your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and keeps parts anchored as designed.

• Fastens metal or plastic panels, brackets, and internal components
• Replaces missing, damaged, or stripped screws
• Helps resolve vibration, rattling, or loose-fitting parts
• Maintains proper alignment and secure mounting points

• Disconnect power and shut off water/gas supplies before service
• Match the screw to its original location; your model's diagram to placement
• Start threads by hand and use the correct driver to avoid stripping
• Do not overtighten, especially into plastic or thin sheet metal

If your dishwasher door won't stay closed or latch properly, this door latch assembly is the likely fix. Easy DIY repair takes about 1 hour to complete.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Fix a dishwasher stuck in a continuous cycle or with non-responsive controls. This control board regulates wash cycles and timing. Moderate DIY repair.

Structural mounting brace for dishwashers. Secures dishwasher to cabinetry. Replace if bent, cracked, or missing to restore proper installation.

Replace your dishwasher's indicator light when it fails to illuminate or flickers. Restores control panel visibility. Verify compatibility with your model.

This jumper is an OEM-style electrical wire connector used to bridge terminals in a Whirlpool appliance to restore circuit continuity and proper component operation. It's a simple replacement part that helps return power or signal paths when the original jumper is damaged. What it does

• Provides a secure electrical connection between two terminals to complete a circuit.
• Restores power or signal routing to components that lose function due to a broken or corroded jumper.
• Common symptom: component or control doesn't receive power or the appliance won't complete a specific cycle.
• Works with control boards and wiring harness assemblies where a factory jumper is used.

• One jumper electrical connector.

• Disconnect power (unplug appliance or shut off breaker) before service to avoid shock or damage.
• Use insulated tools as needed and make secure, tight terminal connections to prevent arcing.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
