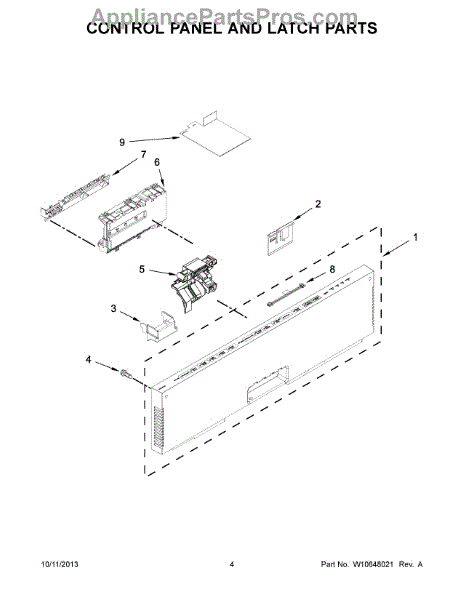

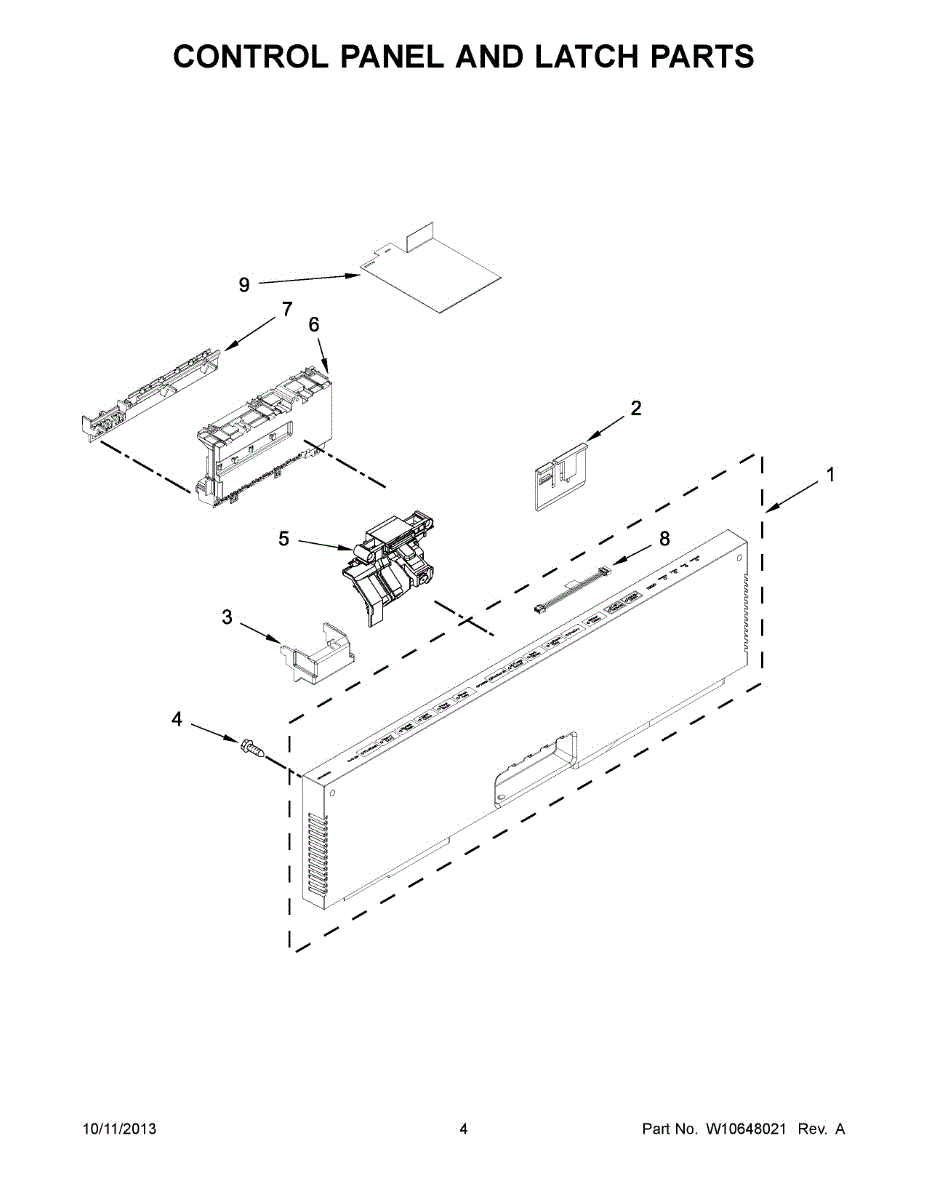

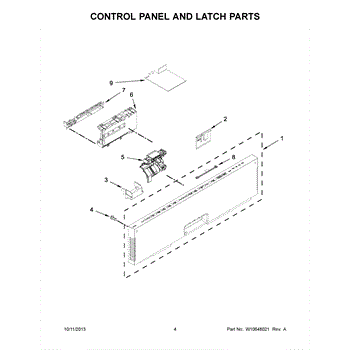

Parts for Kitchenaid KUDS30FXPAA: 03 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Control panel assembly that houses the user controls and display, restoring control access and readable status information for your appliance. Replaces a failed or damaged front interface so you can select settings and monitor cycles. What it does:

• Provides the appliance's user interface (buttons or touch controls) and display so you can choose cycles and options.
• Shows time, cycle progress, and diagnostic/status messages on the integrated display.
• Fixes symptoms like unresponsive buttons or touchpad, blank or dim display, and controls that don't accept selections.
• Re-establishes proper electrical connection between the user interface and the main control when original panel is damaged.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Installation typically requires removing exterior trim or screws and unplugging a multi-pin connector—handle connectors gently.
• Avoid touching display lens or keypad surface to prevent damage; reassemble panels carefully to maintain fit and seal.

This small retaining clip secures trim and appliance components to keep panels and assemblies in place, helping prevent rattling and loose parts during use. It's a simple replacement that restores proper fit and alignment. What it does:

• Holds panels, trim, or small assemblies in place to maintain a secure fit
• Prevents rattling, vibration noise, and movement of loose parts
• Replaces broken, bent, or missing clips that allow gaps or misalignment
• Works where a small fastener is needed to secure plastic or metal components

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Inspect the mounting area for damage; replace any broken mating tabs or screws for a secure fit
• Installation typically requires basic hand tools such as pliers or a screwdriver; apply steady pressure to snap clip into place

This connector links mating components within the appliance to create a secure, reliable connection. Replacing a cracked or loose connector helps restore consistent operation and prevent intermittent issues caused by poor contact or separation. What it does:

• Creates a stable connection between mating parts or harnesses in the appliance
• Helps prevent looseness or separation that can disrupt performance
• Direct replacement for broken, brittle, or deformed connectors
• Can resolve intermittent operation traced to a poor connection at this junction

• 1 connector

• Disconnect power and, if applicable, shut off water before servicing
• Note orientation and positions before removal to ensure correct reassembly
• Seat the connector fully until any locking features engage; do not force
• Inspect mating parts for wear or damage and replace if necessary

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Door Latch is an OEM replacement part for Whirlpool dishwashers. It is a crucial component that ensures the dishwasher door remains securely closed during wash cycles, preventing water leaks and maintaining the proper pressure and temperature within the tub.

Symptoms of a bad dishwasher door latch include:

• The door not closing properly or securely
• Water leaking from the dishwasher during cycles
• Error codes or fault indicators related to the door latch mechanism
• Difficulty opening the door after a cycle has completed

Causes of a bad door latch can range from physical damage or obstruction preventing proper closure to wear and tear on the latch components over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This brace connector secures a support brace inside the appliance to help keep internal panels and assemblies aligned and stable. Replacing a worn or damaged connector restores proper support and reduces noise and movement. What it does:

• Fastens and stabilizes an internal support brace or frame
• Prevents panel or assembly movement that can cause vibration or rattling
• Helps maintain proper alignment of connected components
• Replaces broken or corroded connector hardware to restore secure mounting

• One brace connector

• Disconnect power (and gas, if applicable) before starting any repair
• Access may require removing outer or control panels; save existing fasteners for reuse
• Use basic hand tools; avoid overtightening to prevent cracking plastic or bending metal
• Inspect and replace as needed

This jumper is an OEM-style electrical wire connector used to bridge terminals in a Whirlpool appliance to restore circuit continuity and proper component operation. It's a simple replacement part that helps return power or signal paths when the original jumper is damaged. What it does

• Provides a secure electrical connection between two terminals to complete a circuit.
• Restores power or signal routing to components that lose function due to a broken or corroded jumper.
• Common symptom: component or control doesn't receive power or the appliance won't complete a specific cycle.
• Works with control boards and wiring harness assemblies where a factory jumper is used.

• One jumper electrical connector.

• Disconnect power (unplug appliance or shut off breaker) before service to avoid shock or damage.
• Use insulated tools as needed and make secure, tight terminal connections to prevent arcing.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
