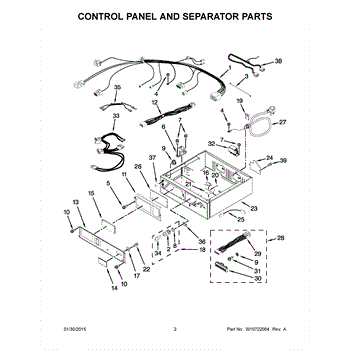

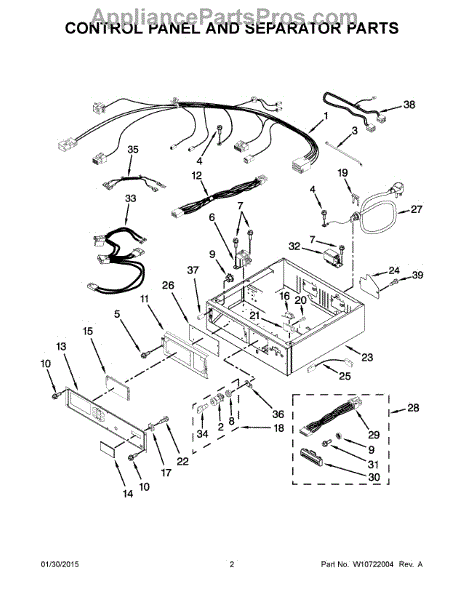

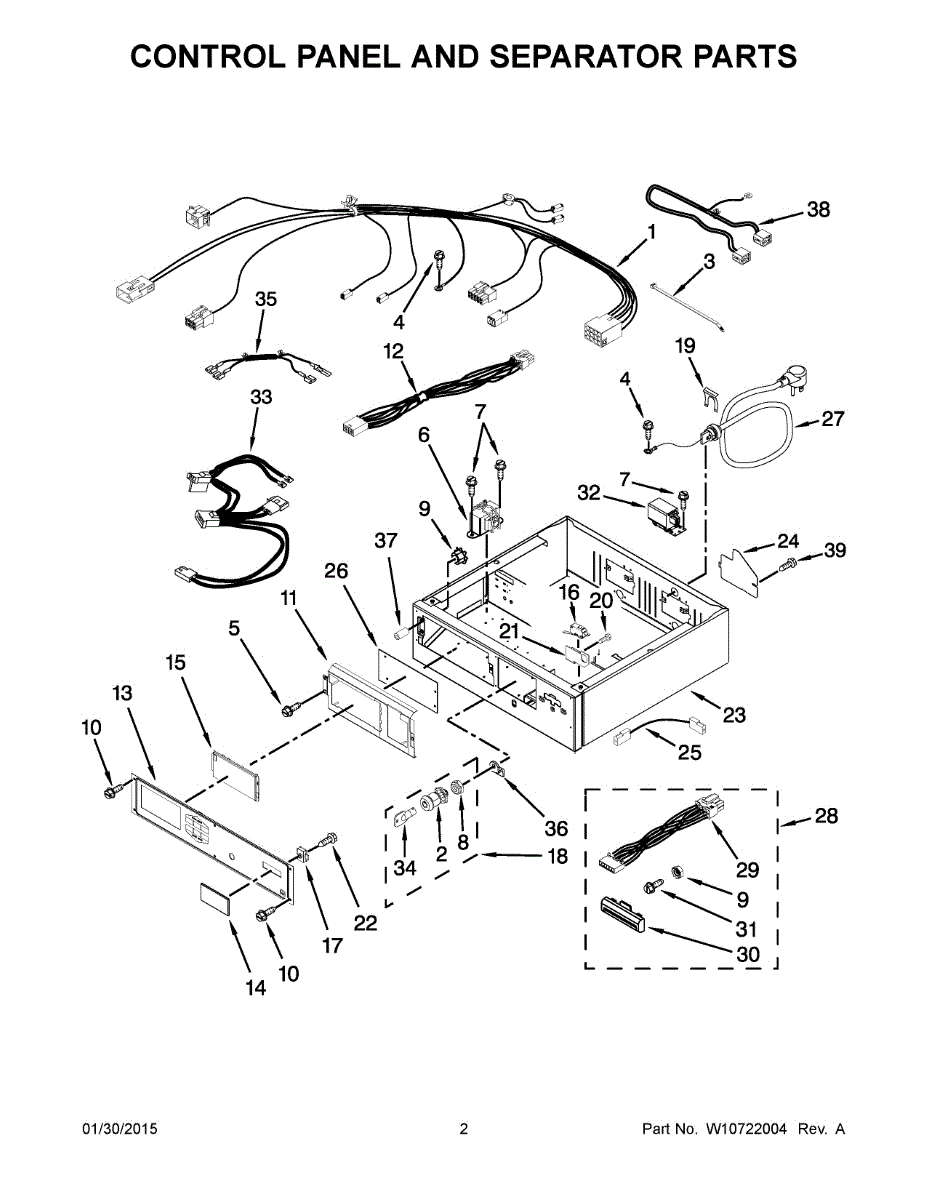

Parts for Maytag MLG26PRBWW0: 02 - Control Panel And Separator Parts

This wire harness is the factory-style electrical assembly that connects multiple components so your appliance receives power and control signals reliably. Replacing a damaged harness restores proper electrical connectivity and helps prevent shorts. What it does:

• Routes and connects power and signal wires between controls, motors, switches, and sensors
• Replaces frayed, melted, or corroded wiring that can cause intermittent operation or no power
• Restores proper connections that may eliminate burning smells or visible arcing at terminals
• Ensures plug-and-play fit when the original harness is removed and the new one is installed

• One complete wire harness assembly as pictured

• Disconnect all power (unplug or switch off breaker) before starting work
• Take photos or label connectors to ensure correct reassembly
• Route the harness along original clips and fasteners; avoid pinching or contact with hot surfaces
• If you see damaged connectors or melted insulation on other parts, inspect and replace those components as needed

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This control transformer converts household line voltage to the low-voltage feed used by the appliance's control and components, restoring reliable power to timers, relays, and sensors. It's a direct-replacement electrical transformer designed for plug-and-play swap when the original is faulty. What it does:

• Steps down 120VAC line voltage to the appliance's low-voltage control circuit so controls and relays operate correctly.
• Commonly replaces a failed or intermittent transformer that causes control failures, no-power to timers, or unresponsive electronic components.
• Helps restore stable control voltage when the original transformer is noisy, overheats, or delivers inconsistent output.
• Fits the OEM mounting and wiring layout for a clean replacement without modifying existing harnesses.

• One replacement transformer

• Disconnect power at the breaker or unplug the appliance before any service—verify power is off.
• Match wiring colors and terminal positions to the original; secure all connections and use strain reliefs where present.
• Inspect mounting hardware and gaskets; replace any damaged fasteners for a secure fit.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

This mounting bracket secures internal components to the appliance frame for stable operation and alignment. It restores proper support where a broken or missing bracket causes rattling or misalignment. What it does:

• Provides a secure mounting point to stabilize panels or assemblies
• Prevents vibration and rattling caused by loose or damaged support hardware
• Helps maintain correct alignment for connected components to operate smoothly
• Durable replacement for worn, bent, or broken brackets

• One mounting bracket

• Turn off and unplug the appliance before beginning any repair
• Inspect surrounding hardware and fasteners; replace any stripped screws or damaged clips
• Tighten to manufacturer torque recommendations when available; avoid overtightening

This display cover protects and finishes the appliance control panel, keeping the touchpad and display lens safe while restoring a clean, readable appearance. Replaces a cracked, faded, or scratched panel trim. What it does:

• Shields the control board area from dust, spills, and everyday wear
• Restores a clear view of the display and touchpad markings for easier use
• Improves the appliance's appearance by replacing damaged or discolored trim
• Helps prevent debris from interfering with buttons or electronic controls

• Disconnect power before starting any repair to avoid shock or damage
• Remove any outer trim or screws to access the control panel; handle the cover gently to avoid breaking retention clips
• Keep track of small fasteners and note orientation for correct reassembly
• Avoid touching circuit board contacts or components when replacing the cover

This service access switch is the OEM-style replacement switch that detects and secures the appliance's service or control access point, helping technicians safely access internal components during diagnostics and repair. What it does:

• Detects whether the service/access panel or console is opened and signals the control board accordingly
• Helps prevent operation while the access panel is open for safer service
• Restores proper access-sensing when a worn or failed switch causes service-mode or control interlock issues
• Compatible where the appliance uses a dedicated access/service switch for control-board interlock functions

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove necessary panels or console to access and replace the switch
• Handle near control boards with care to avoid ESD damage; reconnect all wiring securely
• After installation, restore power and verify the switch correctly senses panel position and that the appliance operates normally

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

A short self-tapping screw used to fasten appliance panels and trim so components stay secure and aligned. Replacing a worn or missing screw restores proper fit and reduces rattling or loose parts. What it does

• Fastens panels, trim, and small assemblies to the appliance frame
• Keeps control panels, access panels, and bezels securely mounted
• Replaces stripped, rusted, or missing fasteners that cause vibration or rattling
• Helps maintain proper alignment of removable panels and covers

• One short self-tapping screw

• Disconnect power before working on the appliance to avoid shock or injury
• Use the correct screwdriver and hold parts in place while installing to avoid cross-threading
• Do not overtighten — stop when the panel is snug to prevent stripping or cracking
• Replace with the exact part number to ensure proper fit and function

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

This is a replacement single electrical wire lead used to reconnect internal components and restore proper electrical continuity. It provides a direct, insulated connection where the original wire is damaged or corroded. What it does:

• Re-establishes electrical connection between appliance components to restore power flow
• Replaces frayed, burned, or broken wiring that can cause intermittent operation
• Helps eliminate arcing, poor contact, or visible burn marks at terminals
• Used wherever a single insulated lead is required for component-to-component wiring

• One replacement insulated wire lead

• Disconnect the appliance from power before inspecting or replacing wiring
• Match wire gauge, length, and terminal type to the original for a safe repair
• Secure connections tightly and use proper crimping or terminal tools; avoid exposed conductor
• If you see melted insulation, charring, or damaged terminals, inspect surrounding parts for heat damage and replace as needed

This is a replacement power cord that restores electrical connection between your appliance and the household outlet, letting the appliance receive mains power safely. It replaces a damaged or worn cord to help restore normal operation. What it does:

• Carries mains voltage from the wall outlet to the appliance so it can power up and operate
• Replaces frayed, melted, or broken cords that can cause intermittent power or no power at all
• Helps eliminate arcing or loose connection symptoms that may trip breakers or cause burning smells
• Restores a secure, strain-relieved connection when the original cord or terminal is damaged

• One replacement power cord

• Always disconnect power at the breaker or unplug the appliance before replacing the cord
• Route the cord and secure the strain relief or clamp per the appliance's wiring access panel

This wire harness connects the gas valve and igniter assembly so the range/oven can receive ignition and control signals. It replaces a worn or damaged connector bundle to restore reliable ignition performance. What it does

• Routes power and control signals between the gas valve and the igniter/spark module
• Restores ignition function when factory wiring is frayed, cut, or has poor connections
• Helps eliminate intermittent sparking or failed ignition caused by damaged wiring
• Matches OEM wiring layout and connector end shapes for a direct replacement

• Disconnect electrical power and shut off gas supply before starting work
• Verify the harness matches your appliance by comparing connector shapes and wire colors to the original
• Route wires away from sharp edges and high-heat areas; secure with existing clips or ties

This access door key operates the factory lock on select appliances. It replaces a lost or worn key so you can securely lock or unlock the access door and restore normal, controlled access to the compartment.

• Locks or unlocks the access door via the built-in lock cylinder
• Restores function when the original key is missing, bent, or broken
• Helps resolve situations where the door can't be opened or secured due to a worn key
• Maintains restricted access to the compartment when needed

• Verify this key matches your model's lock; keys are not universal
• Insert fully and turn gently—do not force a stuck lock
• If the lock cylinder is damaged or seized, replace the lock assembly
• Disconnect power if removing the door or servicing internal components

This wire harness is the factory-style electrical connector assembly that routes power and signals between your appliance's components, restoring reliable electrical connections for controls and motors. What it does:

• Carries power and control signals between modules and components
• Replaces damaged or frayed wiring that can cause intermittent operation
• Restores proper connections when controls, lights, or motors lose power
• Helps eliminate loose or corroded connector symptoms and poor contact

• Disconnect power to the appliance before starting any work.
• Visually inspect connectors and harness routing; match connector shapes before reconnecting.
• Secure the harness along the original routing and use existing clips or ties to prevent chafing.
• If you find burned or melted connectors, replace the harness and inspect mating parts for damage.
