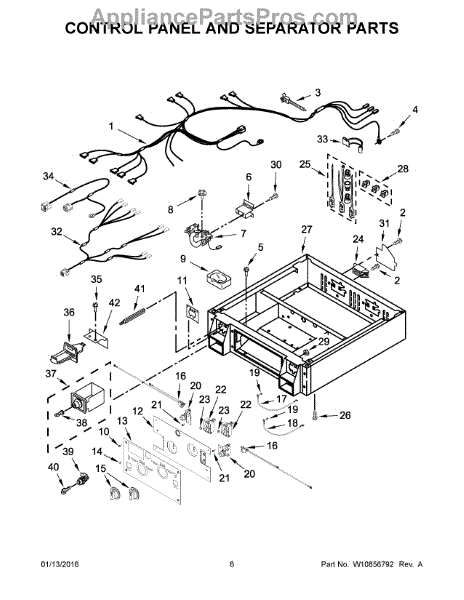

Parts for Whirlpool CSP2860TQ1: 04 - Control Panel And Separator Parts

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

Dryer won't advance through cycles or keeps running after finishing? This timer controls cycle sequencing and shutoff. Typical DIY repair in 15 minutes.

6 Pin 30 minute

3 pin 60 minute

Channels coins from the coin slide into the collection box on coin-operated laundry equipment. Replace if cracked, damaged, or missing to restore flow.

Guides dryer airflow from drum to lint screen housing. Replace if cracked, broken, or missing to restore proper air path and contain lint in ductwork.

Pilot light not visible or broken lens? This control panel lens cover protects the indicator bulb and diffuses light. Simple snap-in replacement part.

Replacement rotary control knob for dryer control panels. Installs on control shaft for cycle and heat selection. Needed when original is cracked or missing.

Replace your dryer's interior light assembly when the bulb burns out or housing cracks. Restores visibility inside the drum. Verify fit with your model number.

This strut is a direct-fit door support that cushions and controls a refrigerator door's opening and closing, helping the door stay in position and reducing abrupt movement or slamming for safer, smoother operation. What it does:

• Cushions and controls door movement to prevent sudden closing or slamming
• Holds the door open or supports it during normal use to keep it from dropping
• Reduces hinge noise and wear by smoothing motion
• Common symptom: door won't stay open, drops, or closes too quickly

• Disconnect power to the appliance before starting work as a general safety precaution
• Support the door or have a second person hold it while removing/installing the strut
• Use basic hand tools; avoid forcing fasteners or components

This strut is a direct-fit door support that cushions and controls a refrigerator door's opening and closing, helping the door stay in position and reducing abrupt movement or slamming for safer, smoother operation. What it does:

• Cushions and controls door movement to prevent sudden closing or slamming
• Holds the door open or supports it during normal use to keep it from dropping
• Reduces hinge noise and wear by smoothing motion
• Common symptom: door won't stay open, drops, or closes too quickly

• Disconnect power to the appliance before starting work as a general safety precaution
• Support the door or have a second person hold it while removing/installing the strut
• Use basic hand tools; avoid forcing fasteners or components

Screw: 8-16 x 3/8 inch.

Dryer won't start when you press the button? This push to start switch initiates the drying cycle. Simple repair restores one-touch operation.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fix a dryer that won't start on certain settings or changes cycles unpredictably with this cycle selector switch. Lets you choose the operating cycle.

Dryer won't heat or stops working? A burnt or melted terminal block disrupts power flow. DIY repair in under an hour with video guidance included.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.

Size: 10-32

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

This is the outer cover that protects the electrical terminal block on the back of a dryer. It shields the power cord connection point from accidental contact and helps prevent dust or debris from reaching the wiring terminals. Replace this cover if it is cracked, broken, or missing to ensure safe operation and protect the electrical connections.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

This coin chute guides coins from the slide into the coin mechanism so the machine can register payment and begin a cycle. Keeping the chute intact and aligned helps prevent jams and misfeeds in coin-operated laundry equipment.

• Directs coins from the slide to the coin mechanism to register payment
• Helps ensure smooth coin drop, reducing bounce-back and misfeeds
• Common fix when coins jam, fall into the cabinet, or the unit won't start after payment
• Replace if cracked, bent, corroded, or missing

• Disconnect power; shut off gas before service
• Open the coin housing/slide assembly and retain existing hardware
• Install the new chute in the same orientation; align with slide and mechanism, then secure
• Test with sample coins to ensure proper drop and operation before returning to service

This is a coin collection box designed for coin-operated commercial laundry machines. It slides into the coin mechanism housing and collects coins deposited by users, and it comes with a key for access. Replace this coin box if the key no longer works, the box is damaged or bent preventing proper insertion, or if coins are jamming or falling through due to wear.

Washer won't start or door won't unlock? This lock cam drives the door lock mechanism to secure and release the door for proper cycle operation.

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris

Bracket extension for dryers and laundry centers. Mounts to provide structural support for internal components. Replace if bent, broken, or missing.
