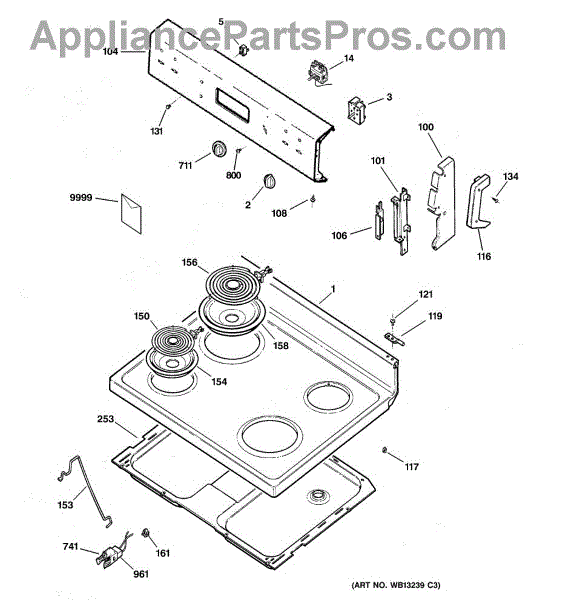

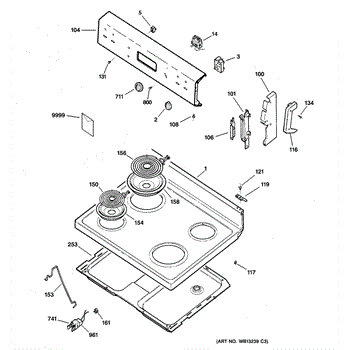

Parts for Ge ABS200P2WW: 01 - Control Panel & Cooktop Parts

Color: White

White.

The Surface Element Switch is an OEM part for GE ranges and cooktops. It controls the heating of the surface elements by regulating the power level supplied to them. This switch allows you to adjust the heat intensity for precise cooking, ensuring that each dish is cooked to perfection.

Causes of a bad surface element switch can include electrical faults such as short circuits, wear and tear from frequent use, or mechanical failure within the switch mechanism.

Symptoms of a bad Surface Element Switch include:

• Burners not heating up or heating unevenly
• Burners remaining at a fixed temperature regardless of the setting
• The inability to control the heat level of the burner
• Sparking or electrical arcing from the switch area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This carton cover thermostat senses temperature in the refrigerator carton/cover area and signals the appliance control system so temperature-related components operate correctly. It helps maintain proper temperature response for defrost and ice-related functions. What it does

• Detects temperature at the carton/cover location and provides an electrical signal to the control system.
• Helps ensure timely activation/deactivation of temperature-dependent systems (defrost, ice-making components).
• Commonly replaced when temperature-related functions are inconsistent or intermittent.
• Can restore normal cycling when a failed thermostat causes improper temperature readings.

• One carton cover thermostat.

• Disconnect power to the appliance before beginning work to avoid electrical shock.
• Verify exact wiring and terminal locations against the appliance service sheet; confirm continuity before and after replacement.
• Replace only with correct OEM-designated thermostat and secure in the original clip or mounting location.

The Oven Control Thermostat is an OEM replacement part for GE ovens. It regulates the oven temperature by turning the heating elements on and off to maintain the desired temperature set by the user. This thermostat ensures accurate and consistent cooking temperatures, which is crucial for optimal baking and roasting results.

Causes of a bad oven control thermostat can include prolonged exposure to high temperatures, wear and tear from frequent use, or electrical issues such as power surges that can damage the thermostat's internal components. Additionally, improper handling or accidental impact during maintenance or cleaning can affect its functionality.

Symptoms of a bad oven control thermostat include:

• The oven not reaching the set temperature
• Inconsistent or fluctuating oven temperatures
• The oven overheating or underheating
• Error codes or malfunctioning temperature settings
• The oven not turning on or off correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. This is the left side end cover. For right side use WB07K10001.

Color: Whie. This is the right side end cover. For left side use WB07K10002.

This right-hand end plate is a direct-replacement body panel that restores proper support and alignment to the appliance's exterior components. It helps maintain a secure fit and appearance after damage or wear. What it does:

• Replaces a bent, cracked, or corroded right-side end plate to restore panel alignment
• Provides mounting/support for adjacent trim and components to prevent gaps or sagging
• Stops rattling or vibration caused by a loose or damaged end plate
• Helps maintain a finished exterior look and proper sealing where panels meet

• One right-hand end plate

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate hand tools; avoid overtightening fasteners to prevent panel distortion
• Handle edges carefully — panels and sheet metal can be sharp
• Test fit and align panels before fully tightening all screws

Color: White. Mounting screw for end caps.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Color: White. This is the left side end cap. For right side use WB07K10005.

Color: White. This is the right side end cap. For left side use WB07K10007.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Color: White. Mounting screw for end caps.

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This 8-inch coil surface element restores consistent stovetop heating on electric ranges. Replace a warped or burned-out burner so pots heat evenly and your everyday cooking temperatures are easy to reach and maintain.

• Converts electrical power into heat for the 8-inch cooking zone
• Plugs into the surface-element receptacle for a secure power connection
• Common fix for a burner that won't heat or heats slowly/unevenly
• Replace if the coil is blistered, warped, or the terminals are burnt/pitted

• Disconnect power at the breaker or unplug the range; allow the element to cool completely
• Lift the old element slightly and pull straight from the receptacle; remove from the support
• Inspect the receptacle; replace the block if terminals are burnt or loose
• Align the new element in the drip pan/support and push terminals fully into the receptacle until seated

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
