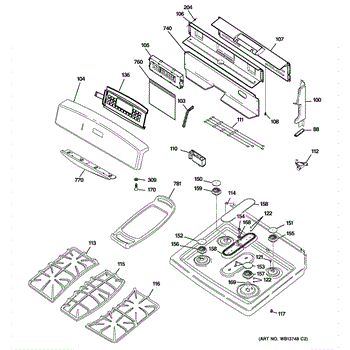

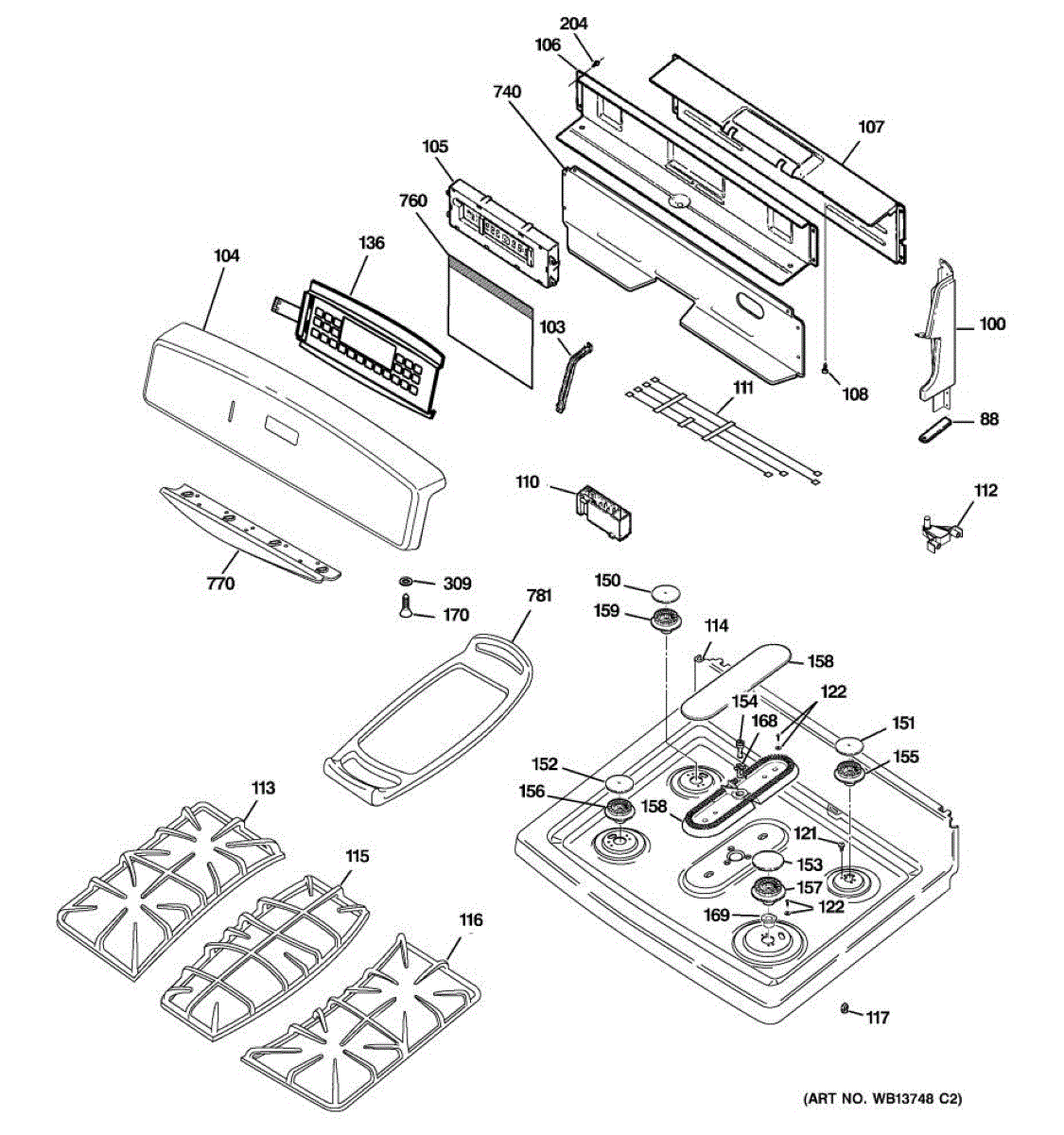

Parts for Ge J2B912WEK3WW: 02 - Control Panel & Cooktop Parts

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

White left-hand end cap for your range. Replaces cracked, broken, or missing endcaps on the side of your cooktop. Restores cosmetic appearance.

White plastic end support cap for the right side of your range. Replaces cracked, broken, or missing endcaps to restore the finished appearance.

Control bracket for ranges. Secures control panel components in place. Replace if cracked, bent, broken, or missing to properly mount controls.

Replaces the lower back cover panel on your range. Install this protective housing if your original is cracked, broken, or missing. Secures to rear.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

This replacement pan-head screw is used in refrigerators to fasten panels, brackets, and covers so they stay tight and properly aligned. Replace a missing or damaged screw to restore a solid, rattle-free fit.

• Secures interior/exterior panels, brackets, trim, and covers
• Replaces missing, stripped, or corroded hardware
• Helps maintain proper alignment of attached components

• Disconnect power before servicing; shut off water if working near water lines
• Match location to the original fastener and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal

• Thread size: #8-18 (type AB)
• Length: 1/2 inch
• Head style: Pan head, Phillips drive

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Cast iron cooktop grate that supports cookware over the left-front burner. Replace this part if your original grate is cracked, warped, or missing.

Pin locator for gas ranges. Secures and aligns burner components in proper position. Replace if broken, missing, or worn to restore proper burner assembly.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

Medium. Color: Grey. It measures about 3 inches in diameter.

Replaces chipped, cracked, or missing burner cap on your gas range cooktop. This grey cap sits atop the burner base to direct and shape the flame properly.

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

The burner venturi creates the proper air-to-gas mixture for efficient combustion in gas cooktop burners. Located between the gas valve and burner assembly, this funnel-shaped component ensures optimal flame characteristics. Replace if flames appear yellow instead of blue, burn unevenly, or if the burner fails to ignite consistently.

Color: White. Mounting screw for end caps.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Includes 12 washers.

This back cover is the rear access panel that protects internal components and wiring and helps maintain proper airflow. It restores a finished exterior and shields parts from dust and damage. What it does:

• Covers and protects rear-mounted components and wiring
• Prevents debris and dust from entering the appliance back area
• Helps maintain proper airflow and enclosure integrity
• Visible cracks, missing fasteners, or exposed wiring are common reasons to replace

• Disconnect power (unplug or switch off breaker) before servicing
• Remove mounting screws to take off the old cover; retain screws if still usable
• Handle edges carefully—panel edges may be sharp
• If you see damaged wiring or other component problems, stop.

Insulation pad that sits behind the range control panel to dampen sound and protect components. Replace if worn, compressed, damaged, or missing.

This eyebrow decorative trim restores the top-front appearance of the appliance and covers the control-area seam for a clean, finished look. It replaces damaged, dented, or worn trim to improve how the unit looks. What it does:

• Covers and protects the upper front edge/control-area seam from dirt and damage
• Restores original appearance after dents, chips, or cosmetic wear
• Hides mounting hardware and provides a finished trim line
• Helps maintain resale value by repairing visible exterior damage

• High-level replacement; typically removed and installed with basic hand tools
• Handle carefully to avoid scratching the finish during installation
• Disconnect power to the appliance before removing trim panels near electrical components
• If fasteners are corroded or damaged, replace with OEM-equivalent parts

Flat cooking surface that fits over range burners for pancakes, eggs, and sandwiches. Replace if cracked, warped, or missing from previous owners.
