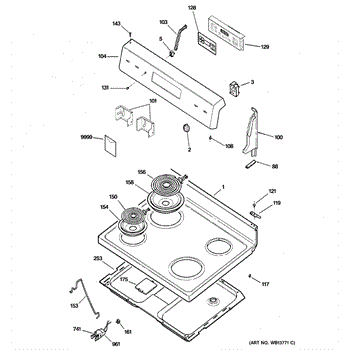

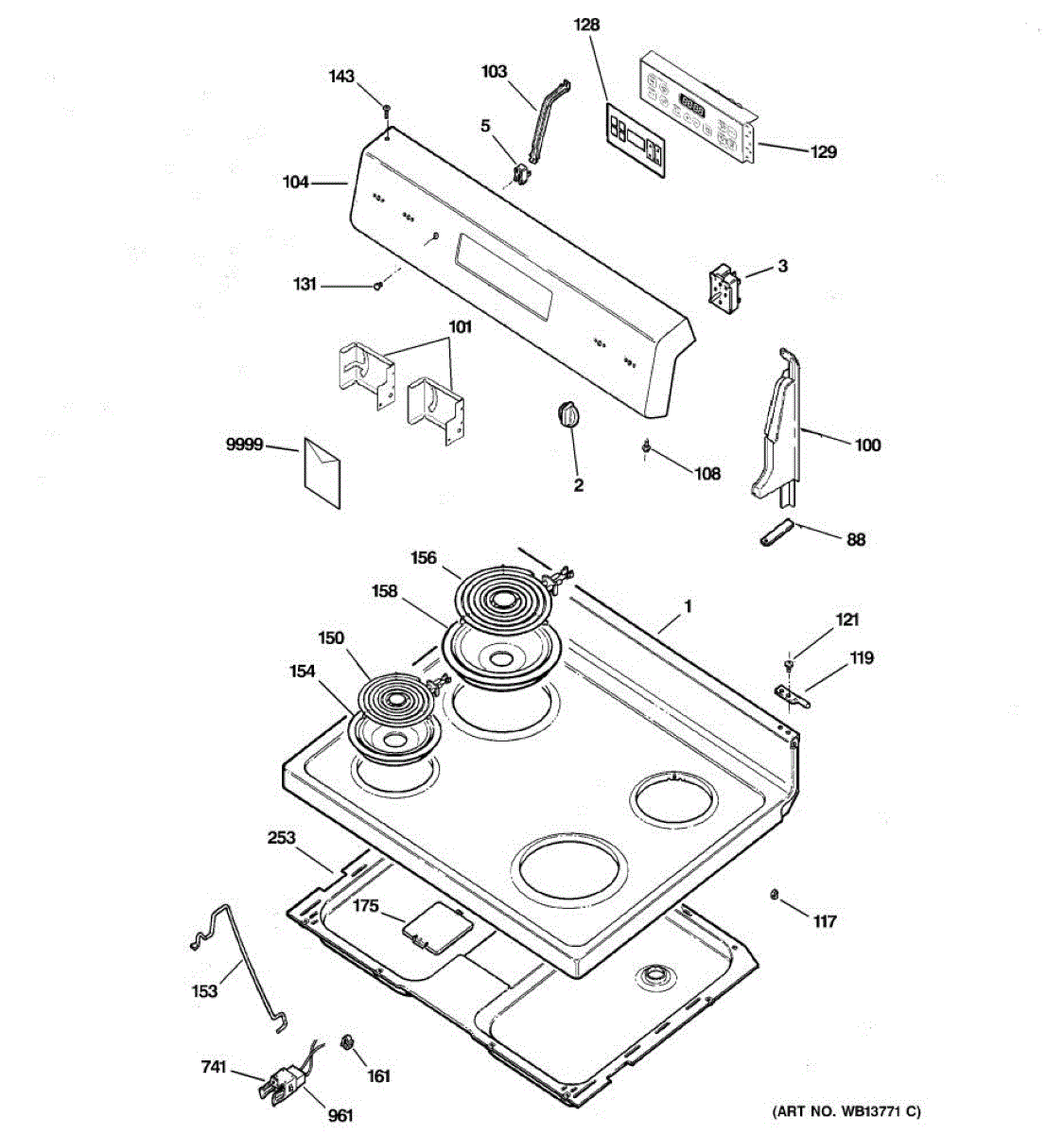

Parts for Ge JBP22BK3CT: 01 - Control Panel & Cooktop Parts

Metal main top panel for electric ranges. Replaces cracked, damaged, or worn cooktop surfaces. Installs as the primary cooking surface covering burners.

Color: Black

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Burner stuck on high or won't heat? This 8-inch infinite switch controls heat output on electric ranges. Simple 20-30 minute DIY replacement.

Indicator light that illuminates when burners or oven are active. Replace if it stays on constantly or fails to light. Verify fit with your model number.

Black plastic endcap for the right side of your range control panel. Replace this cosmetic trim piece if it's cracked, broken, or missing.

Black left-hand endcap for electric and gas ranges. Replaces cracked, broken, or missing endcaps on the side of your range for a complete finished look.

Right hand side

Left hand side

This control bracket secures the appliance control assembly to the front panel so knobs and electronics stay properly aligned and stable. It replaces damaged or bent mounting brackets to restore a tight, rattle-free control area. What it does:

• Mounts and stabilizes the control console or electronic control module
• Keeps knobs, switches, and display aligned for reliable operation
• Prevents vibration-related noise and movement of the control panel
• Helps maintain proper spacing to avoid contact with internal components

• Disconnect power (unplug or shut off breaker) before starting any work
• Remove the control panel or trim to access the bracket; keep screws and fasteners for reuse unless replacements are supplied
• Handle sharp metal edges carefully and wear gloves and eye protection

Color: Black

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Color: Black

Oven display blank or unresponsive? This electronic control board manages bake/broil cycles, temperature settings, and the control panel interface.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Stovetop burner not heating? This surface heating element generates heat for cooking. Simple plug-in replacement—pull out old, plug in new.

Support rod that props up the lift-up top on your range. Holds the top panel securely in the raised position for cleaning or servicing. Replace if bent or missing.

Replacement 6-inch drip pan installs under small burner element on electric ranges. Replaces cracked, burnt, rusted, or worn bowls. Easy DIY install.

Burner not heating or intermittently going out? This large surface element restores consistent cooking heat. Simple 5-minute DIY replacement. Video included.

Replace your cracked, rusted, or stained 8-inch range drip pan. Installs under the large burner to catch spills and protect your cooktop surface.

Secures wiring harness to prevent rubbing and loose connections. Replace if worn or broken to restore proper wire routing. Confirm fit with your model.

Cooktop box assembly for electric ranges. Houses and supports the cooktop surface. Replace if cracked, damaged, warped, or showing structural wear.

Burner won't seat properly or wobbles? This receptacle clip secures the surface element connection for stable, reliable heat. Simple DIY fix.

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.
