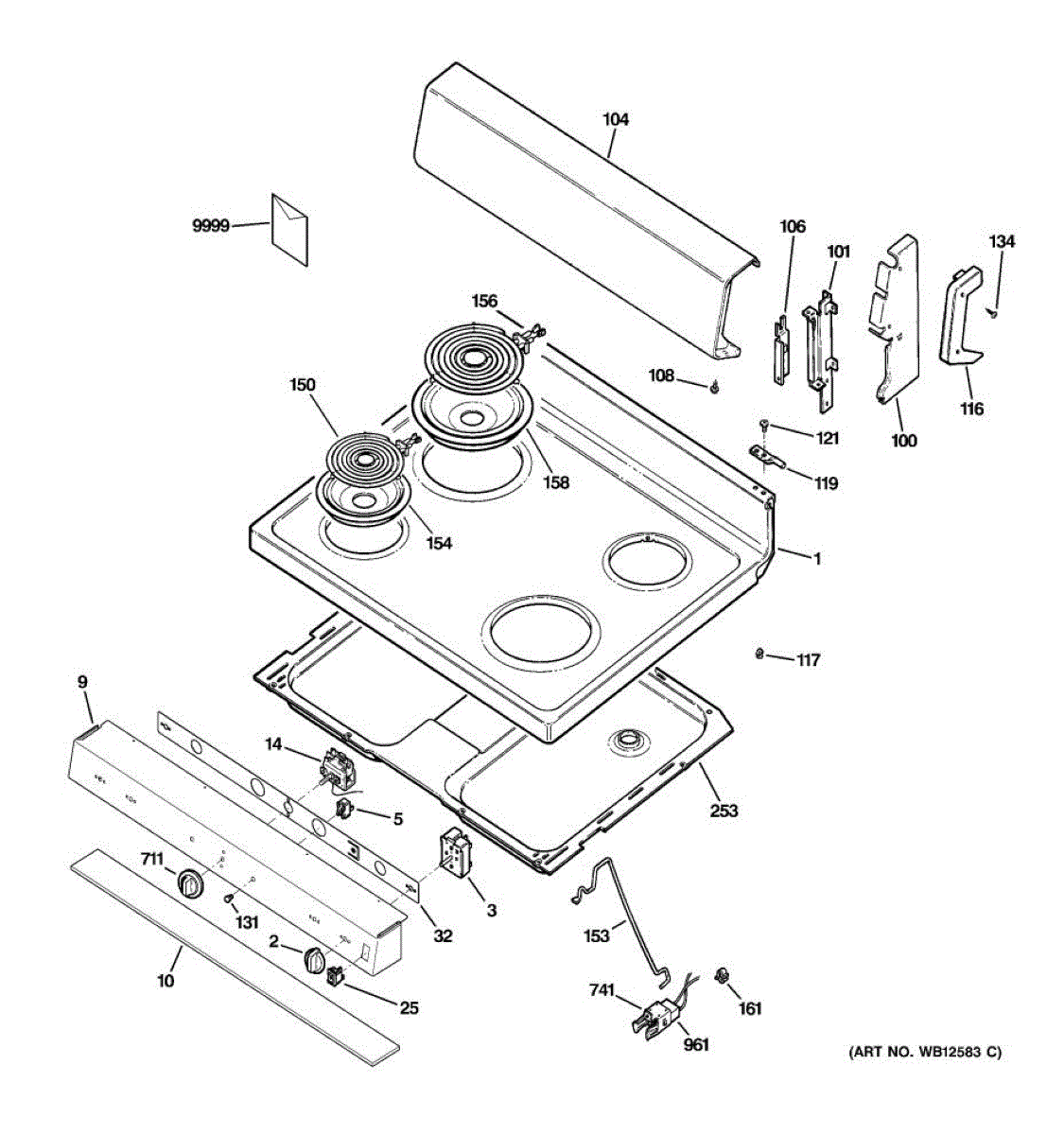

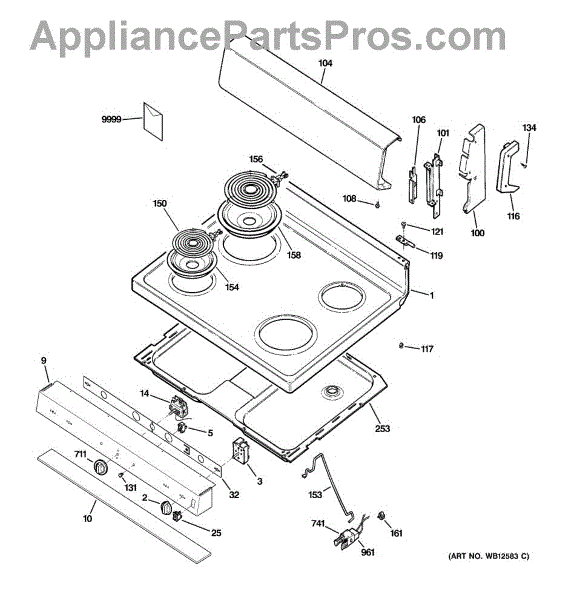

Parts for Ge JBS15F3WH: 01 - Control Panel & Cooktop Parts

Color: White

This replacement control knob fits onto the range/cooktop infinite switch shaft to turn a surface element on/off and select heat levels. A fresh knob restores clear, positive control when the original is cracked, stripped, or missing. What it does:

• Interfaces with the infinite switch to control a surface element's power level
• Enables smooth on/off operation and precise heat selection
• Helps resolve issues like a loose or falling-off knob, difficulty turning the control, or inability to set temperature
• Refreshes worn or damaged control surfaces for easier readability and use

• 1 control knob

• Disconnect power at the breaker before servicing
• Pull the old knob straight off the switch shaft—do not pry against the panel
• Align the new knob with the shaft and push straight on until fully seated
• Reconnect power and verify proper burner operation through all settings

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This carton cover thermostat senses temperature in the refrigerator carton/cover area and signals the appliance control system so temperature-related components operate correctly. It helps maintain proper temperature response for defrost and ice-related functions. What it does

• Detects temperature at the carton/cover location and provides an electrical signal to the control system.
• Helps ensure timely activation/deactivation of temperature-dependent systems (defrost, ice-making components).
• Commonly replaced when temperature-related functions are inconsistent or intermittent.
• Can restore normal cycling when a failed thermostat causes improper temperature readings.

• One carton cover thermostat.

• Disconnect power to the appliance before beginning work to avoid electrical shock.
• Verify exact wiring and terminal locations against the appliance service sheet; confirm continuity before and after replacement.
• Replace only with correct OEM-designated thermostat and secure in the original clip or mounting location.

This capillary clip secures the oven thermostat's sensing bulb/capillary to the cavity wall so it stays correctly positioned for accurate temperature control. Replace a missing or damaged clip to prevent a sagging bulb and erratic oven performance.

• Holds the thermostat capillary tube/sensing bulb in place inside the oven
• Helps maintain consistent temperature regulation by keeping the bulb properly located
• Direct replacement for a broken, corroded, or missing clip
• Symptoms include a loose or dangling bulb, uneven baking, or temperature swings

• Disconnect power (and gas, if applicable) and allow the oven to cool completely
• Access the oven cavity; locate the thermostat sensing bulb and capillary along the wall or back panel
• Position the bulb/capillary and secure with the new clip; avoid kinking or crushing the tube
• Restore power, and test operation

This thermostat is the oven's temperature control. It senses cavity temperature and switches the heat on and off to maintain your set temperature, helping your range bake and roast more consistently.

• Regulates oven temperature by opening/closing electrical contacts to cycle heat
• Sensing bulb and capillary monitor oven temperature to track the setpoint
• Helps maintain steady cooking temperatures during baking and roasting
• May cause issues such as not reaching set temperature, overheating, wide temperature swings, or heat that won't shut off when it fails

• Disconnect electrical power before servicing; allow the oven to cool completely
• Remove the knob and access the control from the panel; note wire locations for reassembly
• Route the sensing bulb and capillary exactly as original; do not kink or sharply bend
• After reassembly, verify operation with an oven thermometer and proper cycling

Color: White. This is the left side end cover. For right side use WB07K10001.

Color: Whie. This is the right side end cover. For left side use WB07K10002.

This right-hand end plate is a direct-replacement body panel that restores proper support and alignment to the appliance's exterior components. It helps maintain a secure fit and appearance after damage or wear. What it does:

• Replaces a bent, cracked, or corroded right-side end plate to restore panel alignment
• Provides mounting/support for adjacent trim and components to prevent gaps or sagging
• Stops rattling or vibration caused by a loose or damaged end plate
• Helps maintain a finished exterior look and proper sealing where panels meet

• One right-hand end plate

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate hand tools; avoid overtightening fasteners to prevent panel distortion
• Handle edges carefully — panels and sheet metal can be sharp
• Test fit and align panels before fully tightening all screws

Color: White. Mounting screw for end caps.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Color: White. This is the left side end cap. For right side use WB07K10005.

Color: White. This is the right side end cap. For left side use WB07K10007.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Color: White. Mounting screw for end caps.

This Surface Heating Element is an OEM replacement part for GE ranges. It is responsible for generating heat on the stovetop surface, allowing you to cook or heat food in pots or pans. The range surface heating element is located on the cooktop, beneath the burner bowl or drip pan.

Causes of a bad surface heating element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface heating element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

This part fixes the following symptoms:

• Insufficient or no heat produced by the burner
• Uneven heat distribution across the element
• Visible damage or signs of wear, such as cracks or breaks, on the heating element
• Sparks or electrical arcing occurring during use

The GE 6-inch range surface heating element can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Large Surface Element is an OEM part for GE ranges and cooktops. This part provides the heat needed for cooking on the range's surface. This large element ensures even heat distribution and consistent cooking temperatures, making it ideal for boiling, frying, and other high-heat cooking methods.

Over time, surface elements can burn out or become less efficient, leading to uneven cooking or failure to heat up at all. This can be due to a variety of reasons, including prolonged use, overheating, or physical damage.

Symptoms of a bad Large Surface Element include:

• The element does not heat up
• It heats unevenly or only partially
• Visible damage to the element, such as blistering or cracks
• The element takes longer than usual to heat up

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

The Element Receptacle and Wire Kit is an OEM part for GE ranges and ovens. It serves as a crucial component in connecting the heating element to the power source, ensuring that electricity can flow to the element for heating.

This kit typically includes a receptacle, wires, and possibly other connectors or hardware needed for installation. Proper connection via this kit is essential for the heating element to function correctly and efficiently.

Symptoms of a bad Element Receptacle and Wire Kit include:

• Heating element not heating properly or at all
• Burn marks or corrosion on the receptacle
• Visible damage or wear on the wires
• Intermittent heating, indicating a loose connection

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
