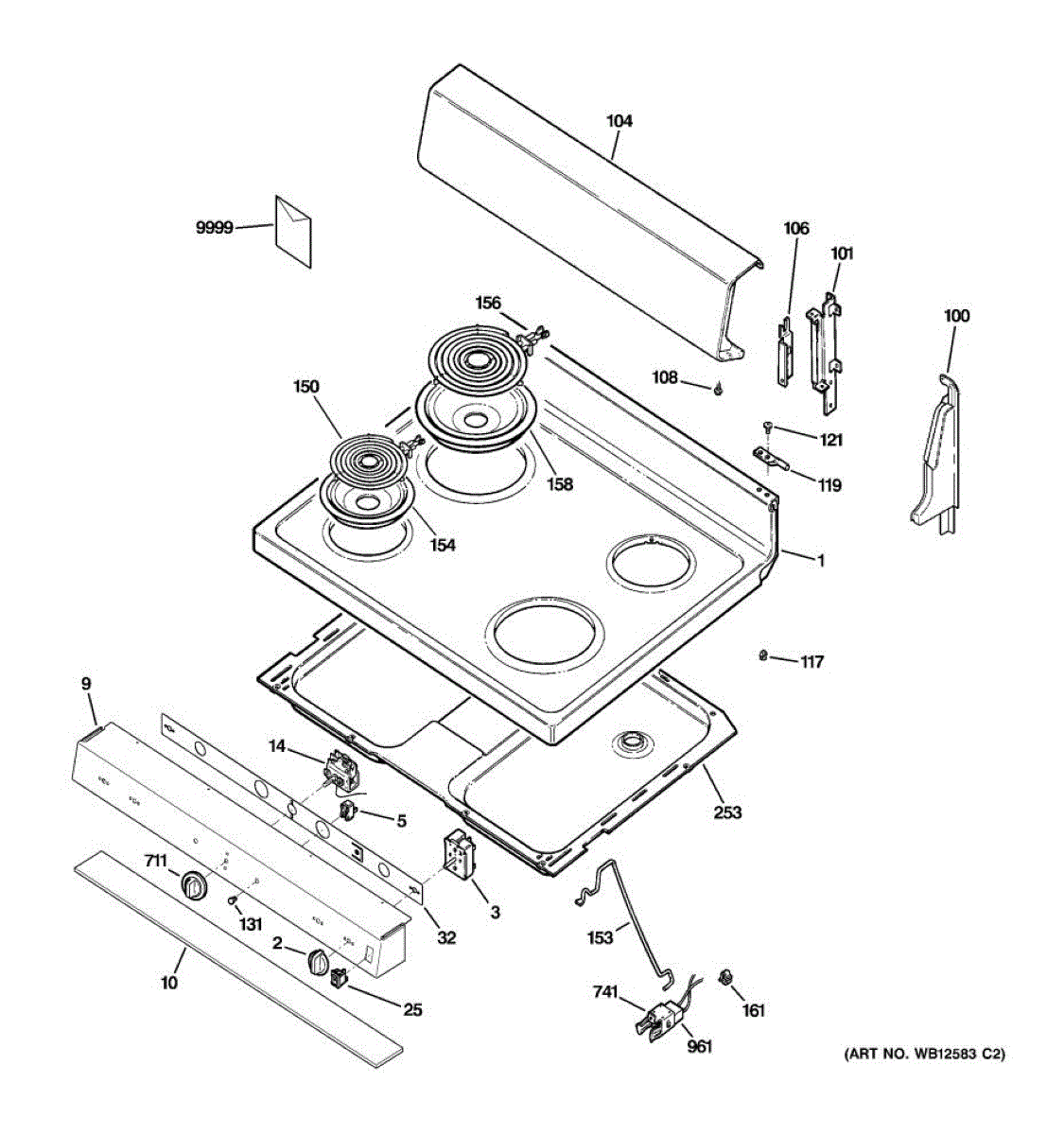

Parts for Ge JBS15H1WW: 01 - Control Panel & Cooktop Parts

White metal cooktop panel for electric ranges. Replaces chipped, cracked, marred, or discolored main tops. Direct fit surface component for your range.

White control knob for electric range top burners. Replaces lost, cracked, or broken knobs. Installs on the control panel to operate surface heating elements.

6" element switch

Burner stuck on high or not heating? This infinite switch regulates cooktop burner power. Typical DIY repair takes about 30 minutes with basic tools.

Fixes burner stuck on high or no heat issues. This infinite switch regulates cooktop element temperature by cycling power on and off. Simple replacement.

Burner won't stay at set temperature or jumps to high? The infinite switch controls power to heating elements. Easy DIY repair, takes under 30 minutes.

Indicator light that illuminates when burners or oven are active. Replace if it stays on constantly or fails to light. Verify fit with your model number.

Protective cover that houses the temperature-sensing thermostat on your electric range. Replace if cracked, broken, or missing to protect internal components.

This thermostat is the oven's temperature control. It senses cavity temperature and switches the heat on and off to maintain your set temperature, helping your range bake and roast more consistently.

• Regulates oven temperature by opening/closing electrical contacts to cycle heat
• Sensing bulb and capillary monitor oven temperature to track the setpoint
• Helps maintain steady cooking temperatures during baking and roasting
• May cause issues such as not reaching set temperature, overheating, wide temperature swings, or heat that won't shut off when it fails

• Disconnect electrical power before servicing; allow the oven to cool completely
• Remove the knob and access the control from the panel; note wire locations for reassembly
• Route the sensing bulb and capillary exactly as original; do not kink or sharply bend
• After reassembly, verify operation with an oven thermometer and proper cycling

Oven light switch.

White left-hand range end support cap. Replaces cracked, broken, or missing endcaps on electric and gas ranges. Installs on side panel edge.

Color: White. Right Hand side

Right hand side

Left hand side

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Color: White. Mounting screw for end caps.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Stovetop burner not heating? This surface heating element generates heat for cooking. Simple plug-in replacement—pull out old, plug in new.

Support rod that props up the lift-up top on your range. Holds the top panel securely in the raised position for cleaning or servicing. Replace if bent or missing.

Replacement 6-inch drip pan installs under small burner element on electric ranges. Replaces cracked, burnt, rusted, or worn bowls. Easy DIY install.

Burner not heating or intermittently going out? This large surface element restores consistent cooking heat. Simple 5-minute DIY replacement. Video included.

Replace your cracked, rusted, or stained 8-inch range drip pan. Installs under the large burner to catch spills and protect your cooktop surface.

Secures wiring harness to prevent rubbing and loose connections. Replace if worn or broken to restore proper wire routing. Confirm fit with your model.

Burner not heating? Replace the element receptacle and wire kit. Fixes burned or broken receptacles causing inoperative burners. DIY-friendly repair.

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.
