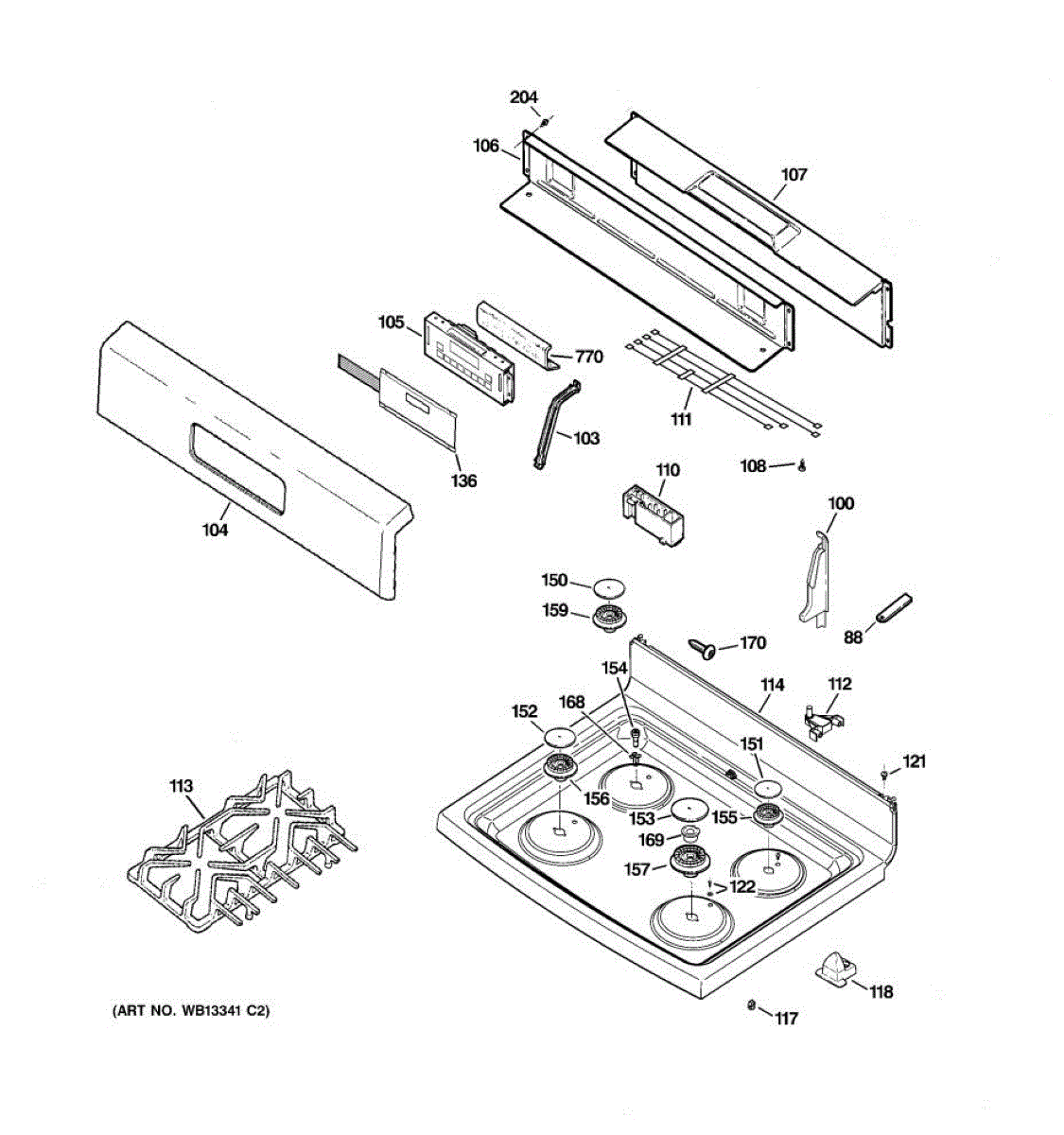

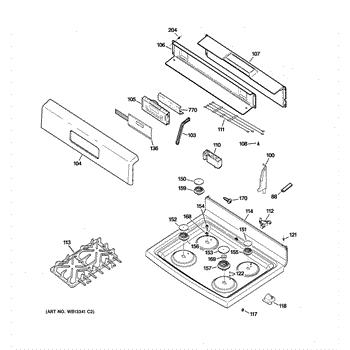

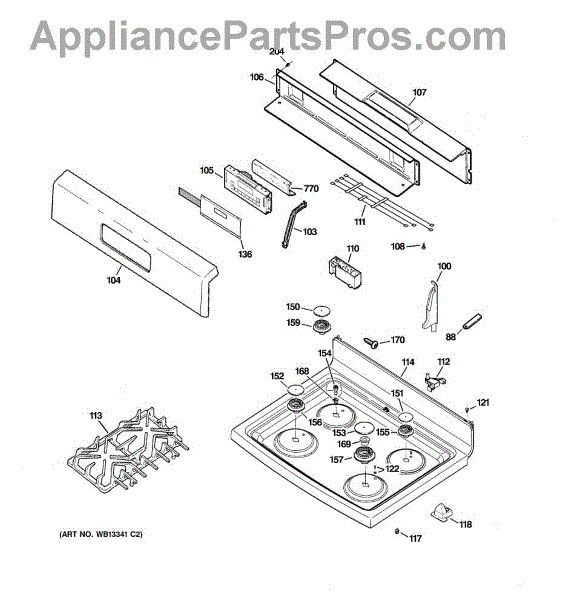

Parts for Ge JGBP83WEJ2WW: 02 - Control Panel & Cooktop Parts

Color: White.

This genuine replacement part is a GE range oven control board. The oven control board is the main circuit board that controls the ovens' essential functions. If the oven isn't heating properly, not turning on, or showing an error code on the digital display, it might be time to replace the control board. Replacing a control board may seem like a difficult task, but it is a relatively simple process. First, unplug the power to the stove. Move the appliance back to gain access to the back. Remove the upper back panel, and locate the control board. Take note of the order of the wires using a phone camera. Then detach the wire harness from the old control board. Remove any individual wires with needle-nose pliers. Then reattach the wires to the new control board in the correct terminals. Snap the new control board into place and reinstall the upper back panel of the range.This OEM part is compatible with GE, Hotpoint, and RCA range ovens.

Size: 8 - 18 ab hxw 5/8 s

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

This high-voltage spark ignition harness carries the spark module's output to the burner igniters so your gas burners light reliably. Replace a cracked, shorted, or burned harness to restore consistent ignition and reduce misfires or arcing.

• Distributes high-voltage pulses from the spark module to the burner igniters
• Insulated leads help prevent arcing, cross-firing, and shorts to chassis
• Failure symptoms can include no or weak spark on multiple burners, intermittent lighting, or visible burn/arc marks on the wiring
• Useful when the spark module and igniters test good but ignition remains unreliable

• Disconnect power and shut off gas before servicing; high voltage is present during operation
• Note original routing; keep wires away from sharp edges, moving parts, and hot surfaces
• Seat boots/connectors fully on the spark module and igniters; avoid kinking or stretching leads
• After installation, restore power and test spark at each burner before final reassembly

This part is grey in color.

This part is grey in color.

Color: White

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

Medium. Color: Grey. It measures about 3 inches in diameter.

Small. Color: Grey. It measures close to 3 inches in diameter.

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
