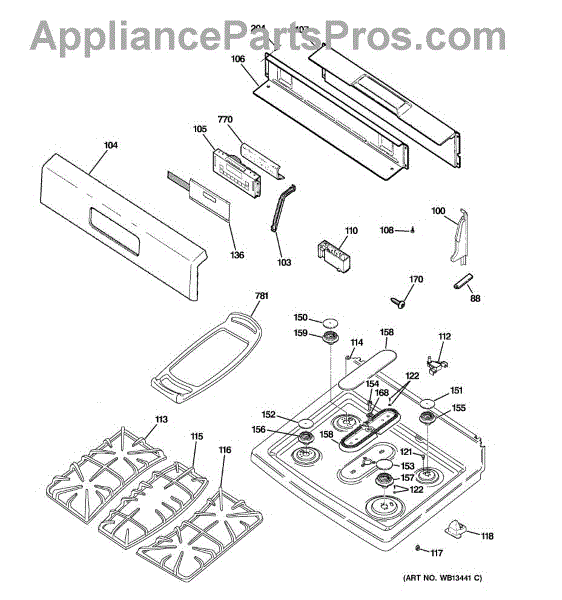

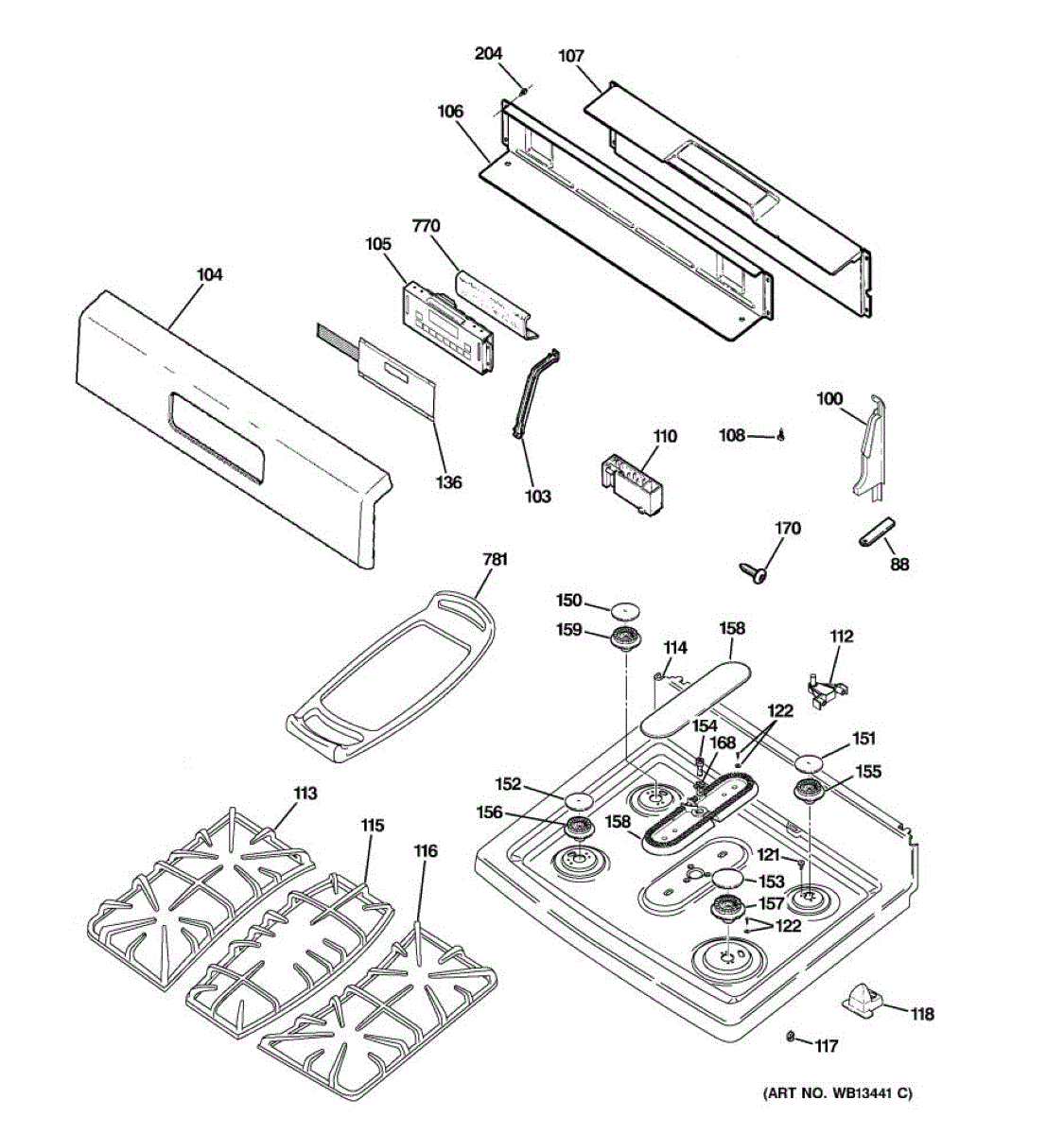

Parts for Ge JGBP88CEK1CC: 02 - Control Panel & Cooktop Parts

Color: White.

Color: Bisque

Size: 8 - 18 ab hxw 5/8 s

This high-voltage spark ignition harness carries the spark module's output to the burner igniters so your gas burners light reliably. Replace a cracked, shorted, or burned harness to restore consistent ignition and reduce misfires or arcing.

• Distributes high-voltage pulses from the spark module to the burner igniters
• Insulated leads help prevent arcing, cross-firing, and shorts to chassis
• Failure symptoms can include no or weak spark on multiple burners, intermittent lighting, or visible burn/arc marks on the wiring
• Useful when the spark module and igniters test good but ignition remains unreliable

• Disconnect power and shut off gas before servicing; high voltage is present during operation
• Note original routing; keep wires away from sharp edges, moving parts, and hot surfaces
• Seat boots/connectors fully on the spark module and igniters; avoid kinking or stretching leads
• After installation, restore power and test spark at each burner before final reassembly

Color: Bisque

A small M4 x 0.7 tapping machine screw used to fasten appliance panels and internal assemblies. Simple replacement that restores secure mounting for loose or rattling parts and helps maintain proper alignment. What it does

• Secures panels, brackets or small components in place
• Replaces stripped, missing or corroded screws that cause rattling or loose parts
• Matches OEM thread size and head type for correct fit in intended fastener locations
• Useful for reassembly after repairs or part replacements

• Use the correct-sized M4 driver or bit to avoid cam-out or head damage
• Thread into intended hole carefully; do not overtighten to avoid stripping threads
• Disconnect power and follow basic safety when accessing internal appliance components
• Replace all matching fasteners for even fit

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

The Griddle Assembly is an OEM part for GE ranges. This griddle is designed to fit over the burners, providing a flat and even cooking surface ideal for preparing foods like pancakes, eggs, and grilled sandwiches.

Causes of a bad griddle can include regular wear and tear, warping from high heat exposure, or physical damage from dropping or mishandling. A compromised griddle can lead to uneven cooking and potential safety hazards.

Symptoms of a bad griddle assembly include:

• Warping or bending of the griddle surface
• Uneven heating or hot spots during cooking
• Cracks or chips on the griddle
• Food sticking excessively despite proper maintenance

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
