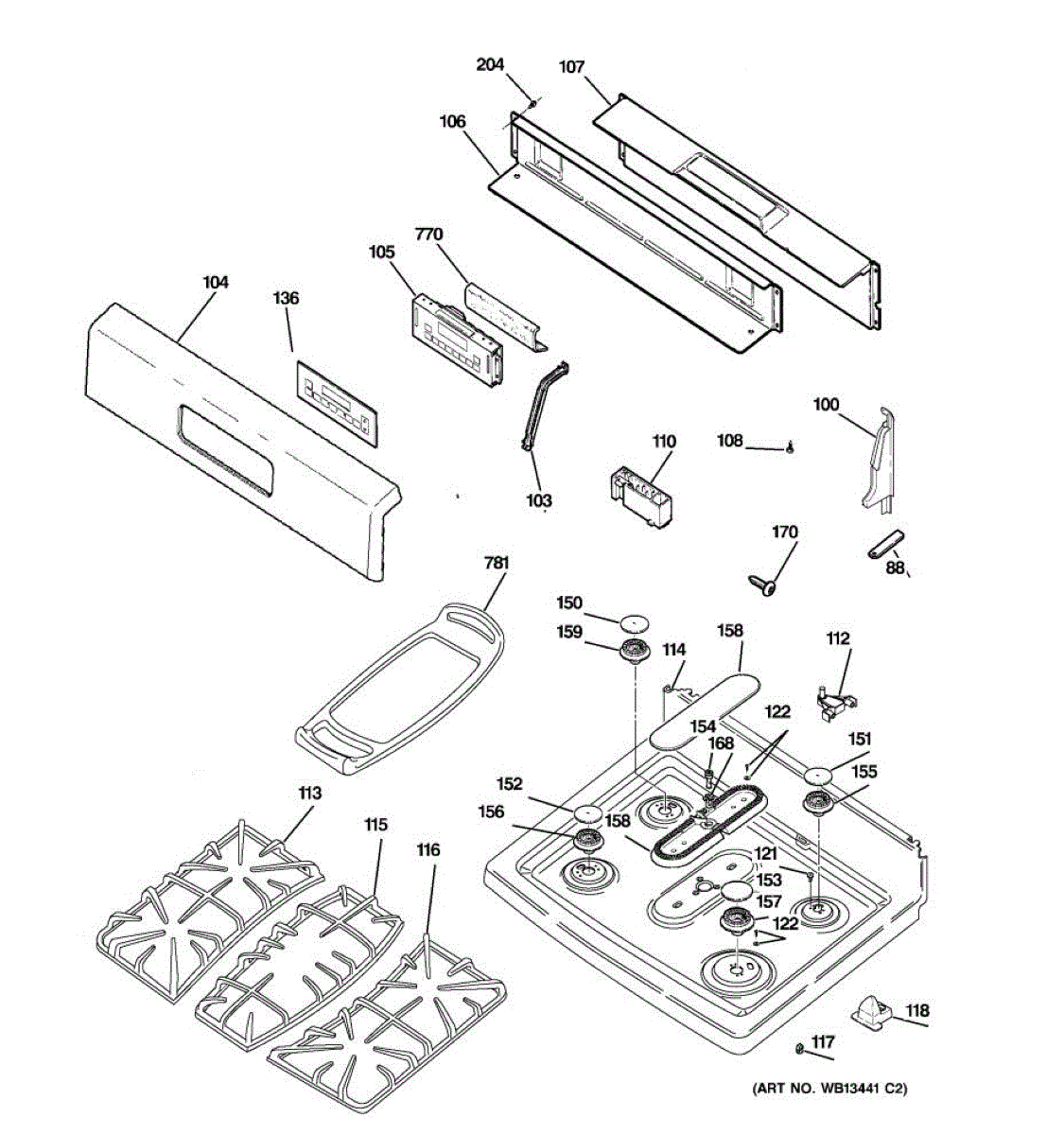

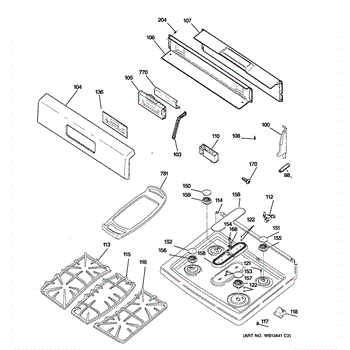

Parts for Ge JGBP88WEK4WW: 02 - Control Panel & Cooktop Parts

Color: White.

Color: White

This oven control is the electronic control board that manages bake, broil, timer and user interface functions so your range responds correctly to temperature and command inputs. Replaces a failed or unresponsive control assembly to restore normal oven operation. What it does:

• Regulates oven heating cycles and user-entered temperatures via the control board
• Controls bake, broil, timer and display functions on the oven console
• Can resolve symptoms like unresponsive touchpad, blank/erratic display, or failure to start bake/broil cycles
• Works as the main interface between user commands and oven heating components

• 1 oven control electronic control board assembly

• High-level replacement; disconnect power at the breaker before servicing
• Handle board and connectors carefully to avoid static or connector damage
• Retain all mounting hardware and connectors; reference your model's service manual for exact panel removal steps

Size: 8 - 18 ab hxw 5/8 s

This harness module is a factory-style wire harness assembly that routes power and control signals between the appliance control and service components, restoring reliable electrical connections and proper control operation. What it does

• Connects the main control board to heating elements, sensors, igniters or switches so commands and power reach working components
• Restores interrupted circuits caused by damaged or burned wires and faulty connector terminals
• Helps eliminate intermittent operation, unresponsive controls, or parts that fail to receive power
• Can resolve symptoms such as no-heat, burners/oven not responding, or error codes linked to open/shorted harness circuits

• Disconnect power to the appliance before servicing to avoid shock or damage
• Compare the harness to the old part and follow the appliance wiring diagram for correct routing and connector placement
• Inspect connector terminals and mating parts for damage before installation; replace any damaged clips or fasteners
• Secure the harness away from heat and moving parts and verify function before reassembling the appliance

The GE spark module kit is an OEM replacement part for GE stoves and ranges. It generates the spark needed to ignite the gas burners. The kit includes the spark module and associated wiring harness. When the burner control knob is turned to the "ignite" position, the spark module receives a signal and activates. It then produces an electrical spark that ignites the gas as it flows from the burner orifice, allowing the burner to light.

Over time, spark modules can fail due to electrical issues, wear and tear from frequent use, or exposure to moisture. A malfunctioning spark module can disrupt the ignition process, making it difficult to light the burners.

Symptoms of a bad spark module include:

• Burners not igniting
• No clicking sound when turning the burner knob
• Intermittent sparking
• Only some burners igniting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

A small M4 x 0.7 tapping machine screw used to fasten appliance panels and internal assemblies. Simple replacement that restores secure mounting for loose or rattling parts and helps maintain proper alignment. What it does

• Secures panels, brackets or small components in place
• Replaces stripped, missing or corroded screws that cause rattling or loose parts
• Matches OEM thread size and head type for correct fit in intended fastener locations
• Useful for reassembly after repairs or part replacements

• Use the correct-sized M4 driver or bit to avoid cam-out or head damage
• Thread into intended hole carefully; do not overtighten to avoid stripping threads
• Disconnect power and follow basic safety when accessing internal appliance components
• Replace all matching fasteners for even fit

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

Color: White

Small. Color: Grey. It measures close to 3 inches in diameter.

Medium. Color: Grey. It measures about 3 inches in diameter.

Color: White

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White. Mounting screw for end caps.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.

The Griddle Assembly is an OEM part for GE ranges. This griddle is designed to fit over the burners, providing a flat and even cooking surface ideal for preparing foods like pancakes, eggs, and grilled sandwiches.

Causes of a bad griddle can include regular wear and tear, warping from high heat exposure, or physical damage from dropping or mishandling. A compromised griddle can lead to uneven cooking and potential safety hazards.

Symptoms of a bad griddle assembly include:

• Warping or bending of the griddle surface
• Uneven heating or hot spots during cooking
• Cracks or chips on the griddle
• Food sticking excessively despite proper maintenance

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
