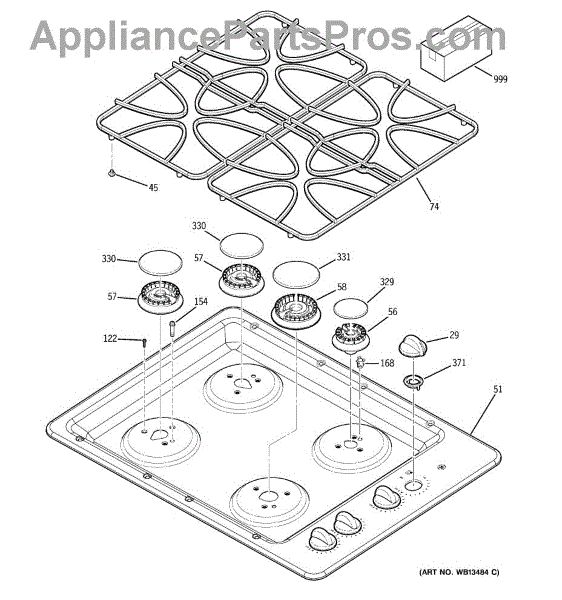

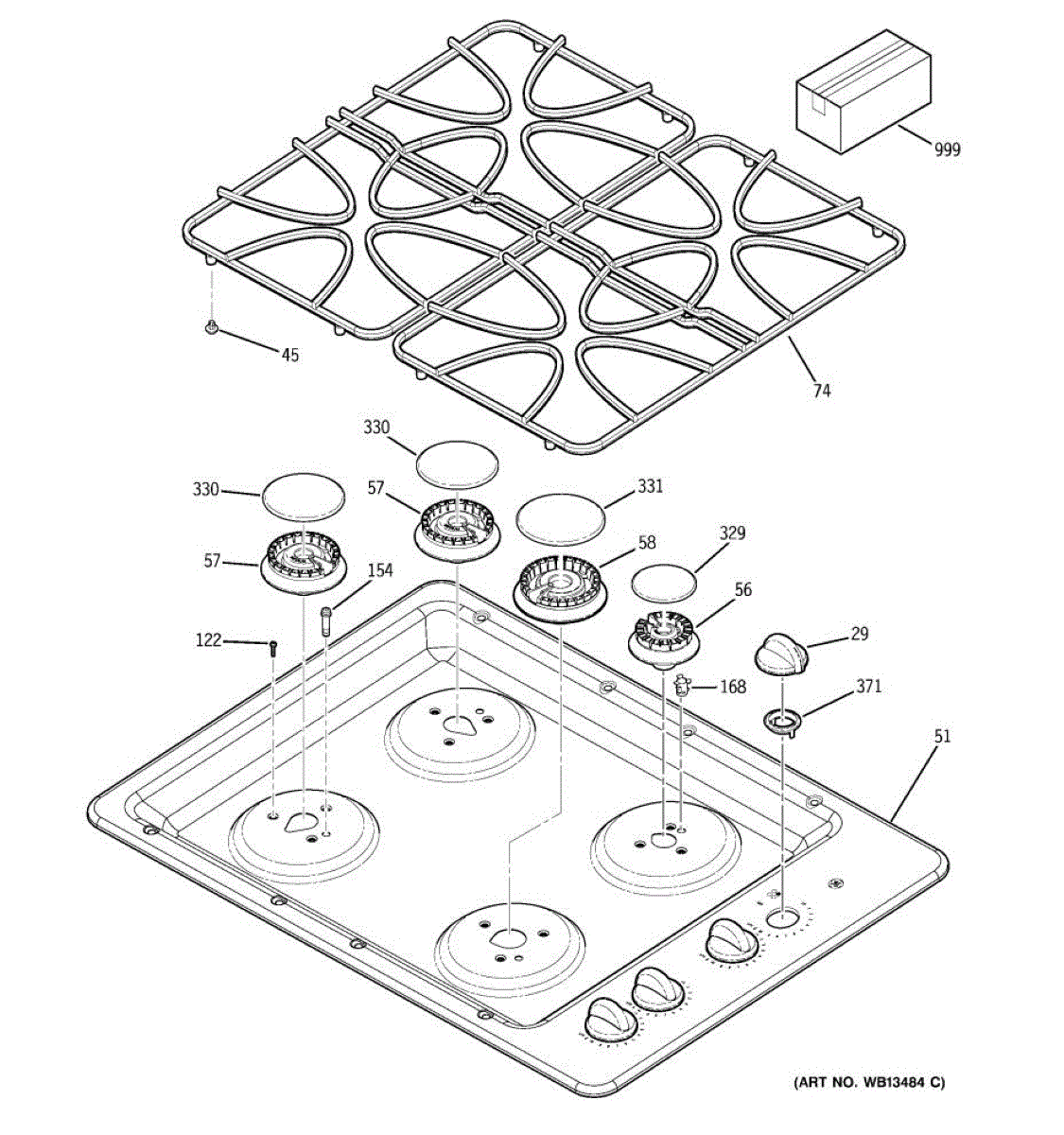

Parts for Ge JGP329DET1BB: 01 - Control Panel & Cooktop Parts

This control knob replaces a worn or broken range/stove control and restores a secure, easy-to-grip interface for setting burner or oven controls. It provides a direct fit for the original control shaft so you can safely adjust heat settings. What it does

• Replaces a damaged, cracked, or missing control knob so you can turn burners or oven functions.
• Restores a secure fit when original knob is loose or slips on the control shaft.
• Makes temperature and function adjustments easier when the original markings or grip are worn.
• Helps prevent accidental changes by providing proper tactile feedback and alignment.

• One control knob

• Disconnect power to the appliance before removing or installing controls to avoid electrical shock.
• Pull the old knob straight off the control shaft; align the replacement splines and push the new knob on until it seats.
• If the knob is tight to install, do not force—inspect the control shaft and knob splines for damage or debris.
• If ignition or control problems persist after knob replacement, diagnostic service of the switch or control assembly may be required.

This is a direct replacement control knob for your appliance. It restores a secure, accurate feel when turning the control after the original knob becomes cracked, stripped, loose, or goes missing. What it does:

• Attaches to the control shaft so you can turn and set the heat on the appliance
• Replaces knobs that are broken, cracked, stripped, loose, or missing
• Can help when the knob spins without engaging the stem or falls off
• Restores intended operation and tactile feedback of the control

• One control knob

• Disconnect power; for gas units, also shut off gas before servicing
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft shape and press straight on until fully seated
• Turn the control to verify smooth operation and proper engagement

Restore easy, precise control with this replacement control knob. It replaces a worn, cracked, or loose knob so you can confidently adjust your appliance's settings and get back to cooking without wobble or slip.

• Mounts on the control valve or switch shaft to select and adjust heat levels
• Replaces knobs that are cracked, stripped, loose, missing, or hard to read
• Helps when the knob won't stay on or spins without turning the shaft
• Restores original look and positive, secure feel during use

• Disconnect power and allow all surfaces to cool before servicing; if working near gas components, shut off the gas supply
• Pull the old knob straight off the shaft
• Align the new knob with the shaft shape/flat and push straight on until fully seated—do not force
• Test each control for smooth operation and proper alignment

The Knob is an OEM part for GE ranges and cooktops that allows for precise control over the appliance's heating elements, ensuring accurate temperature settings for cooking. Over time, knobs can become worn, cracked, or even break, making it difficult to adjust the settings on your range or cooktop.

Symptoms of a bad Knob include:

• Difficulty in turning the knob or adjusting the temperature setting.
• Physical damage, such as cracks or breaks.
• Faded or worn markings.

Causes of a bad knob can occur from accidental damage, such as dropping a heavy object on the knob, to natural wear and tear.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Bisque

Color: Stainless

This maintop graphics assembly replaces the printed cooktop overlay on a 30-inch range to restore control and indicator markings for safe, accurate operation. It refreshes worn or damaged graphics for clearer labeling on the cooktop surface. What it does:

• Replaces the printed graphics on the range maintop so controls and markings are visible and accurate
• Helps address worn, faded, scratched, or peeling graphics that make settings hard to read
• Restores factory labeling for burner locations, control functions, and safety icons
• Does not change mechanical or electrical components—provides a cosmetic/identification repair

• One maintop graphics assembly as shown

• Disconnect power (and gas if applicable) before starting any repair to avoid shock or gas hazards
• Handle the graphics assembly carefully to avoid scratching or creasing; align precisely before securing
• Installation may require removing burner grates, knobs, and the maintop; save fasteners for reassembly

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement burner grate assembly restores a stable, level cooking surface so your cookware sits securely over the burners. Replace a worn, cracked, or missing grate to improve safety and everyday cooking performance.

• Supports pots and pans at the correct height over the flame for consistent heating
• Keeps cookware stable to help prevent rocking or tipping
• Replaces damaged, warped, or broken grates that can compromise results
• Refreshes the cooktop's appearance after heavy wear or discoloration

• Allow the cooktop and old grate to cool completely before handling
• Lift off the old grate and clean the support area of spills or debris
• Set the new grate in place, aligning feet/locator tabs so it sits flat without wobble
• Avoid dropping or sliding the grate to prevent chipping or surface scratches

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control knob seal fits around the control shaft opening on your range or cooktop to close the gap under the knob. It helps block spills and debris from entering the control area and keeps the console looking clean and finished.

• Forms a barrier between the knob/valve shaft and the control surface
• Helps prevent liquids, crumbs, and grease from seeping into the control cavity
• Restores a tidy appearance; replaces cracked, shrunken, or missing seals
• Typical signs of wear: visible damage, gaps around the knob, or residue appearing beneath the panel after spills

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool
• Pull the knob straight off the shaft and remove the old seal
• Clean the area; seat the new seal flat around the shaft—avoid side pressure on the valve stem
• Reinstall the knob and verify smooth operation and proper seal seating

Replacement burner wire harness that restores the ignition wiring connection for a gas range surface burner, helping re-establish consistent sparking and reliable burner ignition for safe cooking operation. What it does:

• Provides the electrical connections between the burner igniter/spark electrode and the range's ignition module/control.
• Replaces damaged, cut, or frayed wiring that can cause no-spark, intermittent ignition, or continuous clicking at the burner.
• Routes and secures ignition wires to keep connections stable and reduce heat/rub-related failures.
• Helps the ignition system deliver consistent sparks so burners light reliably.

• Disconnect electrical power and shut off the gas supply before beginning any service.
• Compare the new harness to the original; transfer and reconnect terminals one-to-one and secure any routing clips or fasteners.
• Route wires away from hot surfaces and sharp edges; avoid stretching or pinching the harness.
