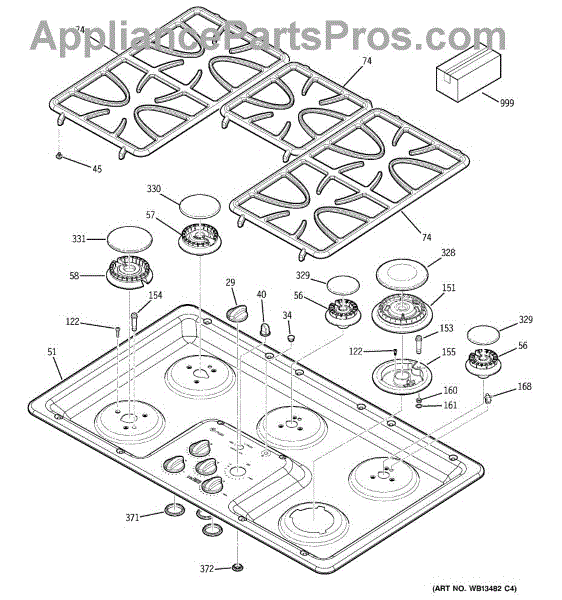

Parts for Ge JGP975CEK2CC: 01 - Control Panel & Cooktop Parts

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Specs: 8-32 MCH PNT15

This head burner main is the primary gas burner head used on compatible gas ranges to direct and distribute the flame for proper cooking. It replaces a damaged or corroded burner head to restore even heating performance. What it does:

• Directs gas to the cooktop for ignition and controlled flame distribution
• Helps maintain even heat across the cooking surface for consistent results
• Can resolve symptoms like uneven flame, visible damage, or poor ignition at the burner
• Works with the burner cap and valve assembly as part of the burner system

• Turn off gas supply and power to the appliance before starting any work
• Remove grates and burner caps to access the burner; follow OEM disassembly guidance
• Replace only with the exact part number to ensure proper fit and function

The Electrode Top is an OEM part for GE gas ranges. It is designed to produce the spark necessary to ignite the gas burner, ensuring the burner lights up quickly and efficiently.

You should replace the electrode top if it becomes worn out, damaged, or fails to produce a spark. Common causes of a bad electrode top include buildup of food debris, exposure to moisture, or physical damage to the electrode or its connections.

Symptoms of a bad Electrode Top include:

• The burner not igniting or taking a long time to ignite
• A weak or absent spark
• Clicking sounds without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

18K Simmer

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Small size. Color: Taupe, used for Bisque models. Measures about 2-1/2 inches in diameter.

Medium. Color: Taupe, used for Bisque models. It measures about 3 inches in diameter.

Color: Black

This burner wire harness connects the range/oven ignition system components so the burner safely receives the correct spark or hot-surface signal. It replaces a damaged or worn harness to restore reliable ignition performance. What it does:

• Routes electrical connections from the igniter/spark module to the burner assembly
• Enables ignition sparks or hot-surface signals to reach the burner for reliable lighting
• Can stop symptoms such as burners failing to light, erratic or intermittent ignition, or continuous clicking
• Helps prevent loose or shorted wiring that can cause ignition faults

• Disconnect electrical power and shut off gas supply before starting any repair
• Label or photograph original wiring locations to ensure correct reconnection
• Route the harness clear of direct heat and moving parts; secure with original clips or ties
